2011 Abarth 500 set clock

13
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
CONTROL BUTTONS fig. 15
+To scroll the displayed menu and the
related options upwards or to in-
crease the displayed value.
MENU ESCPress briefly to access the
menu and/or go to next
screen or to confirm the
required menu option.
Press longer to return to
the standard screen
–To scroll the displayed menu and the
related options downwards or to de-
crease the value displayed.NoteButtons
+and –activate different
functions according to the following situ-
ations:
– to scroll the menu options upwards and
downwards;
– to increase or decrease values during
settings.
NoteWhen opening one of the front
doors, the display will turn on and show
for a few seconds the clock and the km or
mi covered (for versions/markets, where
provided).
fig. 14
M E N UE S C
F0S014Ab
SETUP MENU
The menu comprises a series of functions
arranged in a cycle which can be selected
through buttons
+and –to access the dif-
ferent select operations and settings (set-
up) given in the following paragraphs. A sub-
menu is provided for some items (Clock
and Unit setting). The setup menu can be
activated by pressing briefly button MENU
ESC. Single presses on buttons +or –will
scroll the setup menu options. Handling
modes differ with each other according to
the characteristic of the option selected.
The menu includes the following functions:
– MENU
– DIMMER
– SPEED BEEP
– TRIP B DATA/TRIP B ACTIVATION
– SET TIME
– SET DATE
– SEE RADIO
– AUTOCLOSE
– UNIT
– LANGUAGE
– BUZZER VOLUME
– BUTTON VOL.
– SEAT BELT BUZZER/SEAT BELT BEEPING
– SERVICE
– PASSENGER BAG
– DAYLIGHTS
– GSI SHIFT UP
– EXIT MENU

16
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
Set time (Clock)
This function enables to set the clock
through two sub-menus: “Time” and
“Mode”.
Proceed as follows:
– briefly press button MENU
ESC, the
display will show the two sub-menus
“Time” and “Mode”;
– press button
+or –to navigate the two
sub-menus;
– select the required option and then
press button MENU
ESC;
– when accessing the “Time” submenu:
briefly press button MENU
ESC, “hours”
will flash on the display;
– press button
+or –for setting;
– briefly press button MENU
ESC, “min-
utes” will flash on the display;
– press button
+or –for setting.NoteThe setting will increase or decrease
by one unit each time
+or –is pressed.
Hold the button pressed to in-
crease/decrease the setting rapidly. Com-
plete the setting by briefly pressing the
button when you approach the required
setting.
– when accessing the “Format” submenu:
briefly press button MENU
ESC: the pre-
viously set display format will flash on the
display;
– press button
+or –to select “24h” or
“12h”.
When you have made the required set-
tings, briefly press button MENU
ESCto
go back to the menu screen or press the
button for long to go back to the standard
screen without storing settings.
– hold MENU
ESCpressed to go back to
the standard screen or main menu ac-
cording to the points of the menu where
you are at.Set date (Set Date)
This function enables to update the date
(day - month - year).
To correct the date proceed as follows:
– briefly press button MENU
ESC: “year”
will flash on the display;
– press button
+or –for setting;
– briefly press button MENU
ESC:
“month” will flash on the display;
– press button
+or –for setting;
– briefly press button MENU
ESC: “day”
will flash on the display;
– press button
+or –for setting.
NoteThe setting will increase or decrease
by one unit each time
+or –is pressed.
Hold the button pressed to in-
crease/decrease the setting rapidly. Com-
plete the setting by briefly pressing the
button when you approach the required
setting.
– briefly press button MENU
ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings.

43
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR

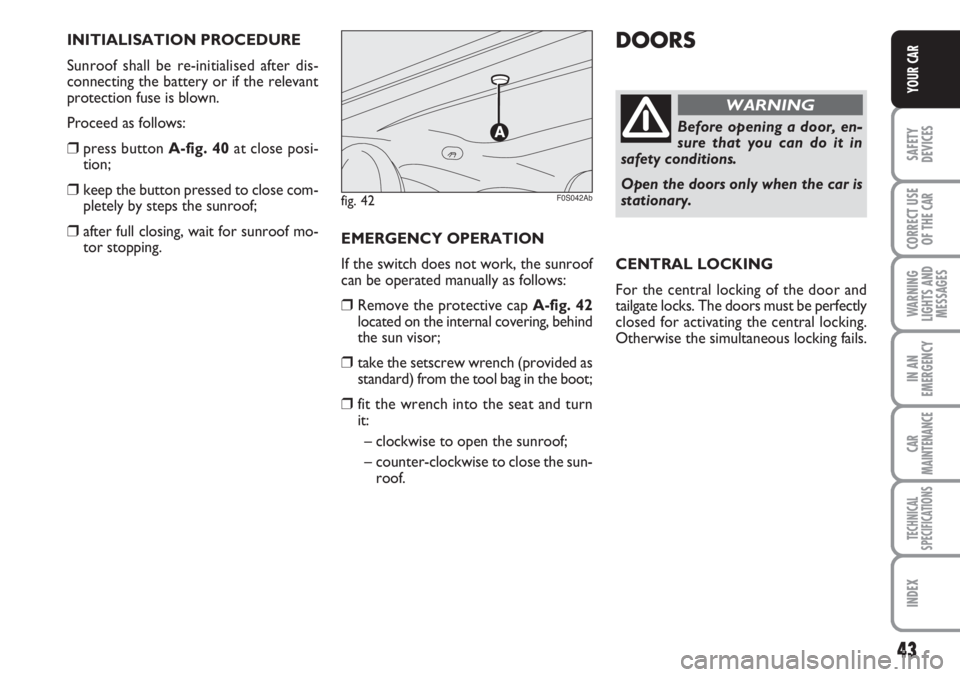

DOORS
Before opening a door, en-
sure that you can do it in
safety conditions.
Open the doors only when the car is
stationary.
WARNING
INITIALISATION PROCEDURE
Sunroof shall be re-initialised after dis-
connecting the battery or if the relevant
protection fuse is blown.
Proceed as follows:
❒press button A-fig. 40at close posi-
tion;
❒keep the button pressed to close com-
pletely by steps the sunroof;
❒after full closing, wait for sunroof mo-
tor stopping.EMERGENCY OPERATION
If the switch does not work, the sunroof
can be operated manually as follows:
❒Remove the protective cap A-fig. 42
located on the internal covering, behind
the sun visor;
❒take the setscrew wrench (provided as
standard) from the tool bag in the boot;
❒fit the wrench into the seat and turn
it:
– clockwise to open the sunroof;
– counter-clockwise to close the sun-
roof.
fig. 42F0S042Ab
CENTRAL LOCKING
For the central locking of the door and
tailgate locks. The doors must be perfectly
closed for activating the central locking.
Otherwise the simultaneous locking fails.
