Belt buzzer (Buzzer activation for
S.B.R. indication)
This function can be only displayed after
Abarth Dealership has deactivated the
S.B.R. system (see paragraph “S.B.R. sys-
tem” in section “Safety devices”).
Service
(Scheduled servicing)
Through this function it is possible to dis-
play information connected to proper car
servicing.
Proceed as follows:
– briefly press button MENU
ESC: ser-
vice in km or mi, according to previous
setting, will be displayed (see paragraph
“Units”);
– briefly press button MENU
ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen.NoteThe “Service Schedule” requires the
car to be serviced every 30,000 km (or
18,000 mi); this indication will appear au-
tomatically with the key on MARwhen
there are 2,000 km left (or equivalent dis-
tance in miles) and will be presented au-
tomatically every 200 km (or equivalent
distance in miles). The indications will ap-
pear more frequently where there are 200
km left. The indication will appear in kilo-
metres or miles according to the settings.
When the next scheduled service opera-
tion is approaching, the message “Service”
will appear on the display followed by the
number of kilometres or miles left when
the key is turned to MAR. Go to the
Abarth Dealership where the “Scheduled
Service” operations will be performed and
the message will be reset.Passenger bag
Front passenger’s airbag and
side bag activation/deactivation
(for versions/markets, where provided)
This function enables to acti-
vate/deactivate the front passenger’s air
bag.
Proceed as follows:
– press button MENU
ESCand, after dis-
playing the message (Bag pass: Off) (to dis-
able) or (Bag pass: On) (to enable) press-
ing buttons
+and –, press again button
MENU ESC;
- the confirmation request message will be
displayed;
- press buttons
+or –to select (Yes)
(confirming activation/deactivation) or
(No) (to abort);
- briefly press MENU
ESCto confirm set-
ting and go back to the menu screen or
press the button for long to go back to the
standard screen without storing settings.

63
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
SAFETY
DEVICES
SEAT BELTS ........................................................................... 64
S.B.R. SYSTEM ....................................................................... 64
PRETENSIONERS.................................................................. 65
CARRYING CHILDREN SAFELY...................................... 67
ASSEMBLY SETUP FOR ISOFIX CHILD SEAT ............. 71
FRONT AIRBAGS................................................................. 73
WINDOW BAGS................................................................ 75
S S
A A
F F
E E
T T
Y Y
D D
E E
V V
I I
C C
E E
S S

67
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
SAFETY
DEVICES
SEAT BELTS MAINTENANCE
Observe the following:
❒always use the belt with the tap taut and
never twisted; make sure that it is free
to run without impediments;
❒replace the belt after an accident of a
certain severity even if it does not ap-
pear damaged. Always replace the belt
if the pretensioners were deployed.
❒to clean the belt, wash by hand with wa-
ter and mild soap, rinse and leave to dry
in the shade. Do not use strong deter-
gents, bleach, paints or any other sub-
stance which could damage the belt fi-
bres;
❒keep the reels dry: correct operation
may only be ensured if the reels are dry;
❒replace the seat belt when showing sig-
nificant wear or cut signs.
CARRYING CHILDREN
SAFELY
For optimal protection in the event of a
crash, all passengers must be seated and
wearing adequate restraint systems.
This is even more important for children.
This prescription is compulsory in all EC
countries according to EC Directive
2003/20/EC.
A child’s head is larger and heavier in pro-
portion to his/her body and the child’s
muscular and bone structures are not ful-
ly developed.
For this reason, they require restraint sys-
tems which are different from those used
by adults to protect them in the event of
an accident.
The research results in relation to the best
protection for children is illustrated in Eu-
ropean Regulation ECE-R44 which divides
the restraint systems into five groups in
addition to making their use compulsory:
Group 0 - 0-10 kg in weight
Group 0+ - 0-13 kg in weight
Group 1 9-18 kg in weight
Group 2 15-25 kg in weight
Group 3 22 - 36 kg in weight
SEVERE DANGER: Do not
arrange child seats facing
backwards on the front seat
if the passenger’s airbag is
on. Deployment of the
airbag in an accident could
cause fatal injuries to the baby. It is
advisable to carry children on the rear
seat, which is the most protected po-
sition in the event of an accident.
Child seats must not be fitted on the
front seat of cars provided with pas-
senger air bag, whose deployment in
an accident could cause fatal injuries
to the baby. If necessary, children can
stay on the front seat, if the passen-
ger’s airbag can be disabled. Verify
that the airbag is actually deactivat-
ed, observing the warning light
Fon
the dashboard (see “Front airbag -
passenger side” at paragraph “Front
airbags”). Move the passenger’s seat
as far back as possible to avoid con-
tact between the cradle and the dash-
board.
WARNING

71
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
SAFETY
DEVICES
❒Only one child is to be strapped to each
retaining system.
❒Always check the seat belts do not fit
around the child’s throat.
❒While travelling, do not let the child sit
incorrectly or release the belts.
❒Never carry children on your lap, even
newborns. No-one can hold a child in
the case of an accident.
❒In case of an accident, replace the
child’s seat with a new one.
Do not arrange child seats on
the front seat in cars fitted
with passenger’s airbag. Children must
never travel on the front seat.
WARNING
The Lineaccessori Abarth includes the
Universal Isofix “Duo Plus” child seat.
For any further installation/use detail, re-
fer to the “Instructions Manual” of the
child seat.
ISOFIX CHILD
RESTRAINT
ASSEMBLY SETUP
This car is preset for mounting the Uni-
versal Isofix child restraint system, a new
European standardised system for carry-
ing children safely.
It is possible to mount at the same time
both the traditional restraint system and
Isofix one. An example of child seat is
shown in fig. 9. The Universal Isofix child’s
seat covers weight group: 1. The other
weight groups are covered by the specif-
ic Isofix child seat, which can be used on-
ly if specifically designed, tested and ho-
mologated for this car (see car list pro-
vided with the child seat).
Due to its different anchoring system, the
child’s seat shall be anchored to the prop-
er lower metal rings A-fig. 10, set be-
tween rear seat back and cushion. After
removing the rear shelf, secure the up-
per belt (provided with the child’s seat) to
ring B-fig. 11set between the rear back-
rest and the boot floor.
Remember that in case of Universal Isofix
child’s seat, you can only use all those
seats approved with the marking ECE
R44/03 “Universal Isofix”.
fig. 9F0S068Ab

73
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
SAFETY
DEVICES
AIRBAGS
The car is provided with front air bags for
the driver and the passenger, driver’s
knees air bag and side bags - window bags.
FRONT AIRBAGS
The front airbags (driver’s, passenger’s,
driver’s knees air bags) have been designed
to protect the occupants in the event of
head-on crashes of medium-high severity,
by placing the cushion between the occu-
pant and the steering wheel or dashboard.
Front air bags are designed to protect
car’s occupants in front crashes and there-
fore non-activation in other types of col-
lisions (side collisions, rear shunts, roll-
overs, etc.) is not a system malfunction.
An electronic control unit will make the
bag inflate in the event of a frontal crash.
The bag will inflate instantaneously placing
itself between the front occupant’s body
and the structures which could cause in-
jury. It will deflate immediately afterwards.
The front airbags (driver’s, passenger’s,
driver’s knees air bags) are not a replace-
ment of but complementary to the belts,
which you are recommended to always
wear, as specified by law in Europe and
most non-European countries.In the event of a collision, a person not
wearing a seat belt may be thrown forward
and come into contact with the bag before
it has fully opened. The protection offered
by the cushion is reduced in such a case.
Front air bags may not be activated in the
following situations:
❒in collisions against highly deformable
objects not affecting the car front sur-
face (e.g. bumper collision against guard
rail, etc.);
❒car penetration under other vehicles or
protective barriers (e.g. trucks or guard
rails);
they could not provide any additional pro-
tection compared with seat belts, so their
activation would be improper. No de-
ployment in such cases is consequently not
the sign of a fault.
Do not apply stickers or oth-
er objects on the steering
wheel, on the dashboard in the pas-
senger side airbag area, on side up-
holstery on roof and on the seats. Do
not place objects (e.g. cell phones) on
the passenger side dashboard because
these could interfere with the correct
opening of the airbag and cause se-
vere injury to occupants.
WARNING
The front airbags (driver’s, passenger’s,
driver’s knees air bags) are designed and
calibrated to protect the front seat pas-
sengers who wear the safety belts.
Their volume at the moment of maximum
inflation fills most space between the
steering wheel and the driver, between
the lower post guard and the knees on
passenger side and between the dash-
board and the passenger.
The airbags are not deployed in the event
of front collisions of low severity (for
which the withholding action of the seat
belts is sufficient). Safety belts must always
be used. In the event of frontal crash they
ensure the correct positioning of the oc-
cupant.

74
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
SAFETY
DEVICES
SEVERE DANGER: Do not
arrange child seats facing
backwards if the passenger’s
front airbag is on. Deploy-
ment of the airbag in an ac-
cident could cause fatal in-
juries to the baby. Always deactivate
the passenger’s airbag when placing
a child seat on the front seat. Move
the passenger’s seat as far back as
possible to avoid contact between the
cradle and the dashboard. Although
this is not mandatory by law, the
airbag should be immediately reacti-
vated when children are no longer
carried to ensure better protection to
adults.
WARNING

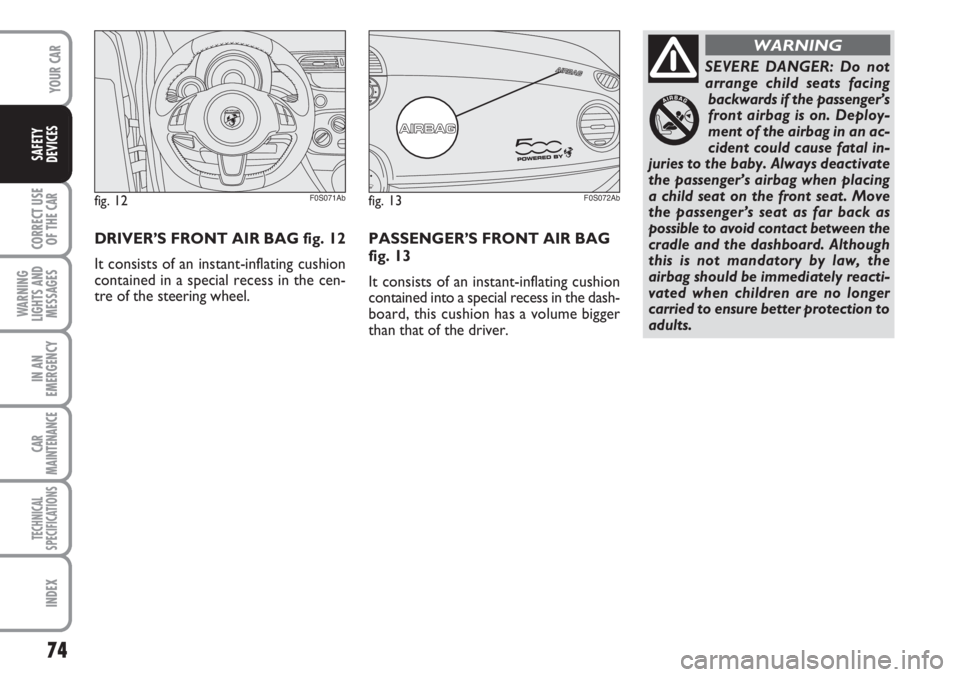

DRIVER’S FRONT AIR BAG fig. 12
It consists of an instant-inflating cushion
contained in a special recess in the cen-
tre of the steering wheel.
fig. 12F0S071Abfig. 13F0S072Ab
PASSENGER’S FRONT AIR BAG
fig. 13
It consists of an instant-inflating cushion
contained into a special recess in the dash-
board, this cushion has a volume bigger
than that of the driver.

76
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
SAFETY
DEVICES
Do not rest the head, the
arms or the elbows on the
door, on the windows and on the win-
dow bag area to avoid injuries dur-
ing inflation.
Never lean head, arms and elbows
out of window.
WARNINGWINDOW BAGS fig. 16
They consist of two “curtain” cushions
housed behind the side upholstery of the
roof and covered by specific finishing to
protect the head of the front passengers
in the event of side crash, thanks to their
wide surface.IMPORTANT The best protection in the
event of side crash is achieved maintaining
a correct position on the seat. This allows
the correct deployment of the window
bag.
IMPORTANT The front air bags and/or
side bags may be deployed also if the car
is subject to heavy knocks or accidents in-
volving the underbody area, such as vio-
lent shocks against steps, kerbs or low ob-
stacles, falling of the car in big holes or sags
in the road.
IMPORTANT A small amount of dust will
be released when the airbags are de-
ployed. The dust is not harmful and does
not indicate the beginning of a fire. Fur-
thermore, the surface of the deployed bag
and the interior of the car may be covered
in a dusty residue: this dust may irritate
the skin and the eyes. Wash with mild
soap and water in the event of exposure.
The expiration date of the explosive
charge and the clock wire are shown on a
specific label on the door edge. Refer to
the Abarth Dealership when it’s time to
replace them.
fig. 16F0S075Ab
fig. 15F0S074Ab
IMPORTANT If any safety device has ac-
tivated due to an accident, refer to the
Abarth Dealership to replace them and
check system integrity.
Every control, repair and replacement op-
erations concerning the air bags must on-
ly be carried out c/o Abarth Dealership. If
you are having the car scrapped, have the
air bag system deactivated at a Abarth
Dealership first. If the car changes own-
ership, the new owner must be informed
of the method of use of air bags and the
above warnings and also be given this
“Owner Handbook”.
IMPORTANT Pretensioners, front airbags
and side bags are deployed according to
different logics on the basis of the type of
collision. Non deployment of one of the
devices does not therefore indicate a sys-
tem fault.

77
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
SAFETY
DEVICES
GENERAL WARNINGS
If when turning the key to
MAR the warning light ¬does not turn on or if it stays on when
travelling (together with the message
on the multifunctional display, where
provided) there could be a failure in
safety systems; in this event air bags
or pretensioners may not be deployed
in case of impact or, in a minor num-
ber of cases, they may be deployed
accidentally. Contact Abarth Dealer-
ship immediately to have the system
checked before driving off.
WARNING
Do not cover the front seat
backrest with covers if a
Side-bag is fitted.
WARNING
Do not travel with objects in
your lap, in front of your
chest, or keeping between your lips
pipes, pencils, etc.. In the event of
crash with airbag activation, you may
be seriously injured.
WARNING
Always drive keeping your
hands on the steering wheel
crown so that, in the event of airbag
activation, it can inflate without find-
ing obstacles. Do not drive with your
body bent forward. Keep the backrest
in straight position, resting correctly
your back on it.
WARNINGWith ignition key inserted,
on MAR, even if the engine
is off, the air bags can activate also
with the car stopped, if it is hit by an-
other vehicle. For this reason, children
must never sit on the front seat, even
if the car is not moving. We remind
you that if the key is inserted on
STOP, no safety device (air bag or
pretensioner) activates following a
collision; no deployment in such cas-
es is consequently not the sign of a
fault.
WARNING
It someone tried to steal or
damage your car, and in the
event of floods, have the air bag sys-
tem checked by the Abarth Dealer-
ship.
WARNING
