RUBBER HOSES
As far as the brake system and fuel rubber
hoses are concerned, carefully follow the
“Service schedule” in this section.
Ozone, high temperatures and prolonged
lack of fluid in the system may cause hard-
ening and cracking of the hoses, with pos-
sible leaks. Careful inspections are there-
fore necessary.
❒a tyre will age even if it is not used
much. Cracks in the tread and on the
sidewalls are a sign of ageing. Have the
tyres checked by specialised personnel
if they have been fitted for longer than
6 years;
❒In the case of replacement, always fit
new tyres, avoiding those of dubious
origin;
❒If a tyre is changed, also change the in-
flation valve;
❒to allow even wear between the front
and rear tyres, it is advisable to change
them over every 10-15 thousand kilo-
metres, keeping them on the same side
of the car so as not to reverse the di-
rection of rotation.
Remember that the road
holding qualities of your car
also depends on the correct inflation
pressure of the tyres.
WARNING
If the pressure is too low the
tyre will get overheated, with
the risk of serious damages.
WARNING
Avoid moving the tyres from
the right side of the vehicle
to the left side and vice versa.
WARNING
Do not repaint alloy wheel
rims at temperatures higher
than 150°C. The mechanical charac-
teristics of the wheels might be dis-
rupted.
WARNING

155
WARNING
LIGHTS AND
MESSAGES
INDEX
YOU CAR
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
According to
Service Schedule

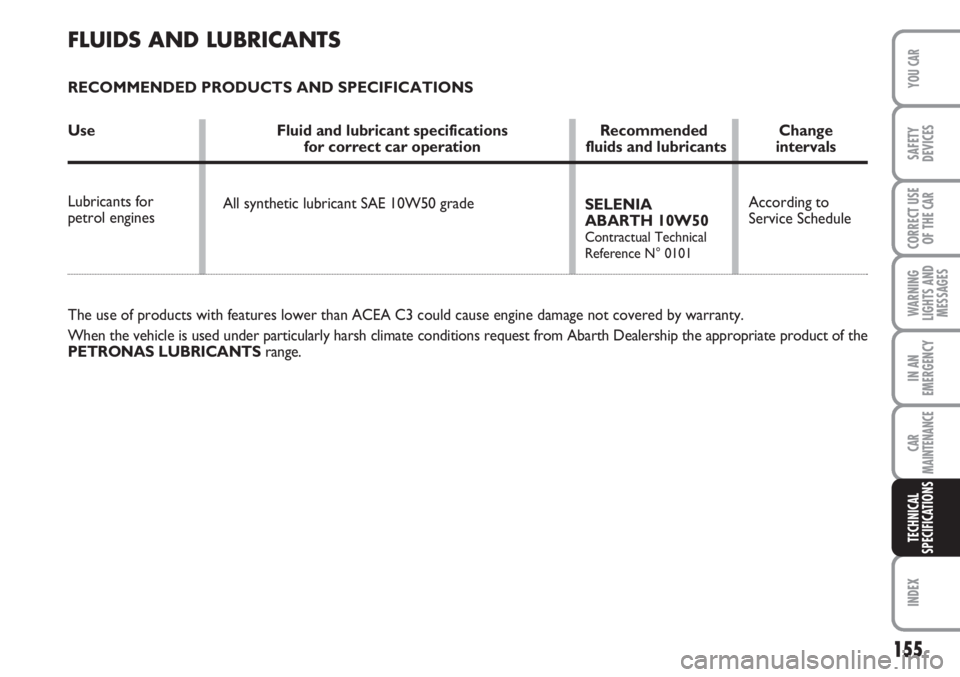

FLUIDS AND LUBRICANTS
RECOMMENDED PRODUCTS AND SPECIFICATIONS
Use Fluid and lubricant specifications Recommended Change
for correct car operation fluids and lubricants intervals
Lubricants for
petrol engines
The use of products with features lower than ACEA C3 could cause engine damage not covered by warranty.
When the vehicle is used under particularly harsh climate conditions request from Abarth Dealership the appropriate product of the
PETRONAS LUBRICANTSrange.SELENIA
ABARTH 10W50
Contractual Technical
Reference N° 0101
All synthetic lubricant SAE 10W50 grade

160
WARNING
LIGHTS AND
MESSAGES
YOUR CAR
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
INDEX
Boot light .............................................. 46
– bulb replacement .......................... 115
Boot ........................................................ 46
– opening ........................................... 46
– closing ............................................. 47
– extension ........................................ 48
Brake fluid level ................................... 131
Brakes..................................................... 147
– specifications ................................. 147
– brake fluid level ............................. 131
Capacities ............................................ 154
Car maintenance and care ................ 123
– scheduled servicing ...................... 127
– service schedule ........................... 124
– scheduled maintenance plan ...... 125
– heavy-duty use of the car ........... 127
Carrying children in safety ................ 67
Ceiling light .......................................... 36
– activation ........................................ 36
– bulb replacement .......................... 114
Ceiling light .......................................... 36
– front ................................................ 36
– boot compartment ....................... 46
Central storage compartment .........40
Chassis marking ................................ 143
Checking fluid levels ........................... 128Child seats
(compliance for use) .................. 70-72
Cigar lighter ......................................... 39
Climatic comfort ................................ 27
– ventilation ...................................... 27
Clutch ................................................... 146
CO
2emissions .................................... 158
Code card ............................................ 5
Consumptions ..................................... 157
– fuel ................................................... 157
– motor oil ........................................ 139
Controls ............................................... 37
Cup holders ......................................... 40
Current outlet ..................................... 41
Dashboard .......................................... 3
Daytime lights ....................................... 34
– activation......................................... 34
– bulb replacement ........................... 113
Dimensions .......................................... 151
Dipped beam headlights .................... 34
– activation ........................................ 34
– bulb replacement .......................... 112
Direction indicators ........................... 34
– activation ........................................ 34
– front bulb replacement ............... 111
– side bulb replacement ................. 112
ABS System ........................................ 53
Accessories purchased by
the owner .......................................... 60
Air filter ................................................ 132
Air recycle ..................................28-29-31
Air vents ............................................... 27
Airbag .................................................... 73
– driver's front airbag....................... 74
– front airbag passenger side .......... 74
– driver's knee-level airbag ............. 75
– Side bag-Window bag ............ 75-76
ASR ......................................................... 56
Automatic climate control system 31
Battery.................................................. 132
– jump starting with battery .......... 96
– useful advice .................................. 133
– inspecting the charge ................ 132
– battery charger ............................. 121
– replacement ................................... 132
Bodywork .............................................. 137
– version codes ................................ 144
– warranty ......................................... 138
– maintenance .................................. 138
– protection ...................................... 137
Bonnet .................................................. 49
Boot extension .................................... 48
