Familiarisation

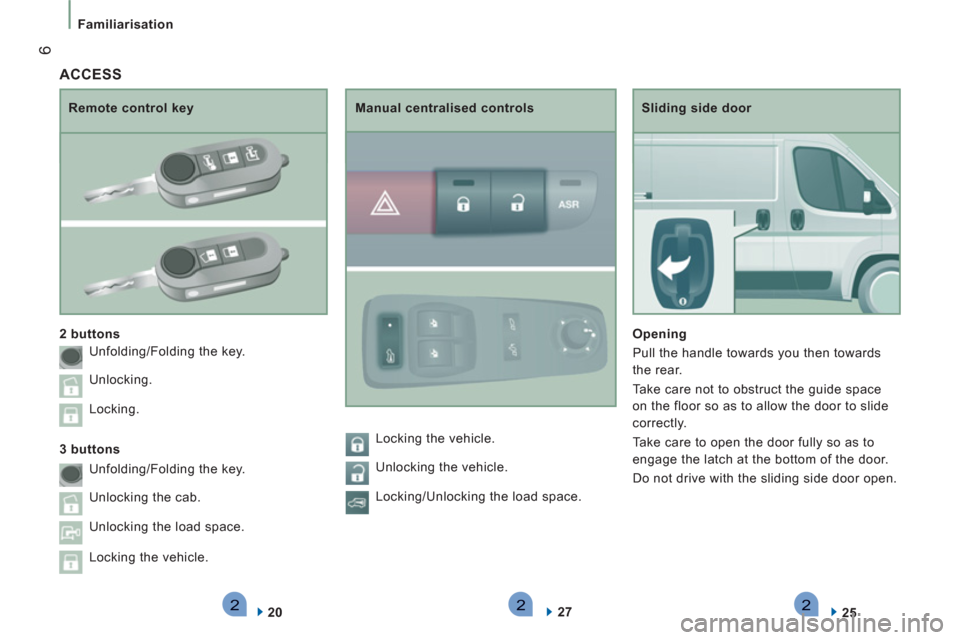

Sliding side door

Opening
Pull the handle towards you then towards
the rear.
Take care not to obstruct the guide space
on the floor so as to allow the door to slide
correctly.
Take care to open the door fully so as to
engage the latch at the bottom of the door.
Do not drive with the sliding side door open.

25


Remote control key

2 buttons

20

Manual centralised controls

27


ACCESS


3 buttons Unfolding/Folding the key.
Unlocking.
Locking.
Unfolding/Folding the key.
Unlocking the cab.
Unlocking the load space.
Locking the vehicle. Locking the vehicle.
Unlocking the vehicle.
Locking/Unlocking the load space.

221
FAMILIARISATION
15
Familiarisation

Reversing camera
The camera comes on when you engage
reverse gear and remains active up to
approximately 9 mph (15 km/h). It is
deactivated above 11 mph (18 km/h).

79

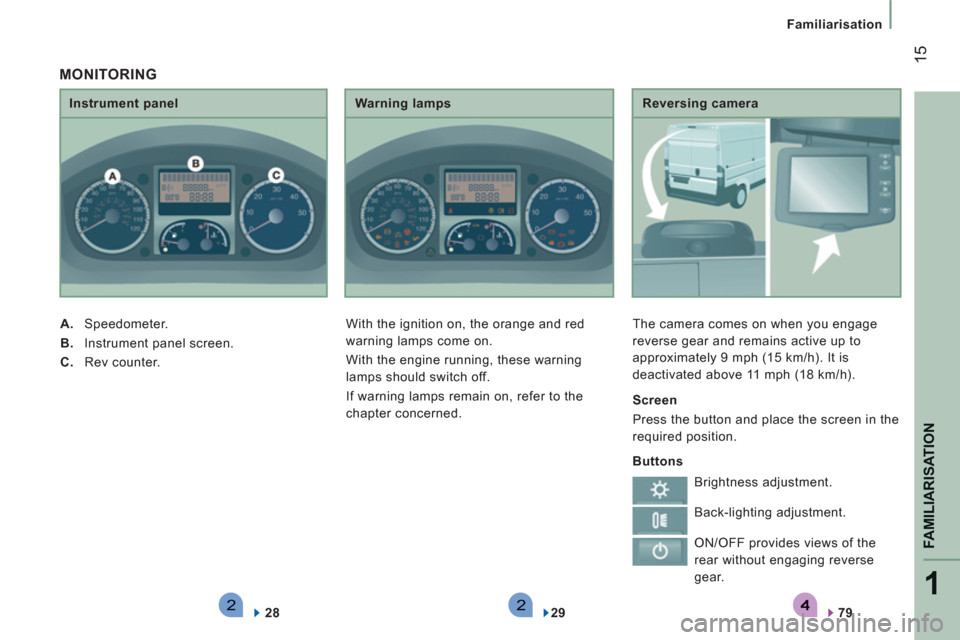

Instrument panel


A.
Speedometer.

B.
Instrument panel screen.

C.
Rev counter.

28

Warning lamps
With the ignition on, the orange and red
warning lamps come on.
With the engine running, these warning
lamps should switch off.
If warning lamps remain on, refer to the
chapter concerned.

29


MONITORING


Buttons
Brightness adjustment.
Screen
Press the button and place the screen in the
required position.
Back-lighting adjustment.
ON/OFF provides views of the
rear without engaging reverse
gear.

54

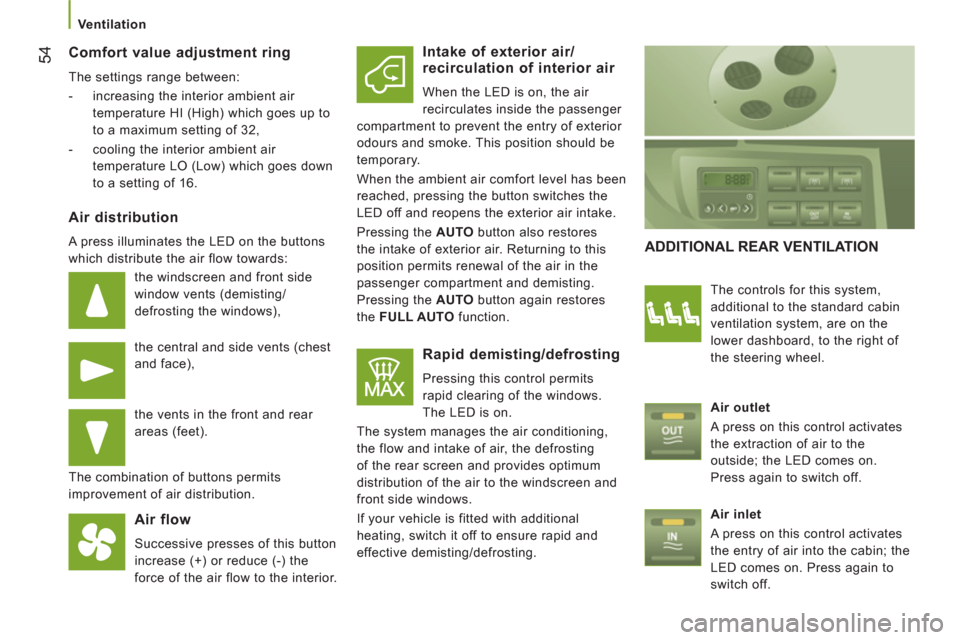

Ventilation


Comfort value adjustment ring

The settings range between:


- increasing the interior ambient air
temperature HI (High) which goes up to
to a maximum setting of 32,

- cooling the interior ambient air
temperature LO (Low) which goes down
to a setting of 16.



Air distribution

A press illuminates the LED on the buttons
which distribute the air flow towards:
the windscreen and front side
window vents (demisting/
defrosting the windows),
the central and side vents (chest
and face),
the vents in the front and rear
areas (feet).
The combination of buttons permits
improvement of air distribution.


Air flow

Successive presses of this button
increase (+) or reduce (-) the
force of the air flow to the interior.
Intake of exterior air/recirculation of interior air

When the LED is on, the air
recirculates inside the passenger
compartment to prevent the entry of exterior
odours and smoke. This position should be
temporary.
When the ambient air comfort level has been
reached, pressing the button switches the
LED off and reopens the exterior air intake.
Pressing the AUTO
button also restores
the intake of exterior air. Returning to this
position permits renewal of the air in the
passenger compartment and demisting.
Pressing the AUTO
button again restores
the FULL AUTO
function.
Rapid demisting/defrosting

Pressing this control permits
rapid clearing of the windows.
The LED is on.
The system manages the air conditioning,
the flow and intake of air, the defrosting
of the rear screen and provides optimum
distribution of the air to the windscreen and
front side windows.
If your vehicle is fitted with additional
heating, switch it off to ensure rapid and
effective demisting/defrosting.

ADDITIONAL REAR VENTILATION


The controls for this system,
additional to the standard cabin
ventilation system, are on the
lower dashboard, to the right of
the steering wheel.

Air outlet
A press on this control activates
the extraction of air to the
outside; the LED comes on.
Press again to switch off.

Air inlet
A press on this control activates
the entry of air into the cabin; the
LED comes on. Press again to
switch off.

3
EASE OF USE AND COMFOR
T
Ventilation
PROGRAMMABLE ADDITIONAL HEATING
If your vehicle is fitted with separate
programmable heating: it gradually brings
the engine up to a good temperature to
facilitate starting. An integrated clock permits programming of
its start time. The passenger compartment
will be heated more quickly. Heating cycle indicator lamp

Digital programming control

The programmable heating system control
panel is located at the bottom right of the
dashboard. Display on
Displaying the programme
number selected
Time display button
Time setting buttons
Selection of the stored
programme
Button for immediate switching
on of the heating
Time setting and reading
indicator lamp

58

Ventilation


Setting the time of the internal clock

Set the clock on the control panel before
programming the deferred switching on of
the heating.
Immediate switching on of the heating
Before switching on the heating, check that:


- the temperature setting control is in the
"Hot air" position (red).

- the air flow setting control is in
position 2. This symbol or the previous stored time
and the number (e.g. 1) corresponding to
the recalled pre-selection are displayed for
ten seconds.

Note:
if you wish to recall the other pre-
selected times, press the SET button several
times before the ten seconds have elapsed. Press this button.
The screen and the associated
indicator lamp come on.
Within ten seconds, press these two setting
buttons until the correct time is displayed.
Press ">" to increase the hours or
"<" to decrease.
Press and hold the button for
more rapid scrolling of the digits.


Reading the time

Press this button.
This indicator lamp comes
on, the time is displayed for
approximately ten seconds. Press this button.
The screen and the heating
cycle indicator lamp come on
and remain on throughout the
duration of operation.
Switching on the deferred heating

Switching on can be programmed between
one minute and twenty-four hours in
advance.
You can store up to three different start
times, but programme one deferred start
only.

Note
:
if you wish to start the heating at a
fixed time each day, simply reprogramme
the stored time each day.
Press this button, the screen
becomes brighter. Within the ten seconds, press
these two setting buttons to
select the required start time.
Setting of the stored time
is confirmed by clearing of
the start time, display of the
pre-selection number (e.g. 1)
and increased brightness of the screen
illumination.

77
4
TECHNOLOGY ON BOARD

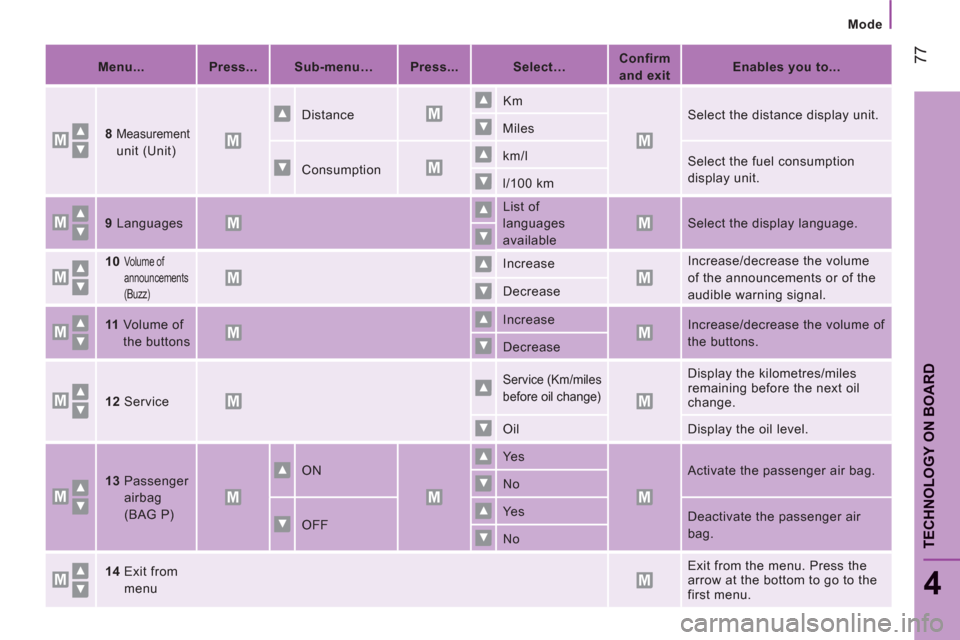

Mode


Menu...


Press...


Sub-menu…


Press...


Select…


Confirm
and exit


Enables you to...


8

Measurement
unit (Unit) Distance
Km
Select the distance display unit.
Miles
Consumption km/l
Select the fuel consumption
display unit.
l/100 km

9
Languages
List of
languages
available
Select the display language.

10

Volume of
announcements
(Buzz) Increase
Increase/decrease the volume
of the announcements or of the
audible warning signal. Decrease

11
Volume of
the buttons Increase
Increase/decrease the volume of
the buttons.
Decrease

12
Service


Service (Km/miles
before oil change)
Display the kilometres/miles
remaining before the next oil
change.
Oil Display the oil level.

13
Passenger
airbag
(BAG P) ON
Ye s
Activate the passenger air bag.
No
OFF Ye s
Deactivate the passenger air
bag.
No

14
Exit from
menu Exit from the menu. Press the
arrow at the bottom to go to the
first menu.

79
4
TECHNOLOGY ON BOARD

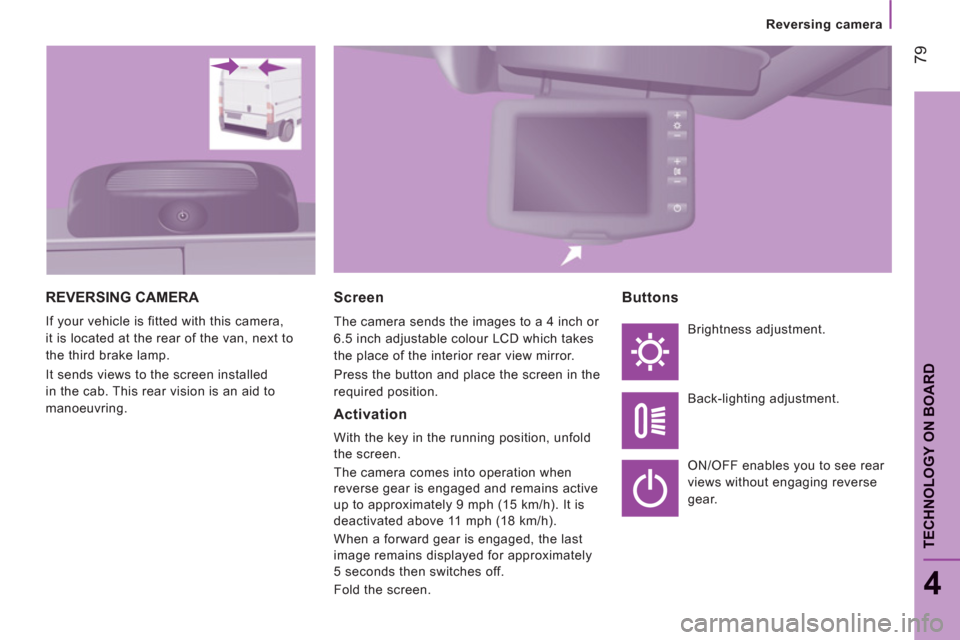

Reversing camera
REVERSING CAMERA
If your vehicle is fitted with this camera,
it is located at the rear of the van, next to
the third brake lamp.
It sends views to the screen installed
in the cab. This rear vision is an aid to
manoeuvring.

Screen

The camera sends the images to a 4 inch or
6.5 inch adjustable colour LCD which takes
the place of the interior rear view mirror.
Press the button and place the screen in the
required position.

Activation

With the key in the running position, unfold
the screen.
The camera comes into operation when
reverse gear is engaged and remains active
up to approximately 9 mph (15 km/h). It is
deactivated above 11 mph (18 km/h).
When a forward gear is engaged, the last
image remains displayed for approximately
5 seconds then switches off.
Fold the screen.
Buttons

Brightness adjustment.
Back-lighting adjustment.
ON/OFF enables you to see rear
views without engaging reverse
gear.

AM
FMAMMAS
FMAMAS
FM
D
AAMAS
86
RADIO

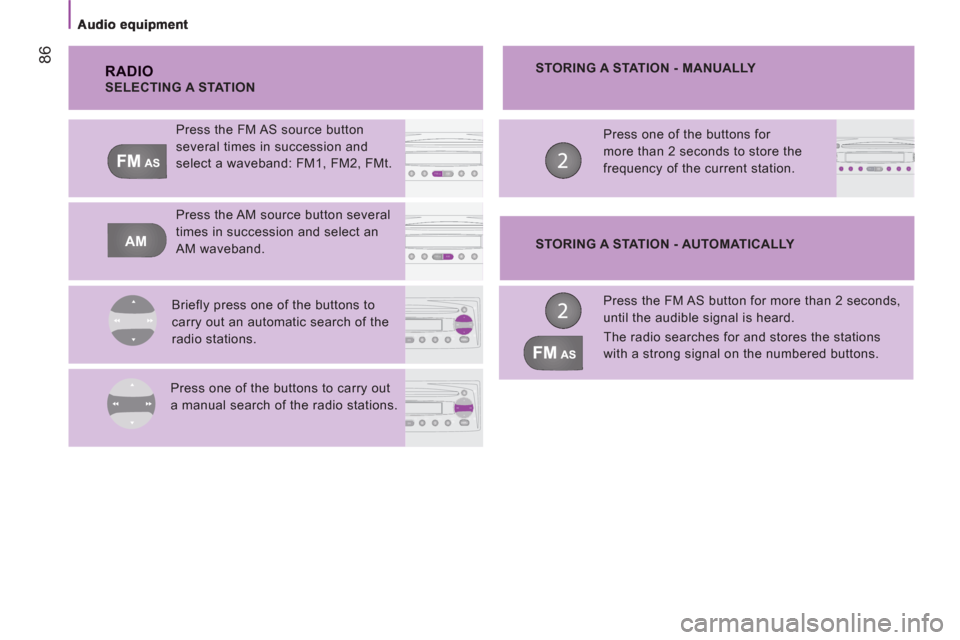

SELECTING A STATION
Press the FM AS source button
several times in succession and
select a waveband: FM1, FM2, FMt.
Press the AM source button several
times in succession and select an
AM waveband.
Briefly press one of the buttons to
carry out an automatic search of the
radio stations.
Press one of the buttons to carry out
a manual search of the radio stations.
STORING A STATION - MANUALLY
Press one of the buttons for
more than 2 seconds to store the
frequency of the current station.

STORING A STATION - AUTOMATICALLY
Press the FM AS button for more than 2 seconds,
until the audible signal is heard.
The radio searches for and stores the stations
with a strong signal on the numbered buttons.
