4
FAMILIARISATION
EXTERIOR


Grip control
This special traction control system im-
proves the traction of 2 wheel drive vehicles
in snow, mud and sand.
Welcome lighting
This additional exterior and interior light-
ing, controlled remotely, makes your ap-
proach to the vehicle easier when the
light is poor.
91

Directional lighting
This lighting automatically provides addi-
tional visibility when cornering.
93
Panoramic sunroof
This roof provides incomparable visibility
and light in the passenger compartment.
106

Stop & Start
This system puts the engine temporar-
ily into standby during stops in the traffi c
(red lights, traffi c jams, etc...). The engine
restarts automatically as soon as you
want to move off. The Stop & Start sys-
tem reduces fuel consumption, exhaust
emissions and provides the comfort of
complete silence when stationary.
128
161

33
INSTRUMENTS and CONTROLS









Warning lamps
When the engine is running or the vehicle is being driven, the illumination of one of the following warning lamps indicates a
fault which requires action on the part of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated further by reading the associated message in
the multifunction screen.
If you encounter any problems, do not hesitate to contact a PEUGEOT dealer or a qualifi ed workshop.



Warning lamp



is on



Cause



Action/Observations








STOP




fi xed, alone or associated
with another warning
lamp, accompanied by
an audible signal and a
message in the screen.
Illumination of this warning
lamp is associated with a
serious braking system, power
steering, engine lubrication or
cooling system malfunction or
a punctured tyre. Stop as soon as it is safe to do so as there is
a risk that the engine will cut out while driving.
Park, switch off the ignition and contact
a PEUGEOT dealer or a qualifi ed
workshop.




Service


on temporarily. A minor fault has occurred
for which there is no specifi c
warning lamp. Identify the fault by reading the message
shown in the screen, such as, for example:


- the closing of the doors, boot or bonnet,

- the engine oil level,

- the screenwash level,

- the remote control battery,

- the tyre pressures,

- saturation of the particle emission
fi lter (Diesel).

- ...
For any other faults, contact a PEUGEOT
dealer or a qualifi ed workshop.

fi xed. A major fault has occurred
for which there is no specifi c
warning lamp.
Identify the fault by reading the message
shown on the screen and contact a PEUGEOT
dealer or a qualifi ed workshop.



(PEF:
particle
emissions
fi lter, Diesel)



fi xed, associated temporarily
with a message on the risk
of blockage of the PEF.
This indicates the start of
saturation of the particle
emissions fi lter.
As soon as traffi c conditions allow, regenerate the
fi lter by driving at a speed of at least 35 mph
(60 km/h) until the service warning lamp goes off.

fi xed. This indicates the low level in
the Diesel additive reservoir. Have the level topped up by a PEUGEOT dealer
or a qualifi ed workshop as soon as possible.

74

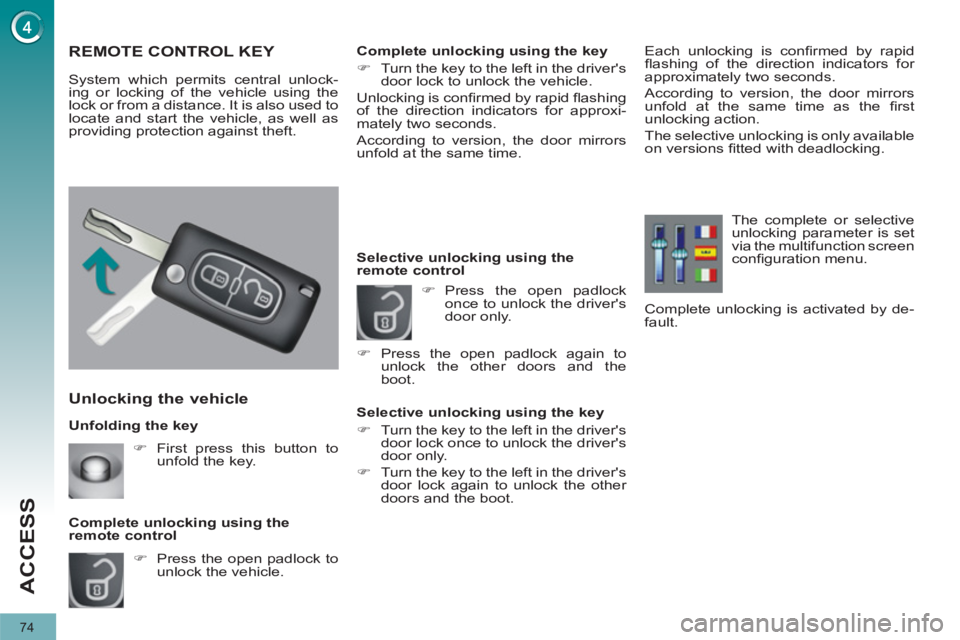

ACCESS

Unfolding the key


Unlocking the vehicle



)
Press the open padlock to
unlock the vehicle.

Complete unlocking using the
remote control

















REMOTE CONTROL KEY

System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It is also used to
locate and start the vehicle, as well as
providing protection against theft.
Complete unlocking using the key


)
Turn the key to the left in the driver's
door lock to unlock the vehicle.
Unlocking is confi rmed by rapid fl ashing
of the direction indicators for approxi-
mately two seconds.
According to version, the door mirrors
unfold at the same time.



Selective unlocking using the
remote control

Selective unlocking using the key


)
Turn the key to the left in the driver's
door lock once to unlock the driver's
door only.

)
Turn the key to the left in the driver's
door lock again to unlock the other
doors and the boot.

)
Press the open padlock
once to unlock the driver's
door only.

)
Press the open padlock again to
unlock the other doors and the
boot.
Each unlocking is confi rmed by rapid
fl ashing of the direction indicators for
approximately two seconds.
According to version, the door mirrors
unfold at the same time as the fi rst
unlocking action.
The selective unlocking is only available
on versions fi tted with deadlocking.
The complete or selective
unlocking parameter is set
via the multifunction screen
confi guration menu.
Complete unlocking is activated by de-
fault.



)
First press this button to
unfold the key.

78
ACCESS














Lost keys

Visit a PEUGEOT dealer with the vehicle's registration document, your
personal identifi cation documents and if possible the key code label.
The PEUGEOT dealer will be able to fi nd the key code and the transponder
code required to order a new key.







Do not throw the remote con-
trol batteries away, they contain
metals which are harmful to the
environment.
Take them to an approved collection
point.

Remote control

The high frequency remote control is a sensitive system; do not operate it while it is in your
pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of
your vehicle. You run the risk of stopping it from working and the remote control would have
to be reinitialised.
The remote control does not operate when the key is in the ignition switch, even when the
ignition is switched off, except for reinitialisation.


Locking the vehicle

Driving with the doors locked may make access to the passenger compartment
by the emergency services more diffi cult in an emergency.
As a safety precaution (with children on board), remove the key from the ignition
switch when you leave the vehicle, even for a short time.


Anti-theft protection

Do not make any modifi cations to the electronic engine immobiliser system; this
could cause malfunctions.


When purchasing a second-hand vehicle

Have the pairing of all of the keys in your possession checked by a PEUGEOT
dealer, to ensure that only your keys can be used to open and start the vehicle.

91
VISIBILITY






Manual guide-me-home lighting

Temporarily keeping the dipped beam
headlamps on after the vehicle's ignition
has been switched off makes the driver's
exit easier when the light is poor.

Switching on


)
With the ignition off, "fl ash" the
headlamps using the lighting stalk.

)
A further "headlamp fl ash" switches
the function off.


Switching off
The manual guide-me-home lighting
switches off automatically after a set
time.








Daytime running lamps

System which permits switching on of the
special lamps at the front (low power), so
that you can be seen during the daytime.
The daytime running lamps come on au-
tomatically when the vehicle is started,
if fi tted * .
The instruments and controls (multi-
function screen, air conditioning control
panel, ...) are not lit, except when the
lighting is switched on manually or auto-
matically.

*
According to country.






EXTERIOR WELCOME
LIGHTING
The remote switching on of the light-
ing makes your approach to the vehicle
easier in poor light. It is activated ac-
cording to the level of light detected by
the sunshine sensor.

Switching on

Switching off


Programming

In countries in which this
function is not imposed by
regulations, you can acti-
vate or deactivate it via the
multifunction screen confi g-
uration menu.

Programming


The lighting duration is se-
lected via the vehicle con-
fi guration menu.
The duration of the welcome
lighting is associated with and
identical to that of the automatic
guide-me-home lighting.
In countries in which it is imposed by
regulations:


- by default, this function is activated,

- the sidelamps and the number plate
lamps are also switched on * .




)
Press the open padlock
on the remote control.
The dipped beam headlamps and the
sidelamps come on; your vehicle is also
unlocked.

In some weather conditions
(e.g. low temperature or hu-
midity), the presence of mist-
ing on the internal surface
of the glass of the headlamps and
rear lamps is normal; it disappears
after the lamps have been on for a
few minutes.


The exterior welcome lighting switches
off automatically after a set time, when
the ignition is switched on or on locking
the vehicle.

198
PRACTICAL INFORMATION


Disconnecting the cables


)
Raise the locking tab fully.


Reconnecting the cables


)
Position the open clip 1
of the cable
on the positive terminal (+) of the
battery.

)
Press vertically on the clip 1
to posi-
tion it correctly against the battery.

)
Lock the clip by spreading the position-
ing lug and then lowering the tab 2
.
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries
without disconnecting the ter-
minals fi rst.
Do not push the vehicle to start the
engine if it is fi tted with a 6-speed
electronic gear control gearbox or an
automatic gearbox.

The batteries contain harmful
substances such as sulphuric
acid and lead. They must be
disposed of in accordance with regu-
lations and must not, in any circum-
stances, be discarded with household
waste.
Take used remote control batteries
and vehicle batteries to a special col-
lection point.

Charging the battery using a
battery charger


)
Disconnect the battery from the ve-
hicle.

)
Follow the instructions for use pro-
vided by the manufacturer of the
charger.

)
Reconnect starting with the negative
terminal (-).

)
Check that the terminals and connec-
tors are clean. If they are covered with
sulphate (whitish or greenish deposit),
remove them and clean them.


It is advisable to disconnect
the battery if the vehicle is to
be left unused for more than
one month.
Before disconnecting the battery
Wait 2 minutes after switching off the igni-
tion before disconnecting the battery.
Close the windows and the doors before
disconnecting the battery.

Following reconnection of the
battery
Following reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to permit initialisation
of the electronic systems. However, if
problems remain following this opera-
tion, contact a PEUGEOT dealer or a
qualifi ed workshop.
Referring to the corresponding section,
you must yourself reinitialise:


- the remote control key,

- the panoramic sunroof blind,

- the satellite navigation system.

Do not force the tab as locking will not
be possible if the clip is not positioned
correctly; start the procedure again.

T
U
318
ALPHABETICAL INDEX
Table of weights ......... 206, 208, 209
Tables of engines................205, 207
Tables of fuses............................190
Tank, fuel ......................................88
Technical data..................... 205-209
Telephone .... 215, 245-247, 281, 282
Telephone, hands-free ........ 245-247
Temperature, coolant ....................37
Temperature control
for heated seats .........................67
Temporary tyre repair kit .............174
Third brake lamp.........................189
TMC (Traffi c info) ................237, 275
Tools ...................................180, 182
Torch ..................................... 99, 112
Total distance recorder .................41
Towbar ........................................202
Towed loads............... 206, 208, 209
Towing another vehicle ...............200
Traction control (ASR) ........127, 128
Traffi c information
(TA) ................. 238, 276, 277, 298
Traffi c information
(TMC) ............. 237, 238, 275, 276
Trip computer ...................54, 55, 57
Trip distance recorder ...................41
Tyre pressures ............................ 211
Tyres .............................................25
Tyre under-infl ation detection .....125 Screen, multifunction
(without audio equipment) .........42
Screen-wash reservoir................171
Screen menu
map ................. 251, 285, 308, 310
Screenwash, front.........................95
Screenwash fl uid level ..........95, 171
Seat adjustment......................65, 66
Seat belts............................ 130-132
Seats, electric ...............................66
Seats, rear ....................................69
Serial number, vehicle ................ 211
Service indicator ...........................38
Servicing .......................................25
Setting
the clock ......... 250, 284, 306, 307
Short-cut menus .........................265
Sidelamps ..................... 89, 185-188
Side repeater ..............................187
SIM card .............................101, 248
Ski fl ap ........................................105
Spare wheel........................180, 182
Spectacles storage .....................100
Speed limiter...............................149
Speedometer ................................27
Spotlamps, side ............................98
Stability control (ESP).................127
Starting the vehicle ...... 76, 154, 158
Steering mounted
controls, audio .................222, 295
Stopping the vehicle .... 76, 154, 158
Stop & Start .............. 57, 61, 63, 87,
161, 167, 172, 197
Storage .............. 100, 102, 105, 107
Storage box ................................101
Storage wells ..............................107
Stowing rings ..............................107
Sun visor.....................................101
Synchronising the remote
control ........................................77
System, ASR ..............................128
System, navigation .............228, 267
Systems, ASR and ESP .............127 Reduction of electrical load ........199
Reinitialising the electric
windows .....................................81
Reinitialising the remote
control ........................................77
Remote control .................74, 75, 78
Removable screen
(snow shield) ...........................203
Removing a wheel ......................183
Removing the mat ......................103
Repair kit, puncture ....................174
Replacing bulbs ......... 185, 188, 189
Replacing fuses ..........................190
Replacing the air fi lter .................172
Replacing the oil fi lter .................172
Replacing the particle
emission fi lter ...........................173
Replacing the passenger
compartment fi lter ....................172
Replacing wiper blades ........96, 200
Resetting the service indicator .....39
Resetting the trip recorder ............41
Rev counter ..................................27
Reversing lamp...........................188
Risk areas (update) ............235, 274
Roof bars ....................................203
Routine checks ...................172, 173
Running out of fuel
(Diesel) ....................................168
Under-infl ation (detection) ..........125
Under fl oor storage ..................... 110
Unlocking ......................................74
Unlocking from the inside .............84
Update risk areas ...............235, 274
S
Safety for children......... 81, 118, 123
Screen, colour 16/9 ...........223, 224,
226, 251, 264, 285
Screen,
monochrome ........... 296, 308, 310
Screen, monochrome C................55
Screen, multifunction (with audio
equipment) ........ 44, 46, 49, 51, 53

320
VISUAL SEARCH
EXTERIOR


Exterior elcome lighting ................ 91
Door mirror spotlamps .................. 98
Directional lighting ............. 89-91, 93

Headlamp height adjustment ...... 92, 93
Changing
front bulbs ......................... 185-187
Wiper ....................................... 94-96
Changing a wiper blade ........ 96, 200

Boot, tailgate............................ 85-86


- opening/closing

- emergency release
Temporary puncture
repair kit ............................ 174-179
Changing a wheel ................ 180-184


- tools

- removing

Remote control key.................. 74-78


- opening/closing

- anti-theft protection

- starting

- battery


Parking sensors ................... 164-165
Towbar ........................................ 202
Towing ................................. 200-201

Changing bulbs.................... 188-189


- rear lamps

- 3rd brake lamp

- number plate lamps

- foglamps

Accessories ................................ 204
Roof bars .................................... 203
Panoramic sunroof ..................... 106

Fuel tank .................................. 87-88
Misfuel prevention ........................ 88
Door mirrors .................................. 71

Doors ....................................... 83-85


- opening/closing

- central locking

- emergency control
Alarm ....................................... 79-80
Electric windows ...................... 81-82

ESC, ABS,
EBA, ASR, CDS ................ 126-127
Grip control .......................... 128-129
Tyre under-infl ation detection ..... 125
Tyre pressures ............................ 211
Very cold climate screen............. 203

- front lamps

- foglamps

- direction indicator repeaters
