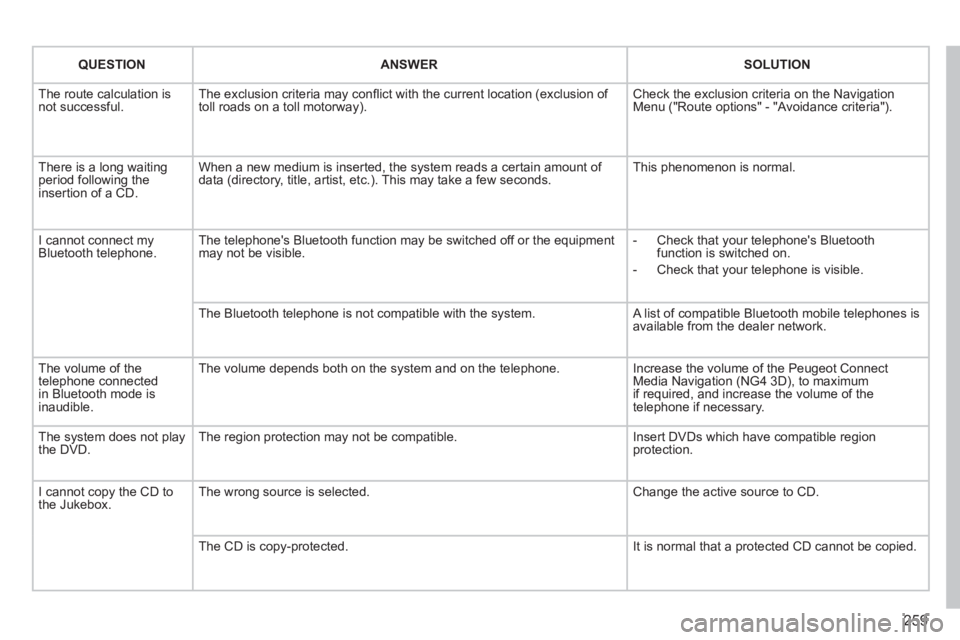

2011.5 PEUGEOT 3008 navigation system

259


QUESTION



ANSWER



SOLUTION


The route calculation is
not successful. The exclusion criteria may confl ict with the current location (exclusion of
toll roads on a toll motorway). Check the exclusion criteria on the Navigation
Menu ("Route options" - "Avoidance criteria").
There is a long waiting
period following the
insertion of a CD. When a new medium is inserted, the system reads a certain amount of
data (directory, title, artist, etc.). This may take a few seconds. This phenomenon is normal.
I cannot connect my
Bluetooth telephone. The telephone's Bluetooth function may be switched off or the equipment
may not be visible.

- Check that your telephone's Bluetooth
function is switched on.

- Check that your telephone is visible.
The Bluetooth telephone is not compatible with the system. A list of compatible Bluetooth mobile telephones is
available from the dealer network.
The volume of the
telephone connected
in Bluetooth mode is
inaudible. The volume depends both on the system and on the telephone. Increase the volume of the Peugeot Connect
Media Navigation (NG4 3D), to maximum
if required, and increase the volume of the
telephone if necessary.
The system does not play
the DVD. The region protection may not be compatible. Insert DVDs which have compatible region
protection.
I cannot copy the CD to
the Jukebox. The wrong source is selected. Change the active source to CD.
The CD is copy-protected. It is normal that a protected CD cannot be copied.

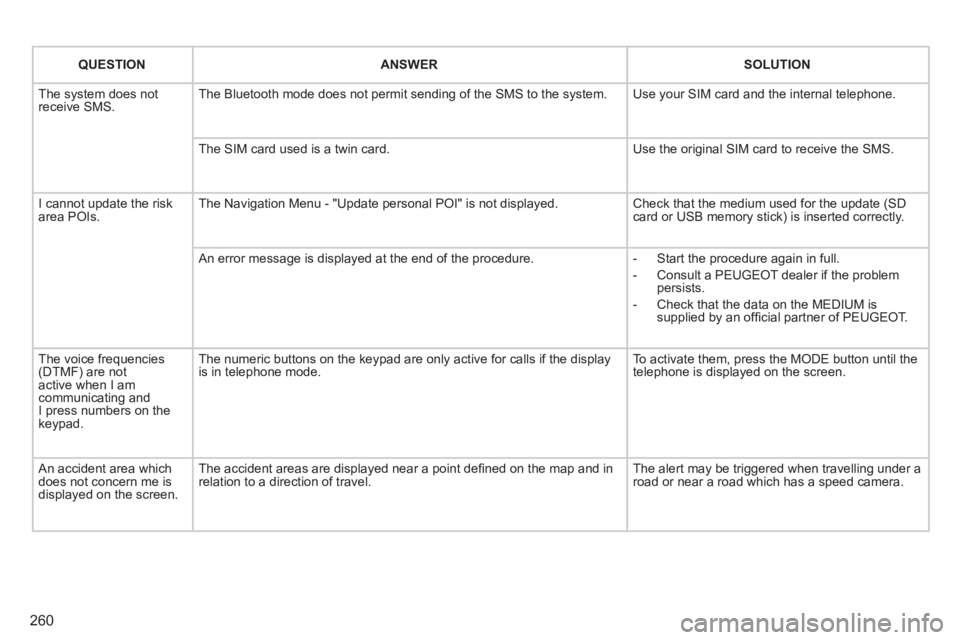

260


QUESTION



ANSWER



SOLUTION


The system does not
receive SMS. The Bluetooth mode does not permit sending of the SMS to the system. Use your SIM card and the internal telephone.
The SIM card used is a twin card. Use the original SIM card to receive the SMS.
I cannot update the risk
area POIs. The Navigation Menu - "Update personal POI" is not displayed. Check that the medium used for the update (SD
card or USB memory stick) is inserted correctly.
An error message is displayed at the end of the procedure.

- Start the procedure again in full.

- Consult a PEUGEOT dealer if the problem
persists.

- Check that the data on the MEDIUM is
supplied by an offi cial partner of PEUGEOT.
The voice frequencies
(DTMF) are not
active when I am
communicating and
I press numbers on the
keypad. The numeric buttons on the keypad are only active for calls if the display
is in telephone mode. To activate them, press the MODE button until the
telephone is displayed on the screen.
An accident area which
does not concern me is
displayed on the screen. The accident areas are displayed near a point defi ned on the map and in
relation to a direction of travel. The alert may be triggered when travelling under a
road or near a road which has a speed camera.

261

The Peugeot Connect Navigation (RNEG) is protected
in such a way that it will only operate in your vehicle.
If it is to be installed in another vehicle, contact a
PEUGEOT dealer for confi guration of the system.

Certain functions described in this handbook will
become available during the year.


Peugeot Connect Navigation
(RNEG)

For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is switched off and to prevent
discharging of the battery, the Peugeot Connect
Navigation (RNEG) switches off following the activation
of the Energy Economy mode.


MULTIMEDIA AUDIO SYSTEM/BLUETOOTH TELEPHONE

SATELLITE NAVIGATION SYSTEM FOR EUROPE BY SD CARD


01 First steps
CONTENTS

02 Steering mounted controls

03 General operation

04 Navigation - Guidance

05 Traffic information

06 Radio

07 Music media players

08 Bluetooth telephone

09 Configuration

10 Screen menu map p.
p.
p.
p.
p.
p.
p.
p.
p.
p.

Frequently asked questions p. 262
263
264
267
275
277
278
281
284
285
289

262
01 FIRST STEPS


Peugeot Connect Navigation (RNEG) CONTROL PANEL


Engine not running:
- Short press: on/off.
- Long press: pause with CD
play, mute for radio.
Engine running:
- Short press: pause with CD
play, mute for radio.
- Long press: reinitialise the
system.
Access to the
Radio Menu.
Display the list of
stations.
Access to the
Music Menu.
Display tracks.
Long press: audio settings: front/rear
fader, left/right balance, bass/treble,
musical ambience, loudness, automatic
volume, reinitialise settings.
Selection dial in the
screen display and
according to the menu.
Short press: contextual
menu or confi rm.
Long press: contextual
menu specifi c to the list
displayed.
Access to the
"SETUP" menu.
Long press: GPS
coverage and
demonstration
mode.
Access to the Phone
Menu. Display the list of
calls.

Eject CD.

Select previous/next radio
station.
Select previous CD or MP3
track.
Select previous/next line in
a list.

Select previous/next radio
station in the list.
Select previous/next MP3
folder.
Select previous/next page in
a list.

ESC: abandon current operation.

Access to the
Traffi c Menu.
Display the current
traffi c alerts.
Reader for
navigation SD
card only.
Access to the
Navigation
Menu. Display
recent
destinations.
Access to the "MODE" menu.
Select successive display of:
Radio, Map, NAV (if navigation in progress),
Telephone (if conversation in progress), Trip
computer.
Long press: Black screen (DARK).
Buttons 1 to 6:
Select a pre-set radio
station.
Long press: pre-set the
current station.
Adjust volume (each source
is independent, including
navigation messages and
alerts).

264
03 GENERAL OPERATION


For a detailed global view of the menus available, refer to the
"Screen menu map" section.










Press the MODE button several times in succession for access to the following menus:

For cleaning the screen, the use of a soft, non-abrasive cloth
(spectacles cloth) is recommended, with no additional product.

RADIO
/ MUSIC MEDIA
PLAYERS




TELEPHONE



(If a conversation is in progress)

FULL SCREEN MAP




NAVIGATION

(If guidance is in progress)


SETUP:

system language * , date and time * , display, vehicle
settings * , unit and system settings, "Demo mode".

TRAFFIC:

TMC information and messages.

*
Available according to model.

TRIP COMPUTER

270
04
4
3
2
1
7
6
5

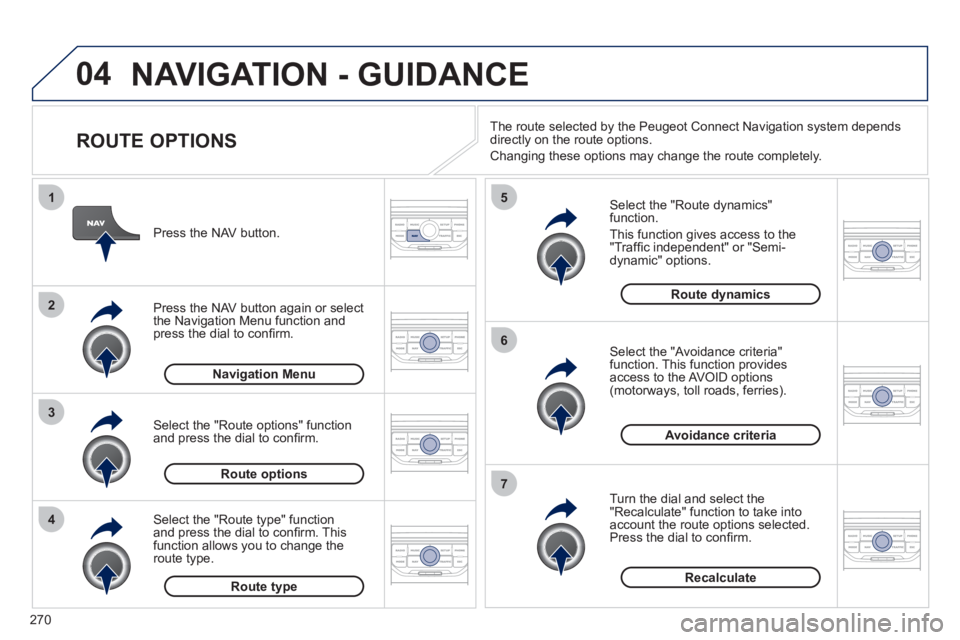

NAVIGATION - GUIDANCE


ROUTE OPTIONS


Select the "Route dynamics"
function.
This function gives access to the
"Traffi c independent" or "Semi-
dynamic" options.

Select the "Avoidance criteria"
function. This function provides
access to the AVOID options
(motorways, toll roads, ferries).

Turn the dial and select the
"Recalculate" function to take into
account the route options selected.
Press the dial to confi rm.
Press the NAV button.

Press the NAV button again or select
the Navigation Menu function and
press the dial to confi rm.

Select the "Route type" function
and press the dial to confi rm. This
function allows you to change the
route type.
Select the "Route options" function
and press the dial to confi rm.

Recalculate



Avoidance criteria


Route dynamics



Route type


Route options


Navigation Menu

The route selected by the Peugeot Connect Navigation system depends
directly on the route options.
Changing these options may change the route completely.

275
05
2 1
3
4
5

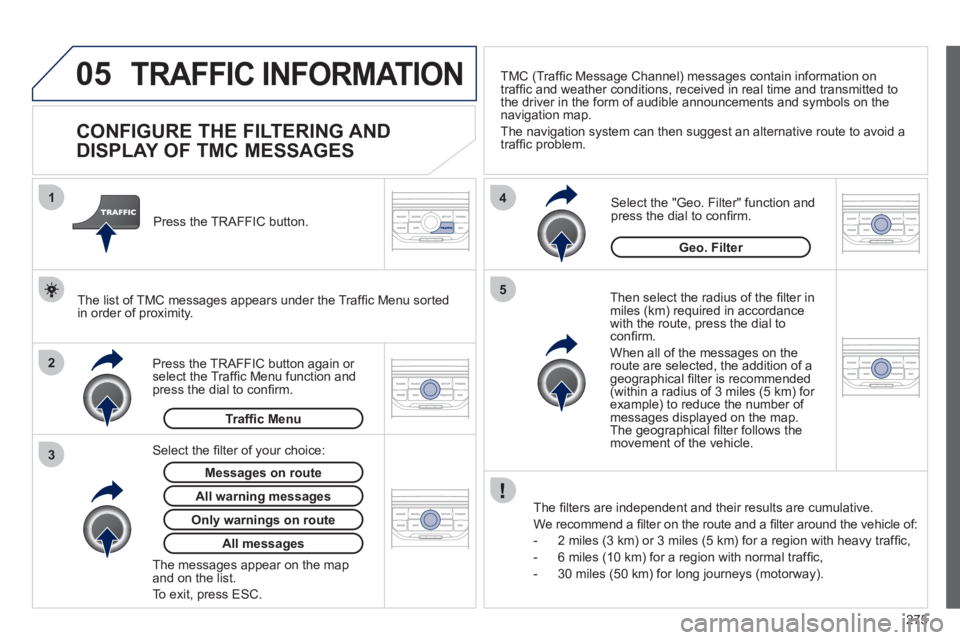

TRAFFIC INFORMATION









CONFIGURE THE FILTERING AND
DISPLAY OF TMC MESSAGES

Then select the radius of the fi lter in
miles (km) required in accordance
with the route, press the dial to
confi rm.
When all of the messages on the
route are selected, the addition of a
geographical fi lter is recommended
(within a radius of 3 miles (5 km) for
example) to reduce the number of
messages displayed on the map.
The geographical fi lter follows the
movement of the vehicle.

The fi lters are independent and their results are cumulative.
We recommend a fi lter on the route and a fi lter around the vehicle of:


- 2 miles (3 km) or 3 miles (5 km) for a region with heavy traffi c,

- 6 miles (10 km) for a region with normal traffi c,

- 30 miles (50 km) for long journeys (motorway).


Press the TRAFFIC button again or
select the Traffi c Menu function and
press the dial to confi rm.
Press the TRAFFIC button.
TMC (Traffi c Message Channel) messages contain information on
traffi c and weather conditions, received in real time and transmitted to
the driver in the form of audible announcements and symbols on the
navigation map.
The navigation system can then suggest an alternative route to avoid a
traffi c problem.

Select the "Geo. Filter" function and
press the dial to confi rm.

Messages on route

The list of TMC messages appears under the Traffi c Menu sorted
in order of proximity.

All warning messages

Traffi c Menu



Select the fi lter of your choice:

Only warnings on route


All messages

The messages appear on the map
and on the list.
To exit, press ESC.
Geo. Filter

281
08
1
2
3
4
BLUETOOTH TELEPHONE


*
The services available depend on the network, the SIM card and the
compatibility of the Bluetooth telephone used. Check the telephone
manual and with your network provider for details of the services
available to you.















PAIRING A TELEPHONE
FIRST CONNECTION



For reasons of safety and because they require prolonged attention
on the part of the driver, the operations for pairing the Bluetooth
mobile telephone to the hands-free system of the Peugeot Connect
Navigation must be carried out with the vehicle stationary. The
ignition must be on.

Activate the telephone's Bluetooth function
and ensure that it is "visible to all" (refer to the
telephone instructions).
Enter the authentication code on the telephone.
The code to be entered is displayed on the screen
of the system.
Some telephones offer automatic reconnection of
the telephone every time the ignition is switched
on.
A message confi rms the pairing.

To change the telephone connected,
press the PHONE button, then select
Phone Menu and press the dial to
confi rm.

Once the telephone has been connected, Peugeot Connect
Navigation can synchronise the address book and the call list. This
synchronisation may take a few minutes * .
Pairing can also be started from the telephone (refer to the
telephone instructions).
Visit www.peugeot.co.uk for more information (compatibility, more
help, ...).

Press the PHONE button.
For a fi rst connection, select
"Search phone" and press the dial to
confi rm. Then select the name of the
telephone.

Search phone
