Page 82 of 328
80
ACCESS
Triggering
This is indicated by sounding of the si-
ren and fl ashing of the direction indica-
tors for approximately thirty seconds.
After it has been triggered, the alarm is
again operational.
If the alarm is triggered ten
times in succession, the elev-
enth time will result in it be-
coming inactive.
If the indicator lamp in button A
fl ashes rapidly, this indicates that the
alarm was triggered during your ab-
sence. When the ignition is switched
on, this fl ashing stops immediately.
To avoid triggering the alarm when
washing your vehicle, lock it using
the key in the driver's door lock.
Do not activate the alarm before dis-
connecting the battery, otherwise the
siren will sound.
Failure of the remote control
)
Unlock the vehicle using the key in
the driver's door lock.
)
Open the door; the alarm is triggered.
)
Switch on the ignition; the alarm stops.
Malfunction
When the ignition is switched on, illumi-
nation the indicator lamp in button A
for
ten seconds indicates a siren fault.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
Locking the vehicle without
activating the alarm
)
Lock or deadlock the vehicle using
the key in the driver's door lock.
Automatic operation *
Depending on the legislation in force in
your country, one of these cases may
occur:
- 45 seconds after the vehicle is
locked using the remote control, the
alarm is activated, regardless of the
status of the doors and boot.
- 2 minutes after the last door or the
boot is closed, the alarm is activated.
)
To avoid triggering the alarm on
entering the vehicle, fi rst press the
unlocking button on the remote
control.
* According to country.
Page 86 of 328
84
ACCESS
A confi rmation message ap-
pears in the multifunction
screen, accompanied by an
audible signal.
Centralised locking control
System which provides full manual
locking or unlocking of the doors from
the inside.
Locking
)
Press this button to lock the vehicle.
The red indicator lamp in the button
comes on.
Automatic central locking
System which provides full automatic
locking or unlocking of the doors and
boot while driving, if they are closed
correctly.
You can activate or deactivate this
function.
Locking
When the speed exceeds 6 mph (10 km/h),
the doors and boot lock automatically.
If one of the doors is open, the automat-
ic central locking does not take place.
If the boot is open, the automatic cen-
tral locking of the doors is active.
Deactivation
)
Press this button again for more
than two seconds.
A confi rmation message appears in the
multifunction screen, accompanied by
an audible signal.
If one of the doors is open, the
central locking from the inside
does not take place.
Unlocking
)
Press this button again to unlock the vehicle.
The red indicator lamp in the button
goes off.
Activation
In the event of an impact, the
doors unlock automatically.
Unlocking
)
Above 6 mph (10 km/h), press this
button to unlock the doors and boot
temporarily.
)
Press this button for more than
two seconds.
When locking/deadlocking
from the outside
When the vehicle is locked or
deadlocked from the outside,
the red indicator lamp fl ashes and the
button is inactive.
)
After normal locking, pull the interior
door lever to unlock the vehicle.
)
After deadlocking, it is necessary
to use the remote control or the
key to unlock the vehicle.
Page 87 of 328
85
ACCESS
Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the battery or of the cen-
tral locking.
In the event of a fault with the central
locking, you must disconnect the bat-
tery to lock the boot and so ensure the
complete locking of the vehicle.
)
Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn
.
Locking the driver's door
)
Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door
)
Insert the key in the lock, then turn it
to the left.
Locking the front and rear
passenger doors
Unlocking the front and rear
passenger doors
)
Pull the interior door opening control.
Opening
)
After unlocking the vehicle using the
remote control or the key, press the
handle A
and raise the tailgate.
BOOT
Closing
)
Close the lower tailgate.
)
Pull the handle B
downwards to
guide the tailgate.
Page 88 of 328
86
ACCESS
LOWER TAILGATE
Opening
)
Push the handle C
to the right and
tilt the tailgate D
gently.
Closing
)
Raise the tailgate D
, push it fully to
close it, check that it is secured cor-
rectly.
Before opening the boot, en-
sure that no one is within the
radius of opening.
For reasons of safety, correct opera-
tion and compliance with regulations,
do not drive with the boot and the
lower tailgate open.
If the battery is disconnected, the
boot cannot be opened.
Do not climb onto the lower tailgate
and do not subject it to heavy knocks,
it may be damaged.
Always close the lower tailgate and
check that it is secured correctly be-
fore closing the boot.
When closing the lower tailgate, en-
sure that no person or object is in the
proximity of the moving parts to avoid
any risk of injury or damage.
Do not open the lower tailgate
when a towbar is fi tted.
Maximum authorised weight
on the lower tailgate when
open: 200 kg
.
Page 97 of 328
95
VISIBILITY
Windscreen and headlamp
wash
B.
Rear wiper selection ring:
park,
intermittent wipe,
wash-wipe (set duration).
Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if the
windscreen wipers are operating.
Programming
)
Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
for a fi xed period.
The headlamp washers only operate
when the dipped beam headlamps
are on
.
Rear wiper
If a signifi cant accumulation
of snow or ice is present, or
when using a bicycle carrier
on the boot, deactivate the auto-
matic rear wiper via the multifunction
screen confi guration menu. The function is activated or
deactivated via the multi-
function screen confi gura-
tion menu.
This function is activated
by default.
Screenwash/headlamp wash low
level
In the case of vehicles fi tted with
headlamp washers, when the
minimum level of the reservoir
is reached, this warning lamp is
displayed in the instrument panel, ac-
companied by an audible signal and a
message in the multifunction screen.
The warning lamp is displayed when
the ignition is switched on, or every time
the stalk is operated, until the reservoir
is refi lled.
Next time you stop, refi ll the screen-
wash/headlamp wash reservoir.
Page 101 of 328
99
VISIBILITY
Different lighting times are
available: This comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed.
BOOT LAMP
TORCH
Portable lamp, fi tted in the boot wall,
which can be used to light the boot or
as a torch.
Operation
Once engaged fi rmly in its location, it
comes on automatically when the boot
is opened and switches off automati-
cally when the boot is closed.
It operates with NiMH type recharge-
able batteries.
It has a battery life of approximately
45 minutes and recharges while you
are driving.
Observe the polarities when fi t-
ting the rechargeable batteries.
Never replace the rechargeable batteries
with normal single-use batteries.
For the torch function, refer to
the "Fittings - § Torch" section.
FOOTWELL LIGHTING
The soft lighting provided by the foot-
well lamps improves visibility in the ve-
hicle when the light is poor.
Activation
Its operation is identical to that of the
courtesy lamps. The lighting comes on
when one of the doors is opened.
- when the ignition is off, approxi-
mately ten minutes,
-
in energy economy mode, approxi-
mately thirty seconds,
- when the engine is running, no
limit.

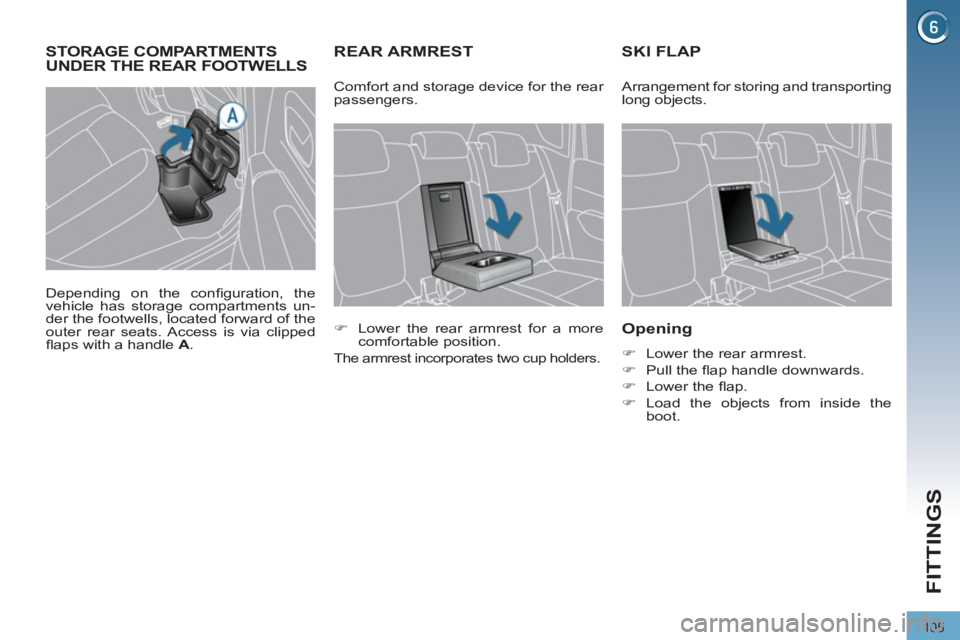

Page 107 of 328
105
FITTINGS
REAR ARMREST
SKI FLAP
Opening
)
Lower the rear armrest.
)
Pull the fl ap handle downwards.
)
Lower the fl ap.
)
Load the objects from inside the
boot.
)
Lower the rear armrest for a more
comfortable position.
The armrest incorporates two cup holders.
Comfort and storage device for the rear
passengers. Arrangement for storing and transporting
long objects.
STORAGE COMPARTMENTS
UNDER THE REAR FOOTWELLS
Depending on the confi guration, the
vehicle has storage compartments un-
der the footwells, located forward of the
outer rear seats. Access is via clipped
fl aps with a handle A
.
Page 109 of 328
107
FITTINGS

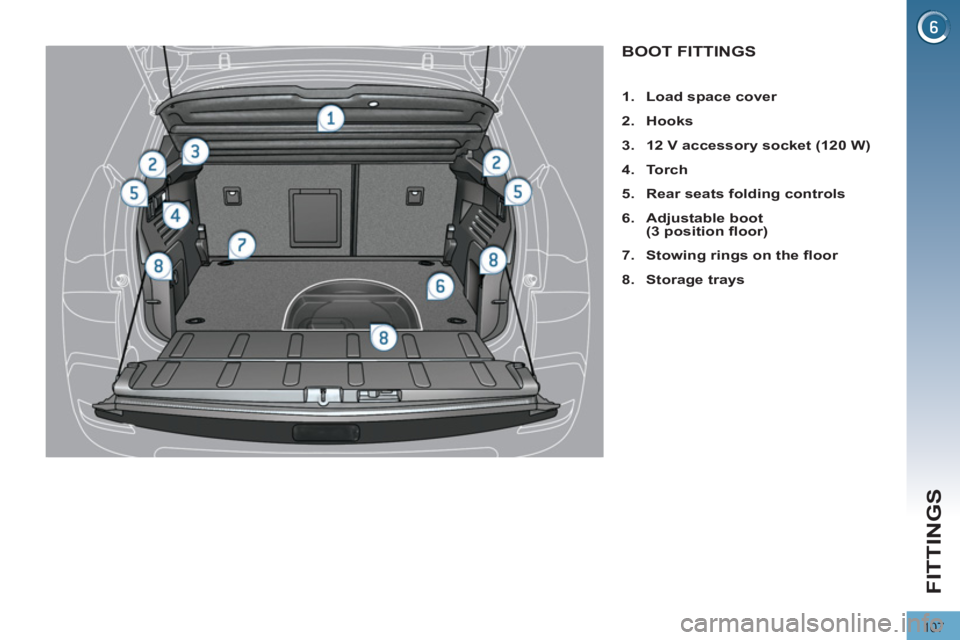

BOOT FITTINGS
1.
Load space cover
2.
Hooks
3.
12 V accessory socket (120 W)
4.
To r c h
5.
Rear seats folding controls
6.
Adjustable boot
(3 position fl oor )
7.
Stowing rings on the fl oor
8.
Storage trays
