81
ACCESS
The electric window controls
remain operational for ap-
proximately 45 seconds after
the ignition is switched off or until the
vehicle is locked after a front door is
opened.
If one of the passenger windows can-
not be operated from the driver's door
control pad, carry out the operation
from the control pad of the passen-
ger door concerned, and vice versa.

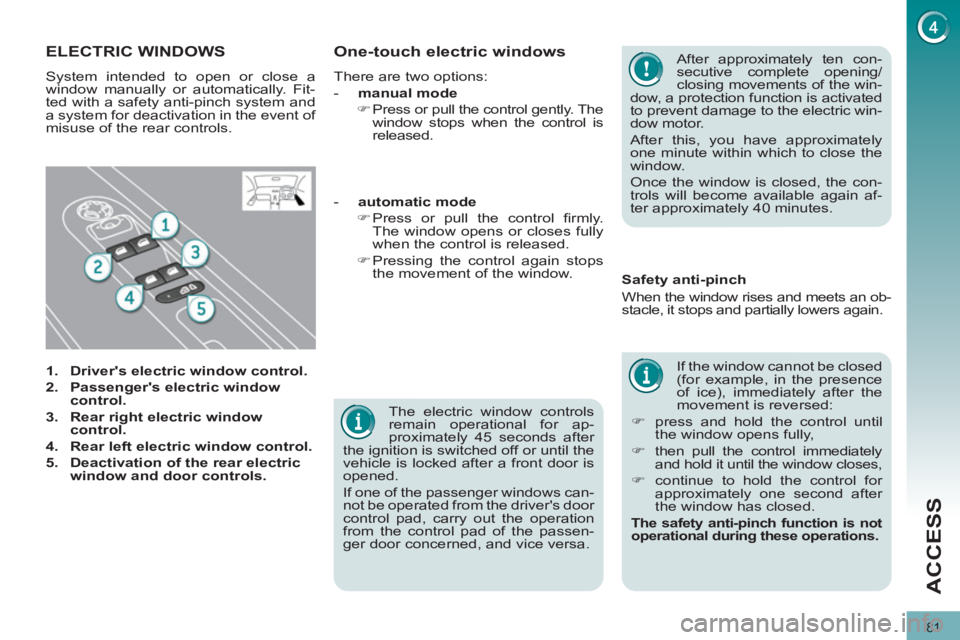

ELECTRIC WINDOWS
System intended to open or close a
window manually or automatically. Fit-
ted with a safety anti-pinch system and
a system for deactivation in the event of
misuse of the rear controls.
1.
Driver's electric window control.
2.
Passenger's electric window
control.
3.
Rear right electric window
control.
4.
Rear left electric window control.
5.
Deactivation of the rear electric
window and door controls.
If the window cannot be closed
(for example, in the presence
of ice), immediately after the
movement is reversed:
)
press and hold the control until
the window opens fully,
)
then pull the control immediately
and hold it until the window closes,
)
continue to hold the control for
approximately one second after
the window has closed.
The safety anti-pinch function is not
operational during these operations.
Safety anti-pinch
When the window rises and meets an ob-
stacle, it stops and partially lowers again.
- automatic mode
)
Press or pull the control fi rmly.
The window opens or closes fully
when the control is released.
)
Pressing the control again stops
the movement of the window.
One-touch electric windows
There are two options:
- manual mode
)
Press or pull the control gently. The
window stops when the control is
released.
After approximately ten con-
secutive complete opening/
closing movements of the win-
dow, a protection function is activated
to prevent damage to the electric win-
dow motor.
After this, you have approximately
one minute within which to close the
window.
Once the window is closed, the con-
trols will become available again af-
ter approximately 40 minutes.
Page 99 of 328
97
VISIBILITY
COURTESY LAMPS
1.
Front courtesy lamp
2.
Map reading lamps
3.
Rear side reading lamps
4.
Rear courtesy lamp
Front and rear courtesy lamps
In this position, the courtesy
lamp comes on gradually:
Map reading lamps
)
With the ignition on, press the cor-
responding switch.
With the "permanent lighting"
mode, the duration of lighting
varies depending on the context:
- with the ignition off, approximately
ten minutes,
- in energy economy mode, ap-
proximately thirty seconds,
- with the engine running, unlimited.
- when the vehicle is unlocked,
- when the key is removed from the
ignition,
- when a door is opened,
- when the remote control locking but-
ton is activated, in order to locate
your vehicle.
Permanently off.
Permanent lighting. When the front courtesy lamp
is in the "permanent lighting"
position, the rear courtesy
lamp will also come on, unless it is in
the "permanently off" position.
To switch off the rear courtesy lamp,
place it in the "permanently off" position.
Rear side reading lamps
)
With the ignition on, the fi rst press
of the reading lamp switch switches
on the reading lamp in "permanent
lighting" mode.
)
Following a second press, it comes on:
- when the vehicle is unlocked,
- when the key is removed from the
ignition,
- when a door is opened,
- when the remote control locking
button is pressed, in order to
locate your vehicle.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
Take care not to place anything in con-
tact with the courtesy lamps.
Page 101 of 328
99
VISIBILITY
Different lighting times are
available: This comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed.
BOOT LAMP
TORCH
Portable lamp, fi tted in the boot wall,
which can be used to light the boot or
as a torch.
Operation
Once engaged fi rmly in its location, it
comes on automatically when the boot
is opened and switches off automati-
cally when the boot is closed.
It operates with NiMH type recharge-
able batteries.
It has a battery life of approximately
45 minutes and recharges while you
are driving.
Observe the polarities when fi t-
ting the rechargeable batteries.
Never replace the rechargeable batteries
with normal single-use batteries.
For the torch function, refer to
the "Fittings - § Torch" section.
FOOTWELL LIGHTING
The soft lighting provided by the foot-
well lamps improves visibility in the ve-
hicle when the light is poor.
Activation
Its operation is identical to that of the
courtesy lamps. The lighting comes on
when one of the doors is opened.
- when the ignition is off, approxi-
mately ten minutes,
-
in energy economy mode, approxi-
mately thirty seconds,
- when the engine is running, no
limit.
Page 108 of 328
106
FITTINGS

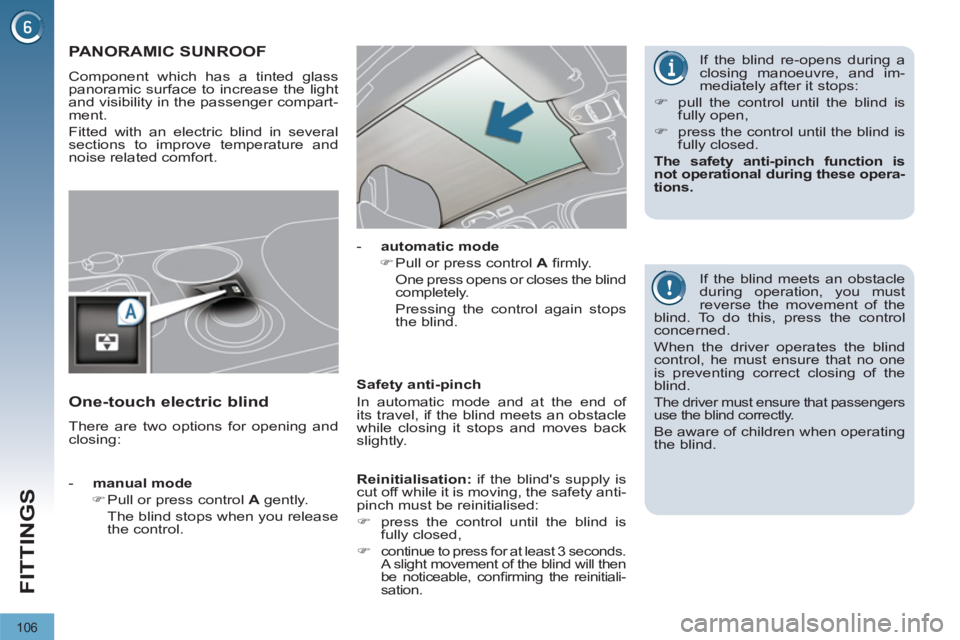

PANORAMIC SUNROOF
Component which has a tinted glass
panoramic surface to increase the light
and visibility in the passenger compart-
ment.
Fitted with an electric blind in several
sections to improve temperature and
noise related comfort.
If the blind meets an obstacle
during operation, you must
reverse the movement of the
blind. To do this, press the control
concerned.
When the driver operates the blind
control, he must ensure that no one
is preventing correct closing of the
blind.
The driver must ensure that passengers
use the blind correctly.
Be aware of children when operating
the blind.
- manual mode
)
Pull or press control A
gently.
The blind stops when you release
the control.
- automatic mode
)
Pull or press control A
fi rmly.
One press opens or closes the blind
completely.
Pressing the control again stops
the blind.
Safety anti-pinch
In automatic mode and at the end of
its travel, if the blind meets an obstacle
while closing it stops and moves back
slightly.
One-touch electric blind
There are two options for opening and
closing:
If the blind re-opens during a
closing manoeuvre, and im-
mediately after it stops:
)
pull the control until the blind is
fully open,
)
press the control until the blind is
fully closed.
The safety anti-pinch function is
not operational during these opera-
tions.
Reinitialisation:
if the blind's supply is
cut off while it is moving, the safety anti-
pinch must be reinitialised:
)
press the control until the blind is
fully closed,
)
continue to press for at least 3 seconds.
A slight movement of the blind will then
be noticeable, confi rming the reinitiali-
sation.
Page 126 of 328
124
SAFETY
DIRECTION INDICATORS
If you forget to cancel the di-
rection indicators for more
than twenty seconds, the
volume of the audible signal will in-
crease if the speed is above 40 mph
(60 km/h).
)
Lower the lighting control stalk fully
when moving to the left.
)
Raise the lighting control stalk fully
when moving to the right.
HAZARD WARNING LAMPS
A visual warning by means of the di-
rection indicators to alert other road
users to a vehicle breakdown, towing or
accident.
)
Tilt or press button A
, the direction
indicators fl ash.
They can operate with the ignition off.
Automatic operation of hazard
warning lamps
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lamps come on automatically.
They switch off automatically the fi rst
time you accelerate.
)
You can also switch them off by
pressing the button.
HORN
)
Press one of the spokes of the steer-
ing wheel.
Use the horn moderately and
only in the following cases:
- immediate danger,
- overtaking a cyclist or pedestrian,
- when approaching an area where
there is no visibility.
Audible warning to alert other road users
to an imminent danger.
"Motorway" function
Move the stalk briefl y upwards or down-
wards, without going beyond the point
of resistance; the corresponding direc-
tion indicators will fl ash 3 times.
Page 131 of 328
129
SAFETY
Mud mode
Mode which, when moving off allows
considerable spin on the wheel with the
least grip to optimise clearing of the mud
and regain grip. At the same time, the
wheel with the most grip is controlled in
such a way as to pass as much torque
as possible.
When moving, the system optimises
wheel spin to respond to the driver's re-
quirements as fully as possible.
Sand mode
Mode which allows little spin on the
two driving wheels at the same time to
allow the vehicle to move forward and
limit the risks of getting stuck in the
sand.
Driving advice
Your vehicle is designed princi-
pally to drive on tarmac roads
but it allows you to drive on other less
passable terrain occasionally.
However, it does not permit all-terrain
activities such as:
- crossing and driving on terrain
which could damage the under-
body or strip away components
(fuel pipe, fuel cooler, ...) due to
obstacles or stones in particular,
- driving on terrain with steep gra-
dients and poor grip,
- crossing a stream.
)
Place the dial in this position.
)
Place the dial in this position.
ESP OFF mode
)
Place the dial in this po-
sition.
Do not use the other modes on sand as
the vehicle may become stuck.
This mode is active up to 30 mph (50 km/h).
Page 139 of 328
137
DRIVING
The electric parking brake combines
2 operational modes:
- Automatic application/release
Application is automatic when the
engine stops, release is automatic
on use of the accelerator (activated
by default),
- Manual application/release
The parking brake can be applied/
released manually by pulling control
lever A
.
ELECTRIC PARKING BRAKE
Deactivation is recommended
in particularly cold conditions
(ice) and during towing (break-
down, caravan...). Refer to the
"Manual release" paragraph.
Programming the mode
Depending on the country of registration
of the vehicle, the automatic application
when the engine is switched off and the
automatic release when you press the
accelerator can be deactivated.
If this warning lamp comes
on in the instrument panel,
the automatic mode is deac-
tivated. Activation/deactivation of
this function is possible by
a PEUGEOT dealer or a
qualifi ed workshop.
The parking brake is then applied and
released manually. When the driver's
door is opened, there is an audible sig-
nal and a message is displayed if the
brake is not applied.
Do not place any object (packet
of cigarettes, telephone, ...) be-
hind the electric brake control.
Page 152 of 328
150
DRIVING

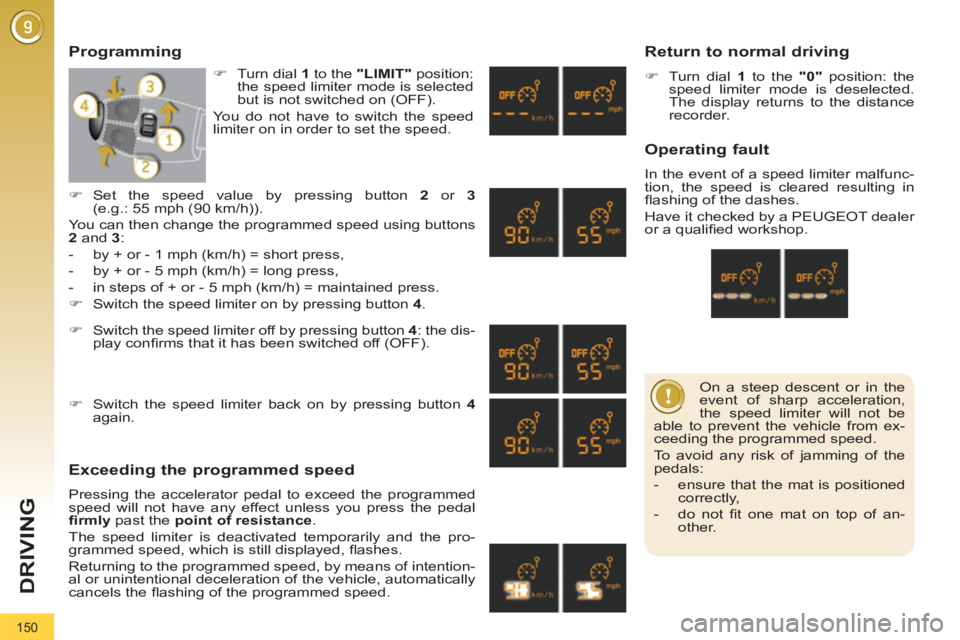

On a steep descent or in the
event of sharp acceleration,
the speed limiter will not be
able to prevent the vehicle from ex-
ceeding the programmed speed.
To avoid any risk of jamming of the
pedals:
- ensure that the mat is positioned
correctly,
- do not fi t one mat on top of an-
other.
Programming
Exceeding the programmed speed
Pressing the accelerator pedal to exceed the programmed
speed will not have any effect unless you press the pedal
fi rmly
past the point of resistance
.
The speed limiter is deactivated temporarily and the pro-
grammed speed, which is still displayed, fl ashes.
Returning to the programmed speed, by means of intention-
al or unintentional deceleration of the vehicle, automatically
cancels the fl ashing of the programmed speed.
Return to normal driving
)
Turn dial 1
to the "0"
position: the
speed limiter mode is deselected.
The display returns to the distance
recorder.
Operating fault
In the event of a speed limiter malfunc-
tion, the speed is cleared resulting in
fl ashing of the dashes.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
)
Switch the speed limiter off by pressing button 4
: the dis-
play confi rms that it has been switched off (OFF).
)
Switch the speed limiter back on by pressing button 4
again.
)
Set the speed value by pressing button 2
or 3
(e.g.: 55 mph (90 km/h)).
You can then change the programmed speed using buttons
2
and 3
:
- by + or - 1 mph (km/h) = short press,
- by + or - 5 mph (km/h) = long press,
- in steps of + or - 5 mph (km/h) = maintained press.
)
Switch the speed limiter on by pressing button 4
.
)
Turn dial 1
to the "LIMIT"
position:
the speed limiter mode is selected
but is not switched on (OFF).
You do not have to switch the speed
limiter on in order to set the speed.
