2011.5 PEUGEOT 3008 cruise control

151
DRIVING

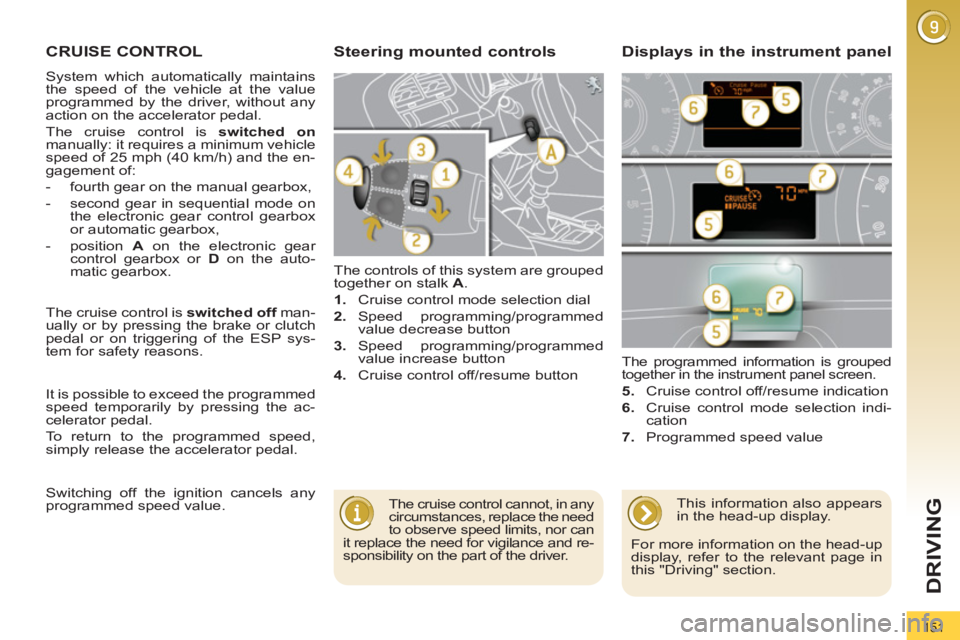

CRUISE CONTROL

System which automatically maintains
the speed of the vehicle at the value
programmed by the driver, without any
action on the accelerator pedal.
The cruise control is switched on

manually: it requires a minimum vehicle
speed of 25 mph (40 km/h) and the en-
gagement of:


- fourth gear on the manual gearbox,

- second gear in sequential mode on
the electronic gear control gearbox
or automatic gearbox,

- position A
on the electronic gear
control gearbox or D
on the auto-
matic gearbox. The controls of this system are grouped
together on stalk A
.


1.
Cruise control mode selection dial

2.
Speed programming/programmed
value decrease button

3.
Speed programming/programmed
value increase button

4.
Cruise control off/resume button The programmed information is grouped
together in the instrument panel screen.

5.
Cruise control off/resume indication

6.
Cruise control mode selection indi-
cation

7.
Programmed speed value


Steering mounted controls
Displays in the instrument panel

The cruise control cannot, in any
circumstances, replace the need
to observe speed limits, nor can
it replace the need for vigilance and re-
sponsibility on the part of the driver. The cruise control is switched off
man-
ually or by pressing the brake or clutch
pedal or on triggering of the ESP sys-
tem for safety reasons.
It is possible to exceed the programmed
speed temporarily by pressing the ac-
celerator pedal.
To return to the programmed speed,
simply release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value.





This information also appears
in the head-up display.
For more information on the head-up
display, refer to the relevant page in
this "Driving" section.

152
DRIVING
When the cruise control is
switched on, be careful if you
maintain the pressure on one
of the programmed speed chang-
ing buttons: this may result in a very
rapid change in the speed of your ve-
hicle.
Do not use the cruise control on slip-
pery roads or in heavy traffi c.
On a steep descent, the cruise con-
trol will not be able to prevent the
vehicle from exceeding the pro-
grammed speed.
To avoid any risk of jamming of the
pedals:


- ensure that the mat is positioned
correctly,

- never fi t one mat on top of another.

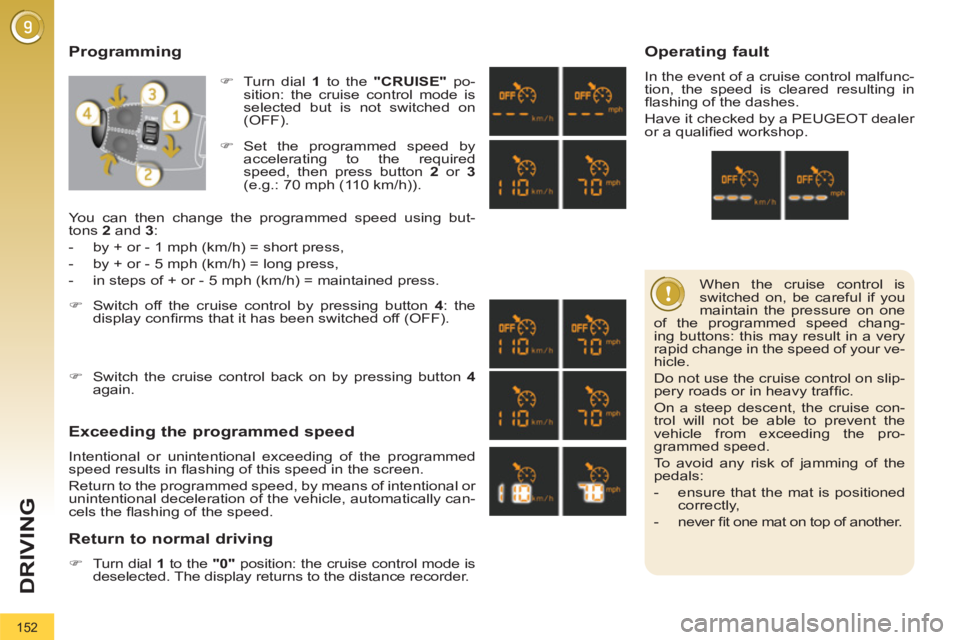

Programming

Exceeding the programmed speed

Intentional or unintentional exceeding of the programmed
speed results in fl ashing of this speed in the screen.
Return to the programmed speed, by means of intentional or
unintentional deceleration of the vehicle, automatically can-
cels the fl ashing of the speed.


Return to normal driving



)
Turn dial 1
to the "0"
position: the cruise control mode is
deselected. The display returns to the distance recorder.



Operating fault

In the event of a cruise control malfunc-
tion, the speed is cleared resulting in
fl ashing of the dashes.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.

)
Set the programmed speed by
accelerating to the required
speed, then press button 2
or 3

(e.g.: 70 mph (110 km/h)).


)
Switch off the cruise control by pressing button 4
: the
display confi rms that it has been switched off (OFF).

)
Switch the cruise control back on by pressing button 4

again.

You can then change the programmed speed using but-
tons 2
and 3
:


- by + or - 1 mph (km/h) = short press,

- by + or - 5 mph (km/h) = long press,

- in steps of + or - 5 mph (km/h) = maintained press.

)
Turn dial 1
to the "CRUISE"
po-
sition: the cruise control mode is
selected but is not switched on
(OFF).

A
CB
D
315
ALPHABETICAL INDEX
Accessories ................................204
Accessory socket,
12 V ........................ 100, 102, 109
Adjusting headlamps ..............92, 93
Adjusting head restraints ..............67
Adjusting seat
belt height ........................130, 131
Adjusting the steering
wheel .........................................73
Airbags .........................................36
Airbags, curtain...................135, 136
Airbags, front ......................133, 136
Airbags, lateral....................135, 136
Air conditioning .............................25
Air conditioning, digital............59, 62
Air conditioning,
manual .................................59, 60
Air fi lter .......................................172
Air fl ow ..........................................25
Air vents........................................58
Alarm ............................................79
Anti-pinch..............................81, 106
Anti-theft .......................................76
Armrest .......................................100
Armrest, front ..............................102
Armrest, rear ...............................105
Assistance call ............................214
Audible warning ..........................124
Audio/video sockets....................244
Audio streaming (Bluetooth) .......305
Automatic illumination
of headlamps .......................89, 92
Automatic operation of hazard
warning lamps .........................124
Automatic rain sensitive
windscreen wipers ...............94, 96
Auxiliary
socket ............. 244, 280, 300, 302Capacity, fuel tank ........................87
CD MP3 ..............................279, 299
Central locking ........................75, 84
Changing a bulb ........ 185, 188, 189
Changing a fuse .........................190
Changing a wheel ...............180, 182
Changing a wiper blade ........96, 200
Changing the date ..... 250, 284, 307
Changing the remote
control battery ............................77
Changing the time ..... 250, 284, 307
Checking levels ..................171, 172
Checking the engine oil level ........40
Checking tyre pressures
(using the kit) ...........................174
Checks............... 169, 170, 172, 173
Child lock ....................................123
Children ...................... 118, 121, 122Child seats ................................. 113
Child seats,
conventional .................... 116, 118
Closing the boot................75, 85, 86
Closing the doors....................75, 83
Cold climate screen ....................203
Colour screen,
retractable ......................49, 51, 53
Connectors,
audio ....... 101, 102, 280, 300, 302
Control for panoramic
sunroof blind ............................106
Coolant level .........................37, 171
Coolant temperature indicator ......37
Courtesy lamps.............................97
Courtesy mirror ...........................101
Cruise control .............................151
Cup holder ..................................100 Battery ................................172, 197
Battery, charging .........................197
Battery, remote control ...........77, 78
Blind for panoramic sunroof........106
Bluetooth (hands-
free) ......... 245-247, 281, 282, 303
Bluetooth
(telephone) ...... 245-247, 281, 282
Bonnet ........................................167
Bonnet stay.................................167
Boot fl oor, adjustable .................. 111
Boot lamp ............................. 99, 112
Boot lid..........................................86
Brake discs .................................173
Brake lamps................................188
Brake pads .................................173
Brakes ........................................173
Date (setting) ..... 250, 284, 306, 307
Daytime
running lamps ........... 91, 185, 187
Deactivating the passenger
airbag .......................................133
Deadlocking ..................................75
Defrosting ...............................60, 61
Demisting......................................60
Dials and gauges ..........................27
Diesel additive level ....................172
Dimensions .................................210
Dipped beam ............... 89, 185, 186
Dipstick .................................40, 171
Directional lighting ........................93
Direction indicators .... 124, 185, 188
Distance alert..............................147
Doors ............................................83
Doors emergency control .............85
Door trays ...................................100
Dynamic emergency braking ......140

323
VISUAL SEARCH
INSTRUMENTS AND CONTROLS (CONT.)

Instrument panels, screens ..... 27-29
Warning lamps ......................... 29-37
Indicators ................................. 37-40
Gear shift
indicator ................................... 153
Buttons ................................... 39, 41


- service indicator/trip distance
recorder

- dashboard lighting dimmer

Head-up display................... 145-146
Distance alert....................... 147-148

Lighting controls ...................... 89-92
Direction indicators ..................... 124

Speed limiter........................ 149-150
Cruise control ...................... 151-152

Switch panel ................................. 16
Stop & Start ................................ 161
Door mirrors .................................. 71
Electric windows, deactivating .... 81-82

Headlamp height adjustment..... 92, 93

Steering wheel adjustment ........... 73
Horn ............................................ 124
Multifunction screens ............... 42-52


- Screen A

- Screen C

- 16/9 colour screen

- 16/9 high defi nition
colour screen
Retractable screen ....................... 53
Screen A
(setting the date/time) .......... 43, 45

Hazard warning lamps ................ 124
Head-up display................... 145-146
Distance alert....................... 147-148
Wiper controls.......................... 94-96
Trip computer .......................... 54-57

Ignition switch ............................... 76

Panoramic sunroof ..................... 106
Grip control .......................... 128-129
