2011.5 Citroen DS4 RHD fuse box

15

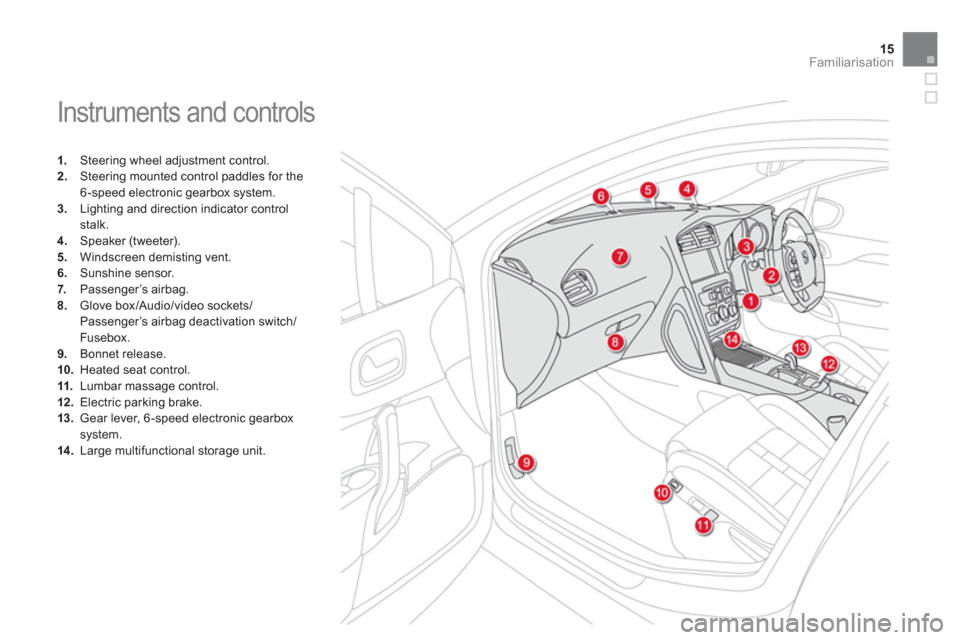

Familiarisation
Instruments and controls
1.
Steering wheel adjustment control. 2.Steering mounted control paddles for the
6 -speed electronic gearbox system.
3.Lighting and direction indicator controlstalk.4. Speaker (tweeter).
5. Windscreen demisting vent.
6.Sunshine sensor. 7. Passenger’s airbag. 8.Glove box/Audio/video sockets/Passenger’s airbag deactivation switch/Fusebox.9.
Bonnet release. 10.Heated seat control. 11.
Lumbar massage control. 12.
Electric parking brake. 13.Gear lever, 6 -speed electronic gearbox system.14 .Large multifunctional storage unit.

145
Fittings











Illuminated glove
box

Its lid has locations for storing a pen, a pair of glasses, tokens, maps, a cup... )To open the glove box, raise the handle.
It is lit when the lid is opened.
It houses the front passen
ger airbag deactivation switch A.
If the vehicle is fitted with air conditioning,it provides access to the ventilation nozzle B,distributing the same cooled air as the vents in
the passenger compartment.
It gives access to the dashboard
fusebox (see
"Practical information - § Changing a fuse").





Portable ashtray
)
Pull the cover to open the ashtray. )
To empty it, remove the ashtray by pulling
it upwards.
To avoid any problem of interference or risk of over turning, do not placethe ashtray near the gear lever.

233Checks














Petrol engines

The various caps and covers allow access for
checking the levels of the various fluids and for
replacing cer tain components.
1. Power steering reservoir.2.Screenwash and headlamp wash reservoir.3.Coolant reservoir.4.
Brake fluid reservoir.
5. Battery/Fuses.
6.Fusebox.
7. Air filter.8.Engine oil dipstick.9.
Engine oil filler cap.

Diesel engines
The various caps and covers allow access for
checking the levels of the various fluids, for replacing cer tain components and for primingthe fuel system.
1.
Power steering reservoir.2.
Screenwash and headlamp wash reservoir.3.
Coolant reser voir. 4.
Brake fluid reservoir.5.
Battery/Fuses.
6.Fusebox.7. Air filter.8.Engine oil dipstick. 9.
Engine oil filler cap.10.Priming pump *
. 11.
Bleed screw *
.
*
Accordin
g to engine.

263Practical information




















Changing a fuse
The extraction tweezer is fitted to a carrier clipped to the dashboard fusebox cover.
For access to it: ) open the glove box lid, )
unclip the carrier on the fusebox cover bypulling on the right)
remove the tweezer,
Access to the tools
)
open the fusebox cover by pulling at
top right,) fold down completely the fusebox cover.

Changing foglamp bulbs
These bulbs are replaced from outside the rear
bumper:
)pass your hand under the bumper, )turn the bulb holder a quar ter turn and remove it,)turn the bulb a quar ter turn, pull it out and
fit a new bulb.
For reassembly, carry out these operations in
reverse order.
Take care not to touch the silencer;there is a risk of burns if changing abulb within a few minutes of switchingoff the ignition.

265
Practical information

Dashboard fuses

The fuseboxes are located in the lower
dashboard (left-hand side).
Access to the fuses
) Refer to the paragraph "Access to the
t
ools".

Fusebox 1
Fuse N°RatingFunctions
F8
3 A Alarm siren, alarm ECU.
F13 10 A
Cigarette lighter.
F1410 A
12 V socket in boot.
F1
63 A Lighting for the large multifunctional storage unit, rear map
reading lamps, glove box illumination.
F17
3 A Sun visor illumination, front map reading lamps.
F2
815 A Audio system, radio (after-market).
F3
020 A Rear wiper.
F32 10 A
Hi-Fi amplifier.
Fusebox
2
Fuse N°RatingFunctions
F3
615 A
Rear 12 V socket.
F37
- Not used.
F38
- Not used.
F3
9- Not used.
F4
0- Not used.
Fuse tables

267
Practical information
The fusebox is placed in the engine compartment near the battery (left-hand side).
Access to the fuses
)
Unclip the cover.
)
Change the fuse (see correspondingparagraph). )
When you have finished, close the cover carefully to ensure sealing of the fusebox.


Engine compartment fuses
