2011.5 Citroen DS3 check engine

203Practical information

Checking tyre pressures/inflating accessories


You can also use the compressor, without
injecting any product, to:


- check or adjust the pressure of your tyres,

- inflate other accessories (balls, bicycle
tyres...).
) Connect the compressor's electricalconnector to the vehicle's 12 V socket. )
Start the vehicle and let the engine run.)
Adjust the pressure using the compressor
(to inflate: switch Bin position "I";
to deflate: switch Bin position "O"
andpress button C ), according to the vehicle's
tyre pressure label or the accessory's
pressure label.) Remove the kit then stow it.


)Turn the selector A
to the "A ir"position.)Uncoil the black pipe Hfully. )Connect the black pipe to the
valve of the wheel or accessory.
If necessary, fit one of the adaptors supplied with the kit first.

The rear parking sensors will be deactivated automatically if a genuineCITROËN towbar is used.
Cooling
Towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its coolingcapacity is not dependent on the engine speed. )To lower the engine speed, reduce your
speed.
The maximum towed load on a long incline depends on the gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.
Braking
To w i ng a trailer increases the braking distance.
To avoid overheating of the brakes on a longmountain type of descent, the use of engine braking is recommended.

Tyres
)
Check the tyre pressures of the towing
vehicle and of the trailer, obser ving the
recommended pressures.

Lighting
)
Check the electrical lighting and signallingon the trailer.
)
If the warning lamp and the
STOPwarning lamp come on,
stop the vehicle and switch off
the engine as soon as possible.

RACING towbar

Your vehicle cannot be fitted with a towbar. The space occupied by thesport diffuser prevents this.

QUESTIONANSWERSOLUTION
The stored stations donot function (no sound, 87.5 Mhz is displayed...).

An incorrect waveband is selected.
Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on which thestations are stored.

The quality of receptionof the radio station listened to graduallydeteriorates or the stored stations do not function(no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listenedto or there is no transmitter in the geographical area through which the vehicle is travelling.
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block reception, including in RDS mode.
This phenomenon is normal and does not indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for example when goingthrough a car wash or into an underground car park).
Have the aerial checked by a CITROËN dealer.
Sound cut-outs of 1 to2 seconds in radio mode.During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station.
Deactivate the RDS function if the phenomenon is too frequent and always on the same route.

With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipment operating timedepends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.

Start the vehicle's engine to increase the batterycharge.

QUESTIONANSWERSOLUTION
The stored stations donot function (no sound, 87.5 Mhz is displayed...).

An incorrect waveband is selected.
Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on whichthe stations are stored.

The traffi c announcement(TA) is displayed. I donot receive any traffi c information.
The radio station is not part of the regional traffi c information network.
Tune to a radio station which broadcasts traffi c information.

The quality of receptionof the radio station listened to graduallydeteriorates or the stored stations do not function(no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listened to or there is no transmitter in the geographical area through whichthe vehicle is travelling.
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...)block reception, including in RDS mode. This phenomenon is normal and does not indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for example when goingthrough a car wash or into an underground car park).
Have the aerial checked by a CITROËN dealer.
Sound cut-outs of 1 to2 seconds in radio mode.During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station.
Deactivate the RDS function if the phenomenon is too frequent and always on the same route.

With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipment operating timedepends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the batterycharge.
The message "the audio system is overheated" appears on the display.
In order to protect the installation if the surrounding temperature is toohigh, the audio equipment switches to an automatic thermal protectionmode leading to a reduction of the volume or stopping of the playing of the CD.
Switch the audio system off for a few minutes toallow the system to cool.

315
Visual search

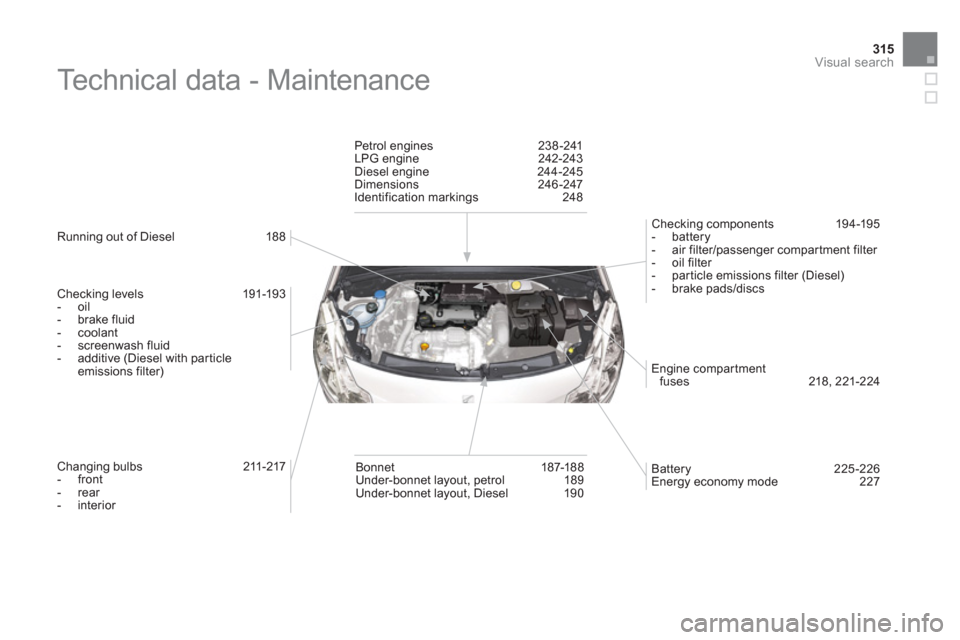

Technical data - Maintenance


Running out of Diesel 188

Checking levels 191-193


- oil

- brake fluid

- coolant

- screenwash fluid

- additive (Diesel with particleemissions filter)

Changing bulbs 211-217


- front

- rear

- interior

Petrol en
gines 238-241
LPG engine 242-243
Diesel engine 244-245
Dimensions 246-247
Identification markings 248
Batter
y 225-226
Energy economy mode 227
Bonnet 187-188
Under-bonnet layout, petrol 189
Under-bonnet layout, Diesel 19 0
Engine compar tmentfuses 218, 221-224
Checking components 19 4 -195
- battery- air filter/passenger compartment filter
- oil filter
- particle emissions filter (Diesel)
- brake pads/discs

A
ABS and EBFD systems.............................148Accessories................................................234Accessory socket, 12 V ..............................128Access to rear seats...............................81, 83Adjusting headlamps ..................................117Adjusting head restraints ..............................80Adjusting the steering wheel.........................85Advice on care and maintenance...............233Airbags, curtain...................................158, 159Airbags, front.......................................155, 159Airbags, lateral....................................157, 159Air conditioning.............................................24Air conditioning, digital ............................67,73Air conditioning, manual .........................67, 70Air filter........................................................r194Air flow....................................................24, 66Air intake.................................................66,73Air recirculation.............................................73Air vents........................................................66Alarm.............................................................96Alloy wheels ................................................233Anti-lock braking system (ABS)..................148Anti-pinch ....................................................101Anti-theft........................................................92Armrest, front.............................................. 127Assistance call....................................147, 254Audible warning..........................................147Audio streaming (Bluetooth).......................299Audio system...............................................287Automatic illumination
of headlamps .....................................113,116Automatic operation of hazard
warning lamps...........................................147
Battery.................................................194,225Battery, charging.........................................225Battery, remote control...........................94,95Black panel....................................................47Bluetooth (hands-free)........................275,297Bluetooth (telephone)..........................275,297Bonnet.........................................................187Boot.............................................................105Boot lamp............................................123, 217Brake discs ..................................................195Brake lamps................................................215Brake pads ..................................................195Brakes .........................................................195Braking assistance system .........................148
Capacity, fuel tank......................................106CD MP3...............................................273,293Central locking......................................90, 103Changing a bulb...................................211-217Changing a fuse...................................218-224Changing a wheel...............................204-210Changing a wiper blade...................... 121, 228Changing the date......................278, 300,301Changing the remote control battery............94Changing the time......................278, 300,301Checking levels....................................191-193Checking the engine oil level........................45Checking tyre pressures(using the kit)............................................198Checks .................................................189-195Children................................ 132-142, 153, 156Child seats ..........................................134-139Cleaning (advice)........................................233Closing the boot....................................90,105Closing the doors..................................90,102Connectors, audio ...............128, 274, 294, 296Control panel .......................................256, 288Coolant level.........................................42,191Coolant temperature indicator......................r42Cour tesy lamps ................................... 118, 217Courtesy mirror...........................................r127Cruise control..............................................180Cup holder...................................................r126
BC
Automatic rain sensitive windscreen
wipers...............................................118, 120Auxiliary socket...................128,274, 294,296
