Page 39 of 332
1
37
Monitoring
Screen 1Screen 2CauseSolution - ActionObservations
Fault in the steering column. You must stop as soon as it is safe
to do so. Contact a CITROËN dealer or a qualified workshop.
Fault with the electrical s
ystem. Stop the vehicle and contact aCITROËN dealer or a qualified workshop.
The cooling system temperature is
too hi
gh. Wait for the engine to cool downbefore topping up, if necessary.
If the problem persists, contact
a CITROËN dealer or a qualified
workshop. You must sto
p as soon as it is safe
to do so.
The temperature o
f the CVT
transmission fluid is too high. Stop the vehicle and contact aCITROËN dealer or a qualified workshop.
Th
e driver has not fastened or has unfastened their seat belt. Fasten your seat belt. There is a continuous audible signal
if you drive without fastening your seat belt.
Mal
function of the fuel system. Contact a CITROËN dealer or a qualified workshop.
Page 40 of 332
38
Monitoring
Screen 1Screen 2CauseSolution - ActionObservations
You have moved off with the parkingbrake not fully released. Release the parking brake.
The oil pressure is too low or there
is a
fault with the engine lubrication
system. Stop the vehicle and contact a CITROËN dealer or a qualified
workshop.
Battery charge
fault. Stop the vehicle and contact a CITROËN dealer or a qualified
workshop.
Airba
g or pretensioner fault. Contact a CITROËN dealer or a qualified workshop to have the systems checked.
Fault with automatic headlampadjustment system. Contact a CITROËN dealer or a qualified workshop. Only on vehicles fitted with xenon headlamps.
Fault with the stabilit
y control
system (ASC). Contact a CITROËN dealer or a qualified workshop.
F
ault with the four wheel drive
transmission system. Contact a CITROËN dealer or a qualified workshop.

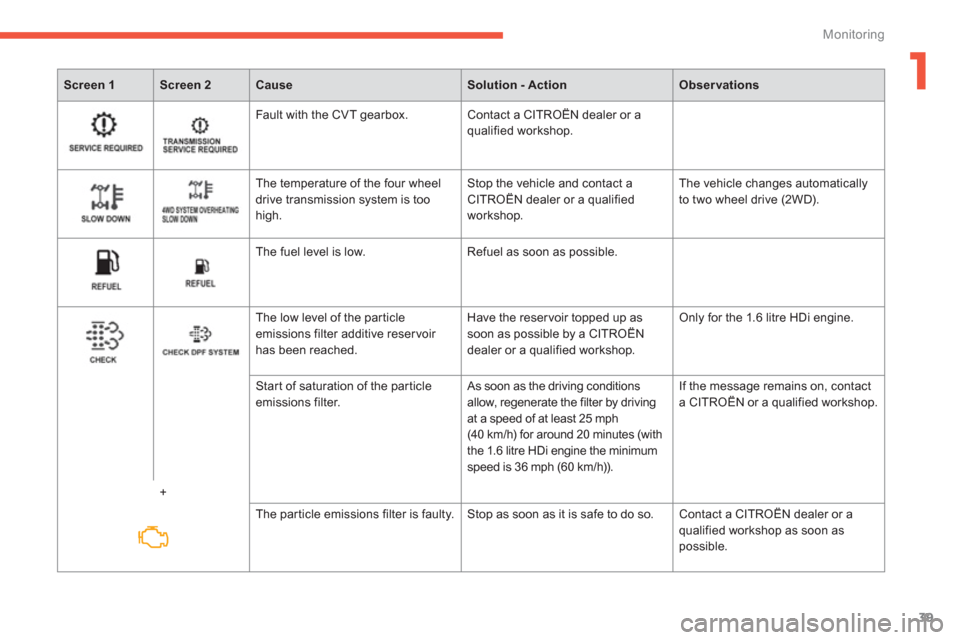

Page 41 of 332
1
39
Monitoring
Screen 1Screen 2CauseSolution - ActionObservations
Fault with the CVT gearbox. Contact a CITROËN dealer or a qualified workshop.
The temperature of the four wheel
drive transmission system is toohigh. Stop the vehicle and contact aCITROËN dealer or a qualified workshop. The vehicle chan
ges automatically
to two wheel drive (2WD).
Th
e fuel level is low. Refuel as soon as possible.
The low level o
f the particleemissions filter additive reservoir has been reached.
Have the reser voir topped up as
soon as possible by a CITROËN
dealer or a quali
fied workshop.
Only for the 1.6 litre HDi engine.
+Star t of saturation of the par ticle
emissions filter. As soon as the driving conditions
allow, regenerate the filter by driving
at a speed of at least 25 mph
(40 km/h) for around 20 minutes (with
the 1.6 litre HDi engine the minimum
speed is 36 mph (60 km/h)). If the messa
ge remains on, contact
a CITROËN or a qualified workshop.
The par ticle emissions filter is fault
y. Stop as soon as it is safe to do so. Contact a CITROËN dealer or a qualified workshop as soon as
possible.
Page 42 of 332
40
Monitoring
Screen 1Screen 2CauseSolution - ActionObservations
Engine oil level not correct (below minimum level or above maximum level). Stop the vehicle as soon as it is safe
to do so.
Check the level with the dipstick and
top-up if the level low.
I
f the level is above the maximum
mark, do not restar t the engine andcontact a CITROËN dealer or aqualified workshop. Never drive with an incorrect oil
level.
Presence of water in the Diesel fuel filter. Risk of damage to the injection system on Diesel engines. Contact a CITROËN dealer or aqualified workshop as soon as possible.
The ambient temperature is at or
below 3 °C
(37 °F). There may be black ice on the road.
Take care and drive gently.
The clutch pedal is not depressed
while star tin
g the engine. Depress the clutch pedal to star t theengine. For vehicles fitted with a manual gearbox.
The gear lever is not in position P
or position N
when starting the engine. Place the gear lever at position P tostart the engine. For vehicles fitted with a CVT gearbox.
The brake
pedal is not pressed
while star ting the engine. Press the brake pedal to star t theengine.
Page 48 of 332
46
Monitoring
When the engine is
running, this indicates the
temperature of the coolant.
Range
When the engine isrunning , this indicates
the distance which can still be travelled with thefuel remaining in the tankbased on the average
fuel consumption over the
last few miles/kilometres
travelled.
This value may vary following a change
in the style of driving or the relief,resulting in a large variation in the current fuel consumption.
If you only add a few litres, the value
displayed will be incorrect. Therefore,you must fill the tank whenever possible.
Coolant temperature
gauge
If the bar is close to the criticalposition located
on the right, the temperature is too high.
The symbol flashes when your engine is
overheating.
You must stop your vehicle as soon as it is
safe to do so.Wait a few minutes before switching off theengine.
When the range is less than 30 miles (50 km),
dashes are displayed.
Refuel as soon as possible. The display of the range is updated.
Wait for the engine to cool beforetopping up the level. The cooling system is pressurised.
To avoid any risk of scalding, unscrew the cap by two turns to allow thepressure to drop. When the pressure has dropped,remove the cap and top up the level, if necessary.
Contact a CITROËN dealer or aqualified workshop.
When you disconnect the battery, the previous fuel consumption data is lost and the value displayed will be different from that displayed before thebattery was disconnected. The distancedisplayed must be considered anapproximate indication.
Page 62 of 332
60
Access
System which permits central unlocking or locking of the vehicle using the door lock or remotely. It is also used for the guide-me-home lighting andstarting the engine, as well as providing protection against theft.
Remote control key
Unfolding the key
)First press this button to unfold the key.
Unlocking the vehicle
Complete unlocking using the remote control
)Press the open padlock to unlock
the vehicle.
Unlocking using the key
Unlocking is confirmed by the interior lighting which comes on for around15 seconds and the direction indicators which flash twice .
According to version, the door mirrors
unfold at the same time.
)Turn the key to the front in the driver's door
lock to unlock it.
Page 67 of 332
65
2
Access
Locking the vehicle
Locking
)With the key in one of the defined zones A , press one of the buttons Bor C.
Deadlocking
)
With the electronic key in one of the defined zones A
, press button B
or Cto lock the vehicle. )
Within five seconds, press button Bor Cagain to deadlock the vehicle.
Always ensure that you have theelectronic key on your personbefore locking the vehicle: in some circumstances, it is possible to lock the vehicle without the presence of the electronic key having been detectedinside the vehicle.
Locking is confirmed by an audiblesignal and the direction indicators, which flash once
.
The door mirrors fold at the same time.
Locking is confirmed by two audible signals and by the direction indicators which flash three times .
The door mirrors unfold at the sametime.
The operating mode must be "OFF".
With Stop & Star t, if the engine is in Stop mode, the vehicle cannot belocked.
Page 71 of 332
69
2
Access
Visit a CITROËN dealer with the vehicle's registration document and your personal identification documents and if possible the key code label.
The CITROËN dealer will be able to retrieve the key code and the transponder code required to order a new key.
Electronic key
The electronic key is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.Do not repeatedly press the buttons of your electronic key out of range and out of sight of your vehicle. You run the risk of stopping it from working and the remote control would have to be reinitialised.The electronic key cannot operate as a remote control when it is in the reader or even when the ignition is switched on.
Locking the vehicle
Driving with the doors locked may make access to the passenger compar tment by the emergency ser vices more difficult in an emergency.
As a safety precaution (with children on board), take the Keyless Entry and Star ting electronic key when you leave the vehicle, even for a shor ttime.
Electrical interference
The Keyless Entry and Starting electronic key may not operate if close to certain electronic devices: telephone, laptop computer, strong magnetic fields, ...
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions.Don't forget to turn the steering to engage the steering lock.
When purchasing a second-hand vehicle
Have all of the keys in your possession paired by a CITROËN dealer, to ensure that only your keys allow your vehicle to be unlocked and star ted.
