Page 94 of 332
4
ACCESS
92

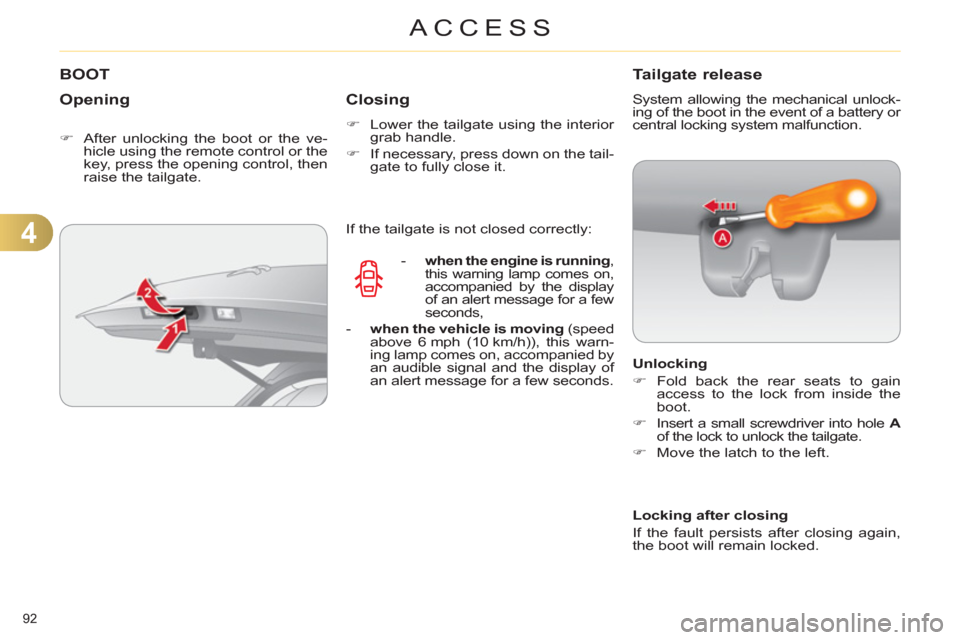

BOOT
Opening
)
After unlocking the boot or the ve-
hicle using the remote control or the
key, press the opening control, then
raise the tailgate.
Closing
)
Lower the tailgate using the interior
grab handle.
)
If necessary, press down on the tail-
gate to fully close it.
Tailgate release
System allowing the mechanical unlock-
ing of the boot in the event of a battery or
central locking system malfunction.
Unlocking
)
Fold back the rear seats to gain
access to the lock from inside the
boot.
)
Insert a small screwdriver into hole A
of the lock to unlock the tailgate.
)
Move the latch to the left.
If the tailgate is not closed correctly:
- when the engine is running
,
this warning lamp comes on,
accompanied by the display
of an alert message for a few
seconds,
- when the vehicle is moving
(speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied by
an audible signal and the display of
an alert message for a few seconds.
Locking after closing
If the fault persists after closing again,
the boot will remain locked.
Page 112 of 332
5
VISIBILITY
110
B.
Rear wiper selection ring: turn the
ring to place the desired symbol
against the marking.
Rear wiper
If a signifi cant accumulation of
snow or ice is present, or when
using a tailgate bicycle carrier,
deactivate the automatic rear
wiper via the vehicle confi gura-
tion menu. Park.
Intermittent wipe.
Wash-wipe.
Turn the ring to its stop/the rear
screen wash, then the rear wiper
operates for a set duration.
Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if the
windscreen wipers are operating.
The function is activated or de-
activated via the vehicle confi gu-
ration menu.
This function is activated by de-
fault.
Programming
Special position of the
windscreen wipers
To maintain the effectiveness
of the "fl at-blade" type of wiper
blades, it is advisable to:
- handle them with care,
- clean them regularly using
soapy water,
- avoid using them to retain
cardboard on the wind-
screen,
- replace them at the fi rst signs
of wear.
This position permits release of the
windscreen wiper blades.
It is used for cleaning or replacement
of the blades. It can also be useful, in
winter, to detach the blades from the
windscreen.
)
Any action on the wiper stalk imme-
diately after switching off the ignition
places the blades vertically on the
screen.
)
To park the blades again, switch on
the ignition and operate the wiper
stalk.
Page 203 of 332
11
PRACTICAL INFORMATION
201
Rear lamps
1.
Brake/
sidelamp
(P21/5W).
2.
Direction
indicator
(PY21W amber)
.
3.
Reversing lamp (P21W).
4.
Rear
foglamp
(P21W).
Amber bulbs, such as those for
the direction indicators, must be
replaced by bulbs of the same
rating and colour.
The lamps on the tailgate are
dummy units. They are there for
aesthetic purposes only.
Changing bulbs
These four bulbs are changed from in-
side the boot:
)
open the boot,
)
remove the access fl ap from the
corresponding side trim panel,
)
unclip the lamp unit connector,
)
As a precaution, place a cloth in the
bottom of the housing to catch the
nut if it is dropped on removal,
)
slacken the hexagonal nut using a
10 mm tube spanner then remove
the nut by hand,
)
remove the two bulb holder fi xing
screws,
)
extract the lamp unit carefully pulling
in its middle towards the outside,
)
spread the four tabs and remove
the bulb holder,
)
turn the bulb a quarter of a turn and
change it.
To r efi t, carry out these operations in
reverse order.
Take care to engage the lamp unit in its
guides, while keeping it in line with the
vehicle.
Tighten suffi ciently to ensure sealing,
but without damaging the lamp.
Page 204 of 332
11
PRACTICAL INFORMATION
202
To facilitate the removal of the lamp,
carry out this operation with the tailgate
half open.
)
Insert a thin screwdriver into the
lens cutout.
)
Push it outwards.
)
Remove the lens.
)
Change the faulty bulb.
To r efi t, press on the lens to clip it in
place.
Number plate lamps (W5W)
For the replacement of this type of LED
lamp, contact a CITROËN dealer or a
qualifi ed workshop.
Third brake lamp (LEDs)
Page 217 of 332
11
PRACTICAL INFORMATION
215
ACCESSORIES
A wide range of accessories and genu-
ine parts is available from the CITROËN
dealer network.
These accessories and parts have
been tested and approved for reliability
and safety.
They are all adapted to your vehicle and
benefi t from CITROËN's recommenda-
tion and warranty.
Conversion kits
You can obtain an "Enterprise" kit to
convert a trade vehicle to a private car
and vice-versa.
"Comfort":
door defl ectors, side window blinds,
rear screen blind, isotherm module,
coat hanger fi xed to head restraint,
moveable courtesy mirror, reading
lamp, mirror for caravan, speed limiter/
cruise control, parking sensors...
"Transport systems":
boot carpet, boot liner, boot net, boot
spacers, transverse roof bars, bicycle
carrier, ski carrier, roof boxes, towbars,
towbar wiring harnesses...
"Styling":
gear lever knobs, aluminium foot rest,
alloy wheels, wheel embellishers,
chrome exhaust tailpipe, chrome mirror
shells, chrome door aperture fi nishers,
tailgate lower chrome fi nisher...
*
To avoid any risk of jamming the pedals:
- ensure that mats are correctly posi-
tioned and secured,
- never fi t one mat on top of another.
"Security and safety":
anti-intrusion alarm, microwave sensor,
anti-tilt sensor, stolen vehicle tracking
system, child seats and booster cushions,
breathalyser, fi rst aid kit, fi re extinguisher,
warning triangle, high visibility vest, dog
guard, wheel security bolts, snow chains,
non-slip covers, front foglamp kit...
"Protection":
mats * , seat covers compatible with lateral
airbags, door sill protectors, mud fl aps,
door protective rubbing strips, bumper pro-
tection strips, vehicle cover...
If a towbar and wiring harness
are fi tted outside the CITROËN
dealer network, the installation
must be done using the vehicle's
electrical pre-equipment and in
line with the manufacturer's rec-
ommendations.
