FAMILIARISATION
DRIVING SAFELY


Speed limiter "LIMIT"
Cruise control "CRUISE"
Display in the instrument panel


Cruise control

1.
Limiter mode On/Off.

2.
Decrease the programmed value.

3.
Increase the programmed value.

4.
Speed limiter On/Off.

5.

Display the list of memorised speeds.



170




171


1.
Cruise control mode On/Off.

2.
Programme a speed/Decrease the
programmed value.

3.
Programme a speed/Increase the
programmed value.

4.
Cruise control Off/Resume.

5.
Display the list of memorised
speeds.


170




173
The cruise control or speed limiter
mode appears in the instrument panel
when it is selected.
The values must be set with the engine
running.
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h), with at least fourth
gear engaged on a manual gearbox
(second gear for the 6-speed electronic
gearbox system or automatic gearbox).

Speed limiter

26
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.


Optimise the use of your
gearbox

With a manual gearbox, move off gen-
tly, change up without waiting and
drive by changing up quite soon. If
your vehicle has the system, the gear
shift indicator invites you to change up;
it is displayed in the instrument panel,
follow its instructions.

With an automatic or electronic gear-
box, stay in Drive "D"
or Auto "A"
, ac-
cording to the type of gearbox, without
pressing the accelerator pedal heavily
or suddenly.



Drive smoothly


Maintain a safe distance between ve-
hicles, use engine braking rather than
the brake pedal, and press the accel-
erator progressively. These practices
contribute towards a reduction in fuel
consumption and CO
2 emissions and
also helps reduce the background traf-
fi c noise.

If your vehicle has cruise control, make
use of the system at speeds above
25 mph (40 km/h) when the traffi c is
fl owing well.



Control the use of your
electrical equipment

Before moving off, if the passenger
compartment is too warm, ventilate it
by opening the windows and air vents
before using the air conditioning.
Above 30 mph (50 km/h), close the
windows and leave the air vents
open.
Remember to make use of equipment
that can help keep the temperature
in the passenger compartment down
(sun roof and window blinds...).
Switch off the air conditioning, unless
it has automatic digital regulation, as
soon as the desired temperature is at-
tained.
Switch off the demisting and defrost-
ing controls, if not automatic.
Switch off the heated seat as soon as
possible.













































ECO-DRIVING

1
MONITORING
28

















TWO-TONE INSTRUMENT PANEL WITHOUT AUDIO SYSTEM

Dials and screens



1.
Rev counter (x 1 000 rpm or tr/min).

2.
Gear shift indicator with manual
gearbox or gear lever position and
gear for the electronic gearbox sys-
tem or automatic gearbox.

3.
Cruise control or speed limiter setting.

4.
Digital speedometer (mph or km/h).

5.
Engine oil level indicator.
6.
Service indicator
(miles or km) then,
total mileage recorder.
These two functions are displayed
successively on switching on the
ignition.
Lighting dimmer setting (when making
an adjustment).

7.
Trip mileage recorder (miles or km).

8.
Fuel gauge and associated low fuel
level warning lamp ( a
or b
accord-
ing to version).

9.
Time.



Control buttons



A.
Lighting dimmer (available in night
mode).

B.
Reminder of servicing information
Reset service indicator or trip mile-
age recorder.

A
and B.
Setting the time and selecting
units.

1
MONITORING
29












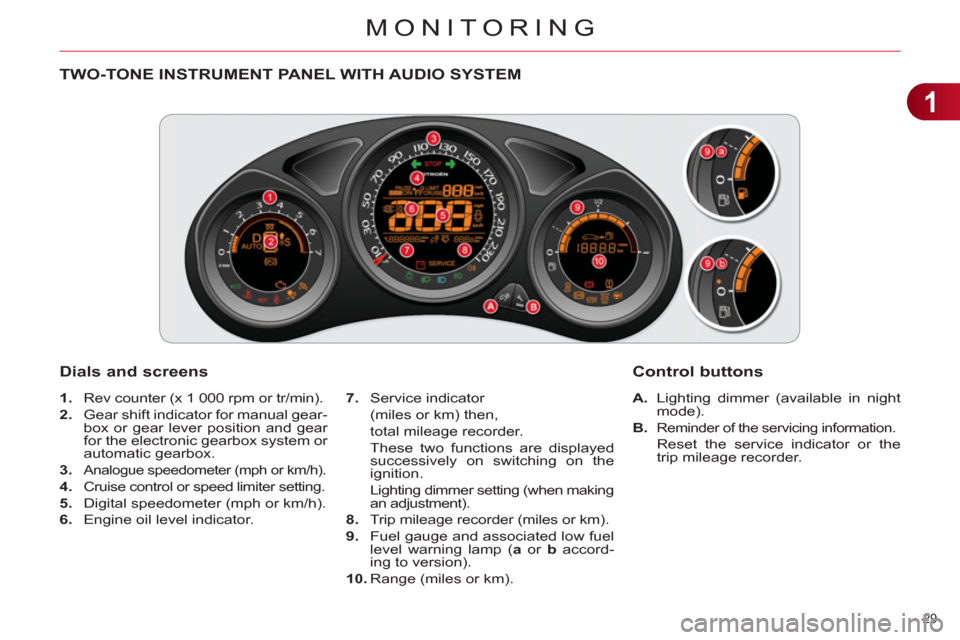

TWO-TONE INSTRUMENT PANEL WITH AUDIO SYSTEM

Dials and screens



A.
Lighting dimmer (available in night
mode).

B.

Reminder of the servicing information.
Reset the service indicator or the
trip mileage recorder.

7.
Service indicator
(miles or km) then,
total mileage recorder.
These two functions are displayed
successively on switching on the
ignition.
Lighting dimmer setting (when making
an adjustment).

8.
Trip mileage recorder (miles or km).

9.
Fuel gauge and associated low fuel
level warning lamp ( a
or b
accord-
ing to version).

10.
Range (miles or km).



Control buttons



1.
Rev counter (x 1 000 rpm or tr/min).

2.
Gear shift indicator for manual gear-
box or gear lever position and gear
for the electronic gearbox system or
automatic gearbox.

3.

Analogue speedometer (mph or km/h).


4.
Cruise control or speed limiter setting.

5.
Digital speedometer (mph or km/h).

6.
Engine oil level indicator.

1
MONITORING
30












CUSTOMISABLE COLOUR INSTRUMENT PANEL WITH AUDIO SYSTEM



1.
Rev counter (x 1 000 rpm or tr/min).

2.
Gear shift indicator with manual
gearbox or gear lever position and
gear for the electronic gearbox sys-
tem or automatic gearbox.

3.

Analogue speedometer (mph or km/h).


4.
Cruise control or speed limiter setting.

5.
Digital speedometer (mph or km/h).

A.
Dial COLOUR: customisation of the
background colour of the dials.

B.
Screen COLOUR: customisation of
the background colour of the screens.

C.
Lighting dimmer (available in night
mode).

D.
Reminder of the servicing information.
Reset the service indicator or the
trip mileage recorder.



Dials and screens


6.
Engine oil level indicator.

7.
Service indicator
(miles or km) then,
total mileage recorder.
These two functions are displayed
successively on switching on the
ignition.
Lighting dimmer setting (when making
an adjustment).

8.
Trip mileage recorder (miles or km).

9.
Fuel gauge and associated low fuel
level warning lamp.

10.
Range (miles or km).



Control buttons
