2011.5 Citroen C4 DAG technical data

12
TECHNICAL DATA
223

MODELS:


ENGINES AND GEARBOXES



Model codes:
NC...


9HJC



9HP0



9HR8

9HR8
/ S



9HR8/PS


9HR8/1PS


9HR8/2PS



RHE8



DIESEL ENGINES


HDi 90



HDi 90 PEF



HDi 110 PEF



HDi 150 PEF


Cubic capacity (cc)
1 560
1 560
1 560
1 997
Bore x stroke (mm)
75 x 88.3
75 x 88.3
75 x 88.3
85 x 88
Max power: EU standard (kW)
68
68
82
110
Max power engine speed (rpm)
4 000
4 000
3 600
3 750
Max torque: EU standard (Nm)
230
230
270
340
Max torque engine speed (rpm)
1 750

1 750
1 750
2 000
Fuel
Diesel
Diesel
Diesel
Diesel
Catalytic converter
yes
yes
yes
yes
Particle emissions fi lter (PEF)
no
yes
yes
yes

GEARBOXES

Manual
(5-speed)
Manual
(5-speed)
Manual
(6-speed)


Electronic
gearbox system
(6-speed)
Manual
(6-speed)

OIL CAPACITIES (in litres)




Engine (with fi lter replacement)
3.75
3.75
3.75
3.75
-

.../S:
model fi tted with Stop & Start.

.../1:
model fi tted with low rolling resistance tyres (for example: MICHELIN Energy Saver).

.../2:
model fi tted with very low rolling resistance tyres.

12
TECHNICAL DATA
224

*
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount. Warning: towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


HDi 90



HDi 90
PEF



HDi 110
PEF



e-HDi 110 PEF



Gearboxes


Manual



Manual



Manual



Manual





Electronic gearbox system




Model codes:
NC...


9HJC



9HP0



9HR8



9HR8/S



9HR8/P

S

9HR8/1PS



9HR8/2PS




- Unladen weight
1 205
1 205
1 275
1 280
1 290
1 205


- Kerb weight
1 280
1 280
1 350
1 355
1 365
1 280


- Gross vehicle weight (GVW)
1 745
1 790
1 810
1 820
1 825
1 825


- Gross train weight (GTW)
on a 12 % gradient
2 545
2 890
3 110
3 120
3 125
2 225


- Braked trailer (within GTW limit)
on 12 % gradient
800
1 100
1 300
1 300
1 300
400


- Braked trailer * (with load transfer with
the GTW limit)
1 050
1 350
1 550
1 550
1 550
600


- Unbraked trailer
640
640
675
670
680
400


- Recommended nose weight
75
75
75
75
75
75

12
TECHNICAL DATA
225


WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


HDi 150 PEF



Gearboxes


Manual



Model codes:
NC...


RHE8




- Unladen weight
1 320


- Kerb weight
1 395


- Gross vehicle weight (GVW)
1 885


- Gross train weight (GTW)
on 12 % gradient
3 385


- Braked trailer (within GTW limit)
on 12 % gradient
1 500


- Braked trailer * (with load transfer with
the GTW limit)
1 750


- Unbraked trailer
695


- Recommended nose weight
75
*

The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount. Warning: towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

12
TECHNICAL DATA
226
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

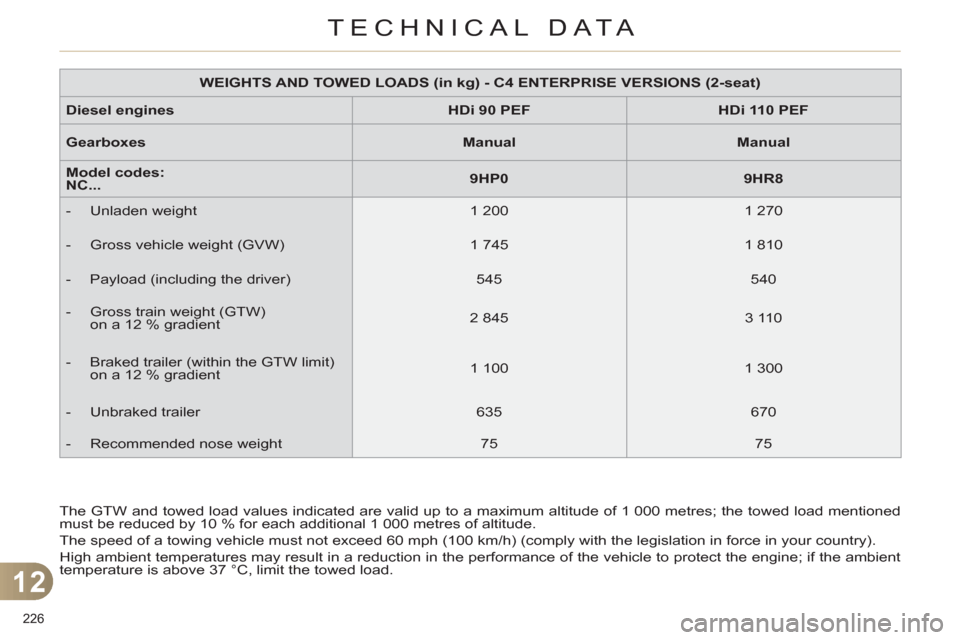

WEIGHTS AND TOWED LOADS (in kg) - C4 ENTERPRISE VERSIONS (2-seat)



Diesel



engines


HDi 90 P

EF



HDi 110 PEF



Gearboxes


Manual



Manual



Model codes:
NC...


9HP0



9HR8




- Unladen weight
1 200
1 270


- Gross vehicle weight (GVW)
1 745
1 810


- Payload (including the driver)
545
540


- Gross train weight (GTW)
on a 12 % gradient
2 845
3 110


- Braked trailer (within the GTW limit)
on a 12 % gradient
1 100
1 300


- Unbraked trailer
635
670


- Recommended nose weight
75
75

12
TECHNICAL DATA
227





DIMENSIONS (IN MM)

12
TECHNICAL DATA
228

















IDENTIFICATION MARKINGS

Various visible markings for the identifi -
cation of your vehicle.

A. Vehicle identifi cation number (VIN)
under the bonnet.
This number is engraved on the body-
work near the engine mounting.
B. Vehicle identifi cation number on
the dashboard.

This number is indicated on a self-
adhesive label which is visible through
the windscreen.
D. Tyre/paint label.

This label is affi xed to the driver's front
pillar.
The tyre pressures must be
checked when the tyres are cold,
at least once a month.
Low tyre pressures increase fuel
consumption.
C. Manufacturer's label.

The VIN is indicated on a self-destroying
label affi xed to the driver's centre pillar. It bears the following information:


- the tyre pressures, for unladen and
laden conditions,

- the wheel rim and tyre sizes,

- the brands of tyre recommended by
the manufacturer,

- the spare tyre infl ation pressure,

- the paint colour code.
Wheels which are fi tted with
225/40 R18 tyres cannot be fi t-
ted with snow chains. For more
information, contact a CITROËN
dealer or a qualifi ed workshop.
