2011.5 Citroen C4 DAG reset

2
MULTIFUNCTION SCREENS
60





Monochrome screen C

You can choose between two types of
display by pressing button A
:


-
the trip computer information appears
temporarily above the audio informa-
tion, displayed permanently in full
screen,
or

- the trip computer and audio infor-
mation both appear permanently in
a shared screen.
Information displays


- the current information tab
with:


●
the range,

●

the current fuel
consumption,

●
the Stop & Start time
counter,



- the trip "1"
tab with:


●
the distance travelled,

●
the average fuel
consumption,

●
the average speed,
for the fi rst trip.


- the trip "2"
tab with:


●
the distance travelled,

●
the average fuel
consumption,

●
the average speed,
for the second trip.





)
Press the button, located at the end
of the wiper stalk
, to display the
various trip computer tabs in suc-
cession.


)

When the trip required is displayed,
press the button on the end of the wiper
stalk for more than two seconds.

Trips "1"
and "2"
are independent but
their use is identical.
For example, trip "1"
can be used for
daily fi gures, and trip "2"
for monthly
fi gures.

Trip zero reset

2
MULTIFUNCTION SCREENS
61





Central instrument panel screen
associated with the satellite
navigation system


- Display of instantaneous informa-
tion with:


●
the range,

●
the current fuel consumption,

●
Stop & Start time counter,



- Display of trip "1"
with:


●
the distance travelled,

●
the average fuel consumption,

●
the average speed,
for the fi rst trip.



- Display of trip "2"
with:


●
the distance travelled,

●
the average fuel consumption,

●
the average speed,
for the second trip.



)
Press the button, located at the end
of the wiper stalk

or

)
turn the thumb wheel, located on
the left of the steering wheel
,
to display the following information
in turn:


●
reminder of the speed,

●
instantaneous information,

●
trip "1"
,

●
trip "2"
,

●
information on the current audio
source,

●
black screen,

●
navigation-guidance messages.


Information displays

)
When the required trip is displayed,
press the thumb wheel located on
the left of the steering wheel
or the
button on the end of the wiper stalk

for more than two seconds.
Trips "1"
and "2"
are independent but
their use is identical.
For example, trip "1"
can be used for
daily fi gures and trip "2"
for monthly
fi gures.

Trip zero reset

2
MULTIFUNCTION SCREENS
62





A few definitions…

This value may vary following a
change in the style of driving or
the relief, resulting in a signifi -
cant change in the current fuel
consumption.
If dashes are displayed continu-
ously while driving in place of the
digits, contact a CITROËN dealer
or a qualifi ed workshop. This function is only displayed
from 20 mph (30 km/h).
Range
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled.
When the range falls below 20 miles
(30 km), dashes are displayed. After
fi lling with at least 5 litres of fuel, the
range is recalculated and is displayed
when it exceeds 60 miles (100 km).
Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption during the last few
seconds.

Average fuel consumption
(mpg or l/100 km or km/l)


This is the average fuel con-
sumption since the last trip
computer zero reset.
Average speed
(mph or km/h)
This is the average speed calcu-
lated since the last trip computer
zero reset (ignition on).

Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.








Stop & Start time counter
(minutes/seconds or hours/
minutes)
If your vehicle is fi tted with Stop & Start,
a time counter calculates the time spent
in STOP mode during a journey.
It resets to zero every time the ignition
is switched on with the key.

The fuel consumption of your
vehicle will be higher than
the offi cial fi gures obtained
by CITROËN during the fi rst
3 000 miles (5 000 km) of the
vehicle's life.

9
DRIVING
163

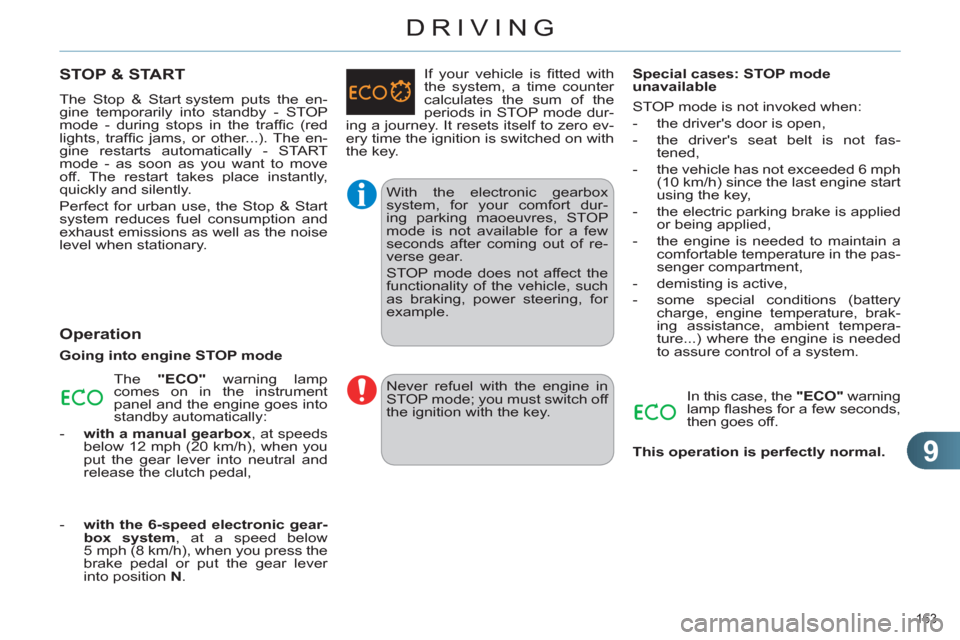

STOP & START

The Stop & Start system puts the en-
gine temporarily into standby - STOP
mode - during stops in the traffi c (red
lights, traffi c jams, or other...). The en-
gine restarts automatically - START
mode - as soon as you want to move
off. The restart takes place instantly,
quickly and silently.
Perfect for urban use, the Stop & Start
system reduces fuel consumption and
exhaust emissions as well as the noise
level when stationary.

Operation


Going into engine STOP mode
The "ECO"
warning lamp
comes on in the instrument
panel and the engine goes into
standby automatically:


- with a manual gearbox
, at speeds
below 12 mph (20 km/h), when you
put the gear lever into neutral and
release the clutch pedal, If your vehicle is fi tted with
the system, a time counter
calculates the sum of the
periods in STOP mode dur-
ing a journey. It resets itself to zero ev-
ery time the ignition is switched on with
the key.

- with the 6-speed electronic gear-
box system
, at a speed below
5 mph (8 km/h), when you press the
brake pedal or put the gear lever
into position N
. With the electronic gearbox
system, for your comfort dur-
ing parking maoeuvres, STOP
mode is not available for a few
seconds after coming out of re-
verse gear.
STOP mode does not affect the
functionality of the vehicle, such
as braking, power steering, for
example.
Special cases: STOP mode
unavailable
STOP mode is not invoked when:


- the driver's door is open,

- the driver's seat belt is not fas-
tened,

- the vehicle has not exceeded 6 mph
(10 km/h) since the last engine start
using the key,

- the electric parking brake is applied
or being applied,

- the engine is needed to maintain a
comfortable temperature in the pas-
senger compartment,

- demisting is active,

- some special conditions (battery
charge, engine temperature, brak-
ing assistance, ambient tempera-
ture...) where the engine is needed
to assure control of a system.
In this case, the "ECO"
warning
lamp fl ashes for a few seconds,
then goes off. Never refuel with the engine in
STOP mode; you must switch off
the ignition with the key.

This operation is perfectly normal.

234
02 STEERING MOUNTED CONTROLS





- Change the audio source.
Long press: mute.


- Volume increase.


- Volume decrease.


- Radio: display the list of stations.
Media: display the list of tracks.


- Rotation.
Radio -automatic selection of
next/previous frequency.
Media: previous/next track.

- Press then rotation: access to
6 preset stations.





- TEL button:
Access to the telephone menu:
Call list/Contacts/Hands-free
mode/Answer/Hang up.
Accept an incoming call/
Long press: reject an incoming call
or end the current call.


- Move in the menus.
Zoom the map in and out.
Press: confi rmation.


- Abandon the current operation.

264
07
1a
1b
1c
1
2
RADIO


By alphabetical list
Press RADIO
or LIST
, select the station
of your choice and confi rm.

By automatic frequency search
Press
or
for the automatic search
for a lower or higher radio frequency.
Or turn the thumb wheel at the steering
mounted controls.

By manual frequency search
Press
or
to adjust the radio
frequency step by step.

Press the button on the numerical
keypad to recall a preset station.
Or press then turn the thumb wheel at
the steering mounted controls.








SELECTING A STATION


The external environment (hill, building, tunnel, underground car park...) may interfere with the reception, including in RDS station tracking mode. This
phenomenon is a normal result of the way in which radio waves are transmitted and does not in any way indicate a fault with the audio system.


PRESETTING A STATION


Press one of the buttons on the
numerical keypad for 2 seconds to
preset the current station.
An audible signal confi rms that the
station has been preset.
The quality of reception is represented
by the number of active waves in this
symbol.

284
01
1
2
7
45
6
3
8
9
10
13
1112
14
FIRST STEPS



1. On/Off and volume adjustment.

2. CD eject.

3. Selection of the display on the screen from
the following modes:
Full screen: Audio (or if a telephone call is in
progress)/
New window: Audio (or telephone if a call is
in progress) - Time or Trip computer.
Long press: black screen (DARK).

4. Selection of source:
Radio, CD, AUX, USB, Streaming.
Accept an incoming call.

5.
Selection of FM1, FM2, DAB and AM wavebands.


6. Buttons 1 to 6:
Selection of a preset radio station.
Long press: preset a station.
7. Display the list of stations received, the
CD/MP3 tracks or folders.
Long press: MP3/WMA fi le order/update the
list of stations received.

8. TA (Traffi c Announcement) function on/off.
Long press: access to the type of
information.

9. Confi rmation or display of contextual menu.

10. Abandon current operation.
Up one level (menu or folder).

11 . Automatic search for a lower/higher radio
frequency.
Selection of previous/next CD, USB,
streaming track.
Navigation in a list.
12. Manual step by step search for a lower/
higher radio frequency.
Selection of the previous/next MP3 folder.
Selection of the previous/next USB device
folder/genre/artist/playlist.
Navigation in a list.

13. Main menu.

14. Audio settings:
equalizer, treble, bass, loudness,
distribution, left/right balance, front/rear,
automatic volume.

309


08 TRIP COMPUTER


Each press of the button, located at the end of the
wiper stalk, displays the different trip computer
information in succession, depending on the screen.


- the "vehicle " tab with:


●
the range, the current fuel consumption and
the distance remaining to the destination or the
Stop & Start time counter,

- the "1" tab (trip 1) with:


●
the average speed, the average consumption
and the distance travelled calculated over trip " 1
",

- the "2" tab (trip 2) with the same information for a
second trip.

Zero reset
When the required trip is displayed, press the control
for more than two seconds.

Range:
displays the distance which can travelled with the remaining fuel
detected in the tank, basd on the average consumption over the last few
miles (kilometres).
This displayed value may vary signifi cantly following a change in the
vehicle speed or the relief of the route.
When the range falls below 20 miles (30 km), dashes are displayed.
After fi lling with at least 10 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (100 km).
If, whilst driving, dashes are displayed continuously in place of the digits,
contact a CITROËN dealer.
A FEW DEFINITIONS


Current fuel consumption:
only calculated and displayed above 20 mph (30 km/h).


Average fuel consumption:
this is the average fuel consumption since
the last trip computer zero reset.

Distance travelled:
calculated since the last trip computer zero reset.

Distance remaining to the destination:
calculated with reference to
the fi nal destination, entered by the user. If guidance is activated, the
navigation system calculates it as a current value.

Average speed:
this is the average speed calculated since the last trip
computer zero reset (ignition on).







Stop & Start time counter
(minutes/seconds or hours/minutes)
If your vehicle is fi tted with Stop & Start, a time counter calculates the
time spent in STOP mode during a journey.
It resets to zero every time the ignition is switched on with the key.
