Familiarisation

Te m p o r a ry puncture repair kit

This kit is a complete system, consisting of acompressor and a sealant car tridge, for the
temporary repair of a tyre.
170

Panoramic sunroof

This large glazed area provides incomparable
visibility and light in the passenger compartment.
7
8

Reversing camera

This system is activated automatically onengaging reverse and provides an image in thecolour screen.
13
0

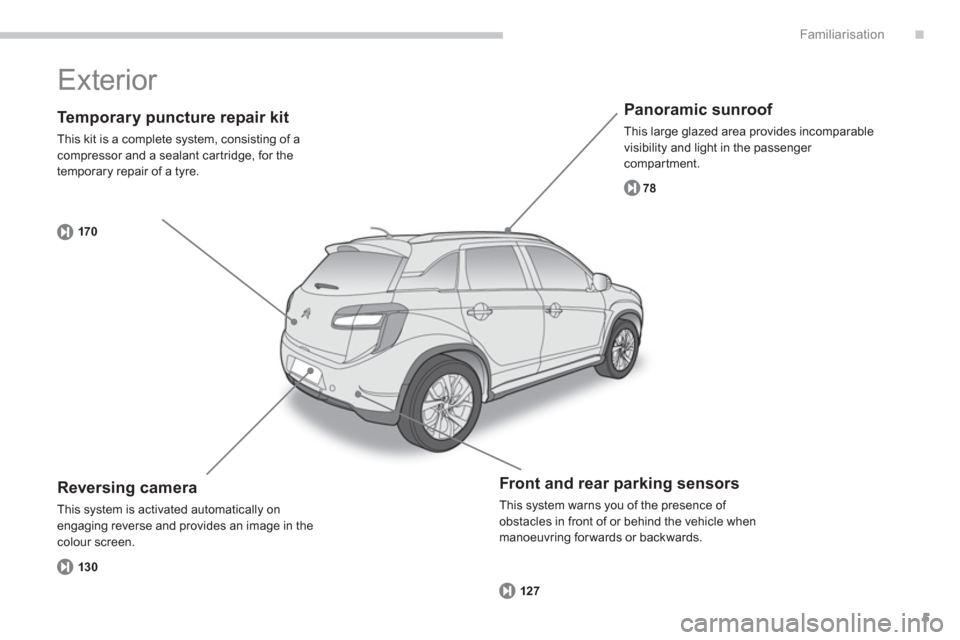

Exterior
Front and rear parking sensors
This system warns you of the presence of obstacles in front of or behind the vehicle whenmanoeuvring forwards or backwards.
127

.
11
Familiarisation
Centre console
A.
Rear view mirror, manual or automatic. B.
Courtesy lamp / Map reading lamps. C.
Microphone for Audio-CD and Audio-
telematic systems.D. Control for panoramic sunroof blind.
E. Sunshine/rain sensor.
1.Central adjustable air vents. 2.
Screen for the Audio-CD system or colour screen for the Audio-telematic system. 3.STA R T/STOP button (with the "Keyless
Entry and Starting" system).4. Audio-CD system or Audio-telematic system.
5. Central switch panel. 6.
Temperature sensor.7.
Manual or digital heating / air conditioning controls.8.
Gear lever, manual or CVT gearbox.9.
Cigarette lighter / 12 V accessory socket.
10.Portable ashtray.
11.Control for 4 wheel drive system.
12.Cup holder.
13. Front armrest.

18
Familiarisation
Monitoring

Manual headlamp adjustment.
Side switch panel
137
1.Open the glove box.
2. Inser t the key.3.
Select the position:"OFF"(deactivation), with "rear facing"child seat, "ON"
(activation), with front passenger or "forwards facing" child seat. 4.Remove the key keeping the switch in the
new position.


Passenger's front airbag
155
B.Deactivation of the ASC/ TCL system.
127 C
.Deactivation of the parking sensors.
148

Passenger safety
120
D.
Deactivation of the Stop & Start(Auto Stop & Go) function.

Starting



- Position 1: LOCK

- Position 2: ACC

- Position 3: ON

- Position 4: STA RT

Each press on the START/STOPbutton,
without action on the pedals, changes the mode of the vehicle.


- First press: ACC mode


- Second press: ONmode

- Third press: OFF mode
106
107


Ignition switch

START/STOP button

1
57
Monitoring

System screen
Once in the "Settings" menu, select "System" to modify the time zone, the units, or the display
language (English, Dutch, Swedish, French,
Portuguese, Italian, German, Spanish or
Danish) and adjust other settings.

Equipment screen
Once in the "Settings" menu, select
"Equipment" to activate or deactivate certain
drivin
g and comfor t systems, or to adjust settings.

"Settings" menu
On the control panel, press the SETbutton toopen the menu.
Remotecontrol:- operation of the direction indicators whenlocking and unlocking the vehicle.
Keyless Entry and Star ting system:
- operation of the direction indicators whenlocking and unlocking the vehicle,
- operation of the Keyless Entry and Starting system (only for unlocking, only for star ting,
or both).
Wi
pers:
- intermittent operation of the windscreen
wipers,
- operation of the front screenwash
associated with the wipers,
- ad
just the frequency of rear wiper
operation,
- continuous operation of the rear wiper,
- wiper linked to reverse gear.
Interior
/ exterior lighting:- sensitivity of the sensor for automatic
illumination of headlamps,
- guide-me-home lighting (activation/deactivation),
- welcome lighting (activation/deactivation),
Electric windows
:


- operating period after switching off the
ignition.
Direction indicators:

- motorway function.
Central lockin
g :


- selective unlocking,

- automatic door unlocking,

- timin
g of the automatic re-locking of the
vehicle after unlocking,

- deadlocking (activation/deactivation).
Other
s:

- automatic folding of the door mirrors,

- automatic cut of power supply to
accessories,

- alarm
(adjustment of sensor sensitivity,
activation/deactivation).


- operatin
g period for courtesy lamps after closing a door,

- automatic headlamp dipping (activation/deactivation),

- timin
g before automatic cour tesy lampsgo off,

- automatic lighting linked to the wipers.

75
2
Access

Tr iggering of the alarm


This is indicated by sounding of the siren andflashing of the direction indicators for thirtyseconds.
A message then appears in the instrument
panel screen while the siren is operating.
When the ignition is next switched on (ONmode if your vehicle has the "Keyless Entry and Starting" system), an audible signal sounds four
times to inform you that the alarm was triggeredduring your absence.
Complete deactivation of
the alarm
)
Switch off the ignition (OFF mode if your vehicle has the "Keyless Entry andStarting" system). )
Remove the key from the ignition switch,
if your vehicle does not have the "Keyless
Entry and Star ting" system.) Open the driver's door. )
Place the lighting control stalk in the "OFF"position. )
Pull the wiper control stalk towards you and
hold.
After about ten seconds there is an audible signal.) When the audible signal stops, continue to
hold the wiper stalk pulled towards you and
press the remote control locking button.
You can completely deactivate the alarm
system. To do this, proceed as follows:
) The state of the system is then signalled to you by the number of beeps:
One beep: the alarm system is completely deactivated.
Two beeps: the alarm system is activated.
Each new press of the remote control
lockin
g button changes the state of thesystem.
It is possible to adjust the sensitivity
of the alarm sensor and to deactivatethe function via the colour screen"Equipment" menu.

87
3
Comfort





Rear view mirror
Adjustable mirror providing a central rear ward view.
Equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to
the driver caused by the sun, headlamps from other vehicles...


Manual day/night model

Ad
justment
)
Adjust the mirror so that the glass is directed correctly in the "day" position.


As a safety measure, the mirrors should be adjusted to reduce the "blind spot".


In order to ensure optimum visibilityduring your manoeuvres, the mirror lightens automatically when reverse gear is engaged.



Day / night position
)
Pull the lever to change to the "night" anti-dazzle position.)
Push the lever to change to the normal
"day" position.
Automatic day/night model
By means of a sensor, which measures the
light from the rear of the vehicle, this system automatically and progressively changes
between the day and night uses.








Steering wheel adjustment
)When stationary, lower the control lever to yrelease the steering wheel adjustment mechanism.)
Adjust the height and reach to suit your
driving position.) Pull the control lever to lock the steering
wheel adjustment mechanism.

As a safety precaution, these operations should only be carried out while the vehicle is stationary.

88
Comfort








Vent ilat ion
The air circulating in the passenger compartment
is filtered and originates either from the outside via
the
grille located at the base of the windscreen or from the inside in air recirculation mode.
Air treatment
The incoming air follows various routes
depending on the controls selected by thedriver:
- direct arrival in the passenger compartment (air intake),
- passage through a heating circuit (heating),
- passage through a cooling circuit (air conditioning).
Control panel
The controls of this system are grouped
together on control panel A on the centreconsole.
1.Windscreen demisting-defrosting vents.2.
Front side window demisting-defrosting
vents. 3. Side adjustable air vents.
4.Central adjustable air vents. 5
. Air outlets to the front footwells.
6.Air outlets to the rear footwells. 7. Temperature sensor. 8.Sunshine / rain sensor.


Air distribution
