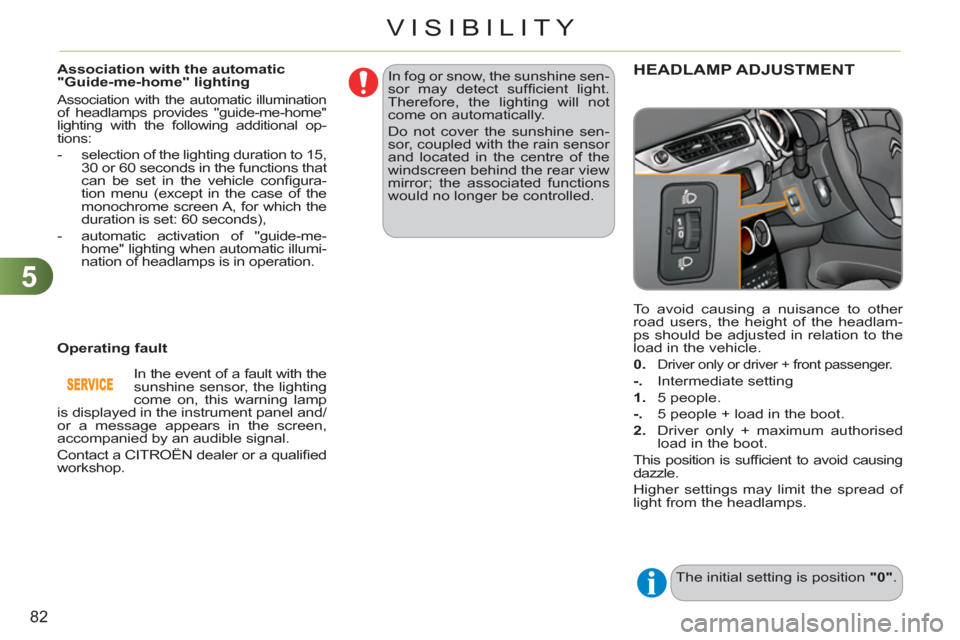

VISIBILITY
To avoid causing a nuisance to other
road users, the height of the headlam-
ps should be adjusted in relation to the
load in the vehicle.

0

.

Driver only or driver + front passenger.


-
. Intermediate setting

1.
5 people.

-
. 5 people + load in the boot.

2.
Driver only + maximum authorised
load in the boot.
This position is suffi cient to avoid causing
dazzle.
Higher settings may limit the spread of
light from the headlamps.
The initial setting is position "0"
.
HEADLAMP ADJUSTMENT

Association with the automatic
"Guide-me-home" lighting
Association with the automatic illumination of headlamps provides "guide-me-home"
lighting with the following additional op-
tions:


- selection of the lighting duration to 15,
30 or 60 seconds in the functions that
can be set in the vehicle confi gura-
tion menu (except in the case of the
monochrome screen A, for which the
duration is set: 60 seconds),

- automatic activation of "guide-me-
home" lighting when automatic illumi-
nation of headlamps is in operation.


Operating fault In fog or snow, the sunshine sen-
sor may detect suffi cient light.
Therefore, the lighting will not
come on automatically.
Do not cover the sunshine sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the rear view
mirror; the associated functions
would no longer be controlled.

In the event of a fault with the
sunshine sensor, the lighting
come on, this warning lamp
is displayed in the instrument panel and/
or a message appears in the screen,
accompanied by an audible signal.
Contact a CITROËN dealer or a qualifi ed
workshop.

6
90
FITTINGS
USB PLAYER

The USB port is located in the "AUX"

box on the centre console.
It permits the connection of a portable
device, such as a digital audio player of
the iPod
® generation 5 and later type or
USB memory stick type.
It reads the audio fi le formats (mp3,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
You can manage these fi les using the
steering mounted controls or the audio
equipment control panel and display
them on the multifunction screen.

When it is in use, the portable
device charges automatically.

For more information on the use of this
equipment, refer to the Audio system part
of the "Audio and Telematics" section.
12 V ACCESSORY SOCKET



)
To connect a 12 V accessory (max
power: 120 W), lift the cover and
connect a suitable adaptor.







AUXILIARY SOCKET


The auxiliary socket is located in the
" AUX
" box on the centre console.
It permits the connection of a portable
device, such as a digital audio player of
the iPod
® type, to listen to your music
fi les using the vehicle's speakers.

For more information on the use of
this equipment, refer to the MyWay or
Audio system part of the "Audio and
Telematics" section. The management of the fi les is
done using your portable device.

9
115
DRIVING

Display in the instrument panel


Gear lever positions

N.
Neutral

R.
Reverse

1 2 3 4 5/6.
Gears in manual mode.

AUTO.
This comes on when automated
mode is selected. It goes off when
changing to manual mode.

Moving off



)
Select position N
.

)
Press the brake pedal fully.

)
Start the engine.
N
appears in the instrument
panel.

N
fl ashes in the instrument panel
screen if the gear lever is not in
position N
when starting.


)
Select automated mode (position A
),
manual mode (position M
) or reverse
(position R
).

AUTO
and 1
, 1
or R
appear in
the instrument panel.


)
Place your foot on the
brake
when this warning
lamp fl ashes (e.g.: starting
the engine).


You must keep your foot on the
brake pedal while starting the
engine. Vehicles fi tted with the 6-speed
electronic gearbox system then
move off on their own (refer to
the paragraph "Creep function").
Creep function
(6-speed electronic gearbox system)
This function allows the vehicle to be
manoeuvered more easily at low speeds (when parking, in traffi c jams...).
With the gear lever in position A
, M
or R
,
the vehicle moves as soon as you take
your foot off the brake pedal
, at low
speed and with the engine at idle.
Do not leave children unsuper-
vised inside the vehicle when
the engine is running.


)
Release the parking brake.

)
Progressively take your foot off the
brake pedal.
Do not press the brake and
clutch pedals simultaneously.
This can cause rapid clutch
wear.

)
Accelerate away. The creep function may be tem-
porarily unavailable if the clutch
temperature is too high or the
slope too steep.

9
118
DRIVING
AUTOMATIC GEARBOX
Four-speed automatic gearbox which
offers a choice between the comfort of
fully automatic operation, enhanced by
sport and snow programmes, or manual
gear changing.
Therefore, four driving modes are of-
fered:


- automatic
operation for electronic
management of the gears by the
gearbox,

- sport
programme for a more dynamic
style of driving,

- snow
programme to improve driv-
ing when traction is poor,

- manual
operation for sequential
changing of the gears by the driver.


1.
Gear lever.

2.
Button "S"
(sport)
.

3.
Button "

7

"
(snow).




Gear selection gate


P.
Park.


- Immobilisation of the vehicle, parking
brake on or off.

- Starting the engine.

R.
Reverse.


- Reversing manoeuvres, vehicle sta-
tionary, engine at idle.

N.
Neutral.


- Immobilisation of the vehicle, parking
brake on.

- Starting the engine.

D.
Automatic operation.

M +/-.
Manual operation with sequential
changing of the four gears.


)
Push forwards to change up through
the gears.
or

)
Pull backwards to change down
through the gears.

Gear lever

When you move the lever in the gate
to select a position, the corresponding
indicator is displayed in the instrument
panel.

P.
Park

R.
Reverse

N.
Neutral

D.
Drive (Automatic driving)

S.
Sport
programme

7

.
Snow
programme

1 2 3 4

.
Gears engaged during manual
operation

-.
Invalid value during manual operation


Displays in the instrument panel


Foot on brake


)
Press the brake pedal when
this indicator lamp is displayed
in the instrument panel (e.g.:
starting the engine).

9
120
DRIVING
Manual operation



)
Select position M
for sequential

changing of the four gears.

)
Push the lever towards the +
sign to
change up a gear.

)
Pull the lever towards the -
sign to
change down a gear.
It is only possible to change from one
gear to another if the vehicle speed and
engine speed permit; otherwise, the
gearbox will operate temporarily in au-
tomatic mode.

D
disappears and the gears
engaged appear in succes-
sion on the instrument panel.
If the engine speed is too low
or too high, the gear selected
fl ashes for a few seconds, then the ac-
tual gear engaged is displayed.
It is possible to change from position D

(automatic) to position M
(manual) at
any time.
When the vehicle is stationary or moving
very slowly, the gearbox selects gear M1

automatically.
The sport and snow programmes do not
operate in manual mode.
Invalid value during manual
operation
This symbol is displayed if a
gear is not engaged correctly
(selector between two posi-
tions).

Stopping the vehicle

Before switching off the engine, you
can engage position P
or N
to place the
gearbox in neutral.
In both cases, apply the parking brake
to immobilise the vehicle.
If the lever is not in position P
,
when the driver's door is opened
or approximately 45 seconds af-
ter the ignition is switched off, a
message appears in the multi-
function screen.


)
Return the lever to position P
;
the message disappears.
There is a risk of damage to the
gearbox:


- if you press the accelera-
tor and brake pedals at the
same time,

- if you force the movement
of the gear lever from the
P
position to another position
when the battery is fl at.


Operating fault

When the ignition is on, the
lighting of this warning lamp,
accompanied by an audible
signal and a message in the multifunc-
tion screen, indicates a gearbox fault.
In this case, the gearbox switches to
back-up mode and is locked in 3rd gear.
You may feel a substantial knock when
changing from P
to R
and from N
to R
.
This will not cause any damage to the
gearbox.
Do not exceed 60 mph (100 km/h), local
speed restrictions permitting.
Contact a CITROËN dealer or a qualifi ed
workshop as soon as possible.
To reduce fuel consumption
when at a prolonged standstill
with the engine running (traffi c
jam...), put the gear lever in the
N
position and apply the parking
brake.

9
122
DRIVING

Going into engine START mode
The "ECO"
warning lamp goes
off and the engine starts:


- with a manual gearbox
, when you
depress the clutch pedal,

- with a 5-speed or 6-speed elec-
tronic gearbox
:


●
gear lever in position A
or M
, when
you release the brake pedal,

●
or gear lever in position N
and the
brake pedal released, when you
move the gear lever to position A

or M
,

●
or when you engage reverse gear.


Special cases: START invoked
automatically
For reasons of safety and for your com-
fort, START mode is invoked automati-
cally when:


- you open the driver's door,

- you unfasten the driver's seat belt,

- the speed of the vehicle exceeds
7 mph (11 km/h) with the electronic
gearbox system,

- some special conditions (battery
charge, engine temperature, brak-
ing assistance, ambient tempera-
ture...) where the engine is needed
for control of a system.
Deactivation

At any time, press the "ECO OFF"
switch
to deactivate the system.
This is confi rmed by the switch warn-
ing lamp coming on accompanied by a
message in the screen.

If the system has been deacti-
vated in STOP mode, the engine
restarts immediately.


Reactivation

Press the "ECO OFF"
switch again.
The system is active again; this is
confi rmed by the switch warning lamp
going off, accompanied by a message
in the screen.

The system is reactivated auto-
matically at every new start using
the key.
The "ECO"
warning lamp fl ashes
for a few seconds, then goes off.

This operation is perfectly normal.




With a manual gearbox in STOP
mode, if you engage a gear with-
out fully depressing the clutch
pedal, a message is displayed
asking you to fully depress the
clutch pedal so that the engine
can restart.

9
125
DRIVING
SPEED LIMITER
System which prevents the vehicle from
exceeding the speed programmed by
the driver.
When the programmed speed limit is
reached, pressing the accelerator pedal
in the normal manner no longer has any
effect.
The speed limiter is switched on
ma-
nually: it requires a programmed speed
of at least 20 mph (30 km/h).
The speed limiter is switched off
by
manual operation of the control.
The programmed speed can be exceeded
temporarily by pressing the accelerator
fi rmly.
To return to the programmed speed,
simply slow down to a speed below the
programmed speed.
The programmed speed remains in the
memory when the ignition is switched off.
The speed limiter cannot, in any
circumstances, replace the need
to respect speed limits, nor can
it replace the need for vigilance
and responsibility on the part of
the driver.
Steering mounted controls
The controls of this system are grouped
together on stalk A
.


1.
Speed limiter mode selection thumb
wheel.

2.
Value decrease button.

3.
Value increase button.

4.
Speed limiter on/off button.



Displays in the instrument panel

The programmed information is grouped
together in the instrument panel screen.

5.
Speed limiter on/off indication.

6.
Speed limiter mode selection
indication.

7.
Programmed speed value.

9
126
DRIVING
On a steep descent or in the
event of sharp acceleration, the
speed limiter will not be able to
prevent the vehicle from exceed-
ing the programmed speed.
To avoid any risk of jamming of
the pedals:


- ensure that the mat is posi-
tioned correctly,

- do not fi t one mat on top of
another.

Programming



)
Turn thumb wheel 1
to the "LIMIT"

position: the speed limiter mode
is selected but is not switched on
(PAUSE).
You do not have to switch the speed
limiter on in order to set the speed.


)
Set the speed value by pressing button 2
or 3

(e.g.: 55 mph (90 km/h)).

You can then change the programmed speed using buttons 2
and 3
:


- by + or - 1 mph (km/h) = short press,

- by + or - 5 mph (km/h) = long press,

- in steps of + or - 5 mph (km/h) = maintained press.


)
Switch the speed limiter on by pressing button 4
.

)
Switch the speed limiter off by pressing button 4
: the
display confi rms that it has been switched off (PAUSE).

)
Switch the speed limiter back on by pressing button 4

again.


Exceeding the programmed speed

Pressing the accelerator pedal to exceed the programmed
speed will not have any effect unless you press the pedal
fi rmly
past the point of resistance
.
The speed limiter is deactivated temporarily and the pro-
grammed speed, which is still displayed, fl ashes.
Returning to the programmed speed, by means of intentional
or unintentional deceleration of the vehicle, automatically
cancels the fl ashing of the programmed speed.


Leaving limiter mode



)
Turn thumb wheel 1
to the "0"
position: the speed limiter
mode is deselected. The display returns to the distance
recorder.



Operating fault

In the event of a speed limiter fault, the
speed is cleared resulting in fl ashing of
the dashes.
Have it checked by a CITROËN dealer
or a qualifi ed workshop.
