2011.5 Citroen C3 RHD tow

5
84
VISIBILITY












Rear wiper
park,
intermittent wipe,
wash-wipe (set duration).

Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if the
windscreen wipers are operating.

Programming
The function is activated or deactivated
via the vehicle confi guration menu.
This function is activated by default.







Windscreen wash
Pull the wiper stalk towards you. The
windscreen wash, then the windscreen
wipers, operate for a pre-determined
time.

B.
Rear wiper selection ring:
If a signifi cant accumulation of
snow or ice is present, or when
using a tailgate bicycle car-
rier, deactivate the automatic
rear wiper via the multifunction
screen confi guration menu.

6
89
FITTINGS
SUN VISOR
Component which protects against sun-
light from the front or the side.

Version without Zenith windscreen
GLOVE BOX




)
To open the glove box, raise the
handle.
It houses the front passenger airbag de-
activation switch A
.
It gives access to the dashboard fuse-
box (see the "Practical information - §
Changing a fuse" section).
CENTRE ARMREST

Comfort and storage system for the driver
and front passenger.

Storage



)
For access to the closed storage
box, lift the lever to open the lid.

)
For access to the open storage box
below the armrest, lift the complete
armrest towards the rear.
These can be used for portable devices
(mobile phone, MP3 player...) which can
be connected to the USB port/auxiliary
socket or charged from the 12 V socket
in the centre console.
Version with Zenith windscreen
Refer to the "Familiarisation - § Zenith
windscreen" section.
The sun visors are fi tted with a courtesy
mirror, with concealing fl ap for the driver
and a ticket/card holder.

6
FITTINGS

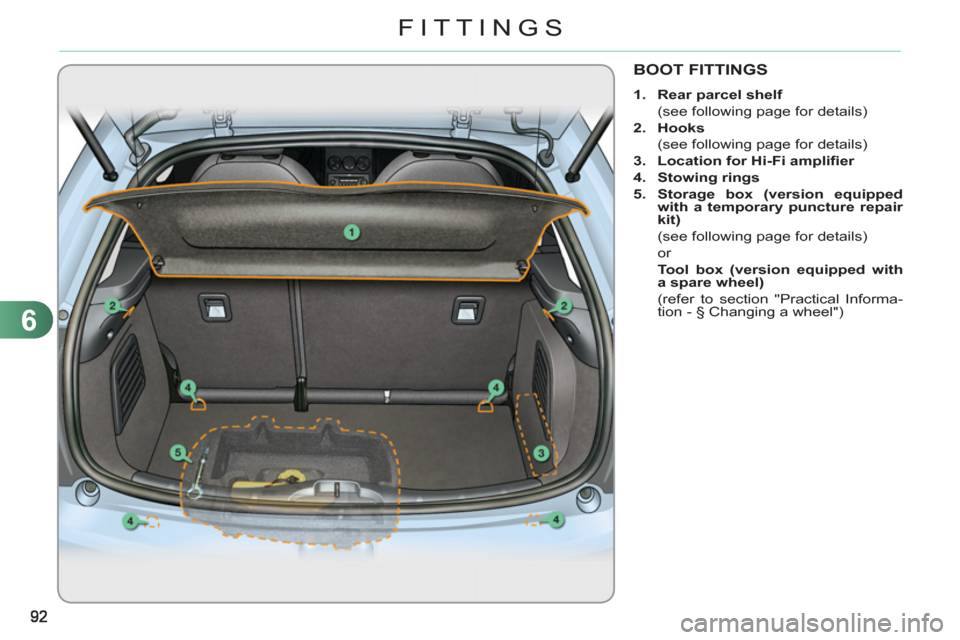

BOOT FITTINGS


1.
Rear parcel shelf


(see following page for details)

2.
Hooks


(see following page for details)

3.
Location for Hi-Fi amplifi er


4.
Stowing rings


5.
Storage box (version equipped
with a temporary puncture repair
kit)


(see following page for details)
or
Tool box (version equipped with
a spare wheel)


(refer to section "Practical Informa-
tion - § Changing a wheel")

7
99
CHILD SAFETY
"ISOFIX" MOUNTINGS
Your vehicle has been approved in accor-
dance with the new
ISOFIX regulation
.
The seats, represented below, are fi tted
with regulation ISOFIX mountings: There are three rings for each seat:


- two rings A
, located between the
vehicle seat back and cushion, indi-
cated by a label, This ISOFIX mounting system provides
fast, reliable and safe fi tting of the child
seat in your vehicle.
The ISOFIX child seats
are fi tted with
two latches which are secured on the
two rings A
.
When fi tting an ISOFIX child seat to
the right hand rear seat, before fi xing
the seat in place, fi rst move the centre
rear seat belt towards the middle of the
vehicle so as to not interfere with the
operation of the seat belt.
Some seats also have an upper strap

which is attached to ring B
.
To attach this strap, raise the vehicle
seat's head restraint then pass the hook
between its rods. Then fi x the hook on
ring B
and tighten the upper strap.

- a ring B
, behind the seat, referred to
as the TOP TETHER
for fi xing the
upper strap.
The incorrect installation of a
child seat in a vehicle compro-
mises the child's protection in
the event of an accident.
For information regarding the ISOFIX
child seats which can be installed in
your vehicle, refer to the table showing
the locations for installing ISOFIX child
seats.

8
103
SAFETY
DIRECTION INDICATORS
Selection of the left or right direction in-
dicators to signal a change of direction
of the vehicle.


)
Left: lower the lighting stalk beyond
the point of resistance.

)
Right: raise the lighting stalk beyond
the point of resistance.
"Motorway" function



)
Press briefl y upwards or downwards,
without going beyond the point of
resistance; the direction indicators
will fl ash 3 times.

HAZARD WARNING LAMPS

A visual warning by means of the direc-
tion indicators to alert other road users to
a vehicle breakdown, towing or accident.


)
Press this button, the direction indi-
cators fl ash.
They can operate with the ignition off.
Automatic operation of hazard
warning lamps
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lamps come on automatically.
They switch off automatically the fi rst
time you accelerate.


)
You can also switch them off by
pressing the button.








HORN


Audible warning to alert other road users to
an imminent danger.


)
Press one of the spokes of the steering
wheel.
Use the horn moderately and
only in the following cases:


- immediate danger,





- when approaching an area
where there is no visibility.

8
SAFETY





The driver must ensure that passen-
gers use the seat belts correctly and
that they are all restrained securely
before setting off.
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
even for short journeys.
Do not interchange the seat belt
buckles as they will not fulfi l their role
fully.
The seat belts are fi tted with an inertia
reel permitting automatic adjustment
of the length of the strap to your size.
The seat belt is stowed automatically
when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned in
the hollow of the shoulder.
The inertia reels are fi tted with an auto-
matic locking device which comes into
operation in the event of a collision,
emergency braking or if the vehicle
rolls over. You can release the device
by pulling fi rmly on the strap and re-
leasing it so that it reels in slightly.
Recommendations for children
Use a suitable child seat if the pas-
senger is less than 12 years old or
shorter than one and a half metres.
Never use the same seat belt to secure
more than one person.
Never allow a child to travel on your lap. In order to be effective, a seat belt
must:


- be tightened as close to the body
as possible,

- be pulled in front of you with a
smooth movement, checking that
it does not twist,

- be used to restrain only one person,

- not bear any trace of cuts or fraying,

- not be converted or modifi ed to
avoid affecting its performance.
In accordance with current safety
regulations, for all repairs on your
vehicle, go to a qualifi ed workshop
with the skills and equipment needed,
which a CITROËN dealer is able to
provide.
Have your seat belts checked regu-
larly by a CITROËN dealer or a quali-
fi ed workshop, particularly if the straps
show signs of damage.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by CITROËN dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and reeled in correctly.
In the event of an impact

Depending on the nature and se-
riousness of the impact
, the pre-
tensioning device may be deployed
before and independently of the air-
bags. Deployment of the preten-
sioners is accompanied by a slight
discharge of harmless smoke and
a noise, due to the activation of the
pyrotechnic cartridge incorporated in
the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a CITROËN dealer
or a qualifi
ed workshop.

8
11 0
SAFETY
Lateral airbags
System which protects the driver and
front passenger in the event of a serious
side impact in order to limit the risk of
injury to the chest, between the hip and
the shoulder.
Each lateral airbag is fi tted in the seat
backrest frame, door side.

Deployment
The lateral airbags are deployed uni-
laterally in the event of a serious side
impact applied to all or part of the side
impact zone B
, perpendicular to the lon-
gitudinal centreline of the vehicle on a
horizontal plane and directed from the
outside towards the inside of the ve-
hicle.
The lateral airbag infl ates between the
hip and shoulder of the front occupant
of the vehicle and the corresponding
door trim panel.
Impact detection zones


A.
Front impact zone.

B.
Side impact zone.


Curtain airbags

System which protects the driver and
passengers (with the exception of the
rear centre passenger) in the event of a
serious side impact in order to limit the
risk of injury to the side of the head.
Each curtain airbag is built into the pillars
and the upper passenger compartment
area.
Deployment
The curtain airbag is deployed at the
same time as the corresponding lateral
airbag in the event of a serious side im-
pact applied to all or part of the side impact
zone B
, perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside to-
wards the inside of the vehicle.
The curtain airbag infl ates between the
front or rear occupant of the vehicle and
the windows.

Operating fault
If this warning lamp comes on
in the instrument panel, accom-
panied by an audible signal and
a message in the screen, con-
tact a CITROËN dealer or a qualifi ed
workshop to have the system checked.
The airbags may no longer be deployed
in the event of a serious impact.
In the event of a minor impact or
bump on the side of the vehicle
or if the vehicle rolls over, the
airbag may not be deployed.
In the event of a rear or front colli-
sion, the airbag is not deployed.

9
120
DRIVING
Manual operation



)
Select position M
for sequential

changing of the four gears.

)
Push the lever towards the +
sign to
change up a gear.

)
Pull the lever towards the -
sign to
change down a gear.
It is only possible to change from one
gear to another if the vehicle speed and
engine speed permit; otherwise, the
gearbox will operate temporarily in au-
tomatic mode.

D
disappears and the gears
engaged appear in succes-
sion on the instrument panel.
If the engine speed is too low
or too high, the gear selected
fl ashes for a few seconds, then the ac-
tual gear engaged is displayed.
It is possible to change from position D

(automatic) to position M
(manual) at
any time.
When the vehicle is stationary or moving
very slowly, the gearbox selects gear M1

automatically.
The sport and snow programmes do not
operate in manual mode.
Invalid value during manual
operation
This symbol is displayed if a
gear is not engaged correctly
(selector between two posi-
tions).

Stopping the vehicle

Before switching off the engine, you
can engage position P
or N
to place the
gearbox in neutral.
In both cases, apply the parking brake
to immobilise the vehicle.
If the lever is not in position P
,
when the driver's door is opened
or approximately 45 seconds af-
ter the ignition is switched off, a
message appears in the multi-
function screen.


)
Return the lever to position P
;
the message disappears.
There is a risk of damage to the
gearbox:


- if you press the accelera-
tor and brake pedals at the
same time,

- if you force the movement
of the gear lever from the
P
position to another position
when the battery is fl at.


Operating fault

When the ignition is on, the
lighting of this warning lamp,
accompanied by an audible
signal and a message in the multifunc-
tion screen, indicates a gearbox fault.
In this case, the gearbox switches to
back-up mode and is locked in 3rd gear.
You may feel a substantial knock when
changing from P
to R
and from N
to R
.
This will not cause any damage to the
gearbox.
Do not exceed 60 mph (100 km/h), local
speed restrictions permitting.
Contact a CITROËN dealer or a qualifi ed
workshop as soon as possible.
To reduce fuel consumption
when at a prolonged standstill
with the engine running (traffi c
jam...), put the gear lever in the
N
position and apply the parking
brake.
