VISIBILITY
LIGHTING CONTROLS
System for selection and control of the
various front and rear lamps providing
the vehicle's lighting.
Main lighting
The various front and rear lamps of the
vehicle are designed to adapt the driver's
visibility progressively according to cli-
matic conditions:
- sidelamps, to be seen,
- dipped beam headlamps to see
without dazzling other drivers,
- main beam headlamps to see clearly
when the road is clear.
Additional lighting
Other lamps are installed to fulfi l the
requirements of particular conditions of
visibility:
- a rear foglamp to be seen from
afar,
- front foglamps for even better for-
ward vision.
Programming
Various automatic lighting control modes
are also available according to the fol-
lowing options:
- guide-me-home lighting,
- automatic illumination of headlamps.
Model without AUTO lighting
Model with AUTO lighting
Lamps off.
Automatic illumination of
headlamps.
Sidelamps only.
Dipped or main beam
headlamps.
B.
Stalk for switching the headlamp
beam: pull the stalk to switch between
dipped and main beam headlamps.
In the lamps off and sidelamps modes,
the driver can switch on the main beam
headlamps temporarily ("headlamp
fl ash") by maintaining a pull on the stalk.
Displays
Lighting of the corresponding indicator
lamp on the instrument panel confi rms the
switching on of the lighting selected.
Depending on version, the instrument
panel may have permanent back-lighting.
Illumination of the instrument panel is
therefore not linked to the exterior lighting.
Manual controls
The lighting is controlled directly by the
driver by means of the ring A
and the
stalk B
.
A.
Main lighting mode selection ring:
turn it to position the symbol re-
quired facing the mark.
Page 82 of 252
5
80
VISIBILITY
C.

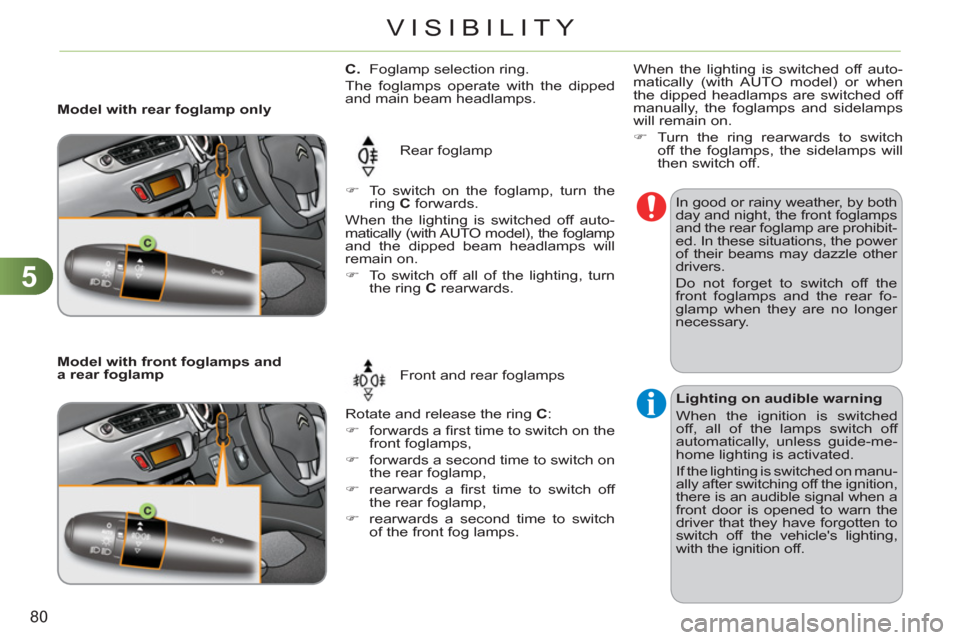

Foglamp selection ring.
The foglamps operate with the dipped
and main beam headlamps.
Rear foglamp
Rotate and release the ring C
:
)
forwards a fi rst time to switch on the
front foglamps,
)
forwards a second time to switch on
the rear foglamp,
)
rearwards a fi rst time to switch off
the rear foglamp,
)
rearwards a second time to switch
of the front fog lamps.
Model with rear foglamp only
)
To switch on the foglamp, turn the
ring C
forwards.
When the lighting is switched off auto-
matically (with AUTO model), the foglamp
and the dipped beam headlamps will
remain on.
)
To switch off all of the lighting, turn
the ring C
rearwards.
Model with front foglamps and
a rear foglamp
Front and rear foglamps In good or rainy weather, by both
day and night, the front foglamps
and the rear foglamp are prohibit-
ed. In these situations, the power
of their beams may dazzle other
drivers.
Do not forget to switch off the
front foglamps and the rear fo-
glamp when they are no longer
necessary.
Lighting on audible warning
When the ignition is switched
off, all of the lamps switch off
automatically, unless guide-me-
home lighting is activated.
If the lighting is switched on manu-
ally after switching off the ignition,
there is an audible signal when a
front door is opened to warn the
driver that they have forgotten to
switch off the vehicle's lighting,
with the ignition off.
When the lighting is switched off auto-
matically (with AUTO model) or when
the dipped headlamps are switched off
manually, the foglamps and sidelamps
will remain on.
)
Turn the ring rearwards to switch
off the foglamps, the sidelamps will
then switch off.
Page 83 of 252
5
81
VISIBILITY
* According to country.
Daytime running lamps *
On vehicles fi tted with daytime run-
ning lamps, the dipped beams come on
when the vehicle is started.
Manual guide-me-home lighting
Temporarily keeping the dipped beam
headlamps on after the vehicle's igni-
tion has been switched off makes the
driver's exit easier when the light is
poor.
Switching on
)
With the ignition off, "fl ash" the
headlamps using the lighting stalk.
)
A further "headlamp fl ash" switches
the function off.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time.
The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected or in certain cases of activa-
tion of the windscreen wipers.
As soon as the brightness returns to a
suffi cient level or after the windscreen
wipers are switched off, the lamps are
switched off automatically.
Activation
)
Turn ring to the "AUTO"
position.
The automatic illumination of head-
lamps is accompanied by a mes-
sage in the screen.
Deactivation
)
Turn ring to a position other than
"AUTO"
. Deactivation is accompa-
nied by a message in the screen.
This warning lamp comes on in
the instrument panel.
The instruments and controls (instru-
ment panel, multifunction screen, air
conditioning control panel, etc.) are not
illuminated, except on switching to the
automatic lighting mode or when the
lighting is switched on manually.
This function can be activated/deacti-
vated by a CITROËN dealer or a quali-
fi ed workshop. In some weather conditions (e.g.
low temperature or humidity),
the presence of misting on the
internal surface of the glass of
the headlamps and rear lamps
is normal; it disappears after the
lamps have been on for a few
minutes.
Page 84 of 252
5
82
VISIBILITY
To avoid causing a nuisance to other
road users, the height of the headlam-
ps should be adjusted in relation to the
load in the vehicle.
0
.
Driver only or driver + front passenger.
-
. Intermediate setting
1.
5 people.
-
. 5 people + load in the boot.
2.
Driver only + maximum authorised
load in the boot.
This position is suffi cient to avoid causing
dazzle.
Higher settings may limit the spread of
light from the headlamps.
The initial setting is position "0"
.
HEADLAMP ADJUSTMENT
Association with the automatic
"Guide-me-home" lighting
Association with the automatic illumination of headlamps provides "guide-me-home"
lighting with the following additional op-
tions:
- selection of the lighting duration to 15,
30 or 60 seconds in the functions that
can be set in the vehicle confi gura-
tion menu (except in the case of the
monochrome screen A, for which the
duration is set: 60 seconds),
- automatic activation of "guide-me-
home" lighting when automatic illumi-
nation of headlamps is in operation.
Operating fault In fog or snow, the sunshine sen-
sor may detect suffi cient light.
Therefore, the lighting will not
come on automatically.
Do not cover the sunshine sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the rear view
mirror; the associated functions
would no longer be controlled.
In the event of a fault with the
sunshine sensor, the lighting
come on, this warning lamp
is displayed in the instrument panel and/
or a message appears in the screen,
accompanied by an audible signal.
Contact a CITROËN dealer or a qualifi ed
workshop.
Page 149 of 252
11
147
PRACTICAL INFORMATION
The headlamps are fi tted with
polycarbonate glass with a pro-
tective coating:
)
do not clean them using a
dry or abrasive cloth, nor
with a detergent or solvent
product,
)
use a sponge and soapy water,
)
when using a high pressure
washer on persistent marks,
do not keep the lance direct-
ed towards the lamps or their
edges for too long, so as not
to damage their protective
coating and seals.
CHANGING A BULB
)
Do not touch the bulb directly with your fi ngers, use lint-free
cloths.
Changing a bulb should only be
done after the headlamp has
been switched off for a few min-
utes (risk of serious burns).
It is imperative to use only anti-
ultraviolet (UV) type bulbs in
order not to damage the head-
lamp.
Always replace a failed bulb with
a new bulb with the same type
and specifi cation.
Front lamps
1.
Direction indicators
(PY 21 W amber).
2.
Sidelamps (W 5 W).
3.
Main beam headlamps (H1-55 W).
4.
Dipped beam headlamps
(H7-55 W).
5.
Front foglamps (PSX 24 W).
Page 150 of 252
11
148
PRACTICAL INFORMATION
Changing direction indicator bulbs
)
Turn the bulb holder a quarter of a
turn and extract it.
)
Pull out the bulb and change it.
To r efi t, carry out these operations in
reverse order.
When refi tting, close the protec-
tive cover carefully to preserve
the sealing of the headlamp.
Rapid fl ashing of the direction
indicator warning lamp (right
or left) indicates the failure of a
bulb on that side.
Amber coloured bulbs, such as
the direction indicators, must be
replaced with bulbs of identical
specifi cations and colour.
Changing dipped beam headlamp
bulbs
)
Remove the protective cover by
pulling on the tab.
)
Disconnect the bulb connector.
)
Spread the springs to release the
bulb.
)
Pull the bulb out and change it.
To r efi t, carry out these operations in re-
verse order.
Changing main beam headlamp
bulbs
)
Remove the protective cover by
pulling on the tab.
)
Disconnect the bulb connector.
)
Spread the springs to release the
bulb.
)
Remove the bulb and change it.
To r efi t, carry out these operations in
reverse order.
Changing sidelamp bulbs
)
Remove the protective cover by
pulling on the tab.
)
Pull the bulb holder pressing on the
tabs on both sides.
)
Pull the bulb and change it.
To r efi t, carry out these operations in
reverse order.
Page 160 of 252
11
158
PRACTICAL INFORMATION
Fuse N°
Rating
Functions
F12
30 A
Windscreen wipers slow/fast speed.
F13
40 A
Built-in systems interface supply (ignition positive).
F14
30 A
Valvetronic supply (VTi).
F15
10 A
Right-hand main beam headlamps.
F16
10 A
Left-hand main beam headlamps.
F17
15 A
Left-hand dipped beam headlamps.
F18
15 A
Right-hand dipped beam headlamps.
F19
15 A
Oxygen sensors and electrovalves (VTi),
electrovalves (Diesel), EGR electrovalve (Diesel).
F20
10 A
Pumps, electronic thermostat (VTi), water in fuel
sensor (Diesel).
F21
5 A
Fan assembly control supply, ABS/ESP.
Page 164 of 252
11
162
PRACTICAL INFORMATION
If the telephone is being used at
the same time on the MyWay au-
dio navigation system, it will be
interrupted after 10 minutes. A fl at battery prevents the engine
from starting (refer to the corre-
sponding paragraph).
ENERGY ECONOMY MODE
System which manages the period of
use of certain functions to conserve a
suffi cient level of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio
equipment, windscreen wipers, dipped
beam headlamps, courtesy lamps, etc.
for a maximum combined period of
thirty minutes.
Switching to economy mode
Once this period has elapsed, a mes-
sage appears on the multifunction
screen indicating that the vehicle has
switched to economy mode and the ac-
tive functions are put on standby.
Exiting economy mode
These functions are reactivated auto-
matically the next time the vehicle is
driven.
)
In order to resume the use of these
functions immediately, start the en-
gine and let it run for a few minutes.
The time available to you will then be dou-
ble the period for which the engine is left
running. However, this period will always
be between fi ve and thirty minutes.
This period may be greatly re-
duced if the battery is not fully
charged.
CHANGING A FRONT OR REARWIPER BLADE
Procedure for replacing a worn wiper
blade with a new one without the use
of tools.
Before removing a front wiper
blade
)
Within one minute after switching off
the ignition, operate the wiper stalk
to position the wiper blades in the
vertical position.
This position must be used in order to
avoid damaging the wiper blade and the
bonnet.
Removal
)
Raise the corresponding wiper arm.
)
Unclip the wiper blade and remove it.
Fitting
)
At the front, check the size of the wiper
blade as the shorter blade is fi tted to
the passenger side of the vehicle.
)
Put the corresponding new wiper
blade in place and clip it.
)
Fold down the wiper arm carefully.
After fitting a front wiper blade
)
Switch on the ignition.
)
Operate the wiper stalk again to
park the wiper blades.
