75 PRACTICAL INFORMATION
-


1.
Power steering reservoir.

2.
Windscreen/headlamp wash
reservoir.

3.
Coolant reservoir.
4.
Brake fl uid reservoir.

5.
Battery.

6.
Air fi lter.
7.
Dipstick.

8.
Engine oil reservoir.

9.
Priming pump.

1.6 LITRE TURBO DIESEL HDI ENGINE

PRACTICAL INFORMATION
78 -
CHECKS
Oil filter

Change the fi lter regularly, in accord-
ance with the servicing schedule.
Only use products recom-
mended by CITROËN or
products of equivalent quality
and specifi cations.
To ensure best performance from
components as important as the
power steering and the braking sys-
tem, CITROËN selects and offers
quite specifi c products.
To prevent damage to the electrical
units, avoid washing the engine.
RUNNING OUT OF FUEL (DIESEL)

If you should run out of fuel, it is nec-
essary to re-prime the circuit:


- fi ll the fuel tank with at least fi ve litres
of diesel,

- squeeze and release the manual
re-priming pump, under the bonnet
under the protective cover, until fuel
appears in the transparent pipe,

- operate the starter until the engine
starts.
FUEL SUPPLY CUT-OFF(PETROL)

In a serious collision, a mechanism prevents
fuel from reaching the engine.
To re-establish the fuel supply, press
the switch on the corner of the front
right-hand suspension assembly, under
the bonnet.


Air filter and passenger
compartment filter
Have the fi lter elements replaced regu-
larly. If you drive in dusty conditions,
change them twice as often.



Brake pads

Brake pad wear depends on the style
of driving, in particular for vehicles
which are used in town, over short
distances.
It may be necessary to check the
thickness of the pads, even between
services.


Disc and drum wear status

For any information relating to check-
ing the disc and drum wear status,
contact a CITROËN dealer.


Manual gearbox

This does not require an oil change.
Check the level in accordance with the
manufacturer's servicing schedule.

To check the main levels and cer-
tain components, in accordance
with the manufacturer's servicing
schedule, refer to the pages of
the servicing booklet which corre-
spond to your vehicle's engine.



Handbrake

Where the handbrake travel is too
great or there is a reduction in the
performance of the system, the
handbrake should be adjusted, even
between services.
Have the system checked by a
CITROËN dealer.


Battery

At the start of winter, have your battery
checked by a CITROËN dealer.

PRACTICAL INFORMATION
92 -
ECONOMY MODE FUNCTION
After the engine has stopped, with
the key in the "accessories" position,
certain functions (windscreen wiper,
electric windows, courtesy lights,
audio equipment, etc.) can only be
used for a combined duration of ap-
proximately thirty minutes, to prevent
discharging the battery.
Once the thirty minutes are over, a
switching to economy mode mes-
sage appears on the multi-function
display and the active functions are
put on standby.
These functions are reactivated au-
tomatically next time the vehicle is
driven.
In order to resume the use of these
functions immediately, the engine
must be started and left to run for a
few minutes.
The time available to you will then
be double the duration for which the
engine is left running. However, this
period will always be between fi ve
and thirty minutes.
BATTERY

It is advisable to disconnect the
battery if the vehicle is not to be
used for a period of more than
one month.



Before disconnecting the bat-
tery, you must wait 2 minutes
after switching off the ignition.
Never disconnect a terminal
when the engine is running.
Never charge a battery without fi rst
disconnecting the terminals.
Close the windows and the roof before
disconnecting the battery.
After every reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to allow the
electronic systems to be initialised. If
slight diffi culties are experienced af-
ter this, please contact a CITROËN
dealer.

A fl at battery prevents the
engine from starting.
To start the vehicle from
another battery:


- Connect the red cable to the posi-
tive (+) terminals of the two bat-
teries,

- Connect one end of the green or
black cable to the negative (-) ter-
minal of the slave battery,

- Connect the other end of the
green or black cable to an earth
point on the broken down vehi-
cle as far as possible from the
battery (for example, right-hand
engine mounting).
Operate the starter, let the engine run.

Wait for the engine to return to idle,
then disconnect the cables.

To charge the battery using a
battery charger:


- Disconnect the battery,

- Follow the instructions for use
given by the battery charger man-
ufacturer,

- Reconnect starting with the nega-
tive (-) terminal,

- Check that the terminals and
connectors are clean. If they are
covered with sulphate (white or
greenish deposit), disconnect
them and clean them.

VISUAL INDEX11 8 -

EXTERIOR

Accessories ................................ 97 Key, starting, battery ..........6, 46-47
Central locking .................46, 49-50
Rear lamps ................................. 86
3rd brake lamp............................ 87
Spare wheel, jack,
changing, fi tting ...................79-81
Infl ating tyres ............................ 109
ABS, EBFD, brakes ........ 64, 77, 78
Tyres, pressures ................. 80, 109
Pads, discs, drums ..................... 78
Fuel tank ........... 16, 20, 53, 78, 104 Door mirrors ................................ 57
Snow screen ............................... 94
Front lamps......................54, 82-85
Foglamps .............................. 54, 86
Direction indicators ....54, 82, 85-86
Headlamp adjustment................. 60
Changing bulbs......................82-87
Opening/closing
the doors ...................6, 46, 49-52
Opening the bonnet .............. 16, 53
Side door child lock .................... 51
Locks ...................................... 6, 46 Towbar ........................................ 96
Lifting, towing.............................. 95

VISUAL INDEX122 -

TECHNICAL DATA - MAINTENANCE

Levels ..............................72-75, 77


- dipstick,

- power steering fl uid,

- brake fl uid,

- coolant.
Petrol supply cut-off, Diesel fuel
priming ..................................... 78
Screenwash/headlamp wash,
fi lling reservoir .................... 55, 77
Bulbs, changing bulbs


- front .....................................82-85

- rear .....................................86-87 Dimensions ..........................98-101
Engine technical data ........102-103
Weights, loads ...................105-108
Identifi cation markings .............. 109
Opening the bonnet, stay ..... 16, 53
Under bonnet engine views ...72-75 Air/oil fi lters,
checks ...........................72-75, 78
Engine fuses ............................... 91
Battery .................................. 78, 92

10-11

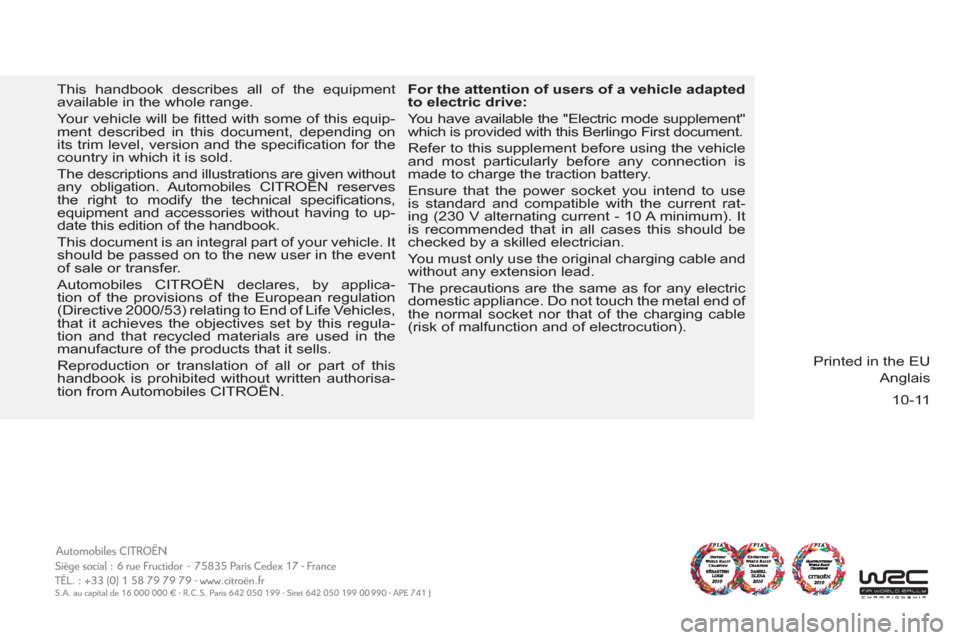

This handbook describes all of the equipment
available in the whole range.
Your vehicle will be fi tted with some of this equip-
ment described in this document, depending on
its trim level, version and the specifi cation for the
country in which it is sold.
The descriptions and illustrations are given without
any obligation. Automobiles CITROËN reserves
the right to modify the technical specifi cations,
equipment and accessories without having to up-
date this edition of the handbook.
This document is an integral part of your vehicle. It
should be passed on to the new user in the event
of sale or transfer.
Automobiles CITROËN declares, by applica-
tion of the provisions of the European regulation
(Directive 2000/53) relating to End of Life Vehicles,
that it achieves the objectives set by this regula-
tion and that recycled materials are used in the
manufacture of the products that it sells.
Reproduction or translation of all or part of this
handbook is prohibited without written authorisa-
tion from Automobiles CITROËN. Printed in the EU
Anglais

For the attention of users of a vehicle adapted
to electric drive:

You have available the "Electric mode supplement"
which is provided with this Berlingo First document.
Refer to this supplement before using the vehicle
and most particularly before any connection is
made to charge the traction battery.
Ensure that the power socket you intend to use
is standard and compatible with the current rat-
ing (230 V alternating current - 10 A minimum). It
is recommended that in all cases this should be
checked by a skilled electrician.
You must only use the original charging cable and
without any extension lead.
The precautions are the same as for any electric
domestic appliance. Do not touch the metal end of
the normal socket nor that of the charging cable
(risk of malfunction and of electrocution).
