2010 YAMAHA YZF-R6 shift

PERIODIC MAINTENANCE AND ADJUSTMENT
6-14
6 11. Install the fuel tank breather/over-
flow hoses into the guides, then
place them in their original posi-
tion.
12. Install the shift arm by aligning the
match mark on the shift arm with
the match mark on the shift shaft
and installing the bolt, then tighten-
ing it to the specified torque.
NOTICE: Be sure to align the
match marks to ensure proper
shifting. If the match marks are
not aligned, the shift arm willnot move correctly and you may
not be able to shift up or down.
[ECA15342]
13. Install the engine oil drain bolt and
its new gasket, and then tighten
the bolt to the specified torque.14. Refill with the specified amount of
the recommended engine oil, and
then install and tighten the oil filler
cap.
TIPBe sure to wipe off spilled oil on any
parts after the engine and exhaust sys-
tem have cooled down.NOTICE
ECA11620


In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
1. Torque wrenchTightening torque:
Oil filter cartridge:
17 Nm (1.7 m·kgf, 12 ft·lbf)
1. Bolt
2. Shift shaft
3. Match marks
4. Shift arm
Tightening torque:
Shift arm bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Tightening torque:
Engine oil drain bolt:
43 Nm (4.3 m·kgf, 31 ft·lbf)
Recommended engine oil:
See page 8-1.
Oil quantity:
Without oil filter cartridge replace-
ment:
2.40 L (2.54 US qt, 2.11 Imp.qt)
With oil filter cartridge replacement:
2.60 L (2.75 US qt, 2.29 Imp.qt)
U13SE2E0.book Page 14 Tuesday, August 4, 2009 4:01 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-25
6
EAU22731
Changing the brake fluid Have a Yamaha dealer change the
brake fluid at the intervals specified in
the TIP after the periodic maintenance
and lubrication chart. In addition, have
the oil seals of the master cylinders and
calipers as well as the brake hoses re-
placed at the intervals listed below or
whenever they are damaged or leak-
ing.

Oil seals: Replace every two
years.


Brake hoses: Replace every four
years.
EAU22760
Drive chain slack The drive chain slack should be
checked before each ride and adjusted
if necessary.
EAU22773
To check the drive chain slack
1. Place the motorcycle on the side-
stand.TIPWhen checking and adjusting the drive
chain slack, there should be no weight
on the motorcycle.2. Shift the transmission into the neu-
tral position.
3. Move the rear wheel by pushing
the motorcycle to locate the tight-
est portion of the drive chain, and
then measure the drive chain slack
as shown.4. If the drive chain slack is incorrect,
adjust it as follows.
EAU39055
To adjust the drive chain slack
1. Loosen the axle nut and the lock-
nut on each side of the swingarm.
Drive chain slack:
30.0–45.0 mm (1.18–1.77 in)
1. Drive chain slack
U13SE2E0.book Page 25 Tuesday, August 4, 2009 4:01 PM

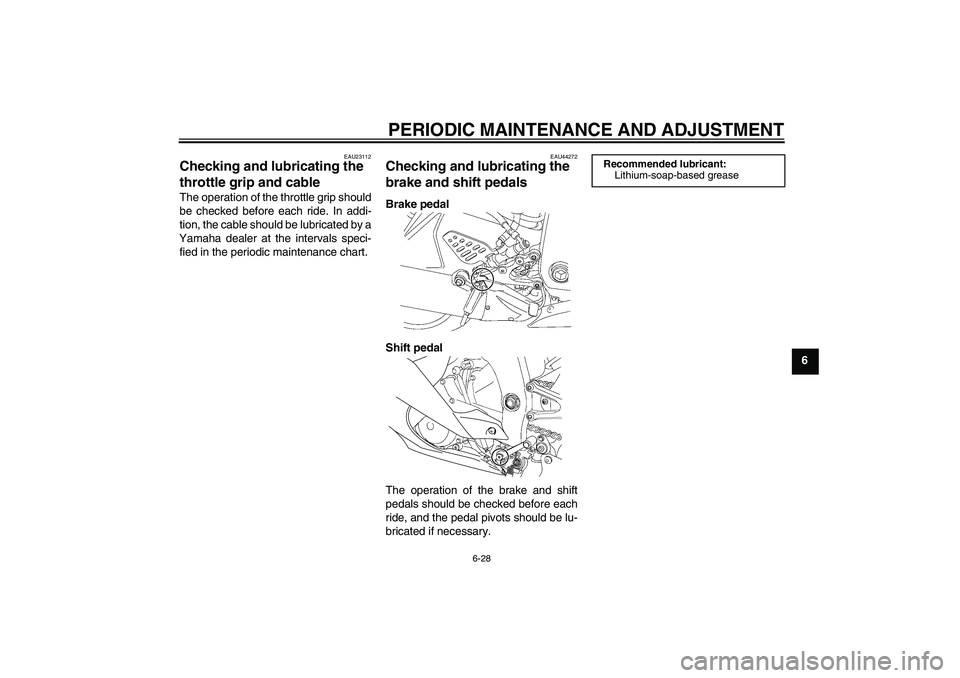

PERIODIC MAINTENANCE AND ADJUSTMENT
6-28
6
EAU23112
Checking and lubricating the
throttle grip and cable The operation of the throttle grip should
be checked before each ride. In addi-
tion, the cable should be lubricated by a
Yamaha dealer at the intervals speci-
fied in the periodic maintenance chart.
EAU44272
Checking and lubricating the
brake and shift pedals Brake pedal
Shift pedal
The operation of the brake and shift
pedals should be checked before each
ride, and the pedal pivots should be lu-
bricated if necessary.
Recommended lubricant:
Lithium-soap-based grease
U13SE2E0.book Page 28 Tuesday, August 4, 2009 4:01 PM

SPECIFICATIONS
8-3
8
Electrical system:Ignition system:
TCI (digital)
Charging system:
AC magnetoBattery:Model:
YTZ10S
Voltage, capacity:
12 V, 8.6 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 55 W × 2
Tail/brake light:
LED
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
LED
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LED
Oil level warning light:
LEDTurn signal indicator light:
LED
Fuel level warning light:
LED
Coolant temperature warning light:
LED
Engine trouble warning light:
LED
Immobilizer system indicator light:
LED
Shift timing indicator light:
LED
Fuses:Main fuse:
50.0 A
Headlight fuse:
15.0 A
Taillight fuse:
7.5 A
Signaling system fuse:
10.0 A
Ignition fuse:
15.0 A
Radiator fan fuse:
15.0 A × 2
Fuel injection system fuse:
15.0 A
Backup fuse:
7.5 A
Electronic throttle valve fuse:
7.5 A
U13SE2E0.book Page 3 Tuesday, August 4, 2009 4:01 PM

INDEXAAir filter element .................................... 6-18
Anti-theft alarm (optional)...................... 3-14
Auxiliary light ......................................... 6-37BBattery................................................... 6-31
Brake and clutch levers, checking and
lubricating ........................................... 6-29
Brake and shift pedals, checking and
lubricating ........................................... 6-28
Brake fluid, changing ............................ 6-25
Brake fluid level, checking .................... 6-24
Brake lever ............................................ 3-16
Brake light switches .............................. 6-23
Brake pedal ........................................... 3-17CCables, checking and lubricating .......... 6-27
Care ........................................................ 7-1
Catalytic converters .............................. 3-19
Clutch lever ........................................... 3-15
Clutch lever free play, adjusting ............ 6-22
Coolant.................................................. 6-15
Coolant temperature warning light .......... 3-5
Cowlings and panels, removing and
installing................................................ 6-7DDimmer switch ...................................... 3-14
Drive chain, cleaning and lubricating .... 6-27
Drive chain slack ................................... 6-25EEngine break-in ....................................... 5-3
Engine idling speed, checking .............. 6-18
Engine oil and oil filter cartridge ............ 6-12
Engine stop switch ................................ 3-15Engine trouble warning light ................... 3-7
EXUP system ....................................... 3-28
FFront and rear brake pads, checking .... 6-23
Front fork, adjusting .............................. 3-23
Front fork, checking .............................. 6-30
Fuel....................................................... 3-18
Fuel consumption, tips for reducing........ 5-3
Fuel level warning light ........................... 3-4
Fuel tank breather/overflow hose ......... 3-19
Fuel tank cap ........................................ 3-17
Fuses, replacing ................................... 6-33HHandlebar switches .............................. 3-14
Hazard switch ....................................... 3-15
Headlight bulb, replacing ...................... 6-34
Helmet holding cable ............................ 3-21
High beam indicator light ........................ 3-4
Horn switch ........................................... 3-15IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-29
Immobilizer system ................................. 3-1
Immobilizer system indicator light........... 3-7
Indicator and warning lights .................... 3-4LLicense plate light bulb, replacing ........ 6-36
Luggage strap holders .......................... 3-27MMain switch/steering lock........................ 3-2
Maintenance and lubrication, periodic .... 6-3
Maintenance, emission control system... 6-2
Matte color, caution ................................ 7-1
Model label ............................................. 9-1Multi-function meter unit .......................... 3-8
NNeutral indicator light .............................. 3-4OOil level warning light .............................. 3-4PParking .................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-14RRear view mirrors .................................. 3-22SSafety information ................................... 1-1
Seats ..................................................... 3-20
Shifting .................................................... 5-2
Shift pedal ............................................. 3-16
Shift timing indicator light ........................ 3-7
Shock absorber assembly, adjusting .... 3-25
Sidestand .............................................. 3-28
Sidestand, checking and lubricating...... 6-29
Spark plugs, checking ........................... 6-11
Specifications .......................................... 8-1
Starting the engine .................................. 5-1
Start switch............................................ 3-15
Steering, checking................................. 6-31
Storage.................................................... 7-4
Supporting the motorcycle .................... 6-37
Swingarm pivots, lubricating ................. 6-30TTail/brake light ....................................... 6-35
Throttle cable free play, checking ......... 6-18
Throttle grip and cable, checking and
lubricating ........................................... 6-28
Tires ...................................................... 6-19
