LOCATION OF IMPORTANT LABELS1-3
1 For Canada
CMVSSCANADANSVAC
TRANSPORT
506
3JK-82377-00
This spark ignition system meets all requirements
of the Canadian Interference Causing Equipment
Regulations.
Ce système d’allumage par étincelle de véhicule
respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
THIS VEHICLE IS A RESTRICTED USE
MOTORCYCLE AND IS NOT INTENDED FOR
USE ON PUBLIC HIGHWAYS.
CE VÉHICULE EST UNE MOTOCYCLETTE À
USAGE RESTREINT DONT L’USAGE N’EST PAS
DESTINÉ AUX VOIES PUBLIQUES.
1P6-F416E-00
79
8
U1P684E0.book Page 3 Tuesday, April 28, 2009 10:22 AM

LOCATION OF IMPORTANT LABELS
1-10
1For South Africa
5PA-21568-01
1P6-F151A-60
 Turn off the main switch after riding to avoid
draining the battery.
 Couper le contact après l’utilisation du véhicule
afin de préserver la batterie.
 Girare il blocchetto accensione sulla posizione di
spegnimento dopo l’utilizzo del mezzo per evitare
di scaricare la batteria.
 Schalten Sie den Hauptschalter nach der Fahrt
aus. um Entladung der Batterie zu vermeiden.
 Apague el interruptor principal después de
conducir para evitar que la batería se agote.NOTICE / ATTENTION / ACHTUNG
ATENCION / ATTENZIONE
13
2
U1P684E0.book Page 10 Tuesday, April 28, 2009 10:22 AM

2-1
2

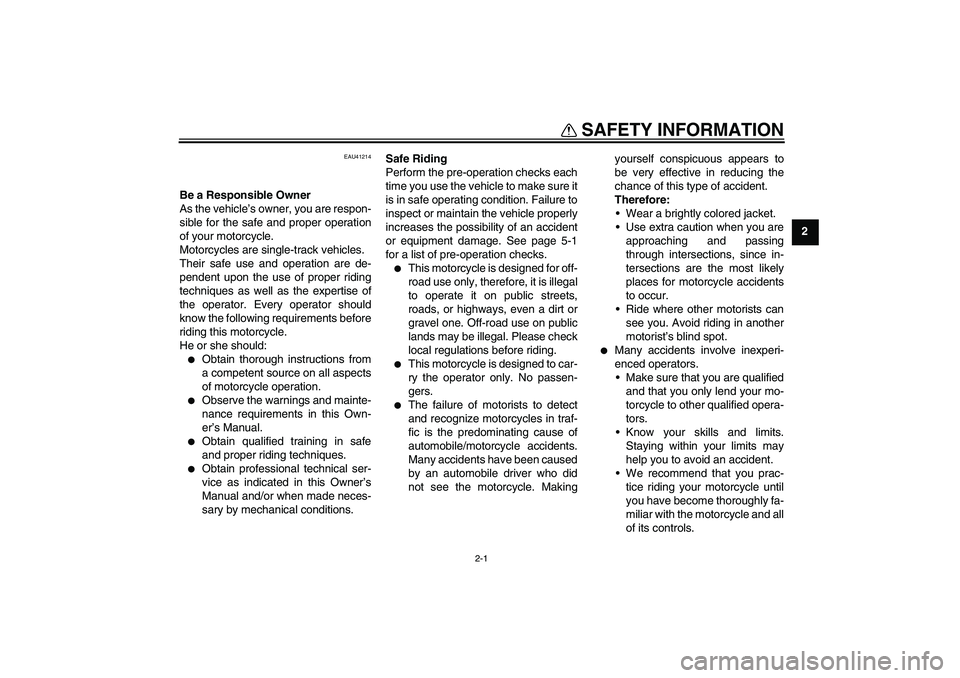

SAFETY INFORMATION
EAU41214
Be a Responsible Owner
As the vehicle’s owner, you are respon-
sible for the safe and proper operation
of your motorcycle.
Motorcycles are single-track vehicles.
Their safe use and operation are de-
pendent upon the use of proper riding
techniques as well as the expertise of
the operator. Every operator should
know the following requirements before
riding this motorcycle.
He or she should:

Obtain thorough instructions from
a competent source on all aspects
of motorcycle operation.


Observe the warnings and mainte-
nance requirements in this Own-
er’s Manual.


Obtain qualified training in safe
and proper riding techniques.


Obtain professional technical ser-
vice as indicated in this Owner’s
Manual and/or when made neces-
sary by mechanical conditions.Safe Riding
Perform the pre-operation checks each
time you use the vehicle to make sure it
is in safe operating condition. Failure to
inspect or maintain the vehicle properly
increases the possibility of an accident
or equipment damage. See page 5-1
for a list of pre-operation checks.


This motorcycle is designed for off-
road use only, therefore, it is illegal
to operate it on public streets,
roads, or highways, even a dirt or
gravel one. Off-road use on public
lands may be illegal. Please check
local regulations before riding.


This motorcycle is designed to car-
ry the operator only. No passen-
gers.


The failure of motorists to detect
and recognize motorcycles in traf-
fic is the predominating cause of
automobile/motorcycle accidents.
Many accidents have been caused
by an automobile driver who did
not see the motorcycle. Makingyourself conspicuous appears to
be very effective in reducing the
chance of this type of accident.
Therefore:
Wear a brightly colored jacket.
Use extra caution when you are
approaching and passing
through intersections, since in-
tersections are the most likely
places for motorcycle accidents
to occur.
Ride where other motorists can
see you. Avoid riding in another
motorist’s blind spot.


Many accidents involve inexperi-
enced operators.
Make sure that you are qualified
and that you only lend your mo-
torcycle to other qualified opera-
tors.
Know your skills and limits.
Staying within your limits may
help you to avoid an accident.
We recommend that you prac-
tice riding your motorcycle until
you have become thoroughly fa-
miliar with the motorcycle and all
of its controls.
U1P684E0.book Page 1 Tuesday, April 28, 2009 10:22 AM

SAFETY INFORMATION
2-3
2


Do not run engine outdoors where
engine exhaust can be drawn into
a building through openings such
as windows and doors.
Loading
Adding accessories to your motorcycle
can adversely affect stability and han-
dling if the weight distribution of the mo-
torcycle is changed. To avoid the
possibility of an accident, use extreme
caution when adding accessories to
your motorcycle. Use extra care when
riding a motorcycle that has added ac-
cessories. Here are some general
guidelines to follow if adding accesso-
ries to your motorcycle:
Operation of an overloaded vehicle
could cause an accident.


The weight of the operator must
not exceed 40.0 kg (88 lb).


Accessory weight should be kept
as low and close to the motorcycle
as possible. Securely pack your
heaviest items as close to the cen-
ter of the vehicle as possible and
make sure to distribute the weightas evenly as possible on both
sides of the motorcycle to mini-
mize imbalance or instability.


Shifting weights can create a sud-
den imbalance. Make sure that ac-
cessories are securely attached to
the motorcycle before riding.
Check accessory mounts fre-
quently.
Properly adjust the suspension
for your load, and check the con-
dition and pressure of your tires.
Never attach any large or heavy
items to the handlebar, front
fork, or front fender.
Genuine Yamaha Accessories
Choosing accessories for your vehicle
is an important decision. Genuine
Yamaha accessories, which are avail-
able only from a Yamaha dealer, have
been designed, tested, and approved
by Yamaha for use on your vehicle.
Many companies with no connection to
Yamaha manufacture parts and acces-
sories or offer other modifications for
Yamaha vehicles. Yamaha is not in a
position to test the products that these
aftermarket companies produce.Therefore, Yamaha can neither en-
dorse nor recommend the use of ac-
cessories not sold by Yamaha or
modifications not specifically recom-
mended by Yamaha, even if sold and
installed by a Yamaha dealer.
Aftermarket Parts, Accessories, and
Modifications
While you may find aftermarket prod-
ucts similar in design and quality to
genuine Yamaha accessories, recog-
nize that some aftermarket accessories
or modifications are not suitable be-
cause of potential safety hazards to you
or others. Installing aftermarket prod-
ucts or having other modifications per-
formed to your vehicle that change any
of the vehicle’s design or operation
characteristics can put you and others
at greater risk of serious injury or death.
You are responsible for injuries related
to changes in the vehicle.
Keep the following guidelines in mind,
as well as those provided under “Load-
ing” when mounting accessories.


Never install accessories that
would impair the performance of
your motorcycle. Carefully inspect
U1P684E0.book Page 3 Tuesday, April 28, 2009 10:22 AM

OPERATION AND IMPORTANT RIDING POINTS
6-1
6
EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10271
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which could cause an accident
or injury.
EAU40096
Starting and warming up a
cold engine 1. Turn the fuel cock lever to “ON”.
2. Turn the key to “ON” and make
sure that the engine stop switch is
set to“”.
3. Shift the transmission into the neu-
tral position.
WARNING
EWA14410


Be sure to shift the transmis-
sion into neutral before starting
the engine.


Never ride with the sidestand
down.
4. Turn the starter (choke) on and
completely close the throttle. (See
page 4-7.)
5. Start the engine by pushing the
start switch. NOTICE: For maxi-
mum engine life, never acceler-
ate hard when the engine is
cold!
[ECA11041]
6. When the engine is warm, turn the
starter (choke) off.
TIPThe engine is warm when it responds
normally to the throttle with the starter
(choke) turned off.
U1P684E0.book Page 1 Tuesday, April 28, 2009 10:22 AM

OPERATION AND IMPORTANT RIDING POINTS
6-3
6 3. Open the throttle gradually.
4. Once the motorcycle has reached
a speed high enough to change
gears, close the throttle.
5. Shift into second gear and release
the shift pedal.
6. Open the throttle gradually.
7. Follow the same procedure when
shifting to the next higher gear.
EAU16710
To decelerate
1. Close the throttle and apply both
the front and the rear brakes to
slow the motorcycle.
2. Downshift through the gears and
shift the transmission into the neu-
tral position when the motorcycle
is almost completely stopped.
EAU39920
Engine break-in There is never a more important period
in the life of your engine than the first 5
hours of riding. It is also important to ac-
custom the rider to the motorcycle dur-
ing this time. Please read the following
information carefully.
Since the engine is brand new, do not
put an excessive load on it for the first 5
hours of operation. The various parts in
the engine wear and polish themselves
to the correct operating clearances.
During this period, prolonged full-throt-
tle operation or any condition that might
result in engine overheating must be
avoided. However, momentary full-
throttle operation under load (i.e., two
to three seconds maximum) does not
harm the engine. Each full-throttle ac-
celeration should be followed with a
substantial rest period for the engine.
To allow the engine to cool down from
the temporary buildup of heat, cruise at
a lower engine speed.
After the first 5 hours of operation, thor-
oughly check the motorcycle for loose
parts, oil leakage and any other prob-
lems. Be sure to inspect and make ad-justments thoroughly, especially cable
and drive chain slack and loose
spokes. In addition, check all fittings
and fasteners for looseness, and tight-
en if necessary.
NOTICE
ECA10270
If any engine trouble should occur
during the engine break-in period,
immediately have a Yamaha dealer
check the vehicle.
U1P684E0.book Page 3 Tuesday, April 28, 2009 10:22 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
7-20
7
EAU23014
Cleaning and lubricating the
drive chain The drive chain must be cleaned and
lubricated at the intervals specified in
the periodic maintenance and lubrica-
tion chart, otherwise it will quickly wear
out, especially when riding in dusty or
wet areas. Service the drive chain as
follows.NOTICE
ECA10582
The drive chain must be lubricated
after washing the motorcycle and
riding in the rain or wet areas.1. Remove all dirt and mud from the
drive chain with a brush or cloth.TIPFor a thorough cleaning, have a
Yamaha dealer remove the drive chain
and soak it in solvent.2. Spray Yamaha Chain and Cable
Lube or a high-quality spray-type
drive chain lubricant on both sides
and on the middle of the chain,making sure that all side plates
and rollers have been sufficiently
oiled.
EAU23093
Checking and lubricating the
cables The operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubricat-
ed if necessary. If a cable is damaged
or does not move smoothly, have a
Yamaha dealer check or replace it.
WARNING! Damage to the outer
housing of cables may result in in-
ternal rusting and cause interfer-
ence with cable movement. Replace
damaged cables as soon as possi-
ble to prevent unsafe conditions.[EWA10711]Recommended lubricant:
Yamaha Chain and Cable Lube or
engine oil
U1P684E0.book Page 20 Tuesday, April 28, 2009 10:22 AM
