Pre-operation checks
61
EJU31981
WARNING
EWJ00411
Failure to inspect or maintain the watercraft properly increases the possibility of an ac-
cident or damage to the watercraft. Do not operate the watercraft if you find any prob-
lem. If a problem cannot be corrected by the procedures provided in this manual, have
the watercraft inspected by a Yamaha dealer.
EJU41232Pre-operation checklist
Before using this watercraft, be sure to perform the checks in the following checklist.
ITEM ROUTINE PAGE
PRE-LAUNCH CHECKS
Engine compartmentVentilate the engine compartment.
Check inside the engine compartment for damage.63
Fuel systemCheck the fuel system for leakage.
Check the fuel level in the fuel tank.63
Water separatorCheck the water separator for water. 63
Engine unitCheck the exterior of the engine unit for damage. 64
Engine oil levelCheck the engine oil level. 64
Bilge waterCheck the engine compartment for bilge water. 64
BatteryCheck the battery connections and electrolyte level. 64
Steering systemCheck the steering system for proper operation. 65
Adjustable tilt steering sys-
temCheck the adjustable tilt steering system for proper
operation and check that the handlebars are secure-
ly locked in place.65
Q.S.T.S.Check the Q.S.T.S. for proper operation and check
that the Q.S.T.S. selector is securely locked in place.66
Reverse systemCheck the reverse system for proper operation. 66
Throttle leverCheck the throttle lever for proper operation.
Check the throttle lever free play.67
Remote control transmitterCheck the remote control transmitter for proper op-
eration.67
Engine shut-off cord (lan-
yard)Check the engine shut-off cord (lanyard) for dam-
age.67
SwitchesCheck the start switch, engine stop switch, and en-
gine shut-off switch for proper operation.68
Storage compartmentsCheck the storage compartments for damage and
water.68
Fire extinguisher containerCheck the fire extinguisher container for damage. 68
Fire extinguisherCheck the condition of the fire extinguisher. 68
Safety equipmentCheck that safety equipment meeting the applicable
regulations is on board.69
Hull and deckCheck the hull and deck for damage. 69
UF1W72E0.book Page 61 Monday, June 1, 2009 1:42 PM

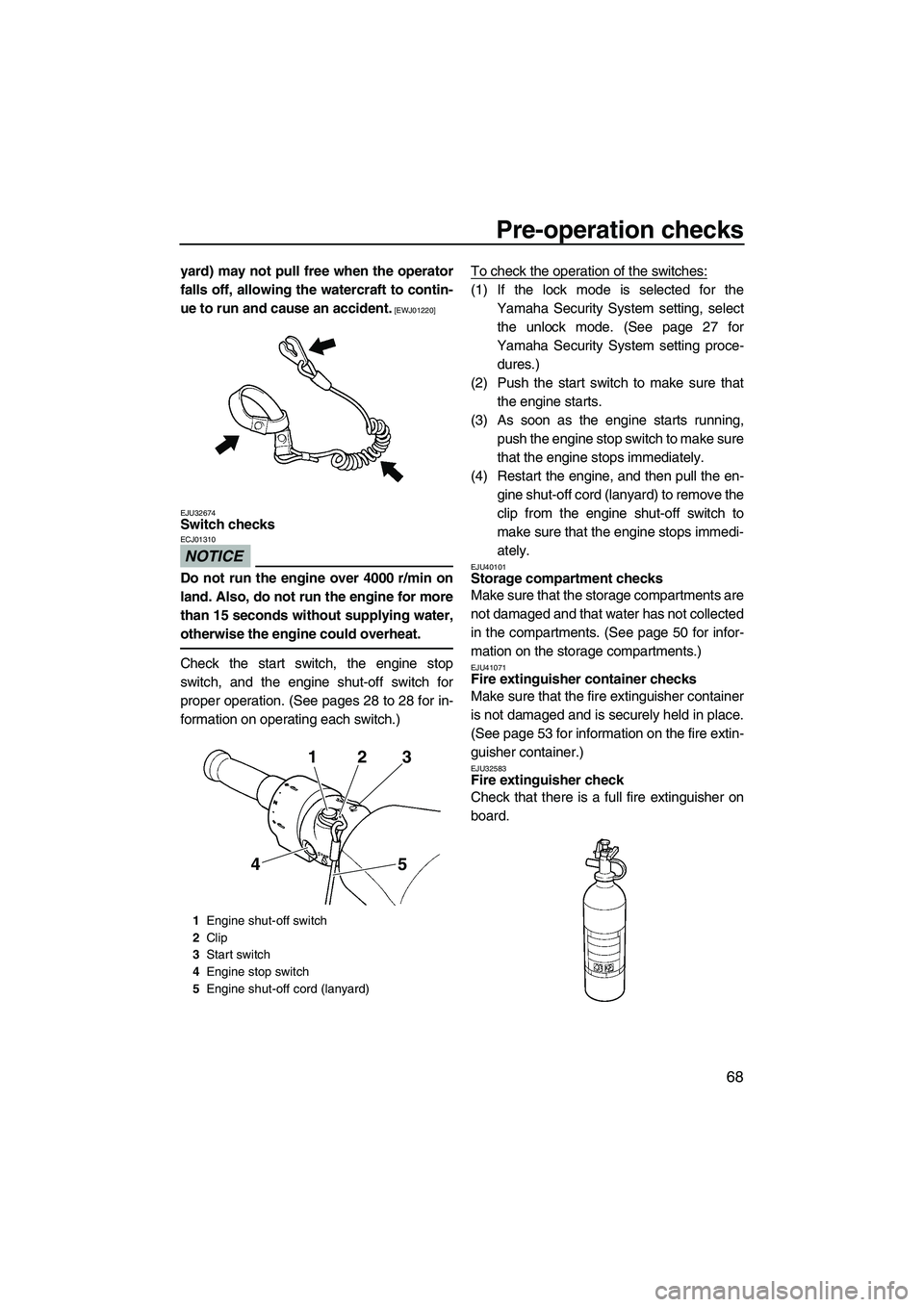

Pre-operation checks
68
yard) may not pull free when the operator
falls off, allowing the watercraft to contin-
ue to run and cause an accident.
[EWJ01220]
EJU32674
Switch checks
NOTICE
ECJ01310
Do not run the engine over 4000 r/min on
land. Also, do not run the engine for more
than 15 seconds without supplying water,
otherwise the engine could overheat.
Check the start switch, the engine stop
switch, and the engine shut-off switch for
proper operation. (See pages 28 to 28 for in-
formation on operating each switch.)To check the operation of the switches:
(1) If the lock mode is selected for the
Yamaha Security System setting, select
the unlock mode. (See page 27 for
Yamaha Security System setting proce-
dures.)
(2) Push the start switch to make sure that
the engine starts.
(3) As soon as the engine starts running,
push the engine stop switch to make sure
that the engine stops immediately.
(4) Restart the engine, and then pull the en-
gine shut-off cord (lanyard) to remove the
clip from the engine shut-off switch to
make sure that the engine stops immedi-
ately.
EJU40101Storage compartment checks
Make sure that the storage compartments are
not damaged and that water has not collected
in the compartments. (See page 50 for infor-
mation on the storage compartments.)
EJU41071Fire extinguisher container checks
Make sure that the fire extinguisher container
is not damaged and is securely held in place.
(See page 53 for information on the fire extin-
guisher container.)
EJU32583Fire extinguisher check
Check that there is a full fire extinguisher on
board.
1Engine shut-off switch
2Clip
3Start switch
4Engine stop switch
5Engine shut-off cord (lanyard)
23 1
5 4
UF1W72E0.book Page 68 Monday, June 1, 2009 1:42 PM

Operation
73
is attached correctly. If the engine
shut-off cord (lanyard) is not attached
correctly, it may not pull free when the
operator falls off, allowing the water-
craft to continue to run and cause an
accident.
[EWJ00581]
(4) With the throttle lever released, push the
start switch (green button) to start the en-
gine. (See page 28 for information on op-
erating the start switch.)
EJU32862Stopping the engine
Release the throttle lever, and then push the
engine stop switch (red button) to stop the en-
gine. WARNING! You need throttle to steer.
Shutting the engine off can cause you to
hit an obstacle you are attempting toavoid. A collision could result in severe in-
jury or death.
[EWJ00601]
EJU32872
Leaving the watercraft
If leaving the watercraft, remove the clip from
the engine shut-off switch to prevent acciden-
tal starting or unauthorized operation by chil-
dren or others.
EJU40220Operating the watercraft
When the shift lever is in the forward position
and the engine is running, the watercraft will
move forward. The watercraft will move for-
ward even if the throttle lever is in the fully
closed (idle) position and the engine is at
1Clip
2Engine shut-off switch
3Engine shut-off cord (lanyard)
12
3
UF1W72E0.book Page 73 Monday, June 1, 2009 1:42 PM

Operation
81
(2) Swim to the rear of the watercraft. Turn
the watercraft over clockwise by pulling
on the ride plate with your left hand while
pushing down on the gunwale with your
right hand or foot.
If the port (left) side of the capsized wa-
tercraft is tilting up, push down on the
gunwale so that the port (left) side is
down before turning the watercraft clock-
wise. NOTICE: Do not turn the water-
craft over counterclockwise,
otherwise water can enter the engine,
which can result in severe damage.
[ECJ00541]
(3) Start the engine and operate the water-
craft at planing speed to drain water in the
engine compartment. (See page 57 for
information on draining the bilge water. If
the engine does not start, see “Towing
the watercraft” on page 100 or “Sub-
merged watercraft” on page 100.)NOTICE: Do not run the engine at full
throttle for at least 1 minute after the
engine has been restarted. Bilge water
in the engine compartment can splash
into the engine, which can result in se-
vere damage.
[ECJ00553]
EJU35962
Beaching and docking the watercraft
To beach the watercraft:
(1) Make sure that there are no boats, swim-
mers, or obstacles near the beach.
(2) Release the throttle lever to reduce
speed about 100 m (330 ft) before you
reach the intended beaching area.
(3) Slowly approach the beach and stop the
engine just before reaching land.
WARNING! You need throttle to steer.
Shutting the engine off can cause you
to hit an obstacle you are attempting
to avoid. A collision could result in se-
vere injury or death.
[EWJ00601] NOTICE:
Never run the engine in water that is
less than 60 cm (2 ft) deep from the
bottom of the watercraft, otherwise
pebbles or sand could be sucked into
the jet intake, causing impeller dam-
age and engine overheating.
[ECJ00472]
(4) Get off the watercraft and pull it up on the
beach.
To dock the watercraft:
(1) Make sure that there are no boats, swim-
mers, or obstacles near the dock.
(2) Release the throttle lever to reduce
speed about 100 m (330 ft) away from the
dock.
(3) Slowly approach the dock and stop the
engine just before coming alongside it.
WARNING! You need throttle to steer.
Shutting the engine off can cause you
to hit an obstacle you are attempting
to avoid. A collision could result in se-
vere injury or death.
[EWJ00601]
UF1W72E0.book Page 81 Monday, June 1, 2009 1:42 PM

Operation
82
(4) Come alongside the dock and get off the
watercraft.
EJU37193Operating in weeded areas
Always avoid using your watercraft in areas
where weed growth is thick. If operating in
weeded areas is unavoidable, alternately
squeeze the throttle lever and relax your grip
on the throttle lever to vary the engine speed.
Weeds tend to become clogged more when
operating at a steady speed and at trolling
speed. If weeds may have clogged the intake
area, clean the jet intake. (See page 97 for in-
formation on the jet intake.)
EJU40241After removing the watercraft from the
water
NOTICE
ECJ01310
Do not run the engine over 4000 r/min on
land. Also, do not run the engine for more
than 15 seconds without supplying water,
otherwise the engine could overheat.
After operating and removing the watercraft
from the water, promptly discharge the re-
maining water from the cooling water passag-
es.
To discharge water from the cooling water
passages:
(1) Make sure that the area around the wa-
tercraft is clear, and then start the engine.
(2) Discharge the remaining water out of the
cooling water passages by alternately
squeezing and releasing the throttle lever
quickly for 10 to 15 seconds.
(3) Stop the engine.
UF1W72E0.book Page 82 Monday, June 1, 2009 1:42 PM

Index
A
Adjustable tilt steering system.................. 30
Adjustable tilt steering system checks ..... 65
After removing the watercraft from
the water ............................................... 82
Analog speedometer/tachometer ............. 39
B
Battery care .............................................. 84
Battery checks.......................................... 64
Battery, jumping ....................................... 98
Beaching and docking the watercraft ....... 81
Beverage holder ....................................... 53
Bilge water check ..................................... 64
Bilge water, draining................................. 57
Bilge water, draining on land .................... 57
Bilge water, draining on water .................. 58
Boarding alone ......................................... 77
Boarding and starting off from a dock ...... 80
Boarding the watercraft ............................ 76
Boarding with passenger(s) ..................... 77
Bow eye ................................................... 49
Bow storage compartment ....................... 50
Builder’s plate............................................. 2
C
Capsized watercraft ................................. 80
Check engine warning.............................. 44
Cleaning ................................................... 87
Cleaning the watercraft ............................ 84
Cleat ......................................................... 49
Cooling water pilot outlet check ............... 70
Cooling water pilot outlets ........................ 30
Craft Identification Number (CIN) ............... 1
Cruise assist............................................. 36
Cruising limitations ................................... 11
D
Digital speedometer ................................. 40
E
Emergency procedures ............................ 97
Engine break-in ........................................ 60
Engine compartment check...................... 63
Engine cover, removing and installing ..... 89
Engine idling speed check ....................... 70
Engine oil ................................................. 56
Engine oil and oil filter .............................. 92
Engine oil level check............................... 64Engine oil requirements ........................... 56
Engine overheat warning ......................... 43
Engine serial number ................................. 1
Engine shut-off cord (lanyard) check ....... 67
Engine shut-off switch .............................. 28
Engine stop switch ................................... 28
Engine unit check ..................................... 64
Enjoy your watercraft responsibly ............ 19
Equipment ................................................ 47
F
Fire extinguisher check ............................ 68
Fire extinguisher container ....................... 53
Fire extinguisher container checks ........... 68
Flushing the cooling water passages ....... 83
Fuel .......................................................... 54
Fuel level check ....................................... 63
Fuel level meter ........................................ 42
Fuel level warning .................................... 42
Fuel requirements .................................... 54
Fuel system checks .................................. 63
Fuses, replacing ....................................... 98
G
Getting to know your watercraft ............... 71
Glossary, watercraft ................................. 21
Glove compartment .................................. 51
H
Handgrip ................................................... 48
Hazard information ................................... 15
Hood check .............................................. 69
Hour meter/voltmeter ............................... 41
Hull and deck check ................................. 69
I
Identification numbers ................................ 1
Information display ................................... 40
J
Jet intake and impeller, cleaning .............. 97
Jet intake checks ...................................... 69
Jumper cables, connecting ...................... 98
L
Labels, important ........................................ 3
Labels, other .............................................. 8
Labels, warning .......................................... 4
Launching the watercraft .......................... 72
Learning to operate your watercraft ......... 71
Leaving the watercraft .............................. 73
UF1W72E0.book Page 1 Monday, June 1, 2009 1:42 PM

Index
Limitations on who may operate
the watercraft ........................................ 10
Long-term storage .................................... 87
Low RPM Mode........................................ 34
Lubrication................................................ 87
M
Main components, location of .................. 22
Maintenance............................................. 89
Model information....................................... 2
Multifunction display (FX Cruiser SHO) ... 44
Multifunction information center ............... 39
Multifunction information center check ..... 70
N
No-wake mode ......................................... 35
O
Oil pressure warning ................................ 43
Operating in weeded areas ...................... 82
Operating the watercraft........................... 73
Operating the watercraft in reverse .......... 76
Operating your watercraft......................... 71
Operation requirements ........................... 12
P
Periodic maintenance chart...................... 91
Post-launch checks .................................. 69
Post-operation care .................................. 83
Pre-launch checks.................................... 63
Pre-operation check points ...................... 63
Pre-operation checklist............................. 61
Primary Identification (PRI-ID) number ...... 1
Pull-up cleats (FX Cruiser SHO) .............. 50
Q
Quick Shift Trim System (Q.S.T.S.) ......... 33
Quick Shift Trim System (Q.S.T.S.)
checks................................................... 66
R
Reboarding step ....................................... 48
Recommended equipment ....................... 14
Remote control transmitter ....................... 26
Remote control transmitter check ............ 67
Reverse system ....................................... 32
Reverse system checks ........................... 66
Riding position.......................................... 72
Rustproofing ............................................. 88
S
Safe boating rules .................................... 19Safety equipment check ........................... 69
Seat storage compartment ....................... 52
Seats ........................................................ 47
Start switch............................................... 28
Starting off ................................................ 79
Starting off from a trailer ........................... 80
Starting the engine on water .................... 72
Steering system ....................................... 29
Steering system checks ........................... 65
Stern drain plug checks ............................ 69
Stern eyes ................................................ 49
Stopping the engine ................................. 73
Stopping the watercraft ............................ 75
Storage compartment checks .................. 68
Storage compartments ............................. 50
Submerged watercraft ............................ 100
Switch checks .......................................... 68
T
Throttle lever ............................................ 29
Throttle lever checks ................................ 67
Tool kit...................................................... 89
Towing the watercraft ............................. 100
Transporting on a trailer ........................... 59
Troubleshooting ....................................... 94
Troubleshooting chart .............................. 94
Turning the watercraft .............................. 74
W
Water separator ....................................... 31
Water separator check ............................. 63
Watercraft characteristics ......................... 15
Watercraft control functions ..................... 26
Watercraft operation functions ................. 32
Watercraft operation modes ..................... 34
Water-skiing ............................................. 17
Watertight storage compartment .............. 53
Y
Yamaha Security System ......................... 27
Yamaha Security System settings ........... 27
UF1W72E0.book Page 2 Monday, June 1, 2009 1:42 PM
