2010 YAMAHA FJR1300AS AUX

TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
YCC-S system ................................3-1
Immobilizer system .........................3-1
Main switch/steering lock ................3-3
Indicator and warning lights ............3-4
Speedometer ..................................3-7
Tachometer ....................................3-7
Multi-function display ......................3-8
Anti-theft alarm (optional) .............3-15
Handlebar switches ......................3-15
Shift pedal .....................................3-17
Hand shift lever .............................3-18
Brake lever ...................................3-18
Brake pedal ..................................3-19
ABS ..............................................3-19
Fuel tank cap ................................3-20
Fuel ...............................................3-21
Fuel tank breather/overflow
hose ..........................................3-22
Catalytic converters ......................3-22
Seats ............................................3-23
Adjusting the rider seat height ......3-24
Storage compartment ...................3-26Accessory box .............................. 3-27
Adjusting the headlight beams ..... 3-28
Handlebar position ....................... 3-28
Opening and closing the
cowlings .................................... 3-28
Rear view mirrors ......................... 3-29
Adjusting the front fork ................. 3-30
Adjusting the shock absorber
assembly ................................... 3-31
Grip warmer adjusting knob ......... 3-33
Sidestand ..................................... 3-33
Ignition circuit cut-off system ........ 3-34
Auxiliary DC jack .......................... 3-36
FOR YOUR SAFETY –
PRE-OPERATION CHECKS............. 4-1
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Shifting ........................................... 5-2
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-4
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
ADJUSTMENT................................... 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance chart for the
emission control system ............. 6-2General maintenance and
lubrication chart .......................... 6-3
Removing and installing panels ..... 6-7
Checking the spark plugs ............ 6-10
Engine oil and oil filter cartridge ... 6-11
Final gear oil ................................ 6-14
Coolant ........................................ 6-15
Air filter element ........................... 6-16
Checking the engine idling
speed ........................................ 6-17
Checking the throttle cable free
play ........................................... 6-17
Valve clearance ........................... 6-17
Tires ............................................. 6-18
Cast wheels ................................. 6-20
YCC-S clutch ............................... 6-20
Checking the brake lever free
play ........................................... 6-21
Brake light switches ..................... 6-21
Checking the front and rear brake
pads .......................................... 6-22
Checking the brake and YCC-S
clutch fluid levels ...................... 6-22
Changing the brake and YCC-S
clutch fluids ............................... 6-24
Checking and lubricating the
cables ....................................... 6-24
Checking and lubricating the
throttle grip and cable ............... 6-24
Checking and lubricating the
brake and shift pedals .............. 6-25U1DAE0E0.book Page 1 Friday, January 15, 2010 4:03 PM

TABLE OF CONTENTS
Checking and lubricating the
brake lever ................................ 6-25
Checking and lubricating the
centerstand and sidestand ........ 6-26
Lubricating the swingarm pivots ... 6-26
Lubricating the rear suspension ... 6-27
Checking the front fork ................. 6-27
Checking the steering ................... 6-28
Checking the wheel bearings ....... 6-28
Battery .......................................... 6-28
Replacing the fuses ...................... 6-30
Headlight bulb .............................. 6-31
Front turn signal light .................... 6-32
Replacing a rear turn signal light
bulb or a tail/brake light bulb ..... 6-32
Replacing the license plate light
bulb ........................................... 6-33
Auxiliary light bulb ........................ 6-33
Troubleshooting ............................ 6-34
Troubleshooting charts ................. 6-35
MOTORCYCLE CARE AND
STORAGE.......................................... 7-1
Matte color caution ......................... 7-1
Care ................................................ 7-1
Storage ...........................................7-3
SPECIFICATIONS ............................. 8-1
CONSUMER INFORMATION............. 9-1
Identification numbers .................... 9-1
U1DAE0E0.book Page 2 Friday, January 15, 2010 4:03 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU10472
Main switch/steering lock The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.TIPBe sure to use the standard key (black
bow) for regular use of the vehicle. To
minimize the risk of losing the code re-
registering key (red bow), keep it in a
safe place and only use it for code re-
registering.
EAU26811
ON
All electrical circuits are supplied with
power; the meter lighting, taillights, li-
cense plate light and auxiliary lights
come on, and the engine can be start-
ed. The key cannot be removed.TIPThe headlights come on automatically
when the engine is started and stay on
until the key is turned to “OFF”.
EAU10661
OFF
All electrical systems are off. The key
can be removed.
WARNING
EWA10061
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving.
Otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident.
EAU10691
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.To lock the steering
1. Turn the handlebars all the way to
the left or right.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.1. Push.
2. Turn.
U1DAE0E0.book Page 3 Friday, January 15, 2010 4:03 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3To unlock the steering
Push the key into the main switch, and
then turn it to “OFF” while still pushing
it.
EAU39460
(Parking)
The steering is locked, and the tail-
lights, license plate light and auxiliary
lights are on. The hazard lights and turn
signal lights can be turned on, but all
other electrical systems are off. The
key can be removed.
The steering must be locked before the
key can be turned to“”.
NOTICE
ECA11020
Do not use the parking position for
an extended length of time, other-
wise the battery may discharge.
EAU11004
Indicator and warning lights
EAU11030
Turn signal indicator lights“”
and“”
The corresponding indicator light flash-
es when the turn signal switch is
pushed to the left or right.
1. Push.
2. Turn.
1. Left turn signal indicator light“”
2. Right turn signal indicator light“”
3. Engine trouble“”/YCC-S “SHIFT” indica-
tors and warning light
4. Anti-lock Brake System (ABS) warning
light“”
5. Neutral indicator light“”
6. High beam indicator light“”
7. Oil level warning light“”
8. Immobilizer system indicator light
ABS
U1DAE0E0.book Page 4 Friday, January 15, 2010 4:03 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-36
3
EAU39653
Auxiliary DC jack NOTICE
ECA15431
The accessory connected to the
auxiliary DC jack should not be used
with the engine turned off, and the
load must never exceed 30 W (2.5 A),
otherwise the fuse may blow or the
battery may discharge.
WARNING
EWA14360
To prevent electrical shock or short-
circuiting, make sure that the cap is
installed when the auxiliary DC jack
is not being used.This vehicle is equipped with an auxilia-
ry DC jack in the accessory box.
A 12-V accessory connected to the
auxiliary jack can be used when the key
is in the “ON” position and should only
be used when the engine is running.
To use the auxiliary DC jack
1. Open the accessory box lid. (See
page 3-27.)
2. Turn the key to “OFF”.
3. Remove the auxiliary DC jack cap.4. Insert the accessory plug into the
auxiliary DC jack.
5. Turn the key to “ON”, and then
start the engine. (See page 5-1.)
1. Auxiliary DC jack cap
1. Auxiliary DC jack
U1DAE0E0.book Page 36 Friday, January 15, 2010 4:03 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-30
6
EAU23659
Replacing the fuses The main fuse, the fuse boxes and the
ABS motor fuse are located under pan-
el A. (See page 6-7.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.2. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15131]
1. Main fuse
2. Fuse box
3. ABS motor fuse
4. ABS motor spare fuse
1. Fuse box
2. Right radiator fan fuse
3. Left radiator fan fuse
4. Hazard fuse
5. Backup fuse (for clock and immobilizer sys-
tem)
6. ABS solenoid fuse
7. Fuel injection system fuse
8. Headlight fuse
9. Signaling system fuse
10.ABS control unit fuse
11.Ignition fuse
12.Auxiliary DC jack fuse
13.YCC-S motor control fuse
14.Spare fuse
20
0
2
714
8 9
10 11
12 13
U1DAE0E0.book Page 30 Friday, January 15, 2010 4:03 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-31
6
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU40361
Headlight bulb If a headlight does not come on, have a
Yamaha dealer check its electrical cir-
cuit or replace the bulb.NOTICE
ECA16580
Do not affix any type of tinted film or
stickers to the headlight lens.
Specified fuses:
Main fuse:
50.0 A
Headlight fuse:
25.0 A
Signaling system fuse:
15.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
15.0 A × 2
Backup fuse:
10.0 A
Hazard fuse:
10.0 A
Fuel injection system fuse:
15.0 A
ABS solenoid fuse:
20.0 A
ABS control unit fuse:
10.0 A
Auxiliary DC jack fuse:
3.0 A
ABS motor fuse:
30.0 A
YCC-S motor control fuse:
30.0 A
U1DAE0E0.book Page 31 Friday, January 15, 2010 4:03 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-33
6
EAU24313

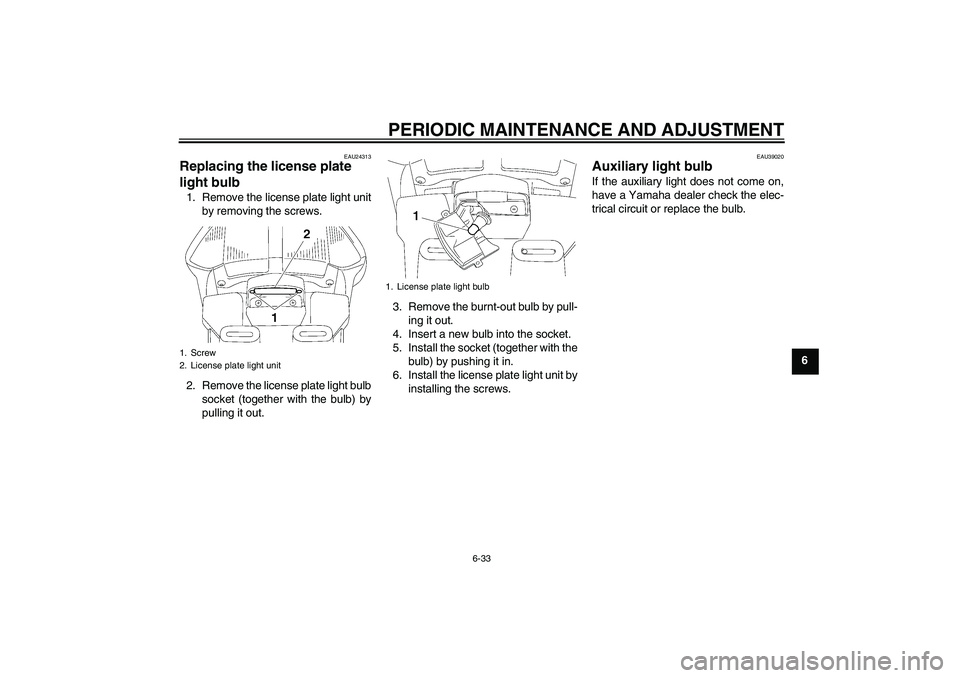

Replacing the license plate
light bulb 1. Remove the license plate light unit
by removing the screws.
2. Remove the license plate light bulb
socket (together with the bulb) by
pulling it out.3. Remove the burnt-out bulb by pull-
ing it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with the
bulb) by pushing it in.
6. Install the license plate light unit by
installing the screws.
EAU39020
Auxiliary light bulb If the auxiliary light does not come on,
have a Yamaha dealer check the elec-
trical circuit or replace the bulb.
1. Screw
2. License plate light unit
1. License plate light bulb
U1DAE0E0.book Page 33 Friday, January 15, 2010 4:03 PM
