TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Immobilizer system .........................3-1
Main switch/steering lock ................3-2
Indicator and warning lights ............3-4
Speedometer ..................................3-5
Tachometer ....................................3-6
Multi-function display ......................3-6
Anti-theft alarm (optional) .............3-13
Handlebar switches ......................3-13
Clutch lever ...................................3-15
Shift pedal .....................................3-16
Brake lever ...................................3-16
Brake pedal ..................................3-16
ABS ..............................................3-17
Fuel tank cap ................................3-18
Fuel ...............................................3-18
Fuel tank breather/overflow
hose ..........................................3-20
Catalytic converters ......................3-20
Seats ............................................3-21
Adjusting the rider seat height ......3-22
Storage compartments .................3-24
Accessory box ..............................3-25Adjusting the headlight beams ..... 3-26
Handlebar position ....................... 3-26
Opening and closing the
cowlings .................................... 3-26
Rear view mirrors ......................... 3-27
Adjusting the front fork ................. 3-28
Adjusting the shock absorber
assembly ................................... 3-29
Grip warmer adjusting knob ......... 3-31
Sidestand ..................................... 3-31
Ignition circuit cut-off system ........ 3-32
Auxiliary DC jack .......................... 3-34
FOR YOUR SAFETY –
PRE-OPERATION CHECKS............. 4-1
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Shifting ........................................... 5-2
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-3
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
ADJUSTMENT................................... 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance chart for the
emission control system ............. 6-2General maintenance and
lubrication chart .......................... 6-3
Removing and installing panels ..... 6-7
Checking the spark plugs .............. 6-8
Engine oil and oil filter cartridge ..... 6-9
Final gear oil ................................ 6-12
Coolant ........................................ 6-13
Cleaning the air filter element ...... 6-15
Checking the engine idling
speed ........................................ 6-16
Checking the throttle cable free
play ........................................... 6-16
Valve clearance ........................... 6-17
Tires ............................................. 6-17
Cast wheels ................................. 6-19
Clutch lever .................................. 6-20
Checking the brake lever free
play ........................................... 6-20
Brake light switches ..................... 6-21
Checking the front and rear brake
pads .......................................... 6-21
Checking the brake and clutch
fluid levels ................................. 6-22
Changing the brake and clutch
fluids ......................................... 6-23
Checking and lubricating the
cables ....................................... 6-23
Checking and lubricating the
throttle grip and cable ............... 6-24
Checking and lubricating the
brake and shift pedals .............. 6-24U1CYE0E0.book Page 1 Tuesday, October 27, 2009 11:52 AM

SAFETY INFORMATION
1-3
1


Do not run engine in poorly venti-
lated or partially enclosed areas
such as barns, garages, or car-
ports.


Do not run engine outdoors where
engine exhaust can be drawn into
a building through openings such
as windows and doors.
Loading
Adding accessories or cargo to your
motorcycle can adversely affect stabili-
ty and handling if the weight distribution
of the motorcycle is changed. To avoid
the possibility of an accident, use ex-
treme caution when adding cargo or
accessories to your motorcycle. Use
extra care when riding a motorcycle
that has added cargo or accessories.
Here, along with the information about
accessories below, are some general
guidelines to follow if loading cargo to
your motorcycle:
The total weight of the operator, pas-
senger, accessories and cargo must
not exceed the maximum load limit.
Operation of an overloaded vehicle
could cause an accident.When loading within this weight limit,
keep the following in mind:


Cargo and accessory weight
should be kept as low and close to
the motorcycle as possible. Se-
curely pack your heaviest items as
close to the center of the vehicle as
possible and make sure to distrib-
ute the weight as evenly as possi-
ble on both sides of the motorcycle
to minimize imbalance or instabili-
ty.


Shifting weights can create a sud-
den imbalance. Make sure that ac-
cessories and cargo are securely
attached to the motorcycle before
riding. Check accessory mounts
and cargo restraints frequently.
Properly adjust the suspension
for your load (suspension-ad-
justable models only), and
check the condition and pres-
sure of your tires.
Never attach any large or heavy
items to the handlebar, front
fork, or front fender. Theseitems, including such cargo as
sleeping bags, duffel bags, or
tents, can create unstable han-
dling or a slow steering re-
sponse.


This vehicle is not designed to
pull a trailer or to be attached to
a sidecar.
Genuine Yamaha Accessories
Choosing accessories for your vehicle
is an important decision. Genuine
Yamaha accessories, which are avail-
able only from a Yamaha dealer, have
been designed, tested, and approved
by Yamaha for use on your vehicle.
Many companies with no connection to
Yamaha manufacture parts and acces-
sories or offer other modifications for
Yamaha vehicles. Yamaha is not in a
position to test the products that these
aftermarket companies produce.
Therefore, Yamaha can neither en-
dorse nor recommend the use of ac-
cessories not sold by Yamaha or
modifications not specifically recom-
mended by Yamaha, even if sold and
installed by a Yamaha dealer.
Maximum load:
212 kg (467 lb)
U1CYE0E0.book Page 3 Tuesday, October 27, 2009 11:52 AM

DESCRIPTION
2-1
2
EAU10410
Left view1. Accessory box (page 3-25)
2. Front fork spring preload adjusting bolt (page 3-28)
3. Front fork rebound damping force adjusting knob (page 3-28)
4. Owner’s tool kit (page 6-1)
5. Rider seat (page 3-21)
6. Passenger seat (page 3-21)
7. Final gear oil filler bolt (page 6-12)
8. Final gear oil drain bolt (page 6-12)9. Shock absorber assembly spring preload adjusting lever (page 3-29)
10.Air filter element (page 6-15)
11.Shift pedal (page 3-16)
12.Engine oil filler cap (page 6-9)
13.Engine oil filter cartridge (page 6-9)
14.Engine oil level check window (page 6-9)U1CYE0E0.book Page 1 Tuesday, October 27, 2009 11:52 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU11004
Indicator and warning lights
EAU11030
Turn signal indicator lights“”
and“”
The corresponding indicator light flash-
es when the turn signal switch is
pushed to the left or right.
EAU11060
Neutral indicator light“”
This indicator light comes on when the
transmission is in the neutral position.
EAU11080
High beam indicator light“”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11123
Oil level warning light“”
This warning light comes on if the en-
gine oil level is low.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. The warning light should come
on for a few seconds, and then go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
TIPEven if the oil level is sufficient, the
warning light may flicker when riding on
a slope or during sudden acceleration
or deceleration, but this is not a mal-
function.
EAU11534
Engine trouble warning light“”
This warning light comes on or flashes
if a problem is detected in the electrical
circuit monitoring the engine. If this oc-
curs, have a Yamaha dealer check the
self-diagnosis system. (See page 3-12
for an explanation of the self-diagnosis
device.)
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. The warning light should come
on for a few seconds, and then go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
1. Left turn signal indicator light“”
2. Right turn signal indicator light“”
3. Engine trouble warning light“”
4. Anti-lock Brake System (ABS) warning
light“”
5. Neutral indicator light“”
6. High beam indicator light“”
7. Oil level warning light“”
8. Immobilizer system indicator light
ABS
U1CYE0E0.book Page 4 Tuesday, October 27, 2009 11:52 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-8
3Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear to-
wards “E” (Empty) as the fuel level
decreases. When the last segment
starts flashing, refuel as soon as possi-
ble.
When the key is turned to “ON”, all dis-
play segments come on once in order
to test the electrical circuit.
TIPThis fuel meter is equipped with a self-
diagnosis system. If a problem is de-
tected in the electrical circuit, all displaysegments will start flashing. If this oc-
curs, have a Yamaha dealer check the
electrical circuit.
Coolant temperature meter
The coolant temperature meter indi-
cates the temperature of the coolant.
The coolant temperature varies with
changes in the weather and engine
load. If the top segment flashes, stop
the vehicle, then stop the engine, and
let the engine cool. (See page 6-34.)
When the key is turned to “ON”, all dis-
play segments come on once in order
to test the electrical circuit.
NOTICE
ECA10021
Do not continue to operate the en-
gine if it is overheating.Transmission gear display
This display shows the selected gear.
The neutral position, however, is not
displayed, it is indicated by the neutral
indicator light.
1. Fuel meter
1. Coolant temperature meter
1. Transmission gear display
2. Neutral indicator light“”
U1CYE0E0.book Page 8 Tuesday, October 27, 2009 11:52 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-12
3


After resetting the average fuel
consumption display, “_ _._” will
be shown for that display until the
vehicle has traveled 1 km (0.6 mi).
NOTICE
ECA15472
If there is a malfunction, “– –.–” will
be displayed. Have a Yamaha dealer
check the vehicle.Self-diagnosis device
This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.If a problem is detected in any of those
circuits, the engine trouble warning light
will come on and the multi-function dis-
play will indicate an error code.
If the multi-function display indicates
such an error code, note the code num-
ber, and then have a Yamaha dealer
check the vehicle.
NOTICE
ECA11790
If the multi-function display indi-
cates an error code, the vehicle
should be checked as soon as pos-
sible in order to avoid engine dam-
age.The self-diagnosis device also detects
problems in the immobilizer system cir-
cuits.
If a problem is detected in the immobi-
lizer system circuits, the immobilizer
system indicator light will flash and the
multi-function display will indicate an
error code when the key is turned to
“ON”.
TIPIf the multi-function display indicates er-
ror code 52, this could be caused by
transponder interference. If this error
appears, try the following.1. Use the code re-registering key to
start the engine.TIPMake sure there are no other immobi-
lizer keys close to the main switch, and
do not keep more than one immobilizer
key on the same key ring! Immobilizer
system keys may cause signal interfer-
ence, which may prevent the engine
from starting.2. If the engine starts, turn it off, and
try starting the engine with the
standard keys.
3. If one or both of the standard keys
do not start the engine, take the
vehicle, the code re-registering
key and both standard keys to a
Yamaha dealer and have the stan-
dard keys re-registered.
1. Error code display
2. Immobilizer system indicator lightU1CYE0E0.book Page 12 Tuesday, October 27, 2009 11:52 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-20
3
EAU39451

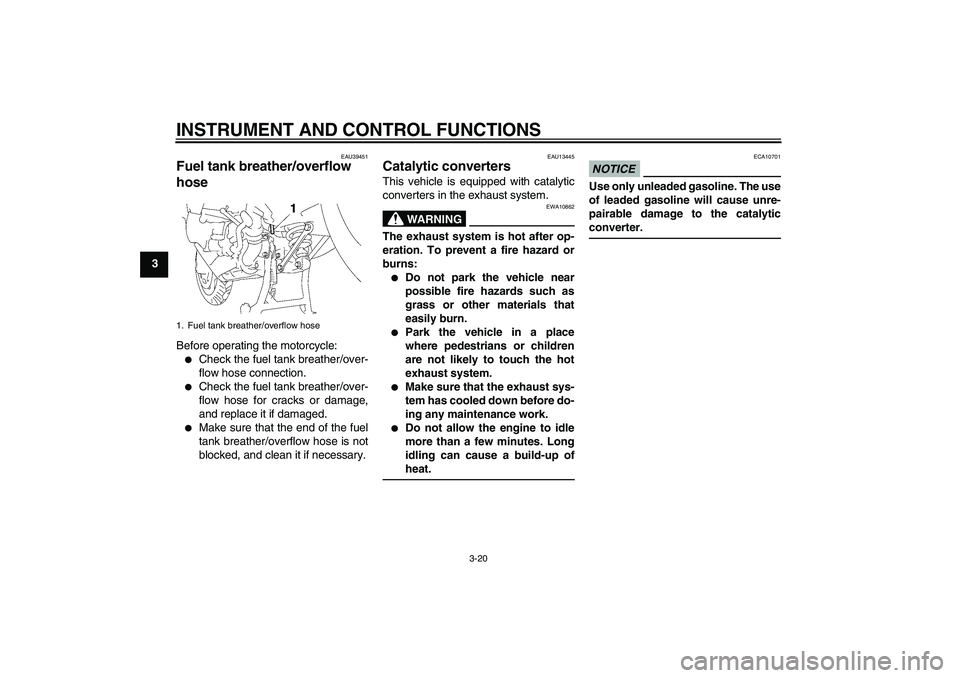

Fuel tank breather/overflow
hose Before operating the motorcycle:

Check the fuel tank breather/over-
flow hose connection.


Check the fuel tank breather/over-
flow hose for cracks or damage,
and replace it if damaged.


Make sure that the end of the fuel
tank breather/overflow hose is not
blocked, and clean it if necessary.
EAU13445
Catalytic converters This vehicle is equipped with catalytic
converters in the exhaust system.
WARNING
EWA10862
The exhaust system is hot after op-
eration. To prevent a fire hazard or
burns:

Do not park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.


Park the vehicle in a place
where pedestrians or children
are not likely to touch the hot
exhaust system.


Make sure that the exhaust sys-
tem has cooled down before do-
ing any maintenance work.


Do not allow the engine to idle
more than a few minutes. Long
idling can cause a build-up of
heat.
NOTICE
ECA10701
Use only unleaded gasoline. The use
of leaded gasoline will cause unre-
pairable damage to the catalytic
converter.
1. Fuel tank breather/overflow hoseU1CYE0E0.book Page 20 Tuesday, October 27, 2009 11:52 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-31
3
EAU40502
Grip warmer adjusting knob
WARNING
EWA14510
Do not turn the grip warmer knob
while the vehicle is moving.NOTICE
ECA15520


Be sure to wear gloves when us-
ing the grip warmers.


If the ambient temperature is 20
°C (68 °F) or higher, do not set
the grip warmer adjusting knob
to the “HI” position.


If the handlebar grip or throttle
grip becomes worn or damaged,
stop using the grip warmers and
replace the grips.
This vehicle is equipped with grip
warmers, which can only be used when
the engine is running.
Use the grip warmer adjusting knob, lo-
cated near the accessory box, to adjust
the grip warmer temperature.The grip warmer adjusting knob can be
set between the “LO” and “HI” posi-
tions. To raise the temperature, turn the
knob in direction (a). To lower the tem-
perature, turn the knob in direction (b).
Align the“” mark on the knob with
“OFF” to turn the grip warmers off.
TIPWhen the vehicle is stopped or travel-
ing at extremely low speeds (e.g., in
traffic jams), the grip warmer tempera-
ture is lower than when traveling at
higher speeds.
EAU15303
Sidestand The sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
vehicle upright.TIPThe built-in sidestand switch is part of
the ignition circuit cut-off system, which
cuts the ignition in certain situations.
(See page 3-32 for an explanation of
the ignition circuit cut-off system.)
WARNING
EWA10240
The vehicle must not be ridden with
the sidestand down, or if the side-
stand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control.
Yamaha’s ignition circuit cut-off
system has been designed to assist
the operator in fulfilling the respon-
sibility of raising the sidestand be-
fore starting off. Therefore, check
this system regularly as described
1.“LO” position
2.“OFF” position
3.“” mark
4. Grip warmer adjusting knob
5.“HI” position
U1CYE0E0.book Page 31 Tuesday, October 27, 2009 11:52 AM
