2010 YAMAHA BANSHEE 350 coolant

8-16
1
2
3
4
5
6
78
9
10
11

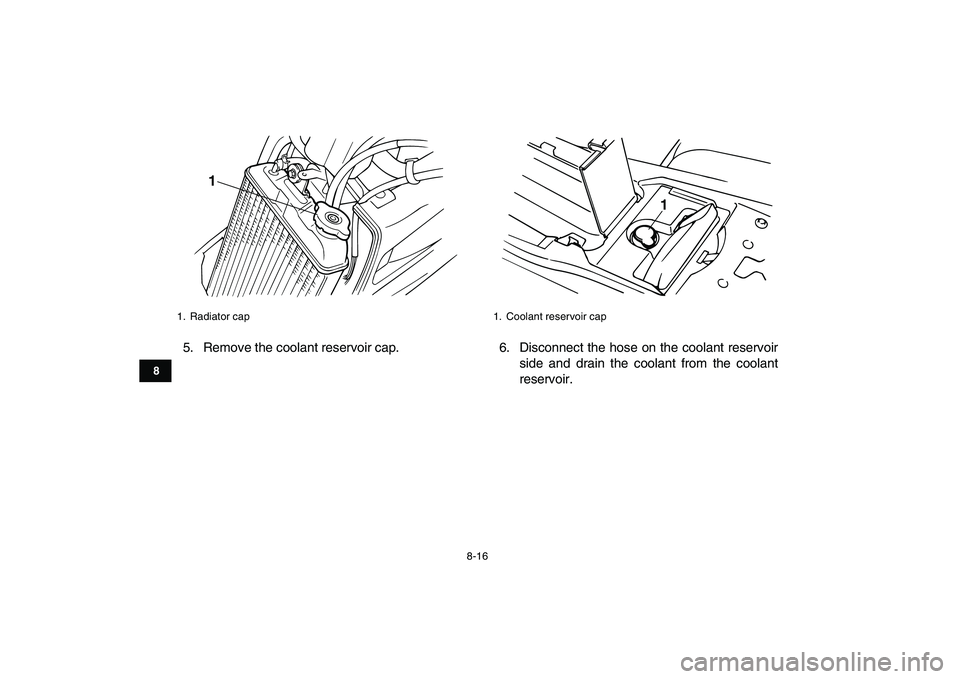

5. Remove the coolant reservoir cap. 6. Disconnect the hose on the coolant reservoir
side and drain the coolant from the coolant
reservoir.
1. Radiator cap
1

1. Coolant reservoir cap
1
✦✯✬✩✧✤✲✣ ✤✩ 


8-17
1
2
3
4
5
6
78
9
10
11

7. After draining the coolant, thoroughly flush the
cooling system with clean tap water.
8. Replace the coolant drain bolt washers if they
are damaged, and then tighten the coolant
drain bolts to the specified torque.
9. Connect the coolant reservoir hose.
10. Pour the recommended coolant into the reser-voir to the maximum level mark, and then in-
stall the reservoir cap.
NOTICE:
Mix
antifreeze with distilled water only. Howev-
er, if distilled water is not available, soft
water may be used for refilling. Do not use
hard water or salt water since they are
harmful to the engine.
[ECB00991]

11. Pour the recommended coolant into the radia-
tor until it is full.
12. Install the radiator cap, start the engine, let it
idle for several minutes, and then turn it off.
13. Remove the radiator cap to check the coolant
level in the radiator. If it is low, add sufficient
1. Coolant reservoir hose
2. Coolant reservoir
Tightening torque:
Coolant drain bolt:
14 Nm (1.4 m·kgf, 10 ft·lbf)
1
2

Antifreeze/water mixture ratio:
1:1
Recommended antifreeze:
High-quality ethylene glycol antifreeze con-
taining corrosion inhibitors for aluminum en-
gines
Coolant quantity:
Radiator capacity (including all routes):
1.50 L (1.59 US qt, 1.32 Imp.qt)
Coolant reservoir capacity (up to the maxi-
mum level mark):
0.28 L (0.30 US qt, 0.25 Imp.qt)
✦✯✬✩✧✤✲✣ ✤✪ 


8-18
1
2
3
4
5
6
78
9
10
11

coolant until it reaches the top of the radiator,
and then install the radiator cap.
14. Start the engine, and then check for coolant
leakage.
TIP

If any leakage is found, have a Yamaha dealer
check the cooling system.
15. Install the radiator cover by installing the
screws.
EBU23623
Cleaning the air filter element
The air filter element should be cleaned at the in-
tervals specified in the periodic maintenance and
lubrication chart. Clean or, if necessary, replace
the air filter element more frequently if you are
riding in unusually wet or dusty areas.
TIP

There is a check hose at the bottom of the air filter
case. If dust or water collects in this hose, empty
the hose and clean the air filter element and air fil-
ter case.1. Place the ATV on a level surface.
2. Remove the seat. (See page 4-11.)
3. Remove the air filter case cover by unhooking
the holders.
1. Air filter case check hose
1
✦✯✬✩✧✤✲✣ ✤✫


8-55
1
2
3
4
5
6
78
9
10
11

Engine overheating
WARNING

EWB02290
Wait for the engine and radiator to cool before removing the radiator cap. You could be burned by
hot fluid and steam blown out under pressure. Always put a thick rag over the cap when opening.
Allow any remaining pressure to escape before completely removing the cap.
TIP

If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the rec-
ommended coolant as soon as possible.
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer check
and repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again, have a
Yamaha dealer check and repair the cooling system.
There is
leakage.
There is
no leakage.
✦✯✬✩✧✤✲✣  


10-2
1
2
3
4
5
6
7
8
910
11
Cooling system:

Coolant reservoir capacity (up to the maximum level mark):
0.28 L (0.30 US qt, 0.25 Imp.qt)
Radiator capacity (including all routes):
1.50 L (1.59 US qt, 1.32 Imp.qt)
Air filter:
Air filter element:
Wet element
Fuel:
Recommended fuel:
Premium unleaded gasoline only
Fuel tank capacity:
12.0 L (3.17 US gal, 2.64 Imp.gal)
Fuel reserve amount:
2.5 L (0.66 US gal, 0.55 Imp.gal)
Carburetor:
Type
×
quantity:
VM26SS x 2
Spark plug (s):
Manufacturer/model:
NGK/BR8ES
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)
Clutch:
Clutch type:
Wet, multiple-disc
Transmission:
Primary reduction system:
Helical gear
Primary reduction ratio:
66/23 (2.869)Secondary reduction system:
Chain drive
Secondary reduction ratio:
41/14 (2.929)
Transmission type:
Constant mesh 6-speed
Operation:
Left foot operation
1st:
32/13 (2.461)
2nd:
29/16 (1.812)
3rd:
27/18 (1.500)
4th:
25/20 (1.250)
5th:
23/22 (1.045)
6th:
21/24 (0.875)
Chassis:
Frame type:
Steel tube frame
Caster angle:
9.0 °
Trail:
40.0 mm (1.57 in)
Front tire:
Type:
Tubeless
Size:
AT21 x 7-10
✦✯✬✩✧✤✲✣ ✥ 
