remote key
Locks the doors, fuel filler door, tailgate and arms the alarm.
Unlocks the doors, fuel filler door, and tailgateA and disarms the alarm.
Unlocks (but does not open) the tailgate.
Approach lighting illuminates lights in door mirrors, cabin, footwells, license plates. Turn signals and park-ing lights illuminate.
“Panic” alarm. – Press and hold to sound the alarm. Turn off alarm with unlock button.
A. Automatic relock occurs if no door/tailgate is opened within 2 minutes after unlock.
wipers and rain sensor*
1Rain sensor on/off with the lever in the 0 position.
2Turn to adjust intermittent wiper speed or rain sensor sensitivity where applicable.
3Tailgate wiper – normal/interval.
ASingle wiper sweep.
0Off
BIntermittent wipers. Turn (2) to adjust interval.
CNormal wiper speed.
DHigh wiper speed.
EWindshield and headlight washer.
FTailgate washer.
Displayed when the rain sensor is active.
note
After cold starts, your engine will idle at a higher speed for a short time.
cold start
aUtostart
Depress the brake pedal. Turn the key/keyless drive start control to position iii and release it. The engine will start automatically.

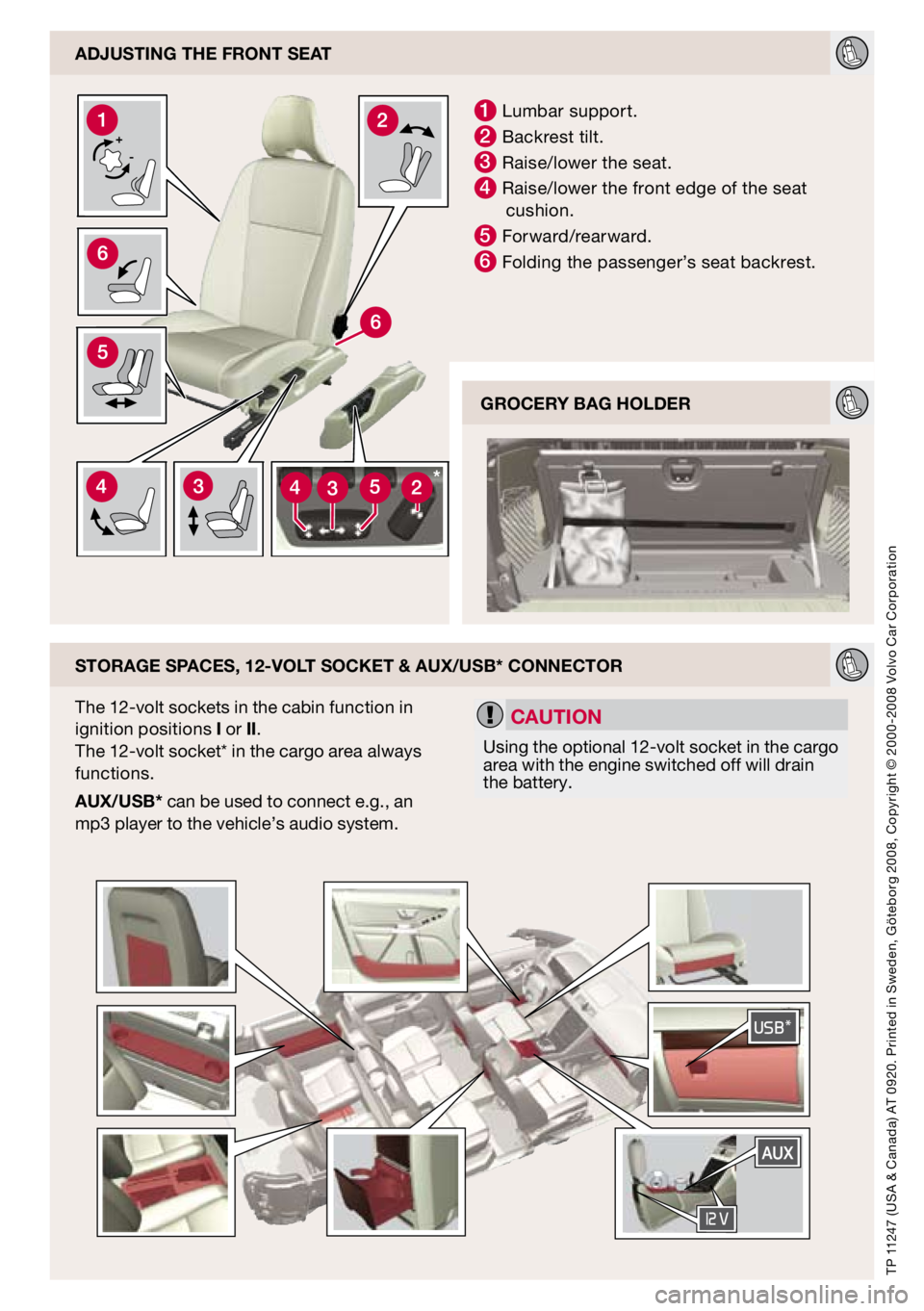

adjUsting the Front seat
storage spaces, 12-volt socket & aUX/Usb* connector
1 Lumbar support.
2 Backrest tilt.
3 Raise/lower the seat.
4 Raise/lower the front edge of the seat cushion.
5 Forward/rearward.
6 Folding the passenger’s seat backrest.
TP 11247 (USA & Canada) AT 0920. Printed in Sweden, Göteborg 2008, Copyright © 2000 -2008 Volvo Car Corporation
grocery bag holder
The 12-volt sockets in the cabin function in ignition positions i or ii. The 12-volt socket* in the cargo area always functions.
aUX/Usb*
can be used to connect e.g., an mp3 player to the vehicle’s audio system.
caUtion
Using the optional 12-volt socket in the cargo area with the engine switched off will drain the battery.
