2010 VOLVO V50 remote start

05 Locks and alarm
Alarm*
05
134* Option/accessory, for more information, see Introduction.
Turning off (stopping) the alarm
If the alarm is sounding, it can be stopped by
pressing the UNLOCK button on the remote
key or by inserting the key in the ignition switch.
The driver's door must first be unlocked with
the key blade.
NOTE
On vehicles equipped with the optional key-
less drive, the start control must be
removed from the ignition switch before the
key can be inserted, see page 148 for
instructions.
Audible/visual alarm signal
An audible alarm signal is given by a battery
powered siren. The alarm cycle lasts for
30 seconds.
NOTE
The visual alarm signal is given by flashing
all turn signals and turning on the interior
lighting for approximately 5 minutes.
Temporarily turning off the accessory
alarm sensor(s)
G026313
Display
MENU
EXIT
ENTER
Menu navigation controlsIn certain situations it may be desirable to turn
off the accessory inclination and movement
alarm sensors if, for example, you drive your
vehicle onto a ferry where the rocking of the
boat could trigger the alarm or if a pet is left in
the vehicle with the doors locked.
To do so:
1.
Press MENU to enter the menu system and
scroll to
Car settings (for a more detailed
description of the menus, see page 84.
2.
Select
Reduced guard.
3.
Select
Activate once and the messageReduced guard – See manual will
appear in the information display. The
alarm sensors will be turned off when the
vehicle is locked.
or
Select
Ask on exit. Each time the ignition
key is turned to position 0, the message
Press ENTER to reduce guard until
engine is started. Press EXIT to
cancel
will be displayed. Select one of the
alternatives:
•If the alarm sensors are to be deactivated,
press ENTER and then lock the vehicle.
The next time the ignition key is turned to posi-
tion II, the sensors will be reactivated and
Full
guard will displayed.

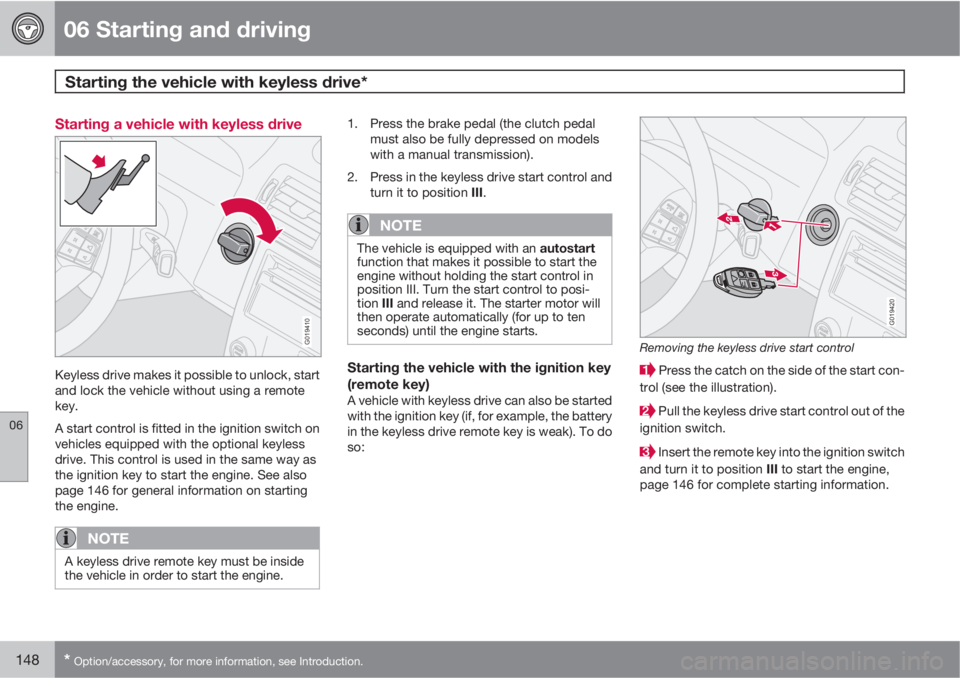

06 Starting and driving
Starting the vehicle with keyless drive*
06
148* Option/accessory, for more information, see Introduction.
Starting a vehicle with keyless drive
G019410
Keyless drive makes it possible to unlock, start
and lock the vehicle without using a remote
key.
A start control is fitted in the ignition switch on
vehicles equipped with the optional keyless
drive. This control is used in the same way as
the ignition key to start the engine. See also
page 146 for general information on starting
the engine.
NOTE
A keyless drive remote key must be inside
the vehicle in order to start the engine.
1. Press the brake pedal (the clutch pedal
must also be fully depressed on models
with a manual transmission).
2. Press in the keyless drive start control and
turn it to position III.
NOTE
The vehicle is equipped with an autostart
function that makes it possible to start the
engine without holding the start control in
position III. Turn the start control to posi-
tion III and release it. The starter motor will
then operate automatically (for up to ten
seconds) until the engine starts.
Starting the vehicle with the ignition key
(remote key)
A vehicle with keyless drive can also be started
with the ignition key (if, for example, the battery
in the keyless drive remote key is weak). To do
so:
G019420
Removing the keyless drive start control
Press the catch on the side of the start con-
trol (see the illustration).
Pull the keyless drive start control out of the
ignition switch.
Insert the remote key into the ignition switch
and turn it to position III to start the engine,
page 146 for complete starting information.

10 Audio
Bluetooth® hands-free connection
10
260
Introduction
G029503
System overview
Cell phone
Location of the microphone
Center console control panel and display
Bluetooth® hands-freeThis feature makes it possible to set up a wire-
less connection between a BluetoothŸ-ena-
bled cell phone and the vehicle’s audio system.
This enables the audio system to function as a
hands-free connection and allows you to
remote-control a number of the phone’s func-
tions. The microphone used by this system is
located in the ceiling console (2). The buttonsand other controls on the cell phone can
always be used regardless of whether or not
the phone is connected to the hands-free sys-
tem.
NOTE
Not all cell phones are fully compatible with
the hands-free system. A list of compatible
phones is available at your Volvo retailer or
at www.volvocars.us
WARNING
Never use the hands-free feature or any
other device in your vehicle in a way that
distracts you from the task of driving safely.
Distraction can lead to a serious accident.
Getting started
Use the controls in the center console (3) to
access, navigate and make selections in the
hands-free system’s menus (see page 264).
Activating/deactivatingA short press on the PHONE button in the cen-
ter console activates the hands-free system.
The text
TELEPHONE will appear at the top of
the display to indicate that the audio system is
in telephone mode.The
symbol indicates that the hands-free
system is active.
A long press on the PHONE button deactivates
the hands-free system and disconnects the
cell phone.
Connecting cell phonesThe procedure for connecting a cell phone var-
ies, depending on the phone itself, and on
whether or not the phone has been previously
connected.
If this is the first time the phone is to be con-
nected to the hands-free system, proceed as
follows:
Alternative 1–using the vehicle's menus
1.
Activate the cell phone’s Bluetooth
® func-
tion (refer to the phone’s owner’s manual if
necessary) or go to www.volvocars.com
2.
Activate the vehicle’s Bluetooth
® hands-
free system by briefly pressing the
PHONE button.
>
Add phone will be displayed. If one or
more cell phones are already registered
in the system, they will also be dis-
played.
3.
Select
Add phone.

12 Index
12
287
Refueling.................................................. 144
fuel tank volume.................................273
Registering child restraints........................ 46
Remote key.............................................. 122
battery replacement............................ 123
functions............................................. 122
key blade............................................ 124
Replacing fuses....................................... 232
Reporting safety defects
Canada................................................. 17
USA....................................................... 16
Roof loads............................................... 165
S
Safety, occupant........................................ 16
Safety defects, reporting
Canada................................................. 17
USA....................................................... 16
Safety locks, child.................................... 132
Seat belt
reminder................................................ 19
Seat belts................................................... 18
Automatic locking retractor/Emergency
locking retractor.................................... 35buckling................................................ 18
maintenance......................................... 20
pretensioners........................................ 18
unbuckling............................................ 18
use during pregnancy........................... 19
Seats, front.............................................. 104
Shiftlock
override............................................... 153
Side door mirrors....................................... 80
Side impact airbags................................... 29
Side impact protection (SIPS) airbags....... 29
Sirius satellite radio.................................. 251
Snow chains............................................ 189
Snow tires................................................ 189
Sound control, automatic........................246
Sound settings, audio system................. 244
Spare tire................................................. 190
Stability system....................................... 157
Dynamic Stability Traction Control
(DSTC)................................................ 157
Starting the engine..................................146
with keyless drive...............................148
Start inhibitor (immobilizer)..............122, 146
STC, stability system............................... 157Steering wheel
adjusting............................................... 75
keypad................................................ 243
Storage compartments............................ 111
Studded tires........................................... 189
Subwoofer............................................... 245
Sunroof (moonroof).................................... 82
Supplemental restraint system.................. 21
T
Tachometer................................................ 53
Tailgate wipers................................... 73, 222
Temporary spare tire...............................190
Three-way catalytic converter................. 280
Tire inflation............................................. 179
Tire inflation pressure
Canadian models................................ 182
US models.......................................... 181
Tire Pressure Monitoring System (TPMS) 199
Tires.........................................................176
age...................................................... 176
changing............................................. 192
changing from summer to winter........ 177
