2010 VOLKSWAGEN EOS navigation system

Center console overview
Upper center console

Fig. 6 Overview of the upper center console.
Key to fig. 6:
(1) Switch for emergency flashers
(2) PASSENGER AIR BAG OF F  light (front airbag for front seat passenger)
(3) Radio or Radio & Navigation system (factory-installed) ⇒ booklet Radio
or ⇒ booklet Navigation system
(4) Controls for:
– Climatronic

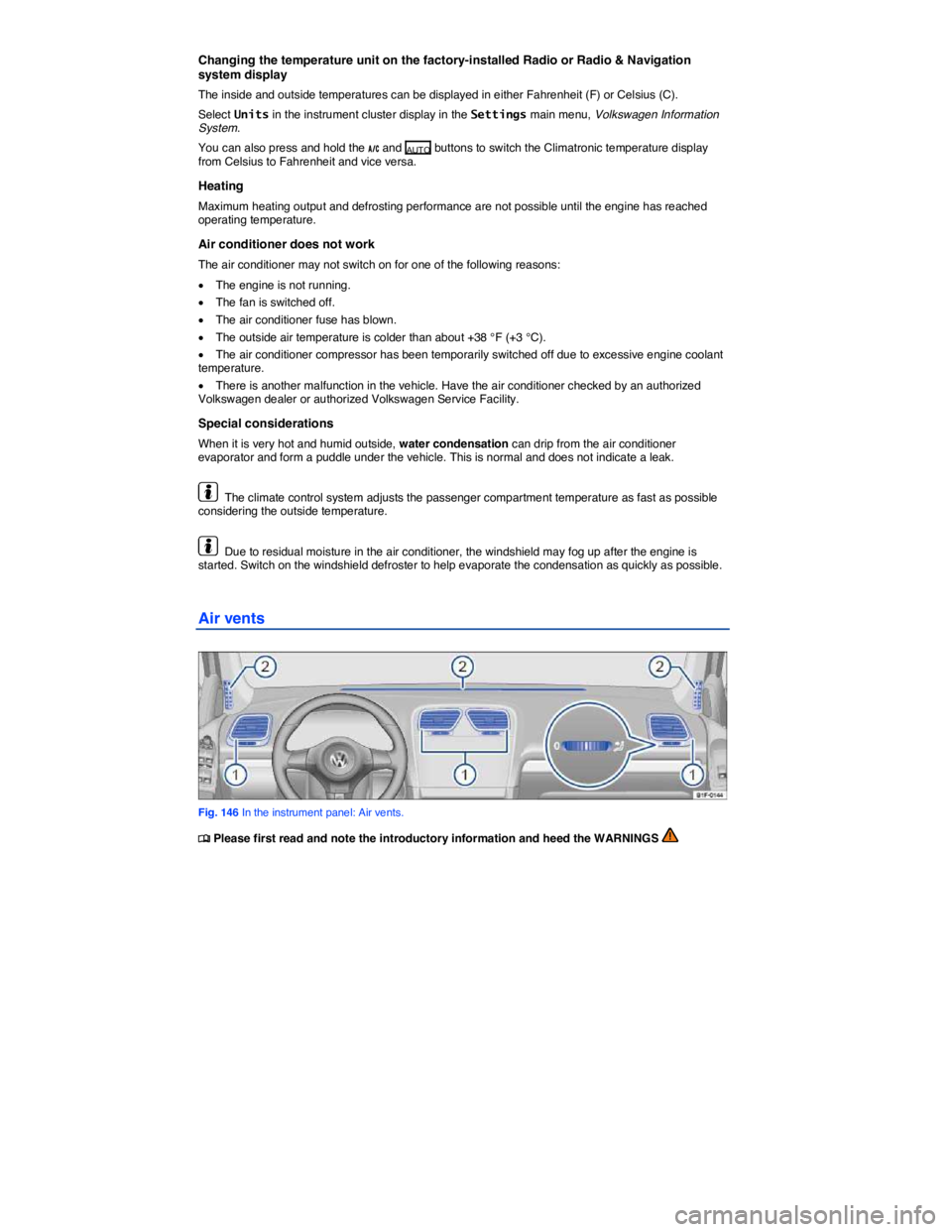

(5) Air vents / – J
(6) Passenger seat heating button [
(7) Driver seat heating button A

Lower center console

Fig. 8 Overview of the lower center console.
Key to fig. 8:
(1) Automatic transmission selector lever
(2) Parking brake lever
(3) Storage compartment with cup holders in the center console
(4) Storage compartment:
– with 12 Volt socket
(5) Center armrest with storage compartment
– Multimedia jack (MEDIA-IN) ⇒ booklet Radio or ⇒ booklet Navigation system
– with AUX-IN jack ⇒ booklet Radio
(6) Button for:
– Anti-Slip Regulation (ASR) m
(7) Switch for opening and closing the CSC roof &
(8) Switch for opening and closing the power sunroof

Compass display (if applicable)
On vehicles equipped with compass display, the current compass direction is indicated in the instru-ment cluster display when the ignition and navigation system are switched on, Compass.
Selector lever positions
The selector lever position is shown both on the side of the selector lever and in the instrument cluster display. The respective gear may also be shown in the instrument cluster display in Drive D and Sport Drive S, as well as in Tiptronic® mode.
WARNING
Failure to heed warning lights and instrument cluster text messages can cause the vehicle to break down in traffic and result in a collision and serious personal injury.
x Never ignore warning lights or text WARNINGS.
x Always stop the vehicle as soon as it is safe to do so.
x Park the vehicle at a safe distance from moving traffic and where no part of the hot cata-lytic converter and exhaust system can come into contact with flammable materials under the vehicle, such as dry grass, brush, spilled fuel, etc.
x A broken down vehicle presents a high accident risk for itself and others. Switch on emergency flashers and set up a warning triangle to warn oncoming traffic.
WARNING
Roads and bridges may be dangerously icy even if the outside air temperature is above freez-ing.
x If you use the outside temperature display to tell you about frost conditions, remember that roads can even ice over at temperatures above +39 °F (+4 °C). Always remember: even if the “snowflake symbol” (icy road warning) is not displayed, there could still be black ice on the road.
x Never rely exclusively on the outside temperature display.
NOTICE
Failure to heed warning lights or text WARNINGS can result in vehicle damage.
The instrument cluster displays and their arrangement may vary depending on the vehicle model and engine. For displays without warning and information messages, malfunctions are only signaled with indicator lights.
If there are multiple warning messages, the symbols are displayed for several seconds in order of importance. The symbols are displayed until the cause has been corrected.

Back
– Factory setting
▪ Lights & Vision
– Coming Home
– Leaving Home
– Footwell light
– Conv. turn sig. (convenience turn signal)
– Factory setting
– Back
▪ Time
– Hours
– Minutes
– 24 hr. mode
– Daylight save
– Back
▪ Snow tires (winter tires)
– On
– + 5 mph
– - 5 mph
– Back
▪ Compass (vehicles without navigation system)
– Zone
– Calibrate
– Back
▪ Units
– Temperature
– Consump./dist.
– Back
▪ Service
– Info
– Back
▪ Factory setting
Using the instrument cluster menus

Fig. 15 Right side of the multi-function steering wheel: Controls for menus in the instrument cluster.

Settings menu Function
Language Set the language for messages in the display and navigation system.
MFI data Select the features you want to have displayed in the MFI menu in the instrument cluster display
Convenience Convenience function settings
Lights & Vision Vehicle lighting settings
Time Set hours and minutes for the instrument cluster clock and the Radio & Navigation System clock. The time can be displayed in 12 or 24 hour format, and can also be set to daylight savings time.
Snow tires Set up a visual and acoustic speed warning. Use the feature only when winter tires are installed that have a speed rating less than top vehicle speed.
Compass Calibrate the compass on vehicles without a factory-installed navigation system. To calibrate, follow the instructions in the instrument cluster display
Units Set the units in which temperature, fuel consumption, and distances should be displayed (for example, whether to show distance driven in miles or kilometers).
Service View the service reminder display
Factory setting Reset the functions in the Settings menu back to the factory settings.
Convenience submenu

¥ Does the factory-installed navigation system work in the countries where you will be driving, and is navigation data available?
¥ Are special or heavy-duty tires necessary for the kind of driving expected?
NOTICE
Volkswagen is not responsible for mechanical damage that may result from substandard fuel or service or the unavailability of Genuine Volkswagen parts.
Driving through water on roads

Rear lid assist during opening and closing the CSC roof
Before the CSC roof opens or closes, the rear lid assist system uses the PDC sensors to check that there is enough room behind the vehicle for the rear lid to swing out past the rear bumper.
x If an obstacle is detected, roof operation stops. Unlike the Park Distance Control system, rear lid assist has no acoustical alert signal. Remove any obstacles behind the vehicle or move the vehicle forward so that there is enough room for the luggage compartment lid to swing out.
x If you operate the CSC roof lever again after roof has automatically stopped (because rear lid assist has detected an obstacle), roof operation will start again after a few seconds. The CSC roof will not stop again automatically if an obstacle is detected a second time. Instead, a warning will appear in the instrument cluster display.
x Because the rear lid assist system uses the PDC sensors, its operation depends on whether or not the PDC system is working properly. PDC is working properly if the warning chime sounds when you shift into Reverse.
Muting the Park Distance Control volume
You can mute the PDC beeping signals by tapping the + function key on the Radio or Navigation system screen (if applicable). Tap the function key again to reactivate the acoustic signals.
Switching Park Distance Control back on after it was switched off reactivates the volume. System malfunction warning signals cannot be switched off.
WARNING
Never rely completely on the PDC for information about people and objects that might be in the way of the vehicle and could be struck by the vehicle causing serious personal injury.
x The PDC sensors have blind spots where they cannot detect people or objects.
x Always watch for people, especially small children and animals, because the sensors may not always be able to detect them.
If you hear a long beep lasting about 3 seconds when you first turn PDC on, this means there is a malfunction in the Park Distance Control system. Switch off the Park Distance Control system with the button and have it immediately checked by an authorized Volkswagen dealer or an authorized Volkswagen Service Facility.
Rear lid assist can be deactivated by an authorized Volkswagen dealership or authorized Volkswagen Service Facility. If this is done, Park Distance Control still works and will give an acoustic warning if the CSC roof is opened or closed while the vehicle is in Reverse. The signal sounds as soon as the luggage compartment lid swings into the area scanned by the PDC sensors.

Changing the temperature unit on the factory-installed Radio or Radio & Navigation system display
The inside and outside temperatures can be displayed in either Fahrenheit (F) or Celsius (C).
Select Units in the instrument cluster display in the Settings main menu, Volkswagen Information System.
You can also press and hold the !
