■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 294)
●If the replaced fuse blows again, have the vehicle inspected by your Toy-
ota dealer.
■If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
●Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
●Do not modify the fuse or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Toy-
ota dealer as soon as possible.
FuseAmpereCircuit

294
4-3. Do-it-yourself maintenance
Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. (P. 360)
■Front bulb locations
Headlights and
daytime running
lights (if equipped)
Front fog lights
(if equipped)
Front side marker lights
Front turn signal lights
Parking lights

295 4-3. Do-it-yourself maintenance
4
Maintenance and care
Replacing light bulbs
■Headlights and daytime running lights (if equipped)
Unplug the connector.
Remove the rubber cover.
■Rear bulb locations
Back-up lights Rear turn signal lightsStop/tail and rear
side marker lights
License
plate light

296 4-3. Do-it-yourself maintenance
Release the bulb retaining
spring.
Remove the bulb.
To install a new bulb, align the
tabs of the bulb with the cutouts
of the mounting hole.
■Front fog lights (if equipped)
Remove the bolts and clips.
Partly remove the fender liner.

297 4-3. Do-it-yourself maintenance
4
Maintenance and care

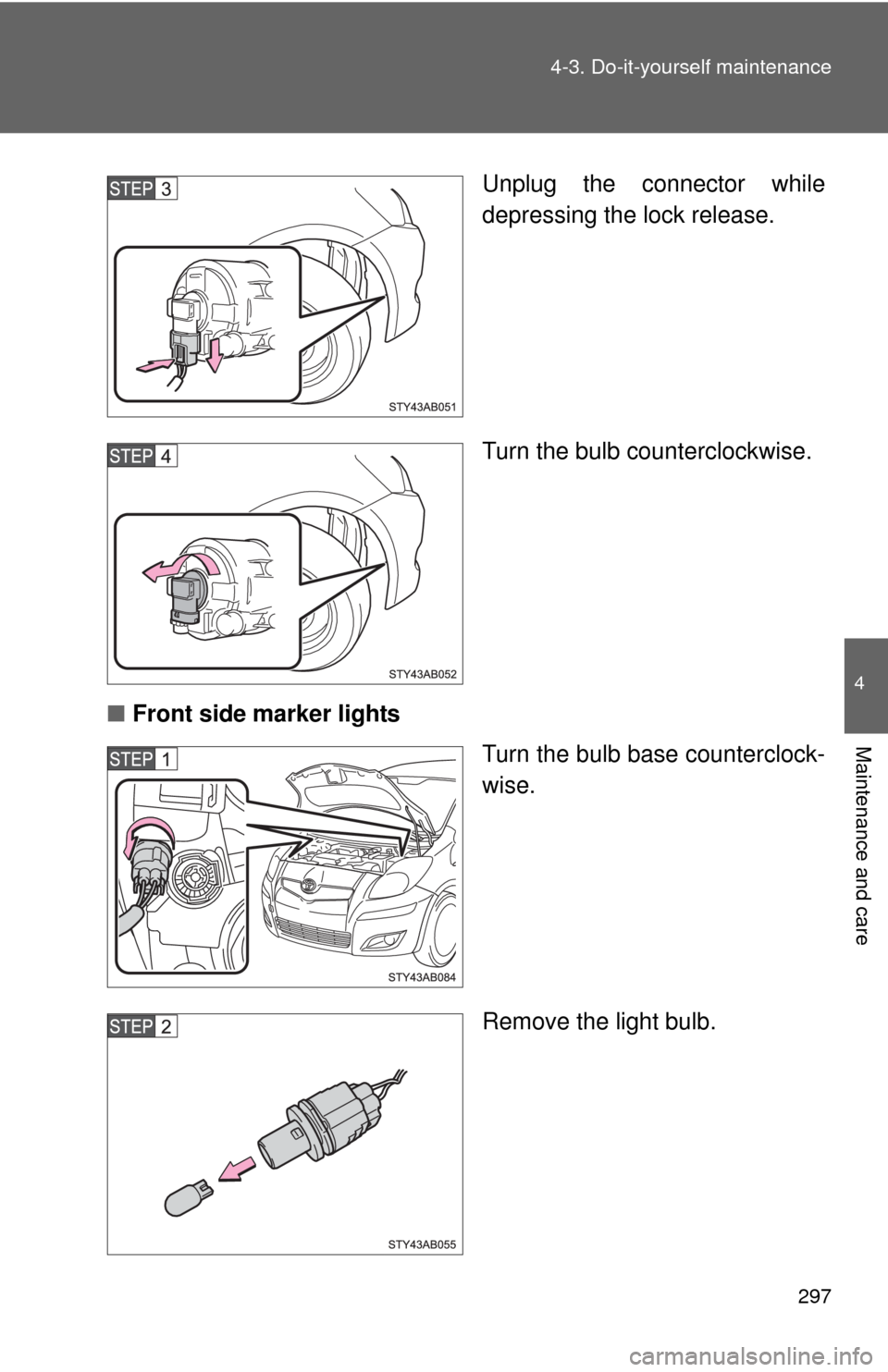

Unplug the connector while
depressing the lock release.
Turn the bulb counterclockwise.
■Front side marker lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.

298 4-3. Do-it-yourself maintenance
■Front turn signal lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
■Parking lights
Turn the bulb base counterclock-
wise.

299 4-3. Do-it-yourself maintenance
4
Maintenance and care
Remove the light bulb.
■Back-up lights, stop/tail and rear side marker lights and rear
turn signal lights
Open the back door and remove
the cover.
Use a flathead screwdriver which
is wrapped with a cloth.
Turn the bulb base counterclock-
wise.
Stop/tail and rear side marker
lights
Rear turn signal light
Back-up light
Remove the light bulb.
Stop/tail and rear side marker
lights
Rear turn signal light
Back-up light

300 4-3. Do-it-yourself maintenance
■License plate light
Disengage the claws and
remove the license plate light.
Use a flathead screwdriver which
is wrapped with a cloth.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
■Lights other than the above
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
• Side turn signal lights
• High mounted stoplight
