2010 TOYOTA YARIS remote control

36
1-2. Opening, closing and locking the doors

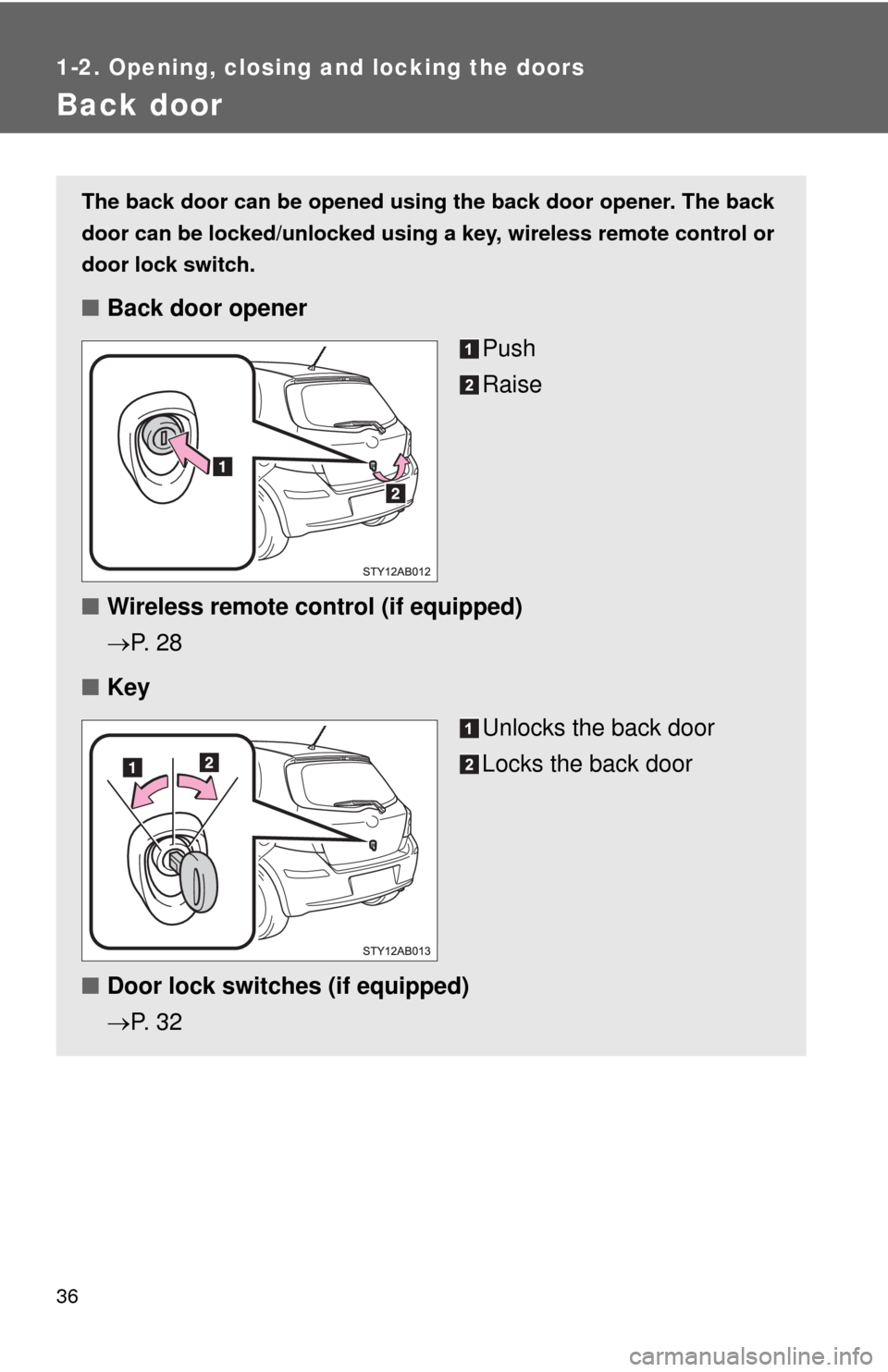

Back door
The back door can be opened using the back door opener. The back
door can be locked/unlocked using a key, wireless remote control or
door lock switch.
■Back door opener
Push
Raise
■Wireless remote control (if equipped)
P. 2 8
■Key
Unlocks the back door
Locks the back door
■Door lock switches (if equipped)
P. 3 2

282 4-3. Do-it-yourself maintenance
■If the key battery is discharged
The following symptoms may occur.
●The wireless remote control will not function properly.
●The operational range is reduced.
■Use a CR2016 lithium battery
●Batteries can be purchased at your Toyota dealer, jewelers, or camera
stores.
●Replace only with the same or equivalent type recommended by your
Toyota dealer.
●Dispose of used batteries according to the local laws.
CAUTION
■Removed battery and other parts
Keep away from children.
These parts are small and if swallowed by a child they can cause choking.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other components inside the remote control.
●Do not bend either of the battery terminals.

288 4-3. Do-it-yourself maintenance
■Engine compartment (type B)
FuseAmpereCircuit
1 AM2 15 AStarting system, multiport fuel
injection system/sequential multi-
port fuel injection system
2 HORN 10 A Horn
3 EFI 20 AMultiport fuel injection system/
sequential multiport fuel injection
system
4 SPARE 30 A Spare fuse
5 SPARE 10 A Spare fuse
6 SPARE 15 A Spare fuse
7 FR DEF 20 A No circuit
8 ABS2/VSC2 30 AAnti-lock brake system, vehicle sta-
bility control system
9 H-LP MAIN 30 A No circuit
10 ST 30 A Starting system
11 S-LOCK 20 A No circuit
12 DOME 15 AInterior light, personal lights, theft
deterrent system, audio system,
wireless remote control system

377
6
Vehicle specifications
6-2. Customization
Customizable features
ItemFunctionDefault settingCustomized
setting
Wireless
remote con-
trol
(
P. 2 8 )Wireless remote control ON OFF
Unlocking operationDriver’s door
unlocked in
one step, all
doors
unlocked in
two stepsAll doors
unlocked in
one step
Time elapsed before
automatic door lock
function is activated if
door is not opened after
being unlocked30 seconds 60 seconds
Operation signal
(Emergency flashers)ON OFF
Panic function ON OFF
Door lock
(P. 31)Unlocking using a keyDriver’s door
unlocked in
one step, all
doors
unlocked in
two stepsAll doors
unlocked in
one step
Your vehicle includes a variety of electronic features that can be per-
sonalized to your preferences. Programming these preferences
requires specialized equipment and may be performed by an autho-
rized Toyota dealership.
Some function settings are changed simultaneously with other functions
being customized. Contact your Toyota dealer for further details.

392 Alphabetical index
Gauge ................................... 139
Indicator ................................ 147
Information ............................ 361
Refueling .................................74
Type ...................................... 354
Fuel door.....................................74
Fuel filler door ............................74
Fuel gauge ................................ 139
Fuel pump shut off system ..... 312
Fuses......................................... 283
Gas station information........... 400
Gauges ...................................... 139
Glove boxes.............................. 221
Hazard lights
Switch.................................... 304
Head restraints
Adjusting ................................50
Headlights
Indicator ................................ 149
Replacing light bulbs ............. 294
Switch.................................... 149
Wattage ................................. 360
Hood .......................................... 250
Horn........................................... 138
I/M test....................................... 246
Identification
Engine ................................... 353
Tire ........................................ 364
Vehicle .................................. 353
Ignition switch .......................... 129
Illuminated entry system ......... 218
Immobilizer system....................78
Indicator lights ......................... 145
Initialization
Items to initialize.................... 379
Inside rear view mirror ..............67
Interior light
Switch.................................... 219
Wattage ................................. 360Jack
Positioning a floor jack .......... 251
Vehicle-equipped jack ........... 325
Jack handle .............................. 325
Keys
Electronic key.......................... 26
Engine switch ........................ 129
If you lose your keys ............. 340
Ignition switch ....................... 129
Key battery ............................ 281
Key number plate .................... 26
Keys ........................................ 26
Mechanical key ....................... 26
Wireless remote control .......... 28
License plate lights
Replacing light bulbs ............. 294
Switch ................................... 149
Wattage................................. 360
Light bulbs
Replacing .............................. 294
Wattage................................. 360
Lights
Emergency flashers
switch.................................. 304
Fog lights switch ................... 151
Hazard lights switch .............. 304
Headlights switch .................. 149
Instrument panel lights
switch.................................. 149
Interior light switch ................ 219
License plate lights switch .... 149
Parking lights switch ............. 149
Personal lights switch ........... 219
Replacing light bulbs ............. 294
Side marker lights switch ...... 149
Tail lights switch .................... 149
Turn signal lights switch ........ 135
Load capacity ........................... 168
Lock steering column.............. 130
G
H
I
J
K
L

396 Alphabetical index
High engine coolant
temperature ........................ 316
Low brake fluid ...................... 315
Low engine oil pressure ........ 316
Low tire inflation pressure ..... 318
Low washer fluid ................... 318
Malfunction ............................ 316
Open door ............................. 318
Seat belt ................................ 318
Seat belt pretensioner
system ................................ 316
SRS ....................................... 316
SRS airbag system ............... 316
Tire pressure ......................... 318
Tire pressure warning
system ................................ 318
VSC OFF............................... 316
Washer
Checking ............................... 264
Preparing and checking
before winter ....................... 169
Switch.................................... 152
Warning light ......................... 318
Washing and waxing ............... 236
Weight
Cargo capacity ...................... 165
Load limits ............................. 168
Weight ................................... 352
Wheels ...................................... 276
Window
glasses ............71, 193, 236, 238
Window lock switch ...................72
Windows
Cleaning and
protecting .................... 236, 238
Power windows .......................71
Rear window defogger .......... 193
Washer .................................. 152
Windshield wipers................... 152
Wireless remote control key
Replacing the key battery...... 281
Wireless remote control ..........28
WMA disc .................................. 208
