2010 TOYOTA TUNDRA transmission fluid

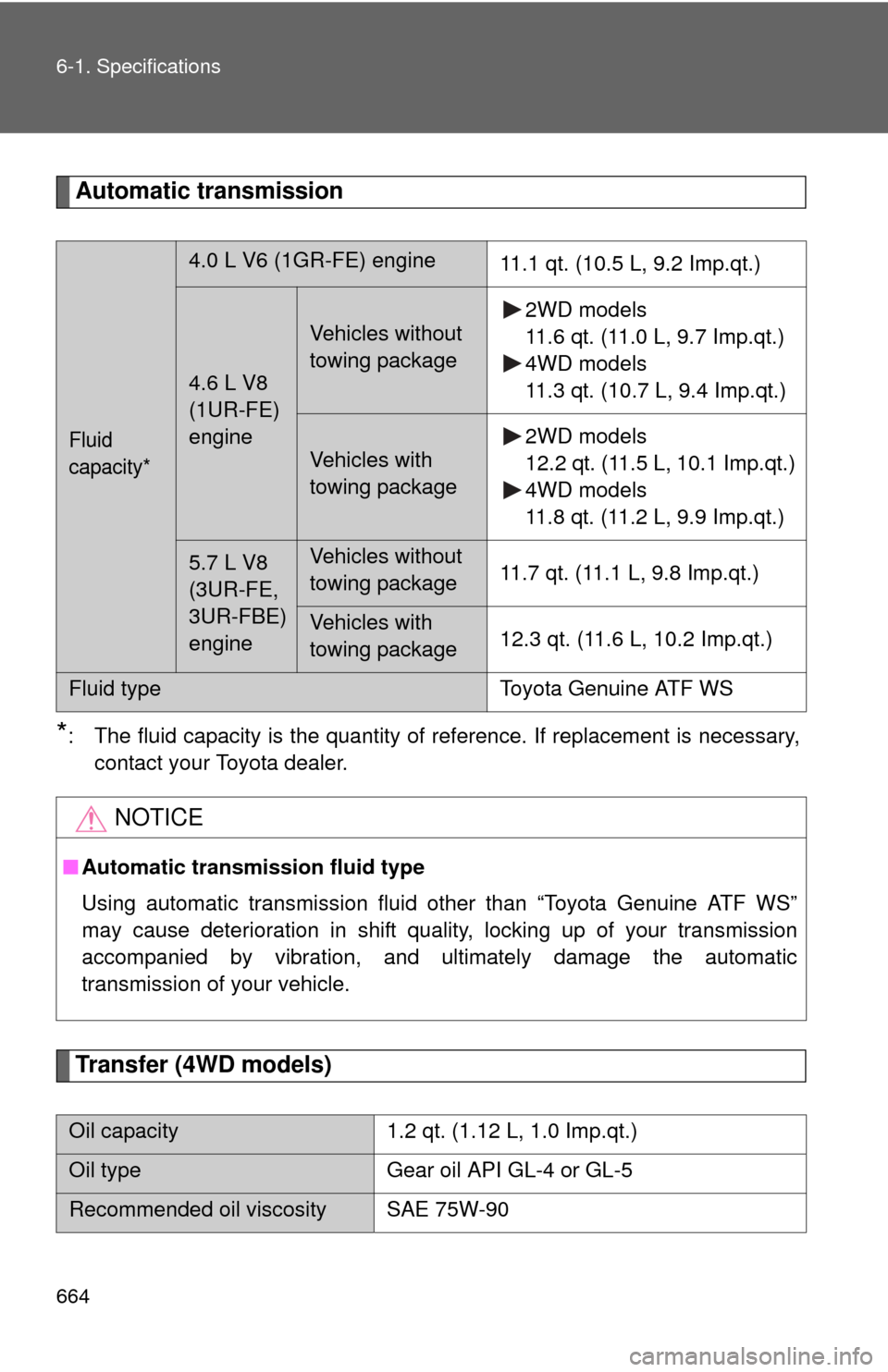

664 6-1. Specifications
Automatic transmission
*: The fluid capacity is the quantity of reference. If replacement is necessary,contact your Toyota dealer.
Transfer (4WD models)
Fluid
capacity*
4.0 L V6 (1GR-FE) engine 11.1 qt. (10.5 L, 9.2 Imp.qt.)
4.6 L V8
(1UR-FE)
engine
Vehicles without
towing package2WD models
11.6 qt. (11.0 L, 9.7 Imp.qt.)
4WD models
11.3 qt. (10.7 L, 9.4 Imp.qt.)
Vehicles with
towing package2WD models
12.2 qt. (11.5 L, 10.1 Imp.qt.)
4WD models
11.8 qt. (11.2 L, 9.9 Imp.qt.)
5.7 L V8
(3UR-FE,
3UR-FBE)
engineVehicles without
towing package
11.7 qt. (11.1 L, 9.8 Imp.qt.)
Vehicles with
towing package12.3 qt. (11.6 L, 10.2 Imp.qt.)
Fluid type
Toyota Genuine ATF WS
NOTICE
■Automatic transmission fluid type
Using automatic transmission fluid other than “Toyota Genuine ATF WS”
may cause deterioration in shift quality, locking up of your transmission
accompanied by vibration, and ultimately damage the automatic
transmission of your vehicle.
Oil capacity 1.2 qt. (1.12 L, 1.0 Imp.qt.)
Oil typeGear oil API GL-4 or GL-5
Recommended oil viscosity SAE 75W-90

665
6-1. Specifications
6
Vehicle specifications
Brakes
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N,
50 kgf) with the engine running.
*2: Parking brake pedal travel when depressed with a force of 67.1 lbf (300 N,30.6 kgf).
Chassis lubricati on (4WD models)
Steering
Pedal clearance *14.1 in. (104 mm) Min.
Pedal free play 0.04  0.20 in. (1  5 mm)
Brake pad wear limit 0.04 in. (1.0 mm)
Parking brake lining wear limit 0.04 in. (1.0 mm)
Parking brake pedal travel *26 — 9 clicks
Fluid type FMVSS No. 116 DOT 3 or SAE J1703
Propeller shafts Spider Lithium base chassis grease, NLGI No.2
Free playLess than 1.2 in. (30 mm)
Power steering fluid type Automatic transmission fluid DEXRON® II
or III

716 Alphabetical index
Checking ............................... 542
Identification number ............. 674
If you have a flat tire .............. 608
Inflation pressure........... 549, 666
Information ............................ 673
Inflation pressure sensor ....... 543
Replacing .............................. 608
Rotating tires ......................... 542
Size ....................................... 666
Snow tires ............................. 260
Tire pressure warning reset switch ......................... 543
Tire pressure warning system ........................ 542, 598
Warning light ......................... 598
Tissue pocket ........................... 461
Tools ......................................... 608
Total load capacity................... 258
TOW/HAUL switch ................... 189
Towing Bumper towing ...................... 275
Dinghy towing........................ 285
Emergency towing................. 585
Fifth wheel trailer ................... 273
Trailer towing......................... 264
Traction control........................ 243
TRAC ......................................... 243
Trip information ....................... 204
Trip meter ................................. 198
Turn signal lights
Replacing light bulbs ..... 574, 577
Switch.................................... 191
Wattage ................................. 668
Valet key .....................................42
Vanity lights Vanity lights ........................... 475
Wattage ................................. 668
Vanity mirrors........................... 475
Vehicle identification number ................................... 653
Vehicle stability control........... 243
VSC............................................ 243 Warning buzzers
Brake system ........................ 595
Key reminder................... 50, 599
Open door ..................... 597, 599
Seat belt reminder......... 597, 599
Warning lights ABS ....................................... 596
Airbag system ....................... 596
Anti-lock brake system .......... 596
Automatic transmission fluid temperature................. 597
Brake assist system .............. 596
Brake system ........................ 595
Charging system .... ............... 595
Electronic engine control system ................................ 596
Engine oil pressure ............... 596
Four-wheel drive system
warning buzzer ................... 599
Driver’s seat belt ................... 597
Front passenger occupant
classification system ........... 596
Front passenger’s
seat belt .............................. 597
Low brake fluid ...................... 595
Low engine oil pressure ........ 596
Low fuel level ................ 598, 606
Low tire inflation pressure.............................. 598
Malfunction indicator lamp .... 596
Master warning light .............. 598
Open door ............................. 597
Power steering warning light ..................................... 597
Pretensioners ........................ 596
Seat belt reminder light ......... 597
SRS airbags .......................... 596
Tire pressure warning light.... 598
VSC/TRAC ............................ 597
Warning messages .................. 604
Washer Checking ............................... 540
V
W

721

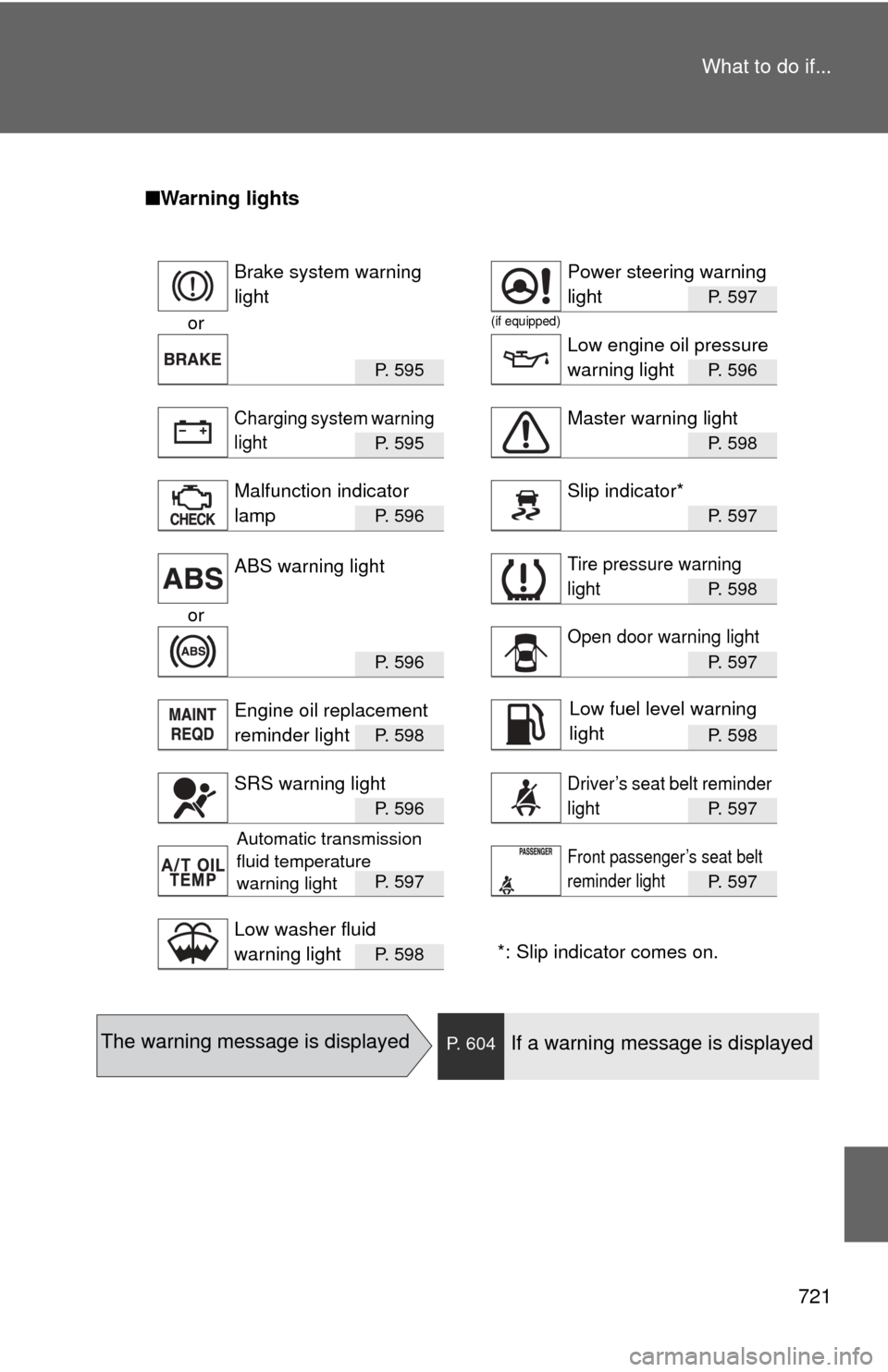

What to do if...
■
