5
When trouble arises
601
5-2. Steps to take in an emergency
●If a radio set at similar frequencies is in use in the vehicle.
●If a window tint that affects the radio wave signals is installed.
●If there is a lot of snow or ice on
the vehicle, in particular around the
wheels or wheel housings.
●If non-genuine Toyota wheels are used. (Even if you use Toyota
wheels, the tire pressu re warning system may not work properly with
some types of tires.)
●If tire chains are used.
■If the tire pressure warning light comes on after blinking for 1
minute frequently
If the tire pressure warning light comes on after blinking for 1 minute fre-
quently when the engine switch is turned to the ON position, have it
checked by your Toyota dealer.
■ After changing the engine oil (U.S.A. only)
Make sure to reset the oil maintenance data. ( P. 532)
■ Customization that can be co nfigured at Toyota dealer
The vehicle speed linked front passenger’s seat belt reminder buzzer can be
disabled. (Customizable features P. 684)
CAUTION
■If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could
cause loss of vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire
inflation pressure immediately.
●If the tire pressure warning light comes on even after tire inflation pres-
sure adjustment, it is pr obable that you have a flat tire. Check the tires.
If the tire is flat, change to the spare tire and have the flat tire repaired
by the nearest Toyota dealer.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate,
you could lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning syste m may not activate immediately.

5
When trouble arises
625
5-2. Steps to take in an emergency

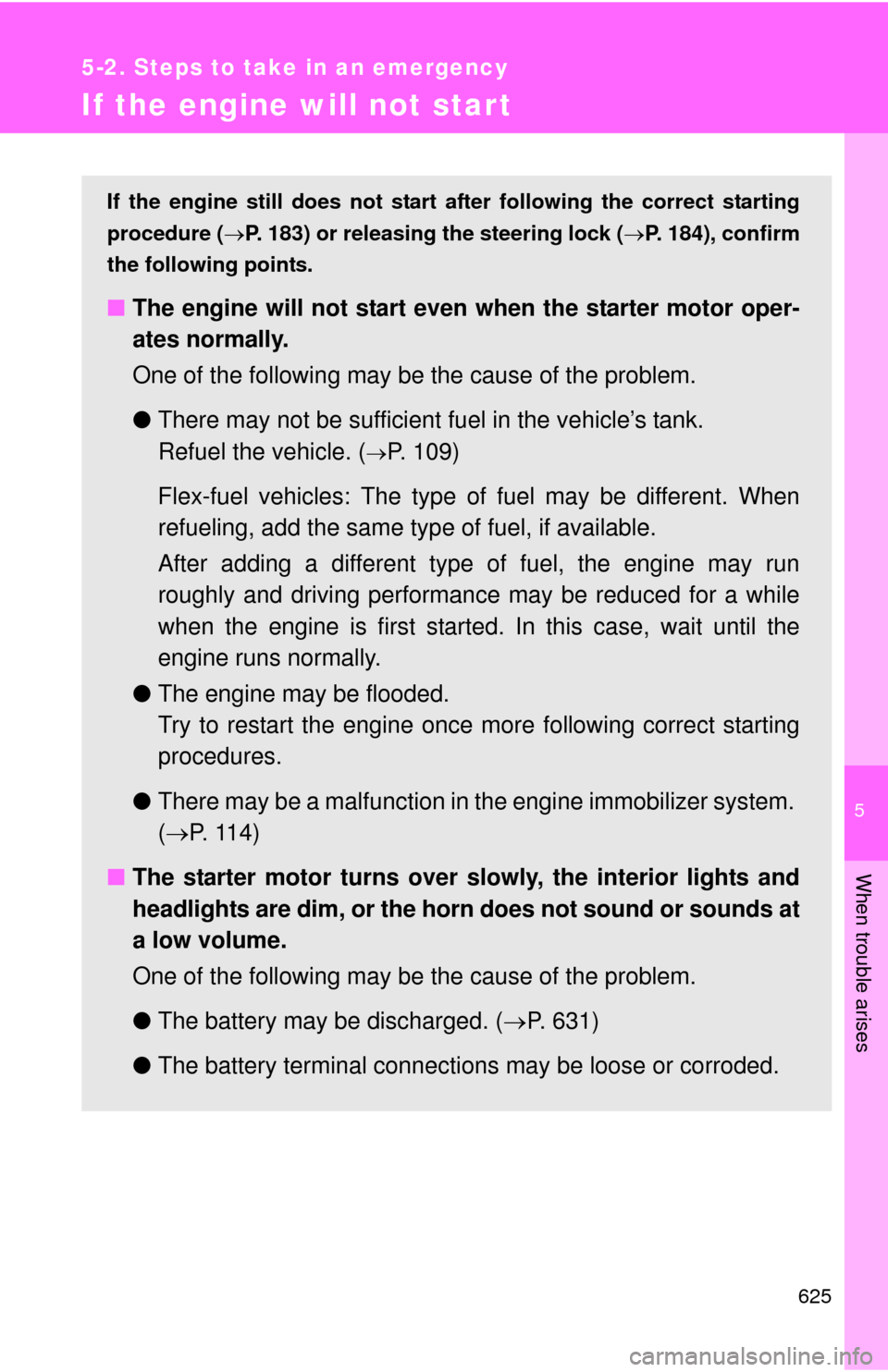

If the engine will not star t
If the engine still does not start after following the correct starting
procedure ( P. 183) or releasing the steering lock (P. 184), confirm
the following points.
■ The engine will not start even when the starter motor oper-
ates normally.
One of the following may be the cause of the problem.
●There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle. (
P. 109)
Flex-fuel vehicles: The type of fuel may be different. When
refueling, add the same type of fuel, if available.
After adding a different type of fuel, the engine may run
roughly and driving performance may be reduced for a while
when the engine is first started. In this case, wait until the
engine runs normally.
● The engine may be flooded.
Try to restart the engine once more following correct starting
procedures.
● There may be a malfunction in the engine immobilizer system.
(  P. 1 1 4 )
■ The starter motor turns over slowly, the interior lights and
headlights are dim, or the horn does not sound or sounds at
a low volume.
One of the following may be the cause of the problem.
●The battery may be discharged. ( P. 631)
● The battery terminal connec tions may be loose or corroded.

638
5-2. Steps to take in an emergency

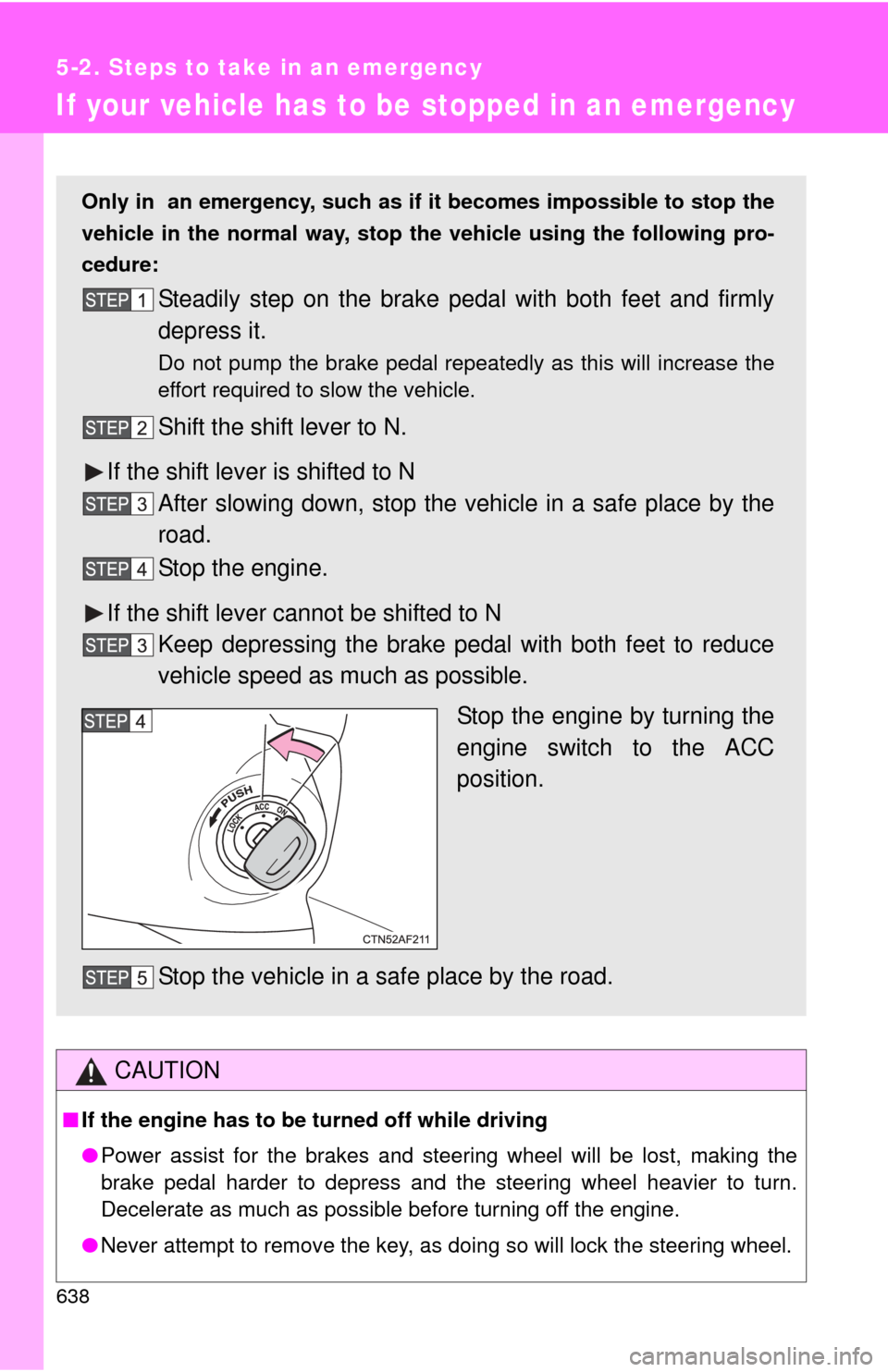

If your vehicle has to be stopped in an emergency
CAUTION
■If the engine has to be turned off while driving
●Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
● Never attempt to remove the key, as doing so will lock the steering wheel.
Only in an emergency, such as if it becomes impossible to stop the
vehicle in the normal way, stop the vehicle using the following pro-
cedure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N After slowing down, stop the vehi cle in a safe place by the
road.
Stop the engine.
If the shift lever cannot be shifted to N Keep depressing the brake pedal with both feet to reduce
vehicle speed as much as possible.
Stop the engine by turning the
engine switch to the ACC
position.
Stop the vehicle in a safe place by the road.

665
6-1. Specifications
6
Vehicle specifications
Brakes
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N,
50 kgf) with the engine running.
*2: Parking brake pedal travel when depressed with a force of 67.1 lbf (300 N,30.6 kgf).
Chassis lubricati on (4WD models)
Steering
Pedal clearance *14.1 in. (104 mm) Min.
Pedal free play 0.04  0.20 in. (1  5 mm)
Brake pad wear limit 0.04 in. (1.0 mm)
Parking brake lining wear limit 0.04 in. (1.0 mm)
Parking brake pedal travel *26 — 9 clicks
Fluid type FMVSS No. 116 DOT 3 or SAE J1703
Propeller shafts Spider Lithium base chassis grease, NLGI No.2
Free playLess than 1.2 in. (30 mm)
Power steering fluid type Automatic transmission fluid DEXRON® II
or III

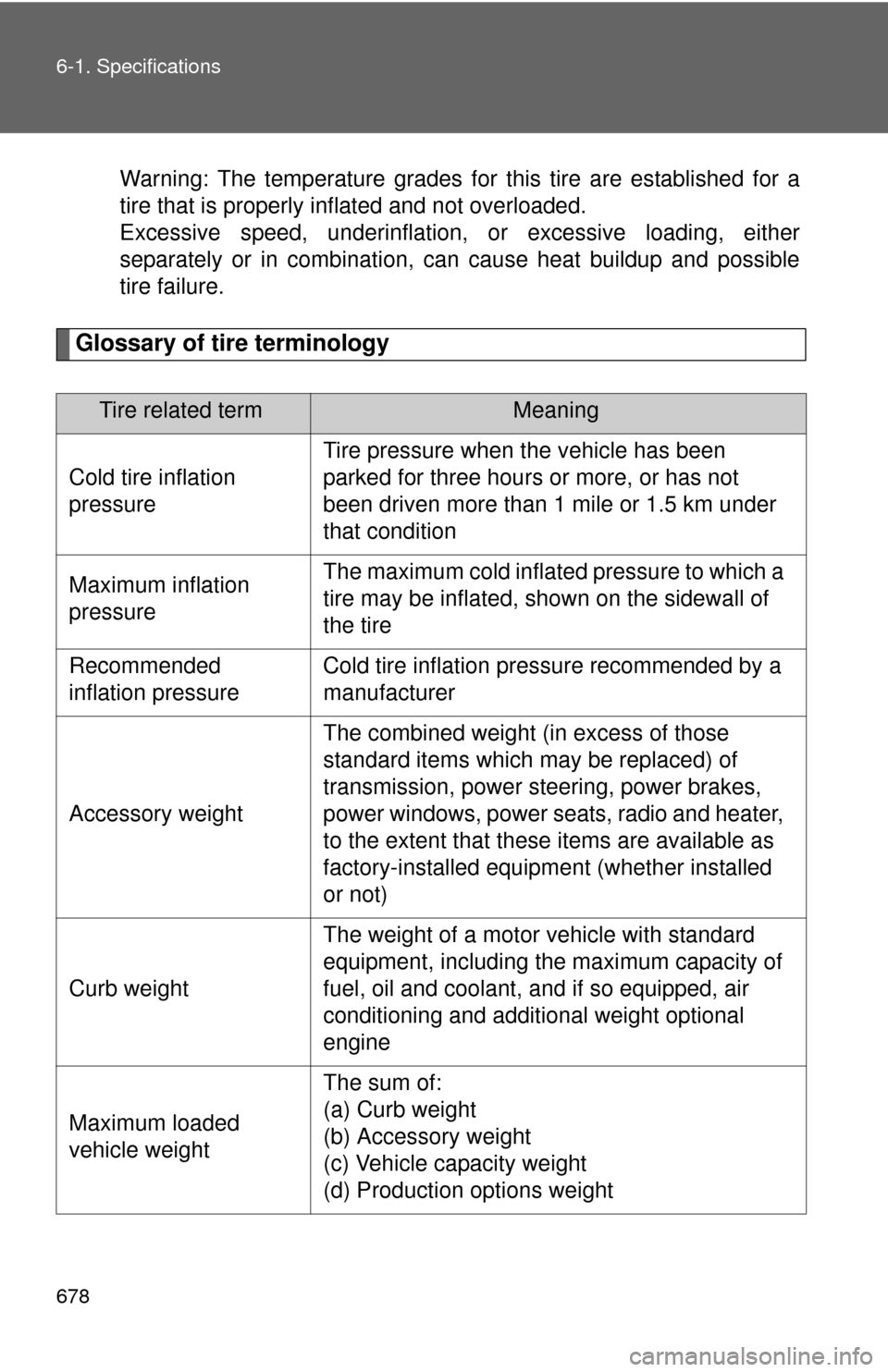

678 6-1. Specifications
Warning: The temperature grades for this tire are established for a
tire that is properly inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either
separately or in combination, can cause heat buildup and possible
tire failure.
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation
pressure
Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition
Maximum inflation
pressureThe maximum cold inflated pressure to which a
tire may be inflated, s hown on the sidewall of
the tire
Recommended
inflation pressureCold tire inflation pressure recommended by a
manufacturer
Accessory weight
The combined weight (in excess of those
standard items which may be replaced) of
transmission, power steering, power brakes,
power windows, power seats, radio and heater,
to the extent that these items are available as
factory-installed equipment (whether installed
or not)
Curb weight
The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded
vehicle weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight

708
Alphabetical index
Alphabetical index
A/C ..................................... 288, 297
ABS ........................................... 243
Accessory meter ...................... 210
Active traction control system .................................... 243
Air conditioning filter............... 555
Air conditioning system Air conditioning filter .............. 555
Automatic air conditioning system ................................ 288
Manual air conditioning system ................................ 297
Airbags
Airbag operating conditions............................ 123
Airbag precautions for your
child .................................... 128
Airbag warning light............... 596
Curtain shield airbag operating conditions............ 124
Curtain shield airbag precautions ......................... 130
Front passenger occupant classification system ........... 136
General airbag
precautions ......................... 127
Locations of airbags .............. 120
Modification and disposal of airbags ............................ 131
Passenger airbag off switch .......................... 132, 151
Proper driving posture ........................ 118, 127
Roll sensing of curtain shield airbag off switch .................. 134
Side airbag operating conditions............................ 124
Side airbag precautions ........ 129
SRS airbags .......................... 120
Alarm ......................................... 116
Antenna..................................... 319
Anti-lock brake system ABS warning light .................. 596 Anti-lock brake system .......... 243
Armrest ..................................... 495
Ashtray ..................................... 479
Audio input ............................... 356
Audio remote controls ............ 358
Audio system A/V input adapter .................. 403
Antenna................................. 319
Audio input ............................ 356
Audio visual input .................. 403
AUX adapter ......................... 356
CD player/changer ................ 322
DVD player............................ 386
iPod
®..................................... 339
MP3/WMA disc ..................... 331
Optimal use ........................... 352
Portable music player ........... 356
Radio..................................... 314
Rear seat entertainment system ................................ 377
Steering wheel audio switch.................................. 358
Type ...................................... 310
USB memory......................... 345
Audio visual input.................... 403
AUTO LSD system ................... 240
Automatic light control system .................................... 215
Automatic transmission Automatic transmission ......... 186
If the shift lever cannot be shifted from P ..................... 627
TOW/HAUL switch ................ 189
AUX adapter ............................. 356
Auxiliary boxes ....................... 469
A/V input adapter ..................... 403
Back-up lights Replacing light bulbs ............. 577
Wattage................................. 668
Back window Back window ......................... 100
Power back window .............. 101
A
B

712 Alphabetical index
Hood .......................................... 527
HooksCargo net .............................. 499
Deck hooks ........................... 498
Shopping bag ........................ 499
Horn........................................... 193
I/M test....................................... 522
Identification Engine ................................... 654
Tire ........................................ 674
Vehicle .................................. 653
Ignition switch .......................... 183
Illuminated entry system ......... 442
Immobilizer system.................. 114
Indicator lights ......................... 200
Initialization
Items to initialize.................... 687
Engine oil maintenance data ..................................... 532
Moon roof .............................. 106
Tire pressure warning system ........ ....................... 543
Inside rear view mirror ..............88
Interior lights Interior lights.......... 442, 443, 444
Personal lights....... 442, 443, 444
Switch.................................... 443
Wattage ................................. 668
Instrument panel light control .................................... 199
Intuitive parking assist ............ 224
Jack Positioning the jack ............... 616
Vehicle-equipped jack ........... 608
Jack handle .............................. 614
Keyless entry..............................44
Keys Engine switch ........................ 183
If you lose your keys ............. 630 Ignition switch ....................... 183
Keyless entry .......................... 44
Key number............................. 42
Keys ........................................ 42
Wireless remote control .......... 44
License plate lights Replacing light bulbs ............. 579
Switch ................................... 213
Wattage................................. 668
Light bulbs Replacing .............................. 571
Wattage................................. 668
Lights Automatic light off system ..... 215
Cargo lamp switch ................ 446
Emergency flasher switch.................................. 584
Fog light switch ..................... 217
Hazard light switch ................ 584
Headlight switch .................... 213
Instrument panel light
control dial .......................... 199
Interior light switch ........ 443, 444
Outer foot lights..................... 442
Personal light switch ............. 444
Replacing light bulbs ............. 571
Turn signal lever ................... 191
Vanity lights........................... 475
Wattage................................. 668
Load capacity ........................... 258
Lock steering column.............. 184
Luggage storage box ...... 447, 472
Luggage compartment
features .................................. 498
Maintenance Do-it-yourself maintenance ....................... 523
General maintenance............ 519
Maintenance data ................. 640
Maintenance requirements ... 517
I
J
K
L
M

713
Alphabetical index
Vehicle exterior..................... 512
Vehicle interior...................... 514
Malfunction indicator lamp .... 596
Manual air conditioning system ................................... 297
Manual headlight leveling dial.......................................... 214
Master warning light ....... 598, 604
Map holder ............................... 456
Meter Accessory meter................... 210
Instrument panel light
control ................................ 199
Meters .................................. 194
Mirrors Inside rear view mirror ............ 88
Side mirror heaters ....... 305, 307
Side mirrors ............................ 91
Vanity mirrors ....................... 475
Moon roof................................. 104
MP3 disc................................... 331
Multi-information display ................................... 204
Noise from under vehicle ......... 36
Odometer ................................. 194
Off-road precautions............... 250
Oil Engine oil.............................. 530
Warning light ................ 596, 598
Opener Hood ..................................... 527
Outside rear view mirrors Adjusting and folding .............. 91
Outside temperature
display ................................... 477
Overhead console ................... 463
Overheating, Engine ............... 634
Parking assist .......................... 224
Parking brake .......................... 192 Parking lights
Replacing light bulbs .............574
Switch....................................213
Wattage .................................668
Passenger airbag off switch
Installing the child restraint system ................................151
Passenger airbag off switch
precautions .........................146
Passenger airbag off switch ..................................132
Passenger risk group ............133
Pen holder ................................459
Personal lights Switch....................................444
Wattage .................................668
Power back window .................101
Power outlet .....................482, 487
Power steering Fluid ..............................537, 665
Power windows ..........................96
Radiator ....................................535
Radio .........................................314
Rear seat Adjustment ..............................65
Folding down ...........................67
Raising the bottom cushion .....66
Rear seat entertainment system ....................................377
Rear seat entertainment
system controller battery......383
Rear side marker lights Replacing light bulbs .............577
Switch....................................213
Rear seat adjustment.................65
Rear seat adjustment precautions ..............................68
Rear turn signal lights Replacing light bulbs .............577
Switch....................................191
Wattage .................................668
N
O
P
R
