2010 TOYOTA SEQUOIA steering wheel

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance 10Fuel tank door release and cap 9Hood release 9Indicator symbols 6-7Instrument cluster 5Instrument panel 2-4Keyless entry18
Light control-Instrument panel 10
Accessory meter 31Air Conditioning/Heating 22-23Audio 24-25Auto lock functions112Automatic Transmission 11Cruise control 20Cup holders 31Door locks 28Door-Power back 19Dynamic Laser Cruise Control 27Four-wheel drive 12Garage door opener (HomeLink®)326Lights1& turn signals 17Moonroof 20Multi-information display228Parking brake 15Power outlets-12V DC 30Power outlets-115V AC 30Rear seat entertainment system 26Seat adjustments-Front 13Seat adjustments-Rear 14Seat ventilators/Heaters 23Seats-Folding second row seats 15Seats-Folding third row seats 16Seats-Head restraints 13Steering wheel switches 25Telephone controls (Bluetooth®)29Tilt and telescopic steering wheel 21“TOW/HAUL” switch 11VSC OFF button 21Window-Back19Windows 18
Windshield wipers & washers 18
Doors-Child safety locks 33Seatbelts 32Seatbelts-Shoulder belt anchor 33Spare tire & tools 33
Tire Pressure Monitoring (warning) System 32
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
INDEX

2
OVERVIEW
Instrument panel
Steering wheel audio controls1
Voice command button1
Steering wheel climate controls1
Cruise control
Dynamic Laser Cruise Control distance switch1
Telephone controls1,2
Headlight, turn signal and front fog light1 controls
Gauges and meters
Wiper and washer controls
115V AC Power outlet main switch
1
Power back window switch
VSC OFF switch
Ignition switch
Tire Pressure Monitoring (warning) System reset
Personal/Interior light main switch
Steering wheel controls
(if equipped)

21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

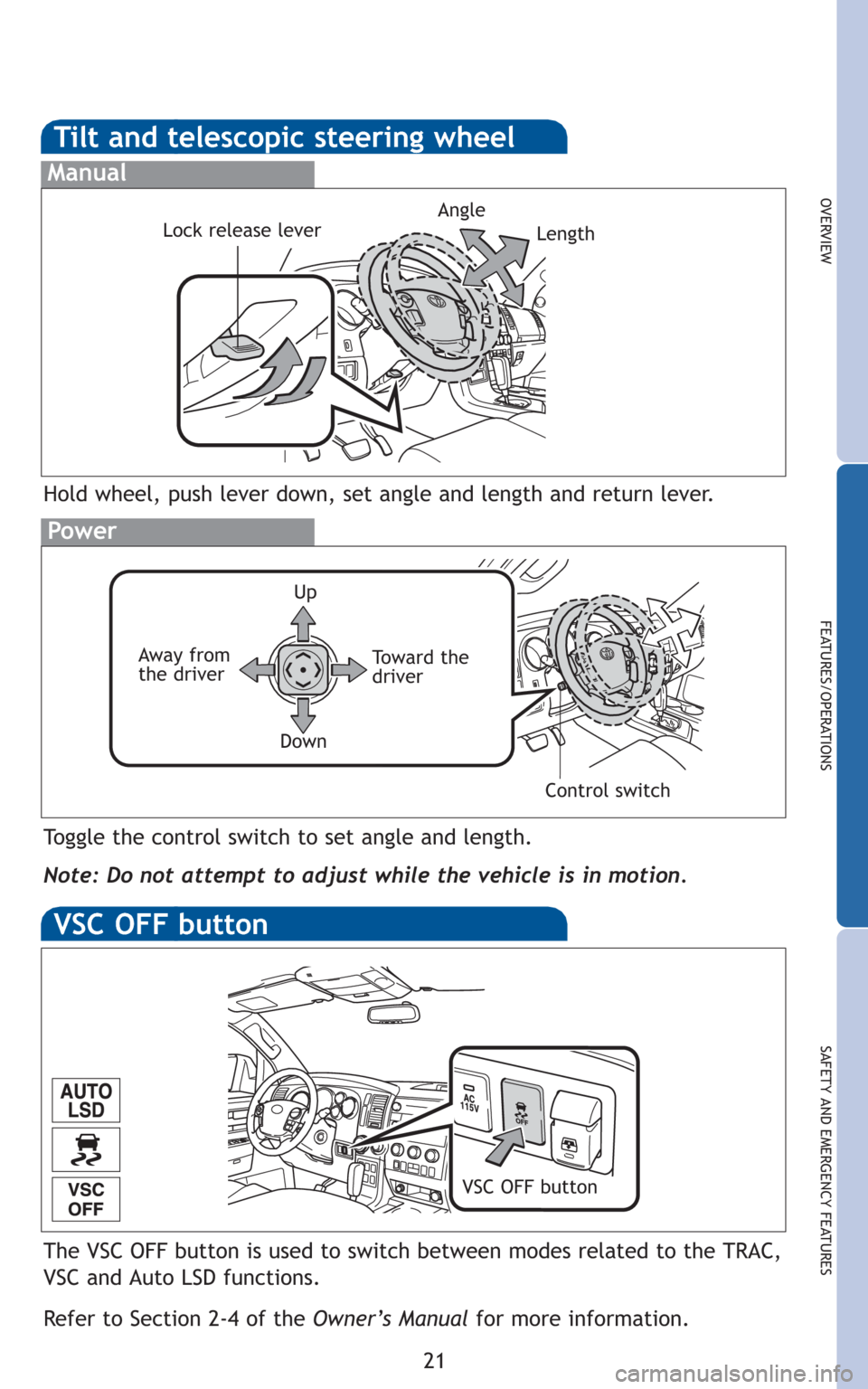

Tilt and telescopic steering wheel
Hold wheel, push lever down, set angle and length and return lever.
Manual
Lock release leverAngle
Toggle the control switch to set angle and length.
Note: Do not attempt to adjust while the vehicle is in motion.
Power
Up
Control switch
Away from
the driverLength
To w a r d t h e
driver
Down
The VSC OFF button is used to switch between modes related to the TRAC,
VSC and Auto LSD functions.
Refer to Section 2-4 of the
Owner’s Manualfor more information.
VSC OFF button
VSC OFF button

25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
RADIO
To preset stations Tune in the desired station and hold down a preset
button (1-6 or one of ) until you hear a beep. Push desired preset
button (1-6 or one of ) to select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again
to hold selection.
AUX audio jack/USB port
Push
AUX jack
By inserting a mini plug into the AUX jack, you can listen to music from a
portable audio device through the vehicle’s speaker system while in AUX
mode.
USB adapter
By connecting a USB-compatible portable audio device or USB memory to
the USB adapter, you can listen to music from the portable audio device or
USB memory through the vehicle’s speaker system while in USB mode.
Steering wheel switches (if equipped)
Volume control
A/C control Audio control
Temperature
selector
Auto A/C ON
A/C OFF
“”
-In radio modePush to select a preset station; push and hold to seek
the next strong station.
-In CD modePush to skip up or down to next/previous track.
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
the audio system OFF.vv
Ty p e 1Ty p e 2 a n d 3
Push

29
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Telephone controls (Bluetooth®)
(if equipped)
Bluetooth®technology allows dialing or receipt of calls without taking
hands from the steering wheel or using a cable to connect the compatible
telephone and the system.
Refer to “Using the hands-free phone system (for cellular phones),”
Section 3-5 in the Owner’s Manualfor more details.
Microphone Audio unit
Steering wheel telephone switches
Vo l u m e
Voice command
buttonEnd call
Start call
End call
Start call
Vo l u m eVoice command
button
Ty p e BTy p e A
