2010 TOYOTA RAV4 ECO mode

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance9Fuel tank door release and cap 8Hood release 8Indicator symbols 4-5Instrument cluster 4
Instrument panel 2-3Keyless entry* 6Smart Key system* 7
Active torque control 4WD (4WD models) 11Air Conditioning/Heating 18-19Audio 20-21Automatic Transmission 10Clock 19Cruise control 23
Door locks16
Downhill Assist Control system (DAC) 22
Hill-start Assist Control (HAC) 23Light control-Instrument panel19Lights&turnsignals 14Moonroof 16Parking brake 10Power outlets-12V DC 22Power outlets-120V AC 22Seat adjustments-Front 12Seat adjustments-Second row seats 12Seat heaters18
Seats-Head restraints 11Seats-Folding down second row seats 13Seats-Stowing third row seats 13Telephone controls (Bluetooth®)17Tilt and telescopic steering wheel 17VSC OFF button 16Windows 15
Windshield wipers & washers15
Doors-Child safety locks 24Seatbelts 24Seatbelts-Shoulder belt anchor 24Spare tire & tools 25
Tire Pressure Monitoring (warning) System 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
INDEX
*Visit your Toyota dealer for information on customizing this feature.

10
Automatic Transmission
* The engine/“ENGINE START STOP” switch must be “ON” and the brake
pedal depressed to shift from Park.
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Park*
Reverse
Neutral
Drive
Third gear
Second gear
First gear
4-speed models
5-speed models
Park*
Reverse
Neutral
Drive
Third gear
Second gear
First gear
Fourth gear
Parking brake
Pull(2) Push(1) Pull slightly
(3) Lower
SetRelease
FEATURES/OPERATIONS

11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

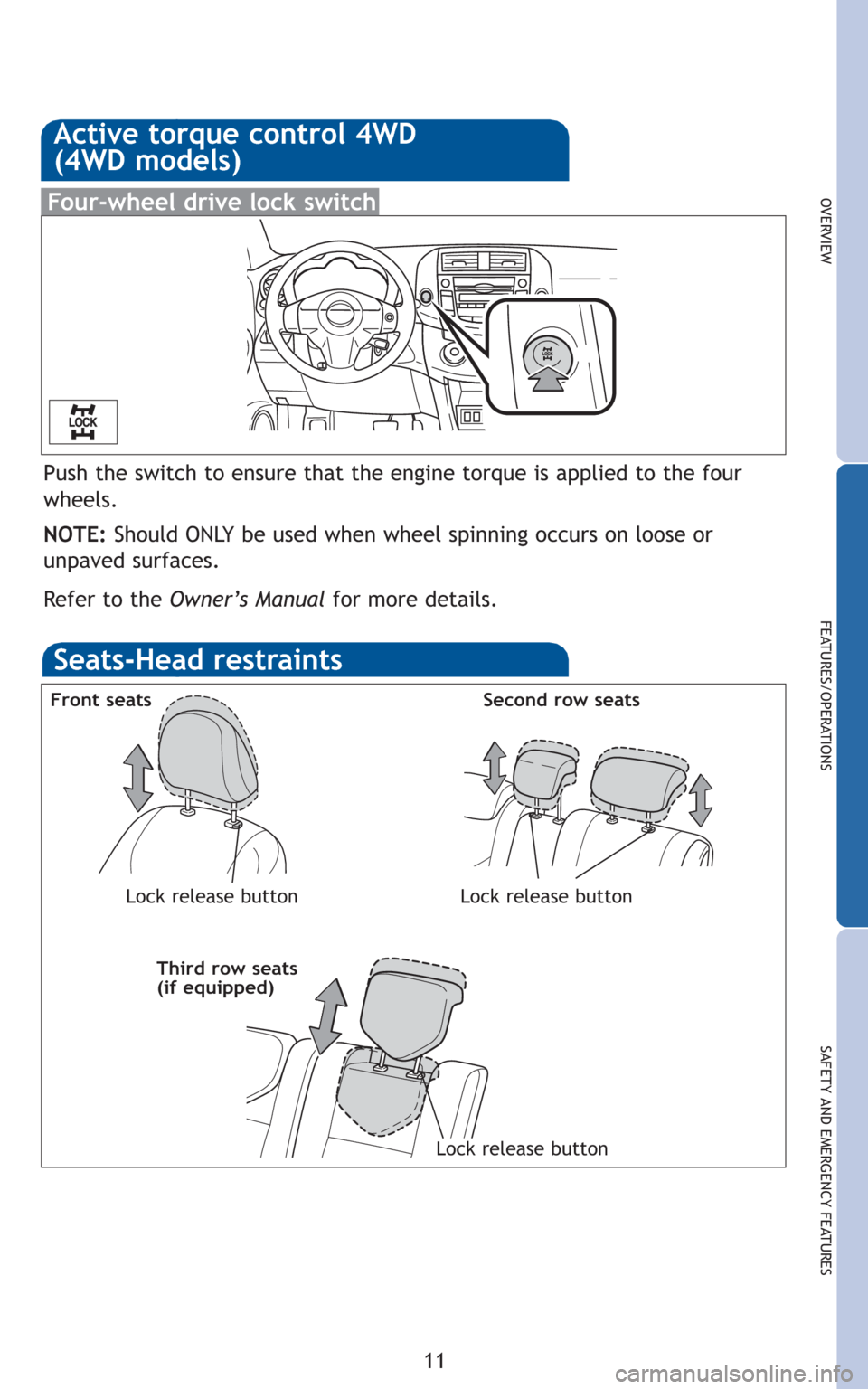

Auto lock functions
Four-wheel drive lock switch
Push the switch to ensure that the engine torque is applied to the four
wheels.
NOTE:Should ONLY be used when wheel spinning occurs on loose or
unpaved surfaces.
Refer to theOwner’s Manualfor more details.
Active torque control 4WD
(4WD models)
Seats-Head restraints
Front seatsSecond row seats
Third row seats
(if equipped)
Lock release button
Lock release button
Lock release button

16
Moonroof (if equipped)
Tilting operation
Sliding operation
NOTE:If battery is disconnected, the moonroof needs to be reinitialized.
Refer to theOwner’s Manualfor more details.
Open
Close
Close
Tilt
Recommended driving
position to minimize
wind noise
Door locks
UnlockLock
FEATURES/OPERATIONS
The VSC OFF button is used to switch between modes related to the TRAC,
VSC and Auto LSD functions (2WD models.)
Refer to Section 2-4 of theOwner’s Manualfor more information.
VSC OFF button
VSC OFF button
Push once to open
partway; again to
open completely.
