When trouble arises
421
5-2. Steps to take in an emergency
Follow the correction procedures.
After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
Warning lightWarning light/DetailsCorrection procedure
Open door warning light Indicates that a door is not
fully closed. Check that all doors are
closed.
Low fuel level warning
light Indicates that remaining
fuel is about 2.4 gal. (9.0
L, 2.0 Imp. gal.) or less Refuel the vehicle.
Driver’s seat belt
reminder light
(warning buzzer)
*
Warns the driver to fasten
his/her seat belt. Fasten the seat belt.
(on the center panel) Front passenger’s seat
belt reminder light
(warning buzzer)
*
Warns the front passen-
ger to fasten his or her
seat belt.
Fasten the seat belt.
(Flashes) Active torque control 4WD
system warning light
(4WD models)
Indicates that the driveline
temperature is too high.
(When the light comes on.
P. 419) Reduce vehicle speed (until
the light goes off) or stop
the vehicle at a safe place
and allow the engine to idle
until the light goes off.

440 5-2. Steps to take in an emergency

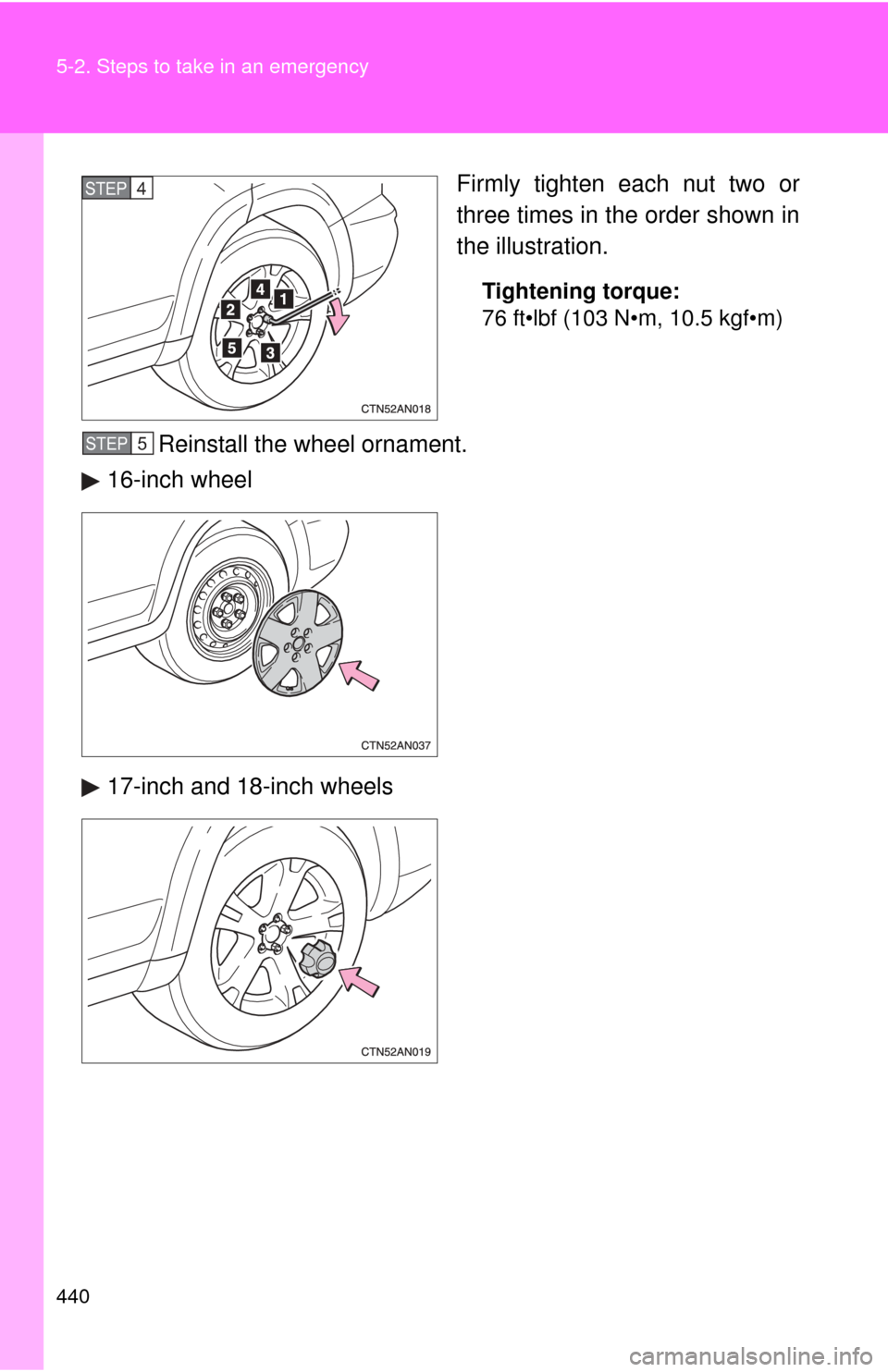

Firmly tighten each nut two or
three times in the order shown in
the illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Reinstall the wheel ornament.
16-inch wheel
17-inch and 18-inch wheels
STEP 4
STEP 5

5
When trouble arises
441
5-2. Steps to take in an emergency

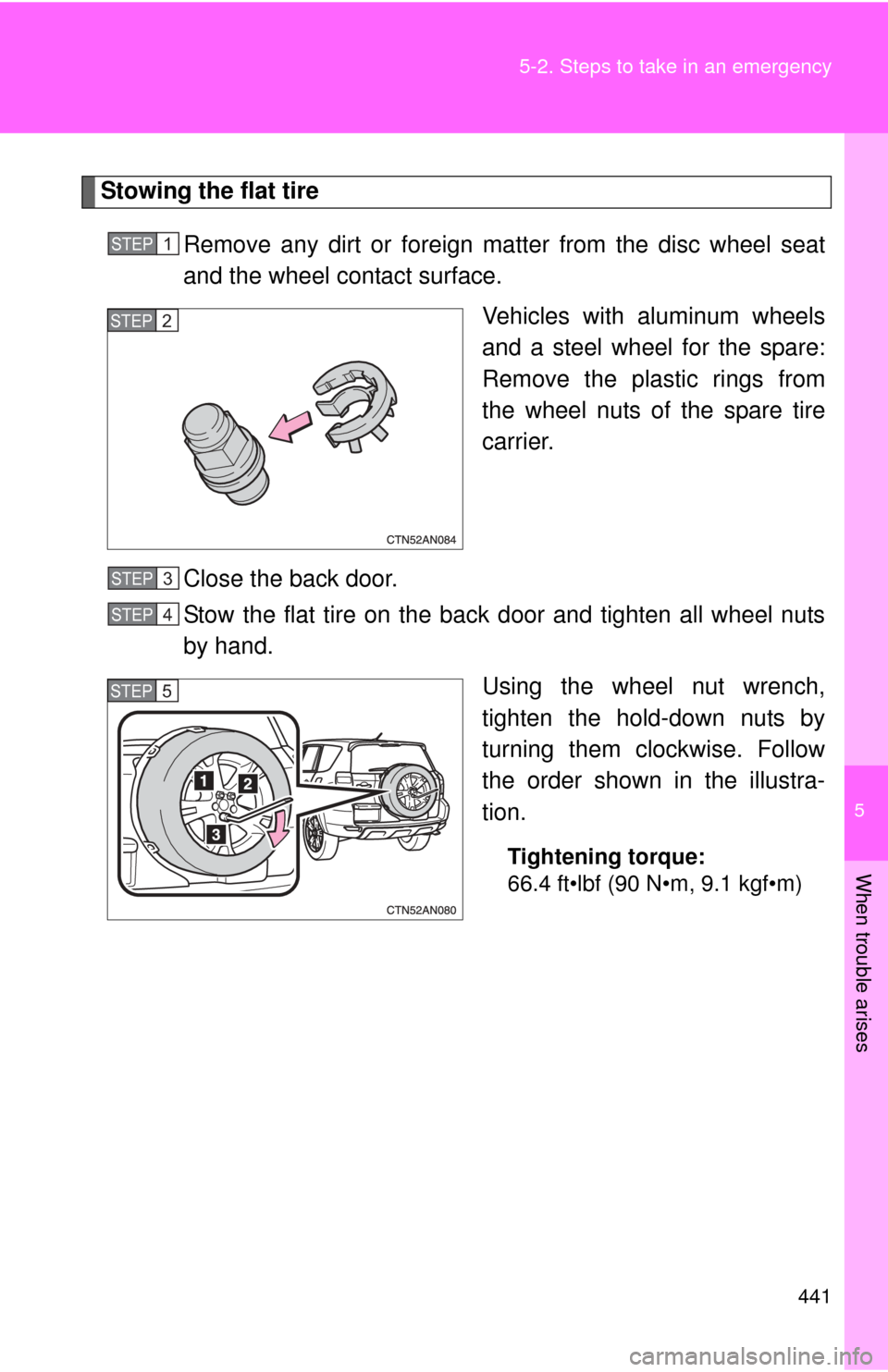

Stowing the flat tire
Remove any dirt or foreign matter from the disc wheel seat
and the wheel contact surface. Vehicles with aluminum wheels
and a steel wheel for the spare:
Remove the plastic rings from
the wheel nuts of the spare tire
carrier.
Close the back door.
Stow the flat tire on the back door and tighten all wheel nuts
by hand. Using the wheel nut wrench,
tighten the hold-down nuts by
turning them clockwise. Follow
the order shown in the illustra-
tion.
Tightening torque:
66.4 ft•lbf (90 N•m, 9.1 kgf•m)
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5

5
When trouble arises
445
5-2. Steps to take in an emergency
CAUTION
■Replacing a flat tire
Observe the following precautions to reduce the risk of death or serious
injury:
●Do not try to remove the ornament by hand. Take due care in handling
the ornament to avoid unexpected personal injury.
●Never use oil or grease on the wheel bolts or wheel nuts.
Oil and grease may cause the wheel nuts to be excessively tightened,
leading to bolt or disc wheel damage. In addition, the oil or grease can
cause the wheel nuts to loosen and the wheel may fall off, causing a
serious accident. Remove any oil or grease from the wheel bolts or
wheel nuts.
●Have the wheel nuts tightened with a torque wrench to 76 ft•lbf (103
N
•m, 10.5 kgf•m) as soon as possible after changing wheels.
Failure to follow these precautions could cause the nuts to loosen and
the wheel may fall off, which could lead to an accident causing death
or serious injury.
●Do not attach a heavily damaged wheel ornament, as it may fly off the
wheel while the ve hicle is moving.
●Make sure that the rubber rings are not installed to the wheel nuts for
aluminum wheel. Otherwise, the nuts may become loose and the
wheel may fall off, which may cause a serious accident.

472 6-1. Specifications
Tires and wheelsType A
*1: Steel wheels
*
2: Aluminum wheels
Type B
Tire size 215/70R16 99H, 225/65R17 101H,
235/55R18 99H
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front: 32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Rear: 32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Spare: 32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Wheel size 16
 6 1/2 J, 17  6 1/2 J*1, 17  7J*2, 18  7
1/2 J
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire size P235/55R18 99H
Tire inflation pressure
(Recommended cold tire
inflation pressure) Front: 32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Rear: 32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Wheel size 18  7 1/2 J
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)

508 Alphabetical index
Utility vehicle precautions ...... 193
Valet key .....................................24
Vanity lightsVanity lights ........................... 313
Wattage ................................. 473
Vanity mirrors........................... 313
Vehicle identification
number ................................... 464
Warning buzzers Brake system ........................ 418
Seat belt reminder ................. 421
Warning lights Active torque control
4WD system ............... 419, 421
Anti-lock brake system .......... 419
Automatic transmission fluid temperature ................. 421
Brake assist system .............. 419
Brake system ........................ 418
Charging system .... ............... 419
Cruise control indicator light ..................................... 419
Electric power steering system ................................ 419
Engine oil pressure ............... 419
Engine oil replacement
reminder light ...................... 421
Low fuel level ........................ 421
Low washer fluid ................... 421
Malfunction indicator lamp .... 419
Open door ............................. 421
Pretensioners ........................ 419
Seat belt reminder light ......... 421
Slip indicator light .................. 419
Smart key system... ............... 423
SRS airbags .......................... 419
Tire pressure warning light .... 421 Washer
Checking ............................... 364
Preparing and checking
before winter ....................... 206
Switch ........................... 169, 171
Washing and waxing ............... 330
Weight Cargo capacity ...................... 198
Load limits ............................. 204
Weight ................................... 462
Wheels ...................................... 376
Window glasses ........................ 81
Window lock switch................... 81
Windows
Power windows ....................... 81
Rear window defogger .......... 233
Washer.......................... 169, 171
Windshield wiper de-icer ........ 235
Windshield wipers ................... 169
Wireless remote control key Replacing the battery ............ 380
Wireless remote control key.... 38
WMA disc.................................. 252U
V
W

510 What to do if...

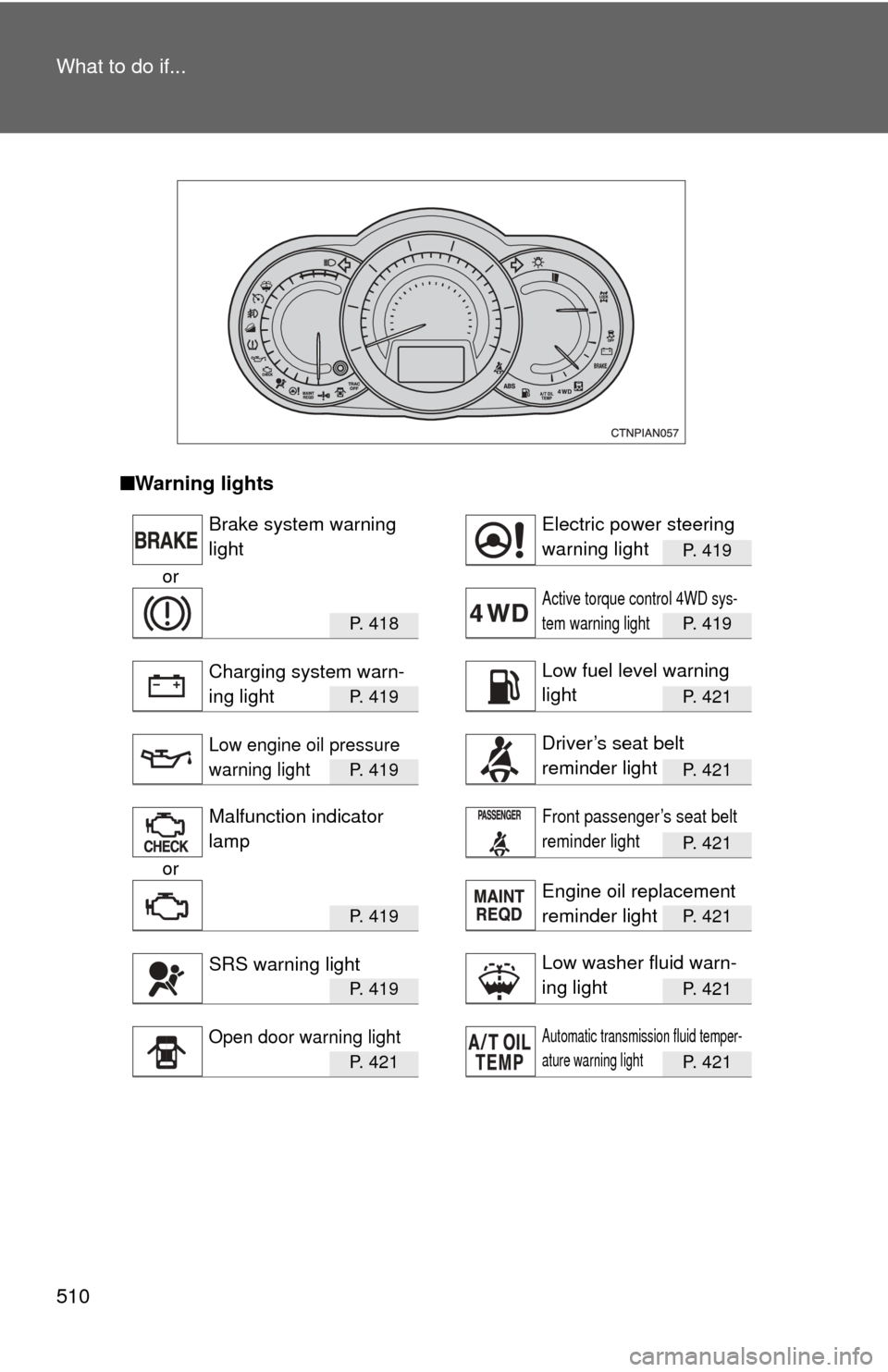

■Warning lights
