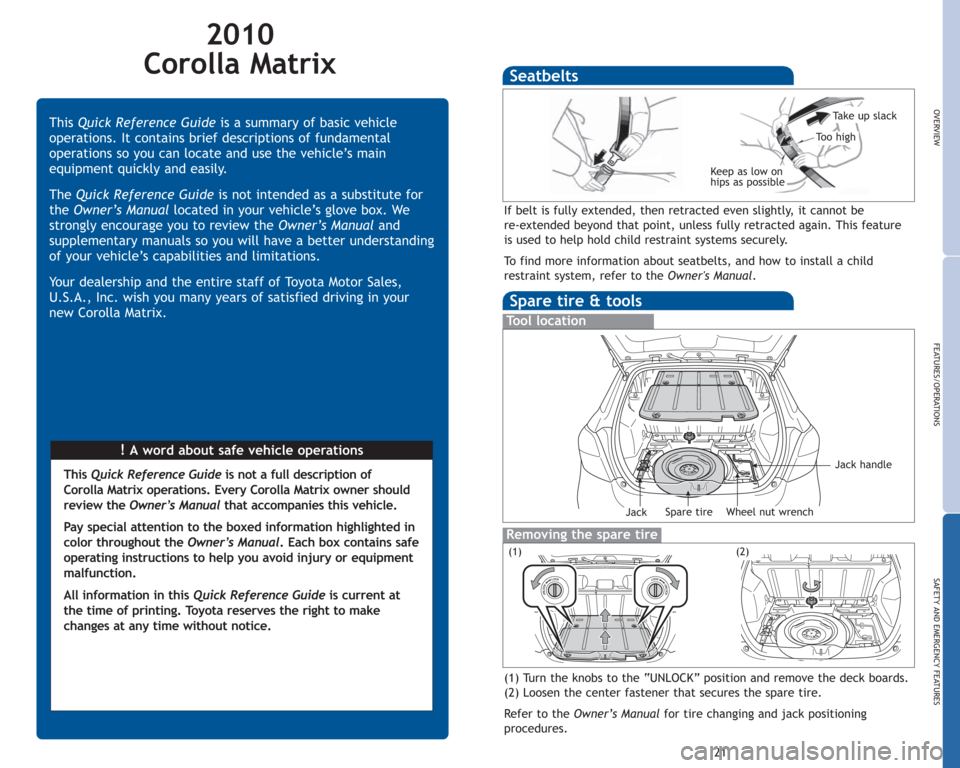

2010
Corolla Matrix
!A word about safe vehicle operations This Quick Reference Guideis a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guideis not intended as a substitute for
theOwner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review theOwner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new Corolla Matrix.
This Quick Reference Guideis not a full description of
Corolla Matrix operations. Every Corolla Matrix owner should
review the Owner’s Manualthat accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guideis current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seatbelts, and how to install a child
restraint system, refer to the
Owner's Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seatbelts
Spare tire & tools
Tool location
Removing the spare tire
(1) Turn the knobs to the “UNLOCK” position and remove the deck boards.
(2) Loosen the center fastener that secures the spare tire.
Refer to the Owner’s Manualfor tire changing and jack positioning
procedures.
Spare tireJack
(1)(2)
Wheel nut wrench
Jack handle
