OVERVIEW
Indicator symbols

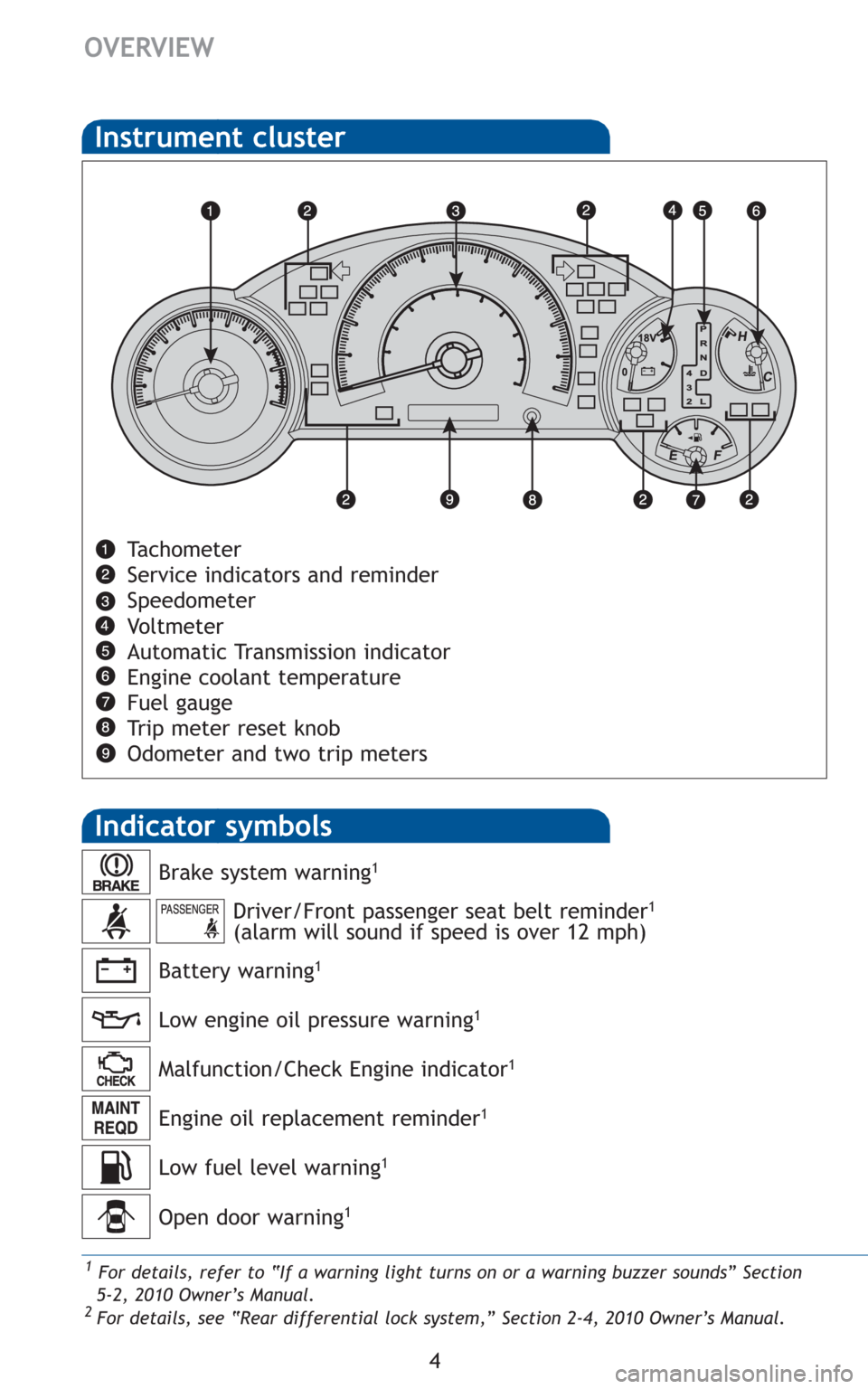

Instrument cluster
4
Tachometer
Service indicators and reminder
Speedometer
Vo l t m e t e r
Automatic Transmission indicator
Engine coolant temperature
Fuel gauge
Trip meter reset knob
Odometer and two trip meters
Battery warning1
Low engine oil pressure warning1
Brake system warning1
Malfunction/Check Engine indicator1
Engine oil replacement reminder1
Driver/Front passenger seat belt reminder1
(alarm will sound if speed is over 12 mph)
Open door warning1
1
For details, refer to “If a warning light turns on or a warning buzzer sounds” Section
5-2, 2010 Owner’s Manual.
2For details, see “Rear differential lock system,” Section 2-4, 2010 Owner’s Manual.
Low fuel level warning1
