2010 TOYOTA FJ CRUISER automatic transmission

1
INDEX
Engine maintenance 7Fuel tank door release and cap 6Hood release 7Indicator symbols 4-5Instrument cluster 4Instrument panel 2-3
Keyless entry16
Accessory meter 13Air Conditioning/Heating 16Audio 14-15Automatic Transmission 8Bottle holders-Rear seat 19Clock 16Cruise control 17Cup holders 19Door-Back 13Four-wheel drive 9Intuitive parking assist 17Light control-Instrument panel 17Lights1& turn signals 12Parking brake 10Power outlet-12V DC 18Power outlet-115V AC 18Seat adjustments-Front 10Seats-Folding rear seats 11Seats-Head restraints 10Seats-Removing rear seats 11Tilt steering wheel 8VSC OFF button 18Windows 13
Windshield wipers & washers 12
Door locks 20Seat belts 20Seat belts-Shoulder belt anchor 20Spare tire & tools 21
Tire Pressure Monitoring (warning) System 21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on this and other customizable
options.

OVERVIEW
Indicator symbols
Instrument cluster
4
Tachometer
Service indicators and reminder
Speedometer
Vo l t m e t e r
Automatic Transmission indicator
Engine coolant temperature
Fuel gauge
Trip meter reset knob
Odometer and two trip meters
Battery warning1
Low engine oil pressure warning1
Brake system warning1
Malfunction/Check Engine indicator1
Engine oil replacement reminder1
Driver/Front passenger seat belt reminder1
(alarm will sound if speed is over 12 mph)
Open door warning1
1
For details, refer to “If a warning light turns on or a warning buzzer sounds” Section
5-2, 2010 Owner’s Manual.
2For details, see “Rear differential lock system,” Section 2-4, 2010 Owner’s Manual.
Low fuel level warning1

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Automatic Transmission indicator
Front passenger occupant classification indicator
Turn signal indicator
Four-wheel drive indicator
3
Rear differential lock indicator2
Center differential lock indicator3
Slip indicator1
Vehicle Stability Control OFF indicator
Active traction control system indicator AUTO Limited Slip Differential indicator
Cruise control indicator4
Automatic Transmission fluid temperature warning1
Unengaged Park warning1
Airbag SRS warning1
Headlight high beam indicator
Anti-lock Brake System warning
1
3If this light flashes, refer to “Four-wheel drive system,” Section 2-4, 2010 Owner’s
Manual.
4If this light flashes, refer to “Cruise control,” Section 2-4, 2010 Owner’s Manual.
Low Tire Pressure Warning1
Engine immobilizer system indicator
Roll Sensing of Curtain shield Airbag OFF indicator
Traction Control/OFF indicator

FEATURES/OPERATIONS
8
Automatic Transmission (if equipped)
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Park*
Reverse
Neutral
Drive
Third gear
Second gear
First gear
P
R
N
D
4
3
2
L
Fourth gear
Tilt steering wheel
Hold the steering wheel, pull the lock release lever, tilt to the desired
angle and release the lever.
NOTE: Do not attempt to adjust while the vehicle is in motion. * The key must be in the “ON” position and the brake pedal depressed
to shift from Park.

Four-wheel drive (if equipped)
9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
H2
H4
L4
Full-time four-wheel drive models
Part-time four-wheel drive models
High speed (2WD)
High speed (4WD)
Shift to “H4” with speed below 50 mph.
Low speed (4WD)
Stop vehicle, shift to “N” position, then move the lever to “L4.”
Rear differential lock button
NOTE:For best fuel economy and performance under normal driving
conditions, shift vehicle into “H2” position.
Rear differential lock/unlock
Low speed
Center differential locked. Depress the clutch pedal to shift from “HL”
when vehicle is stopped or when speed is below 5 mph.
HL
LL
H
Before using the rear differential lock button:
•Shift the lever into “L4” (Automatic Transmission)
•Shift the lever into “LL” (Manual Transmission)
NOTE:For best fuel economy and performance under normal driving
conditions, shift vehicle into “H” position.
High speed
High speed
Center differential locked. Depress the clutch pedal to shift from “LL.”

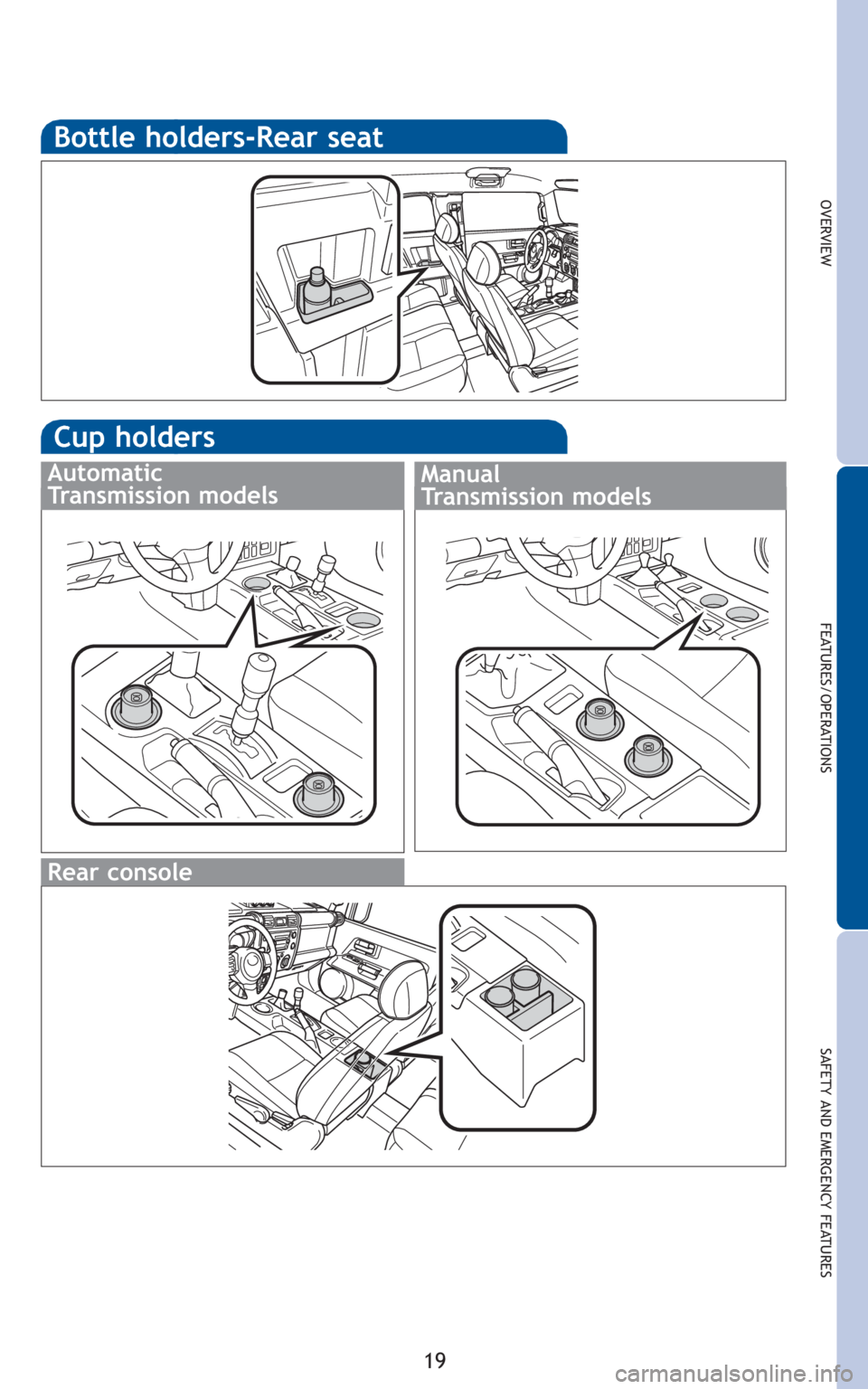

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Bottle holders-Rear seat
Cup holders
Rear console
Manual
Transmission models Automatic
Transmission models
