2010 SUZUKI SX4 windshield wipers

2-79BEFORE DRIVING
80J23-03E
Windshield Wipers
63J301
To turn the windshield wipers on, move the
lever down to one of the three operating
positions. In the “INT” position (if
equipped), the wipers operate intermit-
tently. The “INT” position is very convenient
for driving in mist or light rain. In the “LO”
position, the wipers operate at a steady
low speed. In the “HI” position, the wipers
operate at a steady high speed. To turn off
the wipers, move the lever back to the
“OFF” position.
Move the lever up and hold it to the “MIST”
position, the windshield wipers will turn on
continuously at low speed.
63J302
If the lever is equipped with the “INT TIME”
control, turn the control forward or rear-
ward to adjust the intermittent wiper opera-
tion to the desired interval.
Windshield Washer
63J303
To spray windshield washer fluid, pull the
lever toward you. The windshield wipers
will automatically turn on at low speed if
they are not already on and the “INT” posi-
tion is equipped.
MIST
OFF
INT
LO
HI
EXAMPLE
EXAMPLE
WARNING
 To prevent windshield icing in cold
weather, turn on the defroster to
heat the windshield before and dur-
ing windshield washer use.
 Do not use radiator antifreeze in
the windshield washer reservoir. It
can severely impair visibility when
sprayed on the windshield, and can
also damage your vehicle’s paint.EXAMPLE

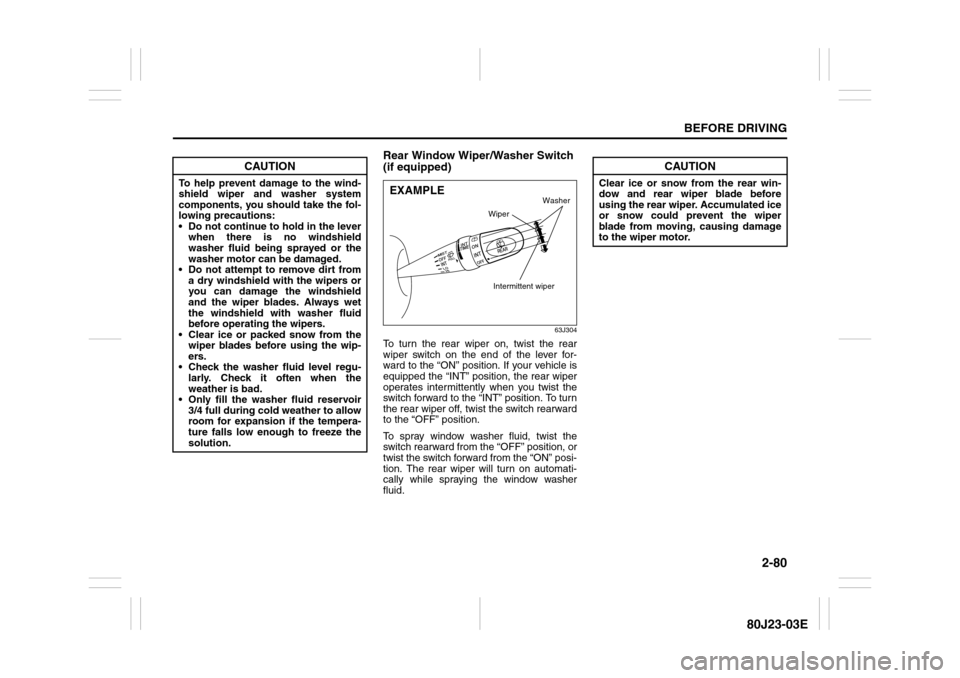

2-80
BEFORE DRIVING
80J23-03E
Rear Window Wiper/Washer Switch
(if equipped)
63J304
To turn the rear wiper on, twist the rear
wiper switch on the end of the lever for-
ward to the “ON” position. If your vehicle is
equipped the “INT” position, the rear wiper
operates intermittently when you twist the
switch forward to the “INT” position. To turn
the rear wiper off, twist the switch rearward
to the “OFF” position.
To spray window washer fluid, twist the
switch rearward from the “OFF” position, or
twist the switch forward from the “ON” posi-
tion. The rear wiper will turn on automati-
cally while spraying the window washer
fluid.
CAUTION
To help prevent damage to the wind-
shield wiper and washer system
components, you should take the fol-
lowing precautions:
 Do not continue to hold in the lever
when there is no windshield
washer fluid being sprayed or the
washer motor can be damaged.
 Do not attempt to remove dirt from
a dry windshield with the wipers or
you can damage the windshield
and the wiper blades. Always wet
the windshield with washer fluid
before operating the wipers.
 Clear ice or packed snow from the
wiper blades before using the wip-
ers.
 Check the washer fluid level regu-
larly. Check it often when the
weather is bad.
 Only fill the washer fluid reservoir
3/4 full during cold weather to allow
room for expansion if the tempera-
ture falls low enough to freeze the
solution.
EXAMPLE
Intermittent wiper
Washer
Wiper
CAUTION
Clear ice or snow from the rear win-
dow and rear wiper blade before
using the rear wiper. Accumulated ice
or snow could prevent the wiper
blade from moving, causing damage
to the wiper motor.

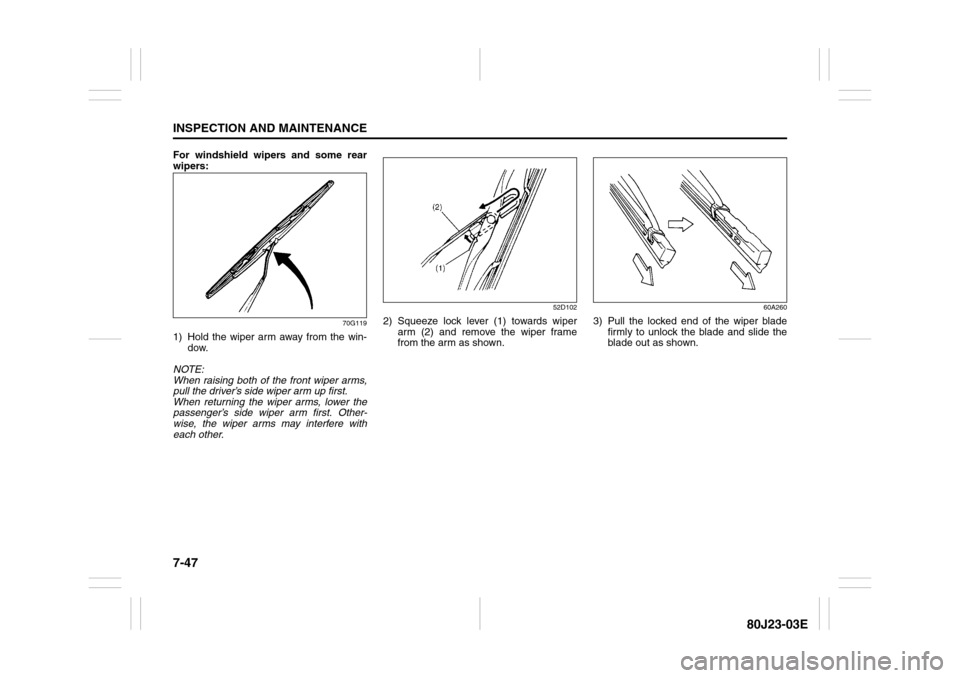

7-47INSPECTION AND MAINTENANCE
80J23-03E
For windshield wipers and some rear
wipers:
70G119
1) Hold the wiper arm away from the win-
dow.
NOTE:
When raising both of the front wiper arms,
pull the driver’s side wiper arm up first.
When returning the wiper arms, lower the
passenger’s side wiper arm first. Other-
wise, the wiper arms may interfere with
each other.
52D102
2) Squeeze lock lever (1) towards wiper
arm (2) and remove the wiper frame
from the arm as shown.
60A260
3) Pull the locked end of the wiper blade
firmly to unlock the blade and slide the
blade out as shown.

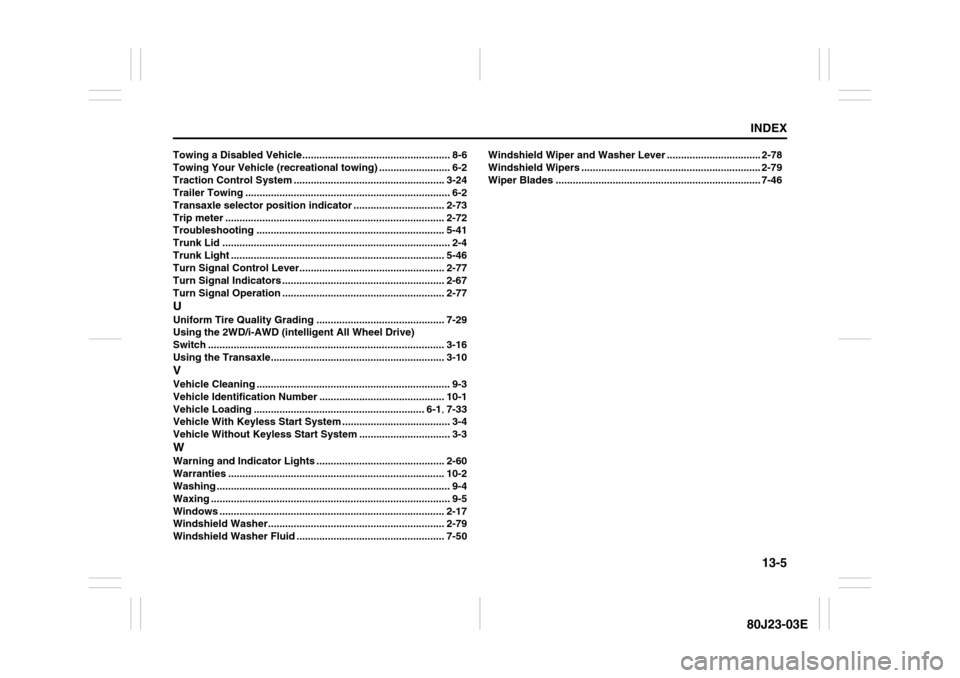

13-5
INDEX80J23-03E
Towing a Disabled Vehicle.................................................... 8-6
Towing Your Vehicle (recreational towing) ......................... 6-2
Traction Control System ..................................................... 3-24
Trailer Towing ........................................................................ 6-2
Transaxle selector position indicator ................................ 2-73
Trip meter ............................................................................. 2-72
Troubleshooting .................................................................. 5-41
Trunk Lid ................................................................................ 2-4
Trunk Light ........................................................................... 5-46
Turn Signal Control Lever................................................... 2-77
Turn Signal Indicators ......................................................... 2-67
Turn Signal Operation ......................................................... 2-77UUniform Tire Quality Grading ............................................. 7-29
Using the 2WD/i-AWD (intelligent All Wheel Drive)
Switch ................................................................................... 3-16
Using the Transaxle............................................................. 3-10VVehicle Cleaning .................................................................... 9-3
Vehicle Identification Number ............................................ 10-1
Vehicle Loading ............................................................ 6-1, 7-33
Vehicle With Keyless Start System ...................................... 3-4
Vehicle Without Keyless Start System ................................ 3-3WWarning and Indicator Lights ............................................. 2-60
Warranties ............................................................................ 10-2
Washing .................................................................................. 9-4
Waxing .................................................................................... 9-5
Windows ............................................................................... 2-17
Windshield Washer.............................................................. 2-79
Windshield Washer Fluid .................................................... 7-50Windshield Wiper and Washer Lever ................................. 2-78
Windshield Wipers ............................................................... 2-79
Wiper Blades ........................................................................ 7-46
