2010 SUZUKI KIZASHI center console

ILLUSTRATED TABLE OF CONTENTS
57L20-03E
INSTRUMENT PANEL1. Power Window Controls (P.2-17)/Lock switch (P.2-18)
2. Power Mirror Control (P.2-22)
3. Remote Audio Controls (P.5-64)
4. Front Air Bags (P.2-57)
5. Cruise Control Switch (if equipped) (P.3-21)
6. Audio (P.5-10)
7. Heating and Air Conditioning System (P.5-1)
8. Fuse Box (P.7-40)
9. Information display switches (P.2-80)
10. Parking Brake Lever (P.3-10)
11. Center Console Box (P.5-89)/ Accessory Socket (P.5-80)
12. Glove Box (P.5-85)
57L1F005
9
8
10 12
11
8
1
1
7
4
4
3
5
6
2

3-33OPERATING YOUR VEHICLE
57L20-03E

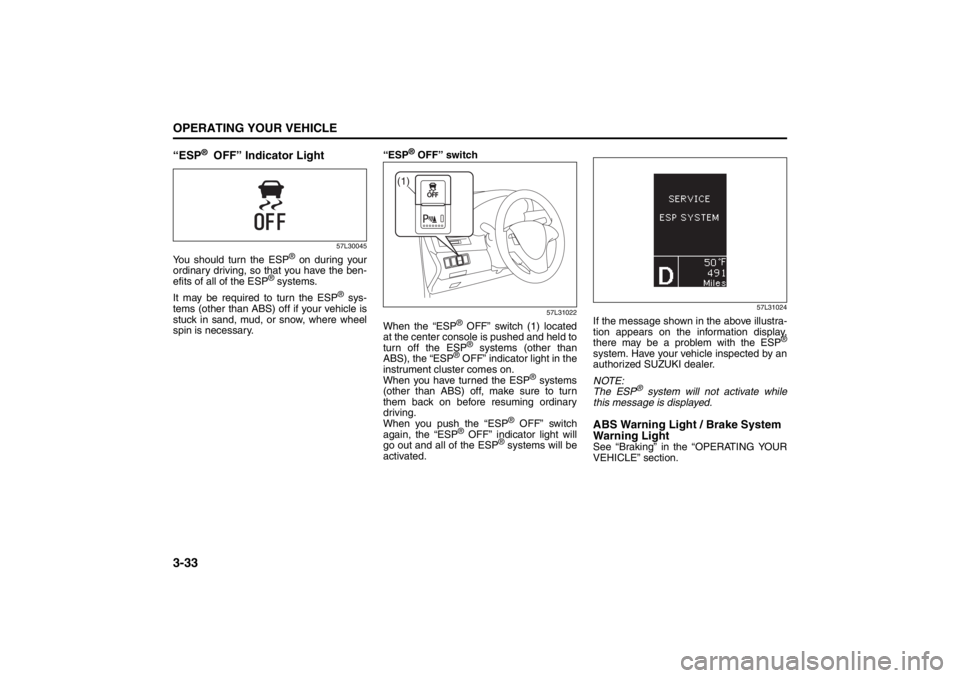

“ESP
® OFF” Indicator Light
57L30045
You should turn the ESP
® on during your
ordinary driving, so that you have the ben-
efits of all of the ESP
® systems.
It may be required to turn the ESP
® sys-
tems (other than ABS) off if your vehicle is
stuck in sand, mud, or snow, where wheel
spin is necessary.“ESP
® OFF” switch
57L31022
When the “ESP
® OFF” switch (1) located
at the center console is pushed and held to
turn off the ESP® systems (other than
ABS), the “ESP
® OFF” indicator light in the
instrument cluster comes on.
When you have turned the ESP
® systems
(other than ABS) off, make sure to turn
them back on before resuming ordinary
driving.
When you push the “ESP
® OFF” switch
again, the “ESP
® OFF” indicator light will
go out and all of the ESP
® systems will be
activated.
57L31024
If the message shown in the above illustra-
tion appears on the information display,
there may be a problem with the ESP
®
system. Have your vehicle inspected by an
authorized SUZUKI dealer.
NOTE:
The ESP
® system will not activate while
this message is displayed.
ABS Warning Light / Brake System
Warning LightSee “Braking” in the “OPERATING YOUR
VEHICLE” section.
(1)

OTHER CONTROLS AND EQUIPMENT
5
57L20-03E
60G407
OTHER CONTROLS AND EQUIPMENTAutomatic Heating and Air Conditioning System
(Climate Control) ................................................................. 5-1
Radio Antenna ..................................................................... 5-9
Audio Systems .................................................................... 5-10
Fuel Filler Door .................................................................... 5-73
Fuel Filler Cap ..................................................................... 5-74
Engine Hood ........................................................................ 5-75
Sun Visor ............................................................................. 5-77
Interior Light Switch ........................................................... 5-78
Courtesy Lights ................................................................... 5-79
Footwell Lights .................................................................... 5-79
Trunk Light .......................................................................... 5-79
Spot Light ............................................................................ 5-80
Accessory Socket ............................................................... 5-80
Assist Grips ......................................................................... 5-82
Coat Hooks .......................................................................... 5-83
Sunroof (if equipped) .......................................................... 5-83
Glove Box ............................................................................ 5-85
Overhead Console .............................................................. 5-86
Lidded Instrument Panel Box ............................................ 5-87
Cup Holder and Storage Area (if equipped) ..................... 5-87
Front Seat Back Pocket (if equipped) ............................... 5-89
Footrest ................................................................................ 5-89
Center Console Box ............................................................ 5-89
Armrest ................................................................................ 5-90
Floor Mats (if equipped) ..................................................... 5-91
Luggage Under-box ............................................................ 5-92
Net/Rope Hooks .................................................................. 5-92
Roof Rack Anchors (if equipped) ...................................... 5-92
HomeLink
® (if equipped) .................................................... 5-93
Frame Hooks ....................................................................... 5-96

5-80
OTHER CONTROLS AND EQUIPMENT
57L20-03E
Spot Light
57L51048
Push the switch (1) to turn on the light and
push it again to turn off the light.
Accessory SocketLidded Instrument Panel Box
57L51025
Center Console Box
57L51062
The accessory socket will work when the
ignition mode is changed to “ACC” or “ON”
by pressing the engine switch.
12-volt accessory sockets are located both
on the center console and on the lidded
instrument panel box.
Each socket can be used to provide 12
volt/120 watt power for electrical accesso-
ries when used alone. Make sure that the
cap remains on the socket when the socket
is not in use.
(1)
CAUTION
 To prevent the fuse from being
blown, when using sockets at the
same time, do not exceed the total
combined power capacity of 120
watts.
 Use of inappropriate electrical
accessories can cause damage to
your vehicle’s electrical system.
Make sure that any electrical acces-
sories you use are designed to
plug into this type of socket.
 When an electric device is con-
nected to the accessory socket,
close the lid carefully so as not to
damage the device or lid.

5-82
OTHER CONTROLS AND EQUIPMENT
57L20-03E
Ashtray (if equipped)
79J047
You can fit the ashtray into any of the cup
holders on the center console.
57L51065
Assist Grips
54G249
Assist grips are provided for convenience.
WARNING
Make sure tobacco is fully extin-
guished before closing the ashtrays.
Never throw waste in the ashtrays: it
could create a fire hazard.
CAUTION
When fitting the ashtray into a cup
holder on the center console, orient it
as shown in the illustration. Doing
otherwise may damage the ashtray
and/or the center console.
CAUTION
To avoid damaging the assist grip
and the molded roof lining, do not
hang down the assist grip.

5-87OTHER CONTROLS AND EQUIPMENT
57L20-03E
Lidded Instrument Panel Box
57L51032
Use this stowage to keep small articles.
You can open the lid (1) by pressing the
raised portion on it.
Cup Holder and Storage Area
(if equipped)
57L51069
Cup holders (1) are provided in the center
console.
You can open the lid (2) by pressing the
raised portion on it.
57L51046
The cup holder (1) for rear seat passen-
gers is extended ready for use when the
armrest is tilted down and the button (2) is
pressed. Push the cup holder backward to
store it.
WARNING
Never drive with the lid of the lidded
instrument panel box open. It could
cause injury if an accident occurs.
(1)
(1)(2)
(2)
(1)

5-89OTHER CONTROLS AND EQUIPMENT
57L20-03E
Front Seat Back Pocket
(if equipped)
57L50043
(1) Front seat back pocket
This pocket is provided for holding light
and soft things such as gloves, newspa-
pers or magazines.
Footrest
57L51033
Use the footrest (1) as a support for your
left foot.
Center Console BoxUse this stowage for keeping small arti-
cles.
The box consists of upper and lower com-
partments. The upper compartment forms
a tray, which also serves as a lid of the
lower compartment.Upper compartmentOpen the upper compartment by raising
the top lid (2) while keeping the lever (1)
up.
57L50045
WARNING
Do not put hard or breakable objects
in the pocket. If an accident occurs,
objects such as bottles, cans, etc.
can injure the occupants in the rear
seat.
(1)
(1)
(2)
(1)

5-90
OTHER CONTROLS AND EQUIPMENT
57L20-03E
Lower compartmentOpen the lower compartment by raising
the top lid and tray (4) together while keep-
ing the lever (3) up.
57L51035
NOTE:
 Always close the lid after you put some-
thing into or take something out of the
box.
 The upper compartment (tray) and lower
compartment have slots on their edges
so that the cable of an appliance con-
nected to the accessory socket can be
led through them. When the top lid or the
top lid and tray combination is raised or
lowered to open or close the upper or
lower compartment, be careful not to
trap a cable under it.
ArmrestFront
57L50069
The lid of the center console box serves as
the front armrest when it is closed.
Rear
57L51047
The armrest (1) is stowed in the center of
the seatback. Tilt it down forward to use.
57L50070
(4)
(3)
(1)
(1)
WARNING
 The seat belt must always be
passed under the armrest. It cannot
provide the intended protection if it
runs over the armrest.
 In an accident or sudden stop, the
rear armrest could fall forward. If
there is a child in a rearfacing child
restraint in the center seating posi-
tion, the falling armrest could injure
the child. Make sure the armrest is
secured in the stowed position
when not in use.
(1)
(2)
