2010 SKODA YETI key

Fuel201
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Caution

Therefore, your vehicle can only be operated with diesel fuel which complies with
the standard EN 590 (standard DIN 51628 in Germany, standard ÖNORM C 1590 in
Austria). Filling the tank even only once wi th diesel fuel which does not comply with
the standard, can result in damage to the engine parts, the lubrication system, the fuel
and exhaust system.

If by mistake you have refuelled with a different fuel other than the diesel fuel
which complies to the above mentioned standards (e.g. petrol), do not start the engine
or switch on the ignition! This can result in severe engine damage! Contact a specialist
garage and have the fuel sy stem of the engine cleaned.

Water which has collected in the fuel fi lter can result in engine problems.

Your vehicle is not adapted for use of biofue l (RME), therefore this fuel must not be
refuelled and driven. The use of biofuel (RME) can lead to damage to the engine or the
fuel system.
Operation in winterWinter-grade diesel fuel
A different grade of diesel fuel is available at filling stations in winter than during the
summer. Using “summer-grade diesel fuel” at temperatures below 0°C can result in
operational problems because th e diesel becomes viscous as a result of paraffin sepa-
ration.
It is therefore the case that the standard EN 590 (standard DIN 51628 in Germany,
standard ÖNORM C 1590 in Austria) is the diesel fuel class prescribed for certain
periods of the year which can also be purc hased at the corresponding time during the
year. “Winter-grade diesel fuel” will still operate properly even at a temperature of -
20°C.
It is often the case in countries with different climatic conditions that diesel fuels avail-
able have a different temperature characteristic. The authorised Škoda Service Part-
ners and filling stations in the country concer ned will be able to provide you with infor-
mation regarding the diesel fuels available.
Prewarming fuel
The vehicle is fitted with a fuel filter prewarming system. This secures operation of a
vehicle using diesel fuel down to an environmental temperature of -25°C.
Caution
It is not permitted to add the various fuel additives on the market, including petrol, to
diesel fuel in order to improve its flow properties.RefuellingFig. 160 Right rear side of the ve hicle: Open fuel filler flap / fuel filler flap with cap unscrewedThe filler flap is automatically unlocked or locked* with the central locking.Opening the fuel filler cap– Press in the middle of the left area of the fuel filler flap in direction of arrow
fig. 160 .
– The fuel filler cap on the fuel filler tube must be unlocked to the left using the
vehicle key (only valid for vehicles which do not have automatic unlocking of the
fuel filler flap).
– Unscrew the fuel filler ca p anti-clockwise and place the fuel filler cap from above
on the fuel filler flap  fig. 160 - right.Closing fuel filler cap– Screw on the cap by turning it to the right until it is heard to lock.
– The fuel filler cap on the fuel filler tube must be locked to the right using the vehicle
key (only valid for vehicles which do not have automatic locking of the fuel filler
flap).
A1
s2ug.6.book Page 201 Friday, April 9, 2010 2:24 PM

Inspecting and replenishing
204Caution

Never open the bonnet using the locking lever - danger of causing damage.

Ensure that the arms of the windscreen wipers are correctly in place against the
windscreen before opening the bonnet otherwise damage could occur to the
paintwork.
Working in the engine compartment
Particular care is required when carrying out any work in the engine
compartment!There is a risk of injuries, scalding, acci dents and fire when working in the engine
compartment, e.g. inspecting and replenishing oil and other fluids. For this
reason, it is essential to comply with the warning instructions stated below and
with the general applicable rules of safe ty. The engine compartment of your car
is a hazardous area  .
WARNING

Never open the bonnet if you see that steam or coolant is flowing out of the
engine compartment - risk of scalding! Wait long enough until the steam or
coolant has stopped escaping.

Switch off the engine and pull out the ignition key.

Apply the handbrake firmly.

If your vehicle is fitted with a manual gearbox, move the gearshift lever into
Neutral, or if it is fitted with automatic gearbox, move the selector lever into
position P.

Allow the engine to cool down.

Keep children clear of the engine compartment.

Never spill oil and other fluids over the hot engine. Such fluids (e.g. the anti-
freeze contained in the coolant) may ignite!

Avoid short circuits in the electrical system - particularly on the battery.

Never place your hand into the radiator fan as long as the engine is still
warm. The fan might suddenly start running!

Never open the cap of the coolant expansion bottle as long as the engine is
still warm. The cooling system is pressurized!

Cover over the cap of the coolant expansion reservoir with a large cloth
when opening it as protection for your face, hands and arms from hot steam or
hot coolant.

Do not let objects, such as e.g cleaning cloth or tools lie in the engine
compartment.

If you wish to work under the vehicl e, you must secure the vehicle from
rolling away and support it with suitable supporting blocks: the car jack is not
sufficient for this - risk of injury!

In cases where it be necessary to carry out inspection work when the engine
is running there is an additional risk fr om rotating parts (e.g. the V-ribbed belt,
alternator, radiator fan) and from the high-voltage ignition system. Please
observe in addition the following:
Never touch the electrical cabl es of the ignition system.
 Absolutely avoid any jewellery, loose it ems of clothing or long hair from
getting into the rotating parts of the engine - Hazard! Therefore remove any
jewellery beforehand, tie up your hair and wear tight fitting clothing.

Please also comply with the warnin g instructions stated below when
carrying out any essential work on the fuel system or on th e electrical system:
 Always separate the car battery from the electrical system.
 Do not smoke.
 Never carry out any work close to naked flames.
 Always keep a working fire extinguisher at hand.Caution
When replenishing fluids in the engine, always ensure that the fluids are on no account
mixed up. This may result in major oper ating problems and also vehicle damage!
WARNING (continued)
s2ug.6.book Page 204 Friday, April 9, 2010 2:24 PM

Breakdown assistance
226
– Have the tightening torque of the wheel bolts checked with a torque wrench as
soon as possible. Steel and light alloy wh eels must be tightened to a tightening
torque of 120 Nm .
– Change the damaged wheel or consult a specialist garage about possibilities for getting repairs done.
WARNING
It is necessary to observe the guidelines given on page 218 if the vehicle is
subsequently fitted with tyres which are different to those it was fitted with at
the works.
Note

If you find, when changing the wheel, that the wheel bolts are corroded and diffi-
cult to turn, the bolts must be replaced before checking the tightening torque.

Drive cautiously and only at a moderate speed to a workshop where the tightening
torque can be checked.
Full wheel trim*Pulling off– Hook the clamp found in the vehicle tool kit into the reinforced edge of the full
wheel trim.
– Push the wheel key through the clamp, support the wheel key at the tyre and pull off the wheel trim.Installing– First press the full wheel trim onto the wheel at the valve opening provided. Then
press the full wheel trim into the wheel in such a way that its entire circumference
locks correctly in place.
Caution

Use the pressure of your hand, do not knock on the full wheel trim! Heavy knocks
mainly on the points where the full wheel trim has not been inserted into the wheel,
can result in damage to the guide and centering elements of the full wheel trim.

Check for yourself that the safety wheel bolt is located in the hole in the area of the
valve before fitting the full wheel trim onto a steel wheel which is attached with a safety
wheel bolt  page 228.
Wheel bolts with caps*Pulling off– Push the plastic clip sufficie ntly far onto the cap until the inner catches of the clip
are positioned at the collar of the cap and detach the cap.Installing– Push the caps fully onto the wheel bolts.
The caps are located in the well of the luggage compartment.
Fig. 176 Removing the cap.
s2ug.6.book Page 226 Friday, April 9, 2010 2:24 PM

Fuses and light bulbs
236
For power consumers, e.g. the radio, which ca n be operated with the ignition switched
off as long as the ignition key is not withdrawn.
Electrically adjustable seats are protected by automatic circuit breakers, which
switch on again automatically after a few seconds after the overload has been
eliminated.BulbsChanging bulbsThe relevant lamp must always be switch ed off before a light bulb is replaced.
Defect light bulbs should only be replaced with light bulbs of the same type. The desig-
nation is located on the light socket or the glass bulb.
Changing certain bulbs is not something whic h you can do yourself, but requires to be
done by a specialist. Other parts of the vehi cle must be removed in order to change the
light bulbs. This applies, in particular, to bulbs which can only be reached from the
engine compartment.
We therefore recommend that you have any bulbs changed by an authorised Škoda
Service Partner or, in exceptional cases, by calling on other professional assistance.
Please note that the engine compartment is a hazardous area page 204, “Working
in the engine compartment”.
We recommend that you always have a small box of replacement bulbs in your vehicle.
You can purchase replacement bulbs from th e range of the Škoda original accessories 17).
The set of light bulbs can be stowed in the box in the luggage compartment.
13
Radio, changer for mobile navigation
15
14
To w i n g d e v i c e
5
15
Light switch
5
16
Heated windscreen washer nozzles
5
17
Control unit for headlamp beam adjustment and head-
light swivel
5
18
Diagnostic socket, engine control unit, brake sensor
10
19
Control unit for ABS, ESP, switch for tyre air pressure con-
trol, control unit for parking aid, switch for Offroad mode,
start/stop button
5
20
Switch and control unit for airbag
5
21
WIV, parking light, dimming mirrors, pressure sensor, tele-
phone preinstallation, air mass meter
5
22
Instrument cluster, control unit for electromechanical
power steering, Haldex
5
23
Central locking system and bonnet lid
15
24
Rear power window
30
25
Rear window heater
Rear window heater, Auxiliar y heating (auxiliary heating
and ventilation)
25
30
26
Power socket in the luggage compartment
20
27
Electric sliding/tilting roof, electric sun screen
30
28
Fuel pump relay, control unit for fuel pump, injection
valves
15
29
Front power window
30
30
front and rear lighter
20
31
Headlight cleaning system
20
32
Front seat heating, regulator for seat heating
20
No.
Power consumer
Amperes
33
Heating, Climatic, Climatronic
7,5
34
Alarm, spare horn
5
35
Control unit for automatic gearbox DQ200
10
36
Not assigned
No.
Power consumer
Amperes
s2ug.6.book Page 236 Friday, April 9, 2010 2:24 PM

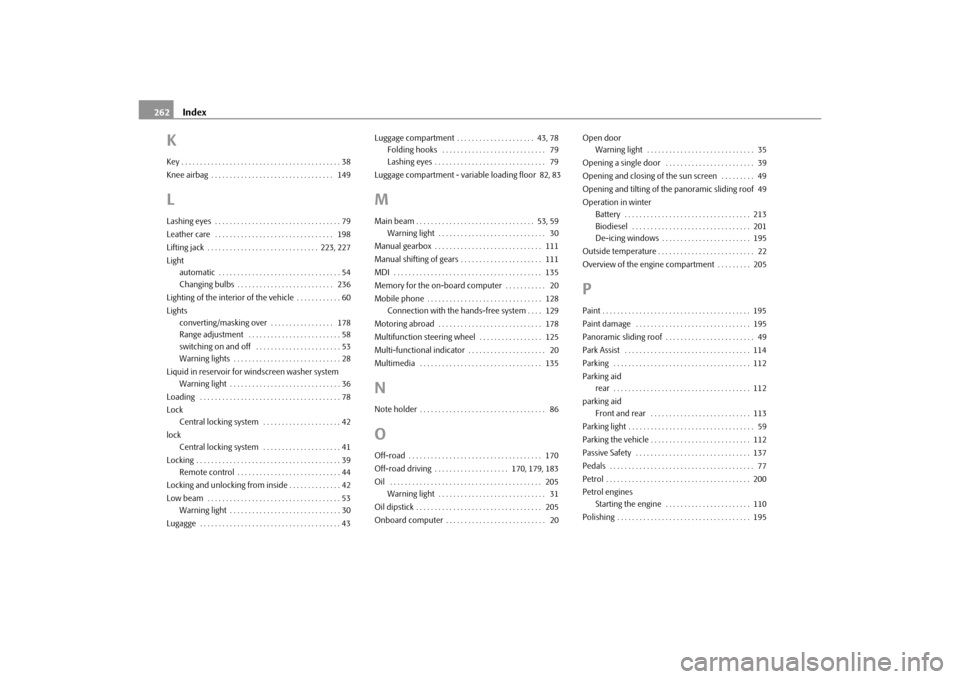

Index
262
KKey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Knee airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149LLashing eyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Leather care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Lifting jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223, 227
Light
automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Lighting of the interior of the vehicle . . . . . . . . . . . . 60
Lights converting/masking over . . . . . . . . . . . . . . . . . 178
Range adjustment . . . . . . . . . . . . . . . . . . . . . . . . . 58
switching on and off . . . . . . . . . . . . . . . . . . . . . . . 53
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Liquid in reservoir for windscreen washer system Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Lock Central locking system . . . . . . . . . . . . . . . . . . . . . 42
lock Central locking system . . . . . . . . . . . . . . . . . . . . . 41
Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Locking and unlocking from inside . . . . . . . . . . . . . . 42
Low beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Lugagge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Luggage compartment . . . . . . . . . . . . . . . . . . . . . 43, 78
Folding hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Lashing eyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Luggage compartment - variable loading floor 82, 83
MMain beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53, 59 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Manual shifting of gears . . . . . . . . . . . . . . . . . . . . . . 111
MDI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Memory for the on-board computer . . . . . . . . . . . 20
Mobile phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128 Connection with the hands-free system . . . . 129
Motoring abroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Multifunction steering wheel . . . . . . . . . . . . . . . . . 125
Multi-functional indicator . . . . . . . . . . . . . . . . . . . . . 20
Multimedia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135NNote holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86OOff-road . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Off-road driving . . . . . . . . . . . . . . . . . . . . 170, 179, 183
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Oil dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Onboard computer . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Open door
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Opening a single door . . . . . . . . . . . . . . . . . . . . . . . . 39
Opening and closing of the sun screen . . . . . . . . . 49
Opening and tilting of the panoramic sliding roof 49
Operation in winter Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
De-icing windows . . . . . . . . . . . . . . . . . . . . . . . . 195
Outside temperature . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Overview of the engine compartment . . . . . . . . . 205
PPaint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Paint damage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Panoramic sliding roof . . . . . . . . . . . . . . . . . . . . . . . . 49
Park Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Parking aid rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
parking aid Front and rear . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Parking light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Parking the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Passive Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Petrol engines Starting the engine . . . . . . . . . . . . . . . . . . . . . . . 110
Polishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
s2ug.6.book Page 262 Friday, April 9, 2010 2:24 PM
