Communication139
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
– On the device to be connected, enter the password and follow any instructions
given on this device or in the information display.
– Enter the desired internet address in the internet browser. The operating system requests the entry of the telephone number for the internet access (depending on
the operator, usually “*99#”).
Music playback via Bluetooth
®
The universal telephone preinstallation GSM IIl makes it possible to play back music via
Bluetooth
® from the devices such as MP3 player, mobile phone or notebook.
In order to enable the music playback via Bluetooth
®, it is necessary to connect the
device, which should be connected, with the hands-free system in the menu Phone -
Bluetooth - Media player .
The music playback process is performed on the connected device.
Note
The device to be connected must support the Bluetooth
® profile A2DP, see Owner's
manual of the device to be connected.
MultimediaInputs AUX-IN* and MDI*The input AUX-IN is located below the armrest* of the front seats and is marked with 
.
The input MDI is located in the storage compartment on the front passenger side.
The inputs AUX-IN and MDI connect the ex ternal audio sources (e.g. iPod or MP3
player) and play back music fr om these devices via your radio* or navigation system*
installed in the factory.
The description of the operation can be found in the relevant Owner's Manual of your
radio* or your navigation*.
Note

The loudspeakers in the vehicle are matched to a power output of the radio and
navigation system of 4x 20°W.

For the equipment sound system*, the loudspeakers are matched to a power
output of the amplifier of 4x40°W + 6x20 W.
CD changer*The CD changer for the radio and navigation system is located in the left side compart-
ment of the luggage compartment.Loading a CD– Touch the button and guide the CD (compact disc) into the CD-case . The CD is automatically loaded onto the next free position in the CD-changer. The LED
in the corresponding button stops flashing.Load CDs– Hold the button pressed for longer than 2 seconds and guide the CDs one after
the other (maximum 6 CDs) into the CD case . The LEDs in the buttons are
no longer flashing.Loading a CD to one definite position– Briefly touch the button . The LEDs in the buttons light up at the memory spaces, which are already assigned and flash in the case of free memory spaces.
Fig. 126 The CD changer
AC
AB
AD
AC
AB
AD
AC
AD
s43s.1.book Page 139 Thursday, May 13, 2010 1:21 PM

Airbag system155
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data

Always work with an authorised Škoda dealer or have it carried out by a
competent specialist workshop.

Only hang light items of clothing on the clothes hooks to the vehicle. Never
leave any heavy or sharp-edged objects in the pockets of the items of clothing.

Ensure that there are no excessive forc es, such as violent knocks, kicks etc.,
impact on the backrests of the seats otherwise the system may be damaged.
The side airbags would not be deployed in such a case!

Any seat or protective covers which you fit to the driver or front passenger
seats must only be of the type expressly authorised by Škoda Auto. In view of
the fact that the airbag inflates out of the backrest of the seat, use of non-
approved seat or protective covers would considerably impair the protective
function of the side airbag.

Any damage to the original seat covers in the area of the side airbag module
must be repaired without dela y by your specialist garage.

The airbag modules in the front seats must not display any damage, cracks
or deep scratches. It is not permissible to use force in order to open the
modules.

Any work on the side airbag system including removing and installing
system components because of other repair work (e.g. removing seats) must
only be carried out by a specialist garage.

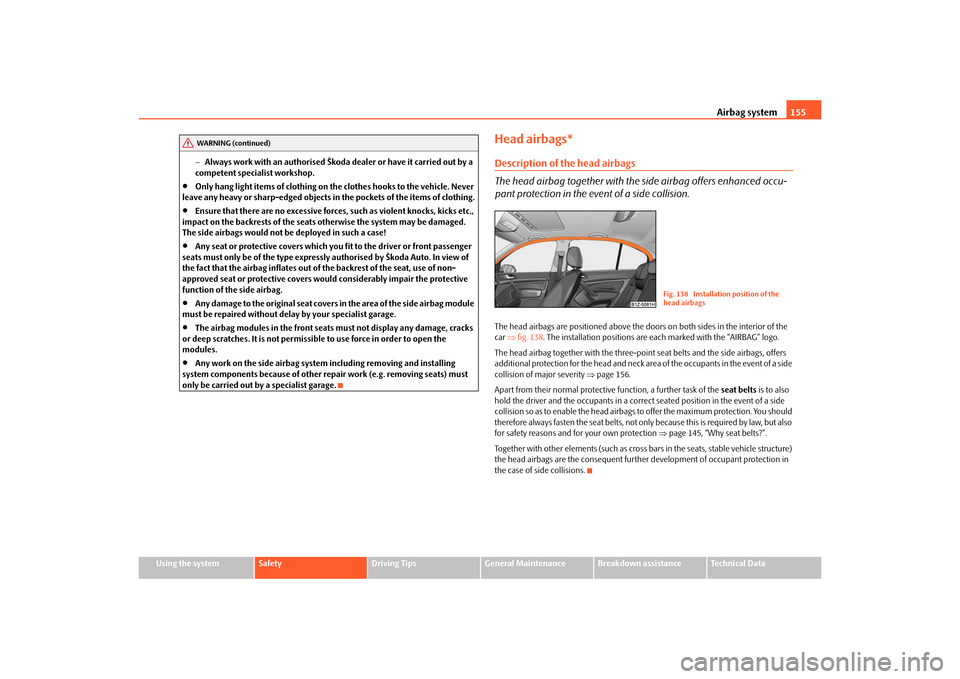

Head airbags*Description of the head airbags
The head airbag together with the side airbag offers enhanced occu-
pant protection in the event of a side collision.The head airbags are positioned above the door s on both sides in the interior of the
car fig. 138 . The installation positions are each marked with the “AIRBAG” logo.
The head airbag together with the three-poin t seat belts and the side airbags, offers
additional protection for the head and neck ar ea of the occupants in the event of a side
collision of major severity page 156.
Apart from their normal protective function, a further task of the seat belts is to also
hold the driver and the occupants in a correct seated position in the event of a side
collision so as to enable the head airbags to offer the maximum protection. You should
therefore always fasten the seat belts, not only because this is required by law, but also
for safety reasons and for your own protection page 145, “Why seat belts?”.
Together with other elements (such as cross bars in the seats, stable vehicle structure)
the head airbags are the consequent further development of occupant protection in
the case of side collisions.
WARNING (continued)
Fig. 138 Installation position of the
head airbags
s43s.1.book Page 155 Thursday, May 13, 2010 1:21 PM

Driving and the Environment
180

Solvent-free protection of the vehicle for transportation from the production plant
to the customer.

The use of solvent-free adhesives.

No CFCs used in the production process.

Without use of mercury.

Use of water-soluble paints.
Trade-in and recycling of old cars
Škoda Auto meets the requirements of the brand and its products regarding environ-
ment and ressource protection. All new Škoda vehicles can be utilized up to 95% and
always
15) be returned. In a lot of countries sufficient trade-in networks have been
created, where you can trade-in your vehicle. After you trade-in your vehicle, you will
receive a confirmation stating the recycling in accordance with environmental regula-
tions.
Vehicles with special built-on types
Technical documents regarding changes carried out on the vehicle must be kept by the
vehicle user, in order to hand over later to the old car user. This ensures the recycling
in accordance with en vironmental regulations.
Note
Detailed information about the trade-in and recycling of old cars is available from a
Škoda Service Partner.Motoring abroadGeneral
Other circumstances may exist abroad.It is also possible, in certai n countries, that the Škoda Service Partner network is limited
or has not been established yet. This is the reason why obtaining certain spare parts
may be somewhat complicated and specialist garage personnel may only be able to
make limited repairs. Škoda Auto in the Czech Republic and relevant importers are happy to provide information about technical
aspects of the vehicle, required mainte-
nance work and possibilities for getting repairs done.
Unleaded petrolA vehicle fitted with a petrol engine must always be refuelled with unleaded petrol
 page 176. The automobile associations can provide you with information regarding
the locations of filling stations which offer unleaded petrol.HeadlightThe low beam of your headligh ts is set asymmetrically. It illuminates the side of the
road on which you are driving to a greater ex tent. If you drive abroad on the other side
of the road, you will da zzle oncoming traffic.
In order to prevent the dazzling of oncoming tr affic, it is necessary that an adjustment
of the headlights is carried out by your auth orised Škoda Service Partner.
The adaptation of the headlights with Xenon lights* (applies only to vehicles which are
designed for driving on the left and on the right) is performed in the menu Setup
Lights & Vision & Tra v e l m o d e in the main menu of the information display*
 page 22.Avoiding damage to your vehicleWhen driving on poor roads and lanes or when driving over kerbstones, steep ramps
etc., you must pay particular attention to ensuring that any low-slung parts of the
vehicle, such as spoiler and exhaust, do not touch the ground and get damaged.
This particularly applies to models with a lowered suspension (sport suspension) and
also when your vehicle is fully laden.
15)Subject to fulfilment of the national legal requirements.s43s.1.book Page 180 Thursday, May 13, 2010 1:21 PM

Inspecting and replenishing199
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
It is normal for the engine to consume oil.
The oil consumption may be as much as 0.5
l/1 000 km depending on your style of driving and the conditions under which you
operate your vehicle. The oil consumption may be slightly hi gher than this during the
first 5 000 kilometres.
One should therefore check the oil level at regular intervals, preferably every time after
the fuel tank is filled or after driving for long stretches.
We recommend maintaining the oil level within the range - but not above this, if
the engine has been operating at high load s, for example during a lengthy motorway
trip during the summer months, towing a tr ailer or negotiating a high mountain pass.
The warning light in the instrument cluster* will indicate page 30, “Engine oil pres-
sure ” whether the oil level is too low. In this case, check the oil level as soon as
possible. Top up with an appropriate quantity of oil.
Caution

The oil level must on no ac count extend beyond the range . Danger of damaging
the catalytic converter.

Do not continue your journey if for some reason it is not possible under the
conditions prevailing to top up with oil. Switch the engine off and obtain professional
assistance from a specialist garage, otherwise it could lead to severe engine damage.Note
Engine oil specifications page 237, “Technical Data”.Replenishing engine oil– Inspecting the engine oil level page 198.
– Unscrew the cap of the engine oil filler opening.
– Pour in a suitable grade of oil in portions of 0.5 litres page 240, “Engine oil spec-
ifications”.
– Inspect the oil level page 198.
– Carefully screw on the cap of the filler opening and push the dipstick in fully.
WARNING

Avoid dripping oil onto hot parts of the engine when topping up will oil - a
risk of fire!

Read and observe the warning notes page 197, “Working in the engine
compartment” before working in the engine compartment.For the sake of the environment
The oil level must on no account extend beyond the range page 198. Oil will
otherwise be drawn in through the crankc ase ventilation and may pass through the
exhaust system to atmosphere. The oil ma y combust in the catalytic converter and
damage it.Changing engine oilThe engine oil must be changed at the intervals stated in the Service schedule or
according to the service interval indicator page 17, “Service Interval Display”.
WARNING

Only carry out the engine oil change, if you have the required professional
knowledge!

Read and observe the warning notes page 197, “Working in the engine
compartment” before working in the engine compartment.

First of all, let the engine cool down, we ar an eye protection and gloves - risk
of caustic burns due to hot oil.Caution
You must not pour any additives into the engine oil - risk of engine damage! Damage,
which results from such product, are excluded from the warranty.
For the sake of the environment

You must on no account pour oil into the ground or into the sewage system.
AAAA
AA
s43s.1.book Page 199 Thursday, May 13, 2010 1:21 PM

Breakdown assistance217
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Spare wheel*The spare wheel lies in a well under the floor covering of the luggage compartment and
is fixed in place using special screws fig. 175 .
Before removing the spare wheel, you must take out the box with the vehicle tool kit
box page 216, fig. 174.
One should check the inflation pressure in the spare wheel (at best when generally
checking the tyre air pressures - see sign on the fuel filler flap page 208) to ensure
that the spare wheel is always ready to use.
Temporary spare wheel
A warning label displayed on the rim of the temporary spare wheel indicates that your
vehicle is equippe d with a temporary spare wheel.
Please observe the following notes when driving with a temporary spare wheel:
The warning label must not be covered after installing the wheel.

Do not drive faster than 80 km/h with this spare wheel and pay particular attention
while driving. Avoid accelerating at full throttle, sharp braking and fast cornering.

The inflation pressure for this spare wheel is identical to the inflation pressure of
the standard tyres. The temporary spare wheel R 18 must have an inflation pressure of
420 kPa (4.2 bar)!

Use this spare wheel only to reach the nearest specialist garage as it is not intended
for continuous use.

No other summer or winter tyres must be mounted on the rim of the spare wheel
R 18.
Changing a wheelPreliminary workThe following steps should be carried ou t before actually changing the wheel.
– If it is necessary to change a wheel, park the vehicle as far away as possible from
the traffic flow. The place you choose should be level.
–Have all the occupants get out. While changing a wheel, the occupants of the
vehicle should not stand on the ro ad (e.g. behind a crash barrier).
– Apply the handbrake firmly.
–Engage 1st gear or if your vehicle is fitted with an automatic gearbox, position the
selector lever into position P .
– If a trailer is coupled, uncouple it.
–Take the vehicle tool kit  page 216 and the spare wheel*  page 217 out of the
luggage compartment.
WARNING

If you find yourself in flowing traffic switch on the hazard warning lights
system and place the warning triangle on the side of the road at the prescribed
distance from your vehicle while observin g all national legal provisions. In this
way you are protecting not only yourself but also other road users.

Never start the engine with the vehicle si tting on the raised jack - danger of
suffering injury.Caution
If you have to change a wheel on a slope fi rst block the opposite wheel with a stone or
similar object in order to secure the vehicle from unexpectedly rolling away.
Note
Comply with the national legal regulations.
Fig. 175 Luggage compartment: Spare
wheel
s43s.1.book Page 217 Thursday, May 13, 2010 1:21 PM

Index
264
Child safety seat
on the front passenger seat . . . . . . . . . . . . . . . 160
Safety information . . . . . . . . . . . . . . . . . . . . . . . 159
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161 Classification into groups . . . . . . . . . . . . . . . . . 161
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Use of child safety seats . . . . . . . . . . . . . . . . . . 162
Children and safety . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Chrome parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Climatronic Defrosting windows . . . . . . . . . . . . . . . . . . . . . . 104
Recirculated air mode . . . . . . . . . . . . . . . . . . . . 103
Climatronic (automat ic air conditioning) . . . . . . 100
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Clothes hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Cockpit General view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Compartments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Connection to the internet . . . . . . . . . . . . . . . . . . . 138
Convenience operation . . . . . . . . . . . . . . . . . . . . . . . . 48
Converting/masking over headlights . . . . . . . . . . 180
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 replenishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Coolant level Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Coolant quantity Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Coolant temperature gauge . . . . . . . . . . . . . . . . . . . . 16 Coolant temperature/coolant level
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Cornering lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Correct seated position . . . . . . . . . . . . . . . . . . . . . . 142
Counter for distance driven . . . . . . . . . . . . . . . . . . . 17
Cruise control system . . . . . . . . . . . . . . . . . . . . . . . . 113 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Cup holder front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
DDaylight driving lights . . . . . . . . . . . . . . . . . . . . . . . . . 52
Deactivatingan airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Deactivating an airbag . . . . . . . . . . . . . . . . . . . . . . . 157
Defrosting rear window . . . . . . . . . . . . . . . . . . . . . . . 59
De-icing the windows . . . . . . . . . . . . . . . . . . . . . . . . 187
Detachable towing device . . . . . . . . . . . . . . . . . . . . 184
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Diesel engines Starting the engine . . . . . . . . . . . . . . . . . . . . . . . 109
Diesel particle filter . . . . . . . . . . . . . . . . . . . . . . . . . . 173 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Direction indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Distance driven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Door Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Driving economically . . . . . . . . . . . . . . . . . . . . . . . . 176
EEDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Electric power-operated window
Operational faults . . . . . . . . . . . . . . . . . . . . . . . . . 48
Electric sliding/tilting roof . . . . . . . . . . . . . . . . . . . . . 48
Electrically adjustable exterior mirror . . . . . . . . . . . 65
Electronic Differential Lock . . . . . . . . . . . . . . . . . . . 168
Electronic immobiliser . . . . . . . . . . . . . . . . . . . . . . . . 38
Electronic stability programme . . . . . . . . . . . . . . . 167
Electronic stability programme (ESP) Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Engine starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
switching off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Engine compartment Safety information . . . . . . . . . . . . . . . . . . . . . . . . 197
Engine electronics Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
replenishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Engine oil level Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Engine revolutions counter . . . . . . . . . . . . . . . . . . . . 15
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Environmental compatibility . . . . . . . . . . . . . 176, 179
s43s.1.book Page 264 Thursday, May 13, 2010 1:21 PM

Index265
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Exhaust gas Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Exhaust gas inspection Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Explanations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Exterior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Exterior mirror heater . . . . . . . . . . . . . . . . . . . . . . . . . 65
FFirst-aid box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Fixing net Combi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Octavia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Indicator light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Fog lights with the function CORNER . . . . . . . . . . . 55
Front airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Front armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192 Diesel fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Fuel consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . 176 Saving energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fuel reserve Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Full wheel trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
GGearbox mechanical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
General view Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Glass roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Glow plug system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
GSM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125, 132HHandbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Hazard warning light system . . . . . . . . . . . . . . . . . . . 56 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Head airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Head restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Headlamp range adjustment . . . . . . . . . . . . . . . . . . . 56
Headlight cleaning system . . . . . . . . . . . . . . . . . . . . . 63
Headlight flasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Headlights Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Headlight cleaning system . . . . . . . . . . . . . . . . . . 63
Heated windscreen washer nozzles . . . . . . . . . . . . . 61
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95 Auxiliary heating (auxiliary heating) . . . . . . . . 104
Defrosting windows . . . . . . . . . . . . . . . . . . . . . . . 96
Recirculated air mode . . . . . . . . . . . . . . . . . . . . . 97
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
IIgnition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Information display . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Instrument lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Interior light Luggage compartment . . . . . . . . . . . . . . . . . . . . . 59
Interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Interior monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Intermittent wiping . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
ISOFIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164JJacking points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . 221, 222KKey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37LLashing eyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Leather care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Lifting jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216, 220
s43s.1.book Page 265 Thursday, May 13, 2010 1:21 PM

Index267
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
RRadiator fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Rear armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73, 90
Rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Rear window heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Rear window heater . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Rear-view mirror Exterior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Recharge battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Recommendation for changing gears . . . . . . . . . . . 18
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Synchronisation process . . . . . . . . . . . . . . . . . . . 44
Replacing fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Replacing the wiper blades . . . . . . . . . . . . . . . . . . . . 63
Roof aerial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Running in the car . . . . . . . . . . . . . . . . . . . . . . . . . . . 175SSafe securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Safety information Engine compartment . . . . . . . . . . . . . . . . . . . . . 197
Safety wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Saving electrical energy . . . . . . . . . . . . . . . . . . . . . . 176
Seat belt height adjuster . . . . . . . . . . . . . . . . . . . . . . 147
Seat belt warning light . . . . . . . . . . . . . . . . . . . . . . . . 147 Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145, 148
Belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
fastening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Height adjustment . . . . . . . . . . . . . . . . . . . . . . . . 147
Safety information . . . . . . . . . . . . . . . . . . . . . . . . 146
taking off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Seat heaters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Selector lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Selector lever lock Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Selector lever positions . . . . . . . . . . . . . . . . . . . . . . . 118
Selector lever-emergency unlocking . . . . . . . . . . . 121
Service Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Service Interval Display . . . . . . . . . . . . . . . . . . . . . . . . 17
Setting temperature Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Shifting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Side lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Stability system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . 108 after fuel tank has run empty . . . . . . . . . . . . . . 109
Diesel engines . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Petrol engines . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Steering active driver-steering recommendation . . . . 169 Steering force assistance . . . . . . . . . . . . . . . . . . . . . 172
Storage compartment
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Storage compartments . . . . . . . . . . . . . . . . . . . . . . . . 86
Storage facilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Sun . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Sun screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Switching lights on and off . . . . . . . . . . . . . . . . . . . . . 51
Switching off the engine . . . . . . . . . . . . . . . . . . . . . 109
TTaking care of your vehicle . . . . . . . . . . . . . . . . . . . 185
TCS Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125, 132
Temperature outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Temporary spare wheel . . . . . . . . . . . . . . . . . . . . . . 217
the first 1 500 kilometres . . . . . . . . . . . . . . . . . . . . . 175
The roof luggage rack system . . . . . . . . . . . . . . . . . . . 81
Thickness of brake pads Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Tilting roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Top Tether . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Towing a trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Towing device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
towing vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Tow-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
s43s.1.book Page 267 Thursday, May 13, 2010 1:21 PM
