2010 SKODA OCTAVIA engine

Fuses and light bulbs229
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Electrically adjustable seats are protected by
automatic circuit breakers, which
switch on again automatically after a few seconds after the overload has been
eliminated.
BulbsChanging bulbsThe relevant lamp must always be switch ed off before a light bulb is replaced.
Defect light bulbs should only be replaced with light bulbs of the same type. The desig-
nation is located on the light socket or the glass bulb.
Changing certain bulbs is not something whic h you can do yourself, but requires to be
done by a specialist. Other parts of the vehi cle must be removed in order to change the
light bulbs. This applies, in particular, to bulbs which can only be reached from the
engine compartment.
13
Diagnostic socket, Light switch
10
14
Control unit for automatic gearbox, Selector lever lock
5
15
Central control unit - interior lights
5
16
Climatronic
10
17
Not assigned
18
Not assigned
19
Control unit for trailer detection
5
20
Not assigned
21
Cornering lights for the left and right side
10
22
Air blower for Climatronic
40
23
Front power window
30
24
Cigarette lighter
25
25
Rear window heater
Rear window heater, Auxiliar y heating (auxiliary heating
and ventilation)
25
30
26
Power socket in the luggage compartment
20
27
Fuel pump relay, Injection valves (diesel engine)
15
28
Not assigned
29
Engine control unit, Crankcase ventilation heater
10
30
Control unit for automatic gearbox
20
31
Vacuum pump
20
32
Rear power window
30
33
Electric sliding/tilting roof
25
34
Control unit for conv enience functions
20
35
Anti-theft alarm system
5
36
Headlight cleaning system
20
No.
Power consumer
Amperes
37
Front seat heating
30
38
Heated rear seats
30
39
Not assigned
40
Air blower for heating and air conditioning
40
41
Rear window wiper
15
42
Not assigned
43
To w i n g d e v i c e
15
44
To w i n g d e v i c e
20
45
To w i n g d e v i c e
15
46
Heated windscreen washer nozzles
5
47
Relay for auxiliary heating
5
48
Not assigned
49
Light switch
5
No.
Power consumer
Amperes
s43s.1.book Page 229 Thursday, May 13, 2010 1:21 PM

Fuses and light bulbs
230
We therefore recommend that you have an y bulbs changed by an authorised Škoda
Service Partner or, in exceptional cases, by calling on other professional assistance.
Please note that the engine compartment is a hazardous area page 197, “Working
in the engine compartment”.
We recommend that you always have a small box of replacement bulbs in your vehicle.
You can obtain replacement bulbs from Škoda original accessories or from a specialist
garage
21).
A stowage place for the bulbs is located in the box in the spare wheel.
Fitted with a xenon headlight
Change of bulbs on vehicles with Xenon lights (low beam lights, parking lights and
main beam lights) should be und ertaken by a specialist garage.
Bulb - Overview
21)The small box with replacement bulbs is part of the basic equipping of the vehicle in some coun-
tries.Front headlight
Halogen headlight
Xenon headlight
Low beam light
H7
D1S
Main beam light
H1
Parking lights
W5W/W5W BL
Daylight driving lights*
PY21W SLL/LED
a)
a)Octavia RS, Octavia ScoutTu r n s i g n a l s
PY21W
Fog lights*
H8/HB4
a)
Light unit (Octavia)
Bulb
Reversing light
P21W
Turn signals
PY21W
Twin filament light bulb for th e brake lights and tail lights
P21/4W
Twin filament light bulb for the rear fog lights and tail
lights
P21/4W
Parking lights
W3W
Rear light unit (Combi)
Bulb
Reversing lights, brake lights, tail lights and rear fog light
P21W
Turn signals
PY21W
Parking lights
W3W
Others
Bulb
Side turn signal lights
LED
Licence plate light
C5W
3. Brake light
LED
Entry lighting
W5W
front interior lighting
C10W
Reading lights
W5W
Rear interior lighting
C10W
Luggage compartment light
W5W
Door warning light
C5W
Lighting in storage compartment
C3W
s43s.1.book Page 230 Thursday, May 13, 2010 1:21 PM

Technical Data237
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Te c h n i c a l D a t aTechnical DataGeneral informationThe details given in the official vehicle regi stration documents always take precedence
over the details in the Owner's Manual. Please refer to the official vehicle registration
documents or consult an authorised Škoda Service Partner concerning the engine with
which your vehicle is equipped.Used abbreviations
PerformancesThe listed performance values were de termined without performance-reducing
equipment, e.g. air conditioning system.WeightThe loading capacity is reduced in line with the range of the special equipment. The
unloaden weight contains a fuel tank topped up to 90%. A driver with a weight of 75
kg is also includ ed in the value.Identification details
Abbreviation
Importance
kW
Kilowatt, measuring unit for the engine output
rpm
Engine revolutions per minute
Nm
Newton meter, measuring unit for the engine torque
g/km
discharged quantity of carbon dioxide in grams per driven
kilometer
RON
Research octane number, meas uring unit for the knocking
resistance of petrol
TSI
Petrol engine with a turbocharger and a direct fuel injection
system
TDI PD
Diesel engine with turbocharg er and injection system unit
injector
TDI CR
Diesel engine with turbocharger and injection system Com-
mon Rail
M5 / M6
5-speed/6-speed manual gearbox
AG6
6-speed automatic gearbox
DQ6/DQ7
6 speed-/7 speed automatic gearbox DSG
DPF
Diesel particle filter
Abbreviation
Importance
Fig. 199 Vehicle data sticker
s43s.1.book Page 237 Thursday, May 13, 2010 1:21 PM

Technical Data
238
Vehicle data sticker
The vehicle data sticker page 237, fig. 199 is located on the floor of the luggage
compartment and is also stated in the Service schedule.
The vehicle data sticker co ntains the following data:
Vehicle identifica tion number (VIN)
Vehicle type
Gearbox code, paint number, interior eq uipment number, engine output, engine
code
Partial description of the vehicle
7GG, 7MB, 7MG - vehicles with DPF page 173
Vehicle identification number (VIN)
The vehicle identification number - VIN (veh icle body number) is stamped into the
engine compartment on the right hand sh ock absorber dome. This number is also
located on a sign on the lower left hand edge below the windscreen.
Engine number
The engine number is stam ped into the engine block.
Type plate (production plate)
The type plate is located in the lowe r area of the left centre column.
Sticker on inside of fuel filler flap
The stickers are affixed to the inside of the fuel filler flap and contain the following
information:
The prescribed types of fuel,

Ty re s i z e ,

Tyre pressure.
Fuel consumption according to the ECE standards and EU guidelinesDepending on the range of the special equipment, style of driving, traffic situation,
weather influences an d vehicle condition, the consumpt ion values which in practice
result when using the vehicle can deviate from the indicated values.
Urban traffic
The consumption measurement in urban traffic begins with starting of the cold engine.
Afterwards the normal urban traffic is simulated.
Non-urban traffic
For the consumption measurement in non-ur ban traffic the vehicle, as in daily
motoring, is accelerated and braked severa l times in all gears. The vehicle speed
changes within the range from 0 to 120 km/h.
Combined traffic
The consumption value in the combined traffic consists of 37% from the value for the
urban traffic and of 63% from th e value for the non-urban traffic.
A1A2A3A4A5s43s.1.book Page 238 Thursday, May 13, 2010 1:21 PM

Technical Data
240
Engine oil specificationsThe grade of engine oil should be se lected in accordance with precise
specifications.The engine of your vehicle has been factory-filled with a high-grade oil which you can
use throughout the year - except in extreme climatic regions.
You can mix various oils together with each other when refilling with oil. This does not,
however, apply for models with flexible service intervals (QG1).
Engine oils are, of course, undergoing co ntinuous further development. Thus the
information stated in this Owner's Manual is only correct at the time of publication.
Authorised Škoda Service Partners are inform ed by Škoda Auto about current changes.
This why you should always have engine oi l changed by an authorised Škoda Service
Par tner.
The specifications (VW standards) stated in the following must be indicated separately
or together with other specifications on the bottle.
Engine oil specifications for models with flexible service intervals (QG1) Engine oil specifications for vehicles with fixed service intervals (QG2)
If the oils specified above are not available, oils according to ACEA A2 or ACEA A3 can
be used once for refilling.Petrol engines
Engine oil specifications
Content
a)
a)Oil capacity with oil filter change. Inspect oil leve
l when filling; do not fill up too much. The oil
level must be between the markings page 198.1,2/77 kW - EU5
VW 504 00
3,6
1.4 ltr./59 kW - EU4
VW 503 00, VW 504 00
3,2
1.4 ltr./90 kW TSI - EU5
VW 503 00, VW 504 00
3,6
1.6 ltr./75 kW - EU4, EU2
VW 503 00, VW 504 00
4,5
1.8 ltr./118 kW TSI - EU5, EU2 DDK
(1.8 ltr./112 kW TSI - EU5)
VW 504 00
4,6
2.0 ltr./147 kW TSI - EU5
VW 504 00
4,6
Diesel engines
Engine oil specifications
Content
a)
1.6 ltr./77 kW TDI CR - EU5
VW 507 00
4,3
1.9 ltr./77 kW TDI PD - EU4, EU3
VW 506 01, VW 507 00
3,8
1.9 ltr./77 kW TDI PD DPF - EU4
VW 507 00
4,3
2.0 ltr./103 kW TDI CR DPF - EU4, EU5
VW 507 00
4,3
2.0 ltr./125 kW TDI CR - EU5
VW 507 00
4,3
Petrol engines
Engine oil specifications
Content
a)
a)Oil capacity with oil filter change. Inspect oil le vel when filling; do not fill up too much. The oil
level must be between the markings page 198.1,2/77 kW - EU5
VW 502 00
3,6
1.4 ltr./59 kW - EU4
VW 501 01, VW 502 00
3,2
1.4 ltr./90 kW TSI - EU5
VW 501 01, VW 502 00
3,6
1.6 ltr./75 kW - EU4, EU2
VW 501 01, VW 502 00
4,5
1.6 ltr./75 kW MultiFuel - EU4, EU2
VW 502 00
4,5
1.8 ltr./118 kW TSI - EU5, EU2 DDK
(1.8 ltr./112 kW TSI - EU5)
VW 502 00
4,6
2.0 ltr./147 kW TSI - EU5
VW 502 00
4,6
s43s.1.book Page 240 Thursday, May 13, 2010 1:21 PM

Technical Data241
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
If the oils specified above are not available, oils according to ACEA B3 or ACEA B4 can
be used once for refilling.
Caution
Only the above-mentioned oils may be used on vehicles with flexible service intervals
(QG1). We recommend always refilling with oil of the same specification since this will
maintain the properties of the oil. In exce
ptional cases, you must top up only once
engine oil complying with Specification VW 502 00 (only for petrol engines) or Specifi-
cation VW 505 01 (only for diesel engines) to maximum 0.5 litres. You must not use
other engine oils - risk of engine damage!
Note

Before a long drive we recommend that you purchase and carry with you engine
oil which complies with the specification for your vehicle. Consequently, you will
always have the correct engine oil for refilling.

We recommend using a preservative from the Škoda original accessories offered
by your Škoda dealer.

For further information - see Service shedule.Diesel engines
Engine oil specifications
Content
a)
1.6 ltr./77 kW TDI CR - EU5
VW 507 00
4,3
1.9 ltr./77 kW TDI PD - EU4, EU3
VW 505 01
3,8
1.9 ltr./77 kW TDI PD DPF - EU4
VW 507 00
4,3
2.0 ltr./103 kW TDI CR DPF - EU4, EU5
VW 507 00
4,3
2.0 ltr./125 kW TDI CR - EU5
VW 507 00
4,3
s43s.1.book Page 241 Thursday, May 13, 2010 1:21 PM

Technical Data
242
1.2 ltr./77 kW TSI - EU5Engine
Performances
Fuel consumption (in ltr./100 km) and CO
2 emission (in g/km)
Power output
kW per rpm
77/5000
Maximum torque
Nm per rpm
175/1550-4100
Number of cylinders/Displacement (cm
3)
4/1197
OCTAVIA
M6
OCTAVIADQ7
CO M B I M6
COMBIDQ7
Maximum speed
km/h
192
192
191
191
Acceleration 0 - 100 km/h
s
10,8
10,8
10,9
10,9
OCTAVIA
M6
OCTAVIADQ7
CO M B I M6
COMBIDQ7
Urban
7,1
7,0
7,1
7,0
Non-urban
4,9
5,2
4,9
5,2
Combination
5,7
5,9
5,7
5,9
CO2 emission - combination
134
136
134
136
s43s.1.book Page 242 Thursday, May 13, 2010 1:21 PM

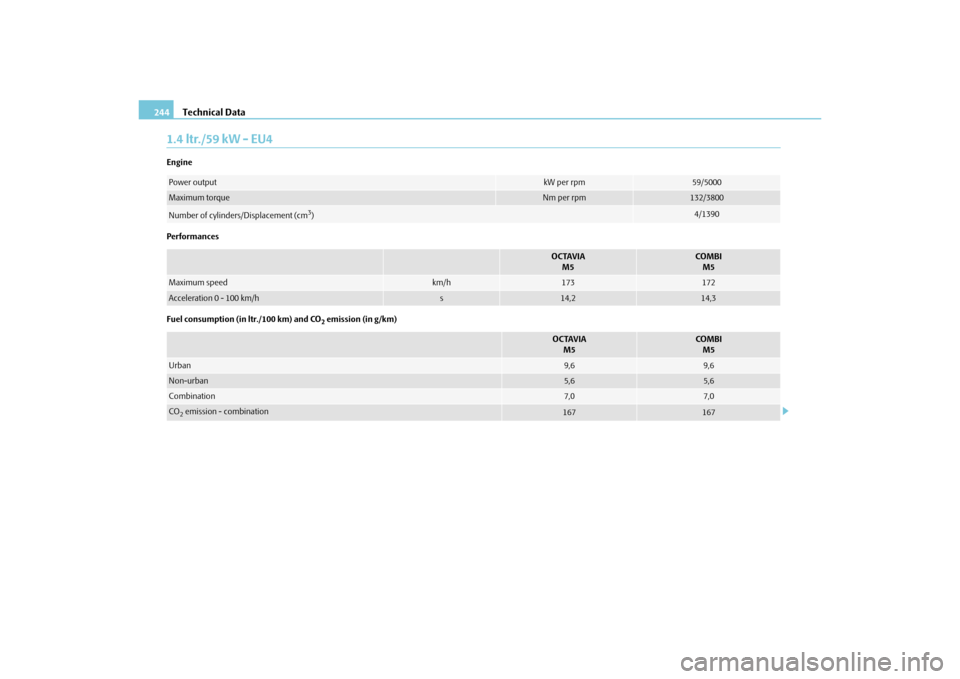

Technical Data
244
1.4 ltr./59 kW - EU4Engine
Performances
Fuel consumption (in ltr./100 km) and CO
2 emission (in g/km)
Power output
kW per rpm
59/5000
Maximum torque
Nm per rpm
132/3800
Number of cylinders/Displacement (cm
3)
4/1390
OCTAVIA
M5
CO M B IM5
Maximum speed
km/h
173
172
Acceleration 0 - 100 km/h
s
14,2
14,3
OCTAVIA
M5
COMBIM5
Urban
9,6
9,6
Non-urban
5,6
5,6
Combination
7,0
7,0
CO2 emission - combination
167
167
s43s.1.book Page 244 Thursday, May 13, 2010 1:21 PM
