Cockpit
82Fuel level / reserve
z
This symbol lights up to indicate that the fuel tank is under
the reserve level.It lights up when only 7 litres of fuel remain in the tank. You will also hear a
warning signal. It reminds you to fuel up the fuel tank as soon as possible
⇒ page 214.
The instrument panel displays the following message
11): PLEASE REFUEL! .
Coolant level* / temperature
v
The warning lamp lights up if the coolant temperature is too
high or if the coolant level is too low.There is a fault if:•The warning symbol does not go out again after a few seconds.•The warning lamp lights up or flashes while the vehicle is moving, and
three acoustic warning signals ⇒ are emitted.
This means that either the coolant level is too low or the coolant temperature
is too high.
Coolant temperature too high
The instrument panel displays the following message
12): CHECK COOLANT
INSTRUCTION MANUAL ⇒ page 228.
First look at the coolant temperature gauge. The coolant temperature is too
high if the needle is over the warning area on the dial. Stop the vehicle,
switch the engine off and wait for it to cool down. Check the coolant level.
If the coolant level is correct, the overheating may be caused by a malfunction
of the radiator fan. Check the radiator fan fuse and have it replaced if neces-
sary ⇒page 254.
If the warning lamp lights up again after driving on for a short distance, stop
the vehicle and switch the engine off . Contact an Authorised Ser vice Centre
or a specialised workshop.
Coolant level too low
The instrument panel displays the following message13): STOP CHECK
COOLANT INSTRUCTION MANUAL .
START STOP
ACTIVE
Warning: Start-Stop system activated. Vehicle in Stop
mode.
SWITCH OFF
Warning: Start-Stop system activated. Switch off the igni-
tion when you leave the vehicle.
STOP
TRANSMISSION TOO HOT
Warning: Stop the engine. Gearbox overheated.
BRAKE
Warning: To start the engine, press the brake pedal. Only
in vehicles with automatic gearbox.
COASTING FUNCTION
Warning: Coasting mode active. Transmission engaged.
Only in vehicles with automatic gearbox.
CHECK
SAFELOCK
Notification of central locking function activated.
a)These messages may vary according the version of the vehicle model.11)Depending on the model version.
12)Depending on the model version.13)Depending on the model version.
Leon_EN.book Seite 82 Mittwoch, 1. September 2010 6:16 18

If and when
254Tyre repair
The following sections describe the procedures for repairing
a tyre.Using the sealing compound
– The instructions on the containe r give detailed information on
how to use the sealing compound.
Inflating the tyre.
– Remove the air compressor and hose from the container.
– Screw the retaining nut onto the valve.
– Plug the compressor cable into a 12 volt power socket.
– Turn on compressor and monitor the pressure shown on the pres- sure gauge.
Completing the repair
– Remove the compressor hose from the valve.
– Fit the valve cap.
– Unplug the compressor from the socket.
– Return all tools to their proper storing location.
Note•If the vehicle is equipped with tyre pressure control, enter the new tyre
pressures using the SET button on the centre console.•The compressor should never be allowed to run for longer than 6
minutes.
FusesChanging a fuse
Blown fuses must be replaced
Fig. 161 Left side of dash
panel: Fuse box coverFig. 162 Fuse box cover
in engine compartment
Leon_EN.book Seite 254 Mittwoch, 1. September 2010 6:16 18

If and when255
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Fuse cover underneath the steering wheel
– Switch off the ignition and the component concerned.
– Identify the fuse corresponding to the damaged electric
consumer ⇒page 257.
– Take the plastic clip from inside the fuse cover, fit it onto the blown fuse and pull the fuse out.
– Replace the blown fuse (which will have a melted metal strip) with a new fuse of the same ampere rating.
Fuse cover in engine compartment
– Switch off the ignition and its failed electrical component.
– Remove the fuse cover in the engine compartment by pressing the tabs towards the centre of the cover ⇒page 254, fig. 162 .
– Identify the fuse for the affected component ⇒ page 257.
– Take the plastic clip from inside the fuse cover (at left-hand end of the dash panel), fit it onto the blown fuse and pull the fuse out.
– Replace the blown fuse (which will have a melted metal strip) with a new fuse of the same ampere rating.
– Carefully fit the fuse cover back on to ensure no water can enter the fuse box.The individual electrical circuits are protected by fuses. The fuses are located
behind a cover at the left-hand end of the dash panel and on the left-hand
side of the engine compartment. The electric windows are protected by circuit breakers
. These reset automat-
ically after a few seconds when the overload (caused for example by frozen
windows) has been corrected.
Fuses colour code
WARNING
Never “repair” damaged fuses and never replace them with fuses with a
higher rating. Failure to comply could result in fire. This could also cause
damage to other parts of the electrical system.
Note
•If a newly replaced fuse blows again after a short time, the electrical
system must be checked by a specialised workshop as soon as possible.
Colour
Amps
light brown
5
Red
10
Blue
15
Ye l l o w
20
Natural (white)
25
Green
30
orange
40
Red
50
white
80
Blue
100
grey
150
violet
200
Leon_EN.book Seite 255 Mittwoch, 1. September 2010 6:16 18

If and when257
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Fuses on left side of dash panelFusesNumber
Consumer
Amps
1
Diagnosis Switchboard/ Instrument lighting/
Headlight control switchboard/ Flow meter/
Heated wipers/ Engine management/ AFS Head-
lamps
10
2
Engine control unit/ ABS-ESP switchboard/ Auto-
matic gearbox/ Instrument panel/ Trailer switch-
board/ Light switch / Brake sensor/ Power
steering/ Right and left headlights
10
3
Airbag
5
4
Heating/ Reverse switch/ ASR-ESP switch/ Elec-
trochrome mirror/ Park Pilot/ Oil level sensor
5
5
Right xenon headlight
10
6
Left xenon headlight
10
7
Vaca n t
8
Trailer hook pre-installation assistant
5
9
Vaca n t
10
Vaca n t
11
Vaca n t
12
Central locking
15
13
Diagnosis/ Light switch/ Rain sensor/ Heated rear
window
10
14
Automatic gearbox / Heating/ Automatic gearbox
lever
10
15
Vaca n t
16
Vaca n t
17
Alarm
5
18
Kombi / levers with START STOP
5
19
Fog light aid
20
20
Navigation/radio with START STOP
15
21
Engine management
10
22
Fan switch
40
23
Electric windows (front)
30
24
Body Control Unit
20
25
Heated rear window
25
26
Rear electric windows
30
27
Engine (fuel control unit/pump relay)
15
28
Convenience controls
30
29
Vaca n t
30
Vaca n t
31
Vacu um pu m p
20
32
Vaca n t
33
Sunroof
25
34
Comfort switchboard/Central locking system
25
35
Vaca n t
36
Headlight washer system
20
37
Heated seats
30
38
Engine management
10
39
Telephone with START STOP
10
Number
Consumer
Amps
Leon_EN.book Seite 257 Mittwoch, 1. September 2010 6:16 18

If and when
258Some of the electrical items listed in the table are only fitted on certain
models or are optional extras.
Please note that the above list, while correct at the time of printing, is subject
to alterations. If discrepancies should occur, please refer to the sticker on the

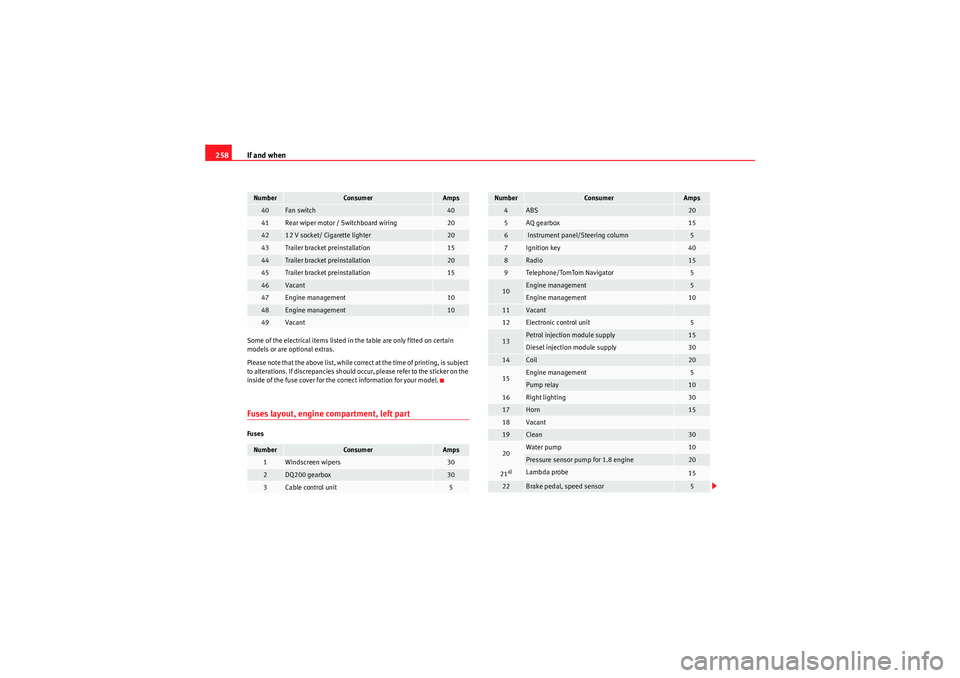

inside of the fuse cover for the correct information for your model.Fuses layout, engine compartment, left partFuses
