Fuses on left side of dash panelFusesNumber
Consumer
Amps
1
Diagnosis Switchboard/ Instrument lighting/
Headlight control switchboard/ Flow meter/
Heated wipers/ Engine management/ AFS Head-
lamps
10
2
Engine control unit/ ABS-ESP switchboard/ Auto-
matic gearbox/ Instrument panel/ Trailer switch-
board/ Light switch / Brake sensor/ Power
steering/ Right and left headlights
10
3
Airbag
5
4
Heating/ Reverse switch/ ASR-ESP switch/ Elec-
trochrome mirror/ Park Pilot/ Oil level sensor
5
5
Right xenon headlight
10
6
Left xenon headlight
10
7
Vaca n t
8
Trailer hook pre-installation assistant
5
9
Vaca n t
10
Vaca n t
11
Vaca n t
12
Central locking
15
13
Diagnosis/ Light switch/ Rain sensor/ Heated rear
window
10
14
Automatic gearbox / Heating/ Automatic gearbox
lever
10
15
Vaca n t
16
Vaca n t
17
Alarm
5
18
Kombi / levers with START STOP
5
19
Fog light aid
20
20
Navigation/radio with START STOP
15
21
Engine management
10
22
Fan switch
40
23
Electric windows (front)
30
24
Body Control Unit
20
25
Heated rear window
25
26
Rear electric windows
30
27
Engine (fuel control unit/pump relay)
15
28
Convenience controls
30
29
Vaca n t
30
Vaca n t
31
Vacu um pu m p
20
32
Vaca n t
33
Sunroof
25
34
Comfort switchboard/Central locking system
25
35
Vaca n t
36
Headlight washer system
20
37
Heated seats
30
38
Engine management
10
39
Telephone with START STOP
10
Number
Consumer
Amps
Leon_EN.book Seite 257 Mittwoch, 1. September 2010 6:16 18

If and when259
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Bulb changeGeneral notesBefore changing any bulb, first turn off the failed component.
Do not touch the bulb glass. Fingerprints vaporise in the heat, causing a
reduction in the bulb life and condensation on the mirror surface, thus
reducing efficiency.
A bulb should only be replaced by one of the sam e type. The type is inscribed
on the bulb, either on the glass part or on the base. It is highly recommended to keep a box of spare bulbs in the vehicle. At the
very least, the following spare bulbs, which are essential for road safety,
should be kept in the vehicle.
Main headlights
Dipped beam - H7
Main beam - H1
Position - W5W
Turn signal - PY21W
Xenon headlights
26)/adaptive*
Dipped and full beam - D1S
27)
Daylight - P21W SLL
Position - W5W
Turn signals - PY21W
Fog lights
Fog lights - HB4
Fixed tail light
Stop/Position - P21W
28)
Turn signal - P21W
23a)
Engine management
5
Engine management
10
Engine management
15
24
AKF, gearbox valve
10
25a)
ABS pump
40
26
Left lighting
30
27a)
Engine management
40
Engine management
50
28
Vaca n t
29a)
Electric windows (front and back)
50
Electric windows (front)
30
30
Ignition key
50
a)Ampere rating according to motorisationNumber
Consumer
Amps
26)On this type of headlight, the bulb changes must be made by the SEAT dealer, given
that complex elements must be removed from the vehicle and a reset must be made
on the automatic control system incorporated.27)The Xenon bulbs discharge 2.5 times the light flux and have an average lifespan of 5
times more than that of halogen bulbs, this means that, except due to unusual circum-
stances, there is no need to change the bulbs for the whole life of the vehicle.28)Electronically controlled single filament bulb for Stop/side bulbs. If the bulb blows it
will not work in either position or Stop.
Leon_EN.book Seite 259 Mittwoch, 1. September 2010 6:16 18

If and when261
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Turn signal bulbs– Raise the bonnet.
– Rotate the bulb holder ⇒fig. 164 to the left and pull.
– Remove the bulb by pressing on the bulb holder and rotating at the same time to the left.
– Installation is done in the reverse order.
Dipped beam headlights– Raise the bonnet
Fig. 164 Turn signal
AA
Fig. 165 Dipped beam
headlightsFig. 166 Dipped beam
headlights
Leon_EN.book Seite 261 Mittwoch, 1. September 2010 6:16 18

If and when263
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Side lights– Raise the bonnet.
– Remove the cover ⇒fig. 169 by pulling on this. – Extract the bulb holder
⇒fig. 170 outwards.
– Replace the bulb by pulling it out and inserting the replacement.
– Installation is done in the reverse order.
Ta i l l i g h t s•On the body
- Turn signal, side and brake light•On the tailgate
- Left side: side and fog lights.
- Right side: side and reverse.Turn signal, side and brake lights on the body
Fig. 169 Side lightsFig. 170 Side lights
AD
A1
Fig. 171 Turn signal, side
and brake lights on the
bodywork
Leon_EN.book Seite 263 Mittwoch, 1. September 2010 6:16 18

If and when265
Safety First
Operating Instructions
Practical Tips
Technical Specifications

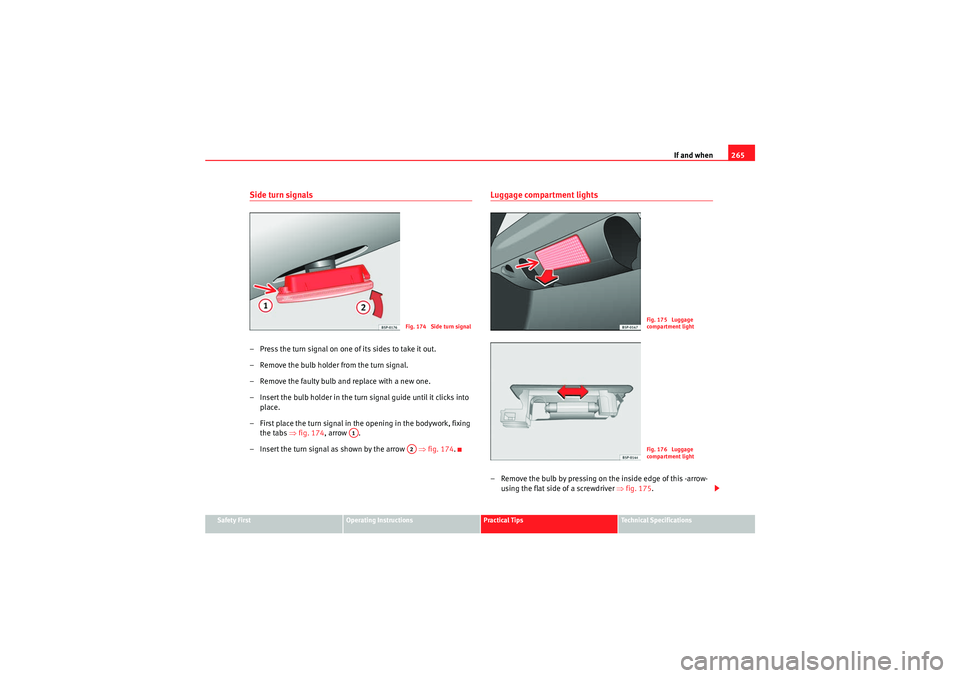

Side turn signals– Press the turn signal on one of its sides to take it out.
– Remove the bulb holder from the turn signal.
– Remove the faulty bulb and replace with a new one.
– Insert the bulb holder in the turn signal guide until it clicks into
place.
– First place the turn signal in the opening in the bodywork, fixing the tabs ⇒ fig. 174, arrow .
– Insert the turn signal as shown by the arrow ⇒fig. 174 .
Luggage compartment lights– Remove the bulb by pressing on the inside edge of this -arrow-
using the flat side of a screwdriver ⇒fig. 175 .
Fig. 174 Side turn signal
A1
A2
Fig. 175 Luggage
compartment lightFig. 176 Luggage
compartment light
Leon_EN.book Seite 265 Mittwoch, 1. September 2010 6:16 18

If and when267
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Sun visor light– Carefully remove the lamp, using the flat side of the screwdriver,
as shown in the figure ⇒fig. 180 . – Remove the bulb, moving it in the direction of the arrow and
outwards ⇒fig. 180 .
– Installation is done in the reverse order.
Jump-startingJump leads
The jump lead must have a su fficient wire cross section.If the engine fails to start because of a discharged battery, the battery can be
connected to the battery of another vehicle to start the engine.
Jump leads
Jump leads must comply with standard DIN 72553 (see manufacturer’s docu-
mentation). The wire cross section must be at least 25 mm
2 for petrol engines
and at least 35 mm
2 for diesel engines.
Note
•The vehicles must not touch each other, otherwise electricity could flow as
soon as the positive terminals are connected.•The discharged battery must be properly connected to the vehicle elec-
trical system.
Fig. 179 Removing sun
visor lightFig. 180 Removing sun
visor light
Leon_EN.book Seite 267 Mittwoch, 1. September 2010 6:16 18

If and when269
Safety First
Operating Instructions
Practical Tips
Technical Specifications
11. Turn on the heater blower and heated rear window in the vehicle
with the flat battery. This helps minimise voltage peaks which are
generated when the leads are disconnected.
12. When the engine is running, disconnect the leads in reverse order to the details given above.Connect the battery clamps so they have good metal-to-metal contact with
the battery terminals.
If the engine fails to start, switch off the starter after about 10 seconds and
try again after about half a minute.
WARNING
•Please note the safety warnings referring to working in the engine
compartment ⇒page 221, “Working in the engine compartment”.•The battery providing assistance must have the same voltage as the flat
battery (12V) and approximately the same capacity (see imprint on
battery). Failure to comply could result in an explosion.•Never use jump leads when one of the batteries is frozen. Danger of
explosion! Even after the battery has thawed, battery acid could leak and
cause chemical burns. If a battery freezes, it should be replaced.•Keep sparks, flames and lighted cigarettes away from batteries, danger
of explosion. Failure to comply could result in an explosion.•Observe the instructions provided by the manufacturer of the jump
leads.•Do not connect the negative cable from the other vehicle directly to the
negative terminal of the flat battery. The gas emitted from the battery could
be ignited by sparks. Danger of explosion.•Do not attach the negative cable from the other vehicle to parts of the
fuel system or to the brake line.
•The non-insulated parts of the battery clamps must not be allowed to
touch. The jump lead attached to the positive battery terminal must not
touch metal parts of the vehicle, this can cause a short circuit.•Position the leads in such a way that they cannot come into contact
with any moving parts in the engine compartment.•Do not bend over the batteries. This could result in chemical burns.Note
The vehicles must not touch each other, otherwise electricity could flow as
soon as the positive terminals are connected.
WARNING (continued)
Leon_EN.book Seite 269 Mittwoch, 1. September 2010 6:16 18

If and when271
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Do not pull too hard with the towing vehicle and take care to avoid jerking the
tow-rope. When towing on an unpaved road, there is always a risk of over-
loading and damaging the anchorage points.
The ignition of the vehicle being towed must be switched on to prevent the
steering wheel from locking and also to allow the use of the turn signals,
horn, windscreen wipers and washers.
As the brake servo does not work if the engine is not running, you must apply
considerably more pressure to the brake pedal than you normally would.
As the power assisted steering does not work if the engine is not running, you
will need more strength to steer than you normally would.
Towing vehicles with an automatic gearbox
•Put the selector lever into position “N”.•Do not drive faster than 50 km/h.•Do not tow further than 50 km.•If a breakdown vehicle is used, the vehicle must be towed with the front
wheels raised.Note
•Observe legal requirements when towing or tow-starting.•Switch on the hazard warning lights of both vehicles. However, observe
any regulations to the contrary.•For technical reasons, vehicles with an automatic gearbox must not be
tow-started.•If damage to your vehicle means that there is no lubricant in the gearbox,
you must raise the drive wheels while the vehicle is being towed.•If the vehicle has to be towed more than 50 km, the front wheels should
be raised during towing, and towing should be carried out by a qualified
person.
•The steering wheel is locked when the vehicle has no electrical power. The
vehicle must then be towed with the front wheels raised. Towing should be
carried out by a qualified person.•The towing eye should always be kept in the vehicle. Please refer to the
notes on ⇒page 270.
