Operating InstructionsCockpitOverviewOverview of the dash panel
This overview will help you to familiarise yourself with the
controls and displays.
Door release lever
Light switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Light dimmer for instrument panel lighting* . . . . . . . . . . . . .
Headlight range control* . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air vent
Lever for:
− turn signals/dipped beam . . . . . . . . . . . . . . . . . . . . . . . . . .
− cruise control* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument panel and warning lamps:
− Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
− Indicator lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Horn (only works when the ignition is on)/ and driver front
airbag* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Steering and starter lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lever for:
− windscreen wiper/washer . . . . . . . . . . . . . . . . . . . . . . . . . .
− rear window wiper/washer* . . . . . . . . . . . . . . . . . . . . . . . . .
− multifunction display* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Radio
Glove compartment/Storage compartment . . . . . . . . . . . . . .
Passenger airbag* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switches for:
−
Heating and ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . .
− Air conditioning* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
− Climatronic* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cigarette lighter / Power socket . . . . . . . . . . . . . . . . . . . . . . . .
Cup holder/Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Controls on the centre console:
− Hazard warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
− Airbag disconnection warning light* . . . . . . . . . . . . . . . . .
− ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
− Tyre pressure control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
− Heated rear window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
− Heated seats* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
− Central locking* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
− AUX connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Handbrake lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Gear lever
− automatic* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
− manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage space
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
A1A2
91
A3
93
A4
93
A5A6
97
154
A7
51
58
A8
27
A9
136
A10
100
100 54
A11A12
112
A13
30
A14
125
128
131
A15
116
A16
115
A17
96
28
161 65
95
110 77
118
A18
150
A19
143
142
A20A21
14
IbizaST_EN.book Seite 49 Dienstag, 14. September 2010 1:31 13

Steering column controls*71
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Audio Control
Fig. 39 Audio controls
Button
Short press
Radio
CD Audio
CD MP3/USB/iPod
a)
a)Only for MP3 compatible radios.*
AUX-IN
Vol u m e upVol um e d own
Cycle through source FM - AM - CD - FM...
Station search. Higher frequency
….
Next track
No function
Station search. Lower frequency
†.
Previous track
No function
Next preset
No function
Change folder (forward)
No function
Previous preset
No function
Change folder (back)
No function
AAABACADADAEAF
IbizaST_EN.book Seite 71 Dienstag, 14. September 2010 1:31 13

Steering column controls*
72Audio + Telephone Control

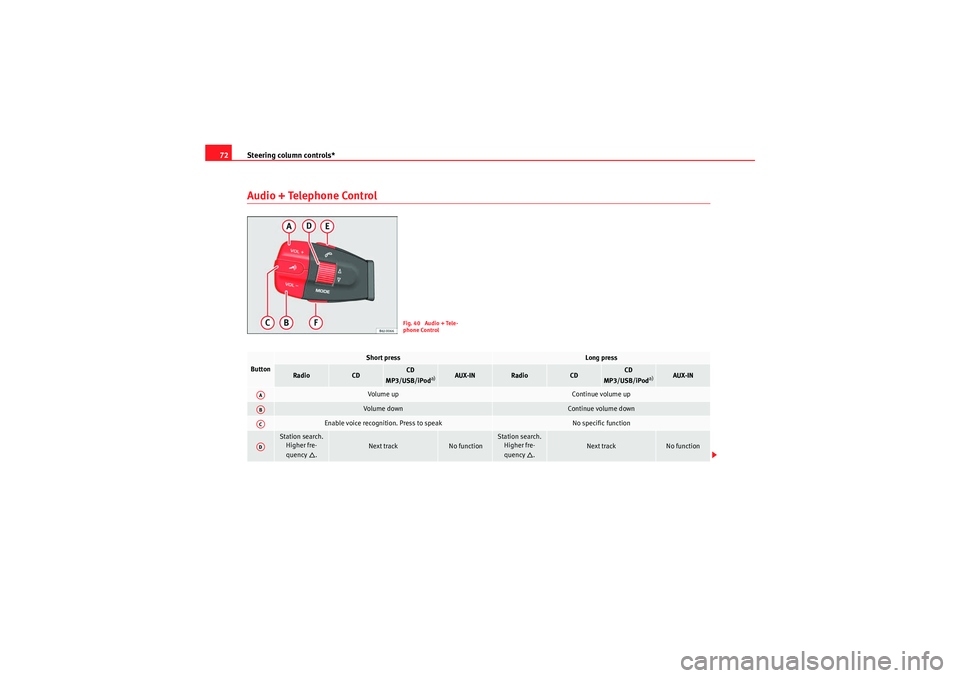

Fig. 40 Audio + Tele-
phone Control
Button
Short press
Long press
Radio
CD
CD
MP3/USB/iPod
a)
AUX-IN
Radio
CD
CD
MP3/USB/iPod
a)
AUX-IN
Vol um e up
Continue volume up
Volume down
Continue volume down
Enable voice recognition. Press to speak
No specific function
Station search. Higher fre-
quency
….
Next track
No function
Station search. Higher fre-
quency
….
Next track
No function
AAABACAD
IbizaST_EN.book Seite 72 Dienstag, 14. September 2010 1:31 13

Seats and storage compartments
118
Note•The power sockets will only work with the ignition on.•The use of electrical appliances with the engine switched off will cause a
battery discharge.Auxiliary audio input connection (AUX)*– Lift the AUX cover ⇒fig. 86 .
– Insert the plug as far as possible (see radio manual).
AUX/USB input connection* For information concerning the use of this equipment, please see the Radio
handbook.

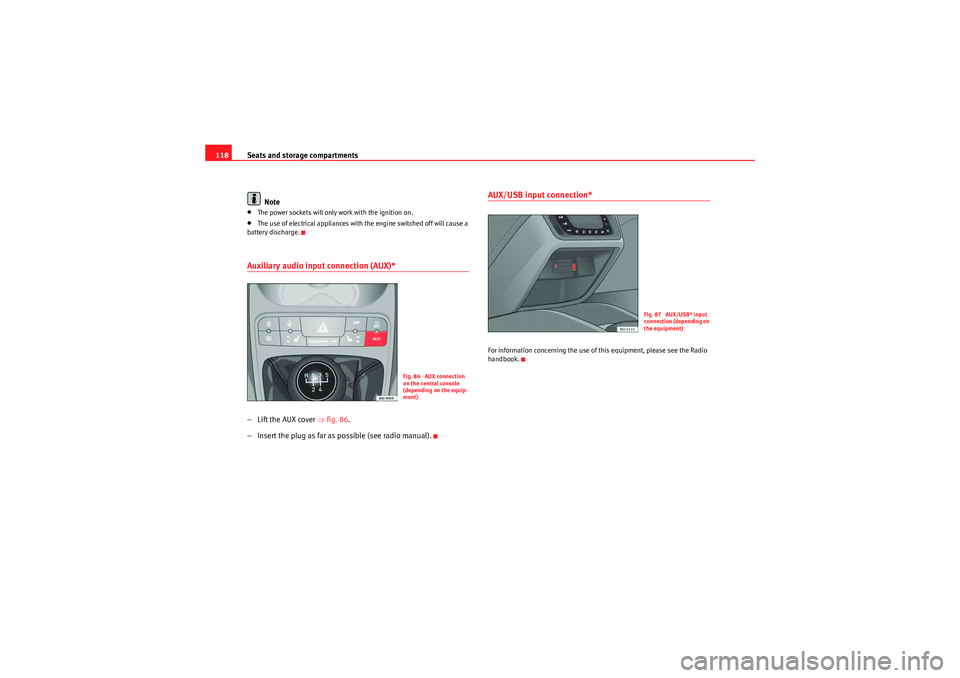

Fig. 86 AUX connection
on the central console
(depending on the equip-
ment)
Fig. 87 AUX/USB* input
connection (depending on
the equipment)
IbizaST_EN.book Seite 118 Dienstag, 14. September 2010 1:31 13

If and when221
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Fuses below steering wheel in relay holderPTC fuses
AUX 1 Fuses
AUX 3 Fuses
Fuses in engine compartment above batteryNon-metal fuses
Some of the electrical items listed in the table are only fitted on certain
models or are optional extras.
Please note that the above list contains all data at the time of going to press,
so it is subject to modifications.
56
Rear window wiper
10
57
Dipped beam headlight (right side)
15
58
Dipped beam headlight (left side)
15
Number
Consumer
Amps
1
Supplementary electrical heating using air
40
2
Supplementary electrical heating using air
40
3
Supplementary electrical heating using air
40
Number
Consumer
Amps
1
Dipped headlight (left side)
15
2
Dipped headlight (right side)
15
3
Headlight washer pump
20
Number
Consumer
Amps
1
Trailer control unit
15
2
Trailer control unit
20
3
Trailer control unit
20
Number
Consumer
Amps
Number
Consumer
Amps
1
ABS unit
25
2
Electroblower climate heater/fan
30
3
Climate fan
5
4
ABS unit
10
5
Electronic control unit
5
6
Injection module
30
Fig. 142 Fuses in engine
compartment
IbizaST_EN.book Seite 221 Dienstag, 14. September 2010 1:31 13
