2010 Seat Ibiza ST tow

If and when211
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Snow chains
For technical reasons, snow chains must
not be used on the compact tempo-
rary spare wheel.
If you have a puncture on one of the front wheels when using snow chains, fit
the compact temporary spare in place of one of the rear wheels. You can then
attach the snow chains to the wheel taken from the rear and use this wheel to
replace the punctured front wheel.
WARNING
•The tyre pressures must be checked and corrected as soon as possible.•Do not drive faster than 80 km/h. Higher speeds can cause an accident.•Avoid heavy acceleration, hard braking and fast cornering. Risk of acci-
dent.•Never use two or more compact spare tyres at the same time, risk of
accident.•No other type of tyre (normal summer or winter tyre) may be fitted on
the compact temporary spare wheel rim.
Tyre repair kit*
The tyre repair kit (for vehicles not including a spare wheel) is
stored under the floor panel in the luggage compartment.Your vehicle is equipped with the Tyre Mobility System “Tyre repair kit”.
The tyre repair kit consists of a container with sealing compound to repair the
puncture and a compressor to generate the required tyre pressure. The kit will
reliably seal punctures up to a size of about 4 mm caused by the penetration
of a foreign body into the tyre.
Note
•Seek professional assistance if the repair of a tyre puncture is not
possible with the sealing compound.Changing a wheelPreparation work
What you must do before changing a wheel.– If you have a flat tyre or puncture, park the vehicle as far away from the flow of traffic as possible. Choose a location that is as
level as possible.
– All passengers should leave the vehicle. They should wait in a safe area (for instance behind the roadside crash barrier).
– Switch the engine off. Switch the hazard warning lights on and place the warning triangles in position.
–Apply the handbrake firmly.
– Engage the first gear, or put the selector lever to position P for
those vehicles with an automatic gearbox.
– If you are towing a trailer, unhitch it from your vehicle.
– Take the vehicle tools and the spare wheel out of the luggage
compartment.
IbizaST_EN.book Seite 211 Dienstag, 14. September 2010 1:31 13

If and when
220
14
Left-hand AFS headlights
15
15
Right-hand AFS headlights
15
16
Vaca n t
17
Number plate light /Dimmer /Side light indicator
light
5
18
Dimmer
5
19
Electronic control unit
5
20
Turn signals
15
21
Lights control/ Instrument panel
5
22
Electronic control unit/ Heated mirrors
5
23
Engine injection module/ Rain sensor/ Auto-
matic gear lever/ Starter relay
7.5
24
Glove compartment light/ Luggage compartment
light/ Interior light
10
25
Parking aid
5
26
Towing hook
27
Vaca n t
28
Lambda probe
10
29
Engine power supply
20
30
Petrol engine operation
10
31
Petrol engine operation/Glow plugs/Relay
coil/Bi-turbo electric fan
10
32
Engine control unit
15
33
Clutch switch power supply/ Preheating relay/
Servo sensor
5
Number
Consumer
Amps
34
Fuel control unit / Bi-turbo engine supply
15
35
12V power socket in luggage compartment
15
36
Main beam headlight, right
10
37
Main beam headlight, left/Coming Home
10
38
Electric fan motor
30
39
Vaca n t
15
40
12 Volt Input/Cigarette lighter
15
41
Heated seats control unit / Cup Holder
25
42
Horn
20
43
Panorama sunroof
30
44
Windscreen wipers
20
45
Heated rear window
30
46
Radio / VDA telephone / Bluetooth / Steering
wheel controls / DC/DC converter for Start/Stop
20
47
Climatronic/autoclimate
5
48
Locking unit
25
49
Front electric window
30
50
Rear electric windows
30
51
Automatic gearbox control unit
30
52
Alarm/Volume sensor
15
53
Electro-kinetic pump relay/bi-turbo fuel control
unit
15
54
Reverse light for automatic gearbox/ Fog light
15
55
Transformer on
15
Number
Consumer
Amps
IbizaST_EN.book Seite 220 Dienstag, 14. September 2010 1:31 13

If and when
234Towing and tow-startingTo w - s t a r t i n g *
The use of jump leads is preferable to tow-starting.We recommend that you do not tow-start your vehicle. Jump-starting
is preferable ⇒ page 231.
However, if your vehicle has to be tow-started:
– Engage the 2nd or the 3rd gear.
– Keep the clutch pressed down.
– Switch the ignition on.
– Once both vehicles are moving, release the clutch.
– As soon as the engine starts, press the clutch and move the gear lever into neutral. This helps to prevent driving into the towing
vehicle.
WARNING
The risk of accidents is high when tow-starting. The vehicle being towed
can easily collide with the towing vehicle.
Caution
When tow-starting, fuel could enter the catalytic converter and damage it.
CommentsPlease observe the following points if you use a tow-rope:
Notes for the driver of the towing vehicle
– Drive slowly at first until the tow-rope is taut. Then accelerate gradually.
– Begin and change gears cautiously. If you are driving an auto- matic vehicle, accelerate gently.
– Remember that the brake servo and power steering are not working in the vehicle you are towing. Brake sooner than normal
and pressing the pedal gently.
Notes for the driver of the towed vehicle
– Ensure that the tow-rope remains taut at all times when towing.Tow-rope or tow-bar
It is easier and safer to tow a vehicle with a tow-bar. You should only use a
tow-rope if you do not have a tow-bar.
A tow-rope should be slightly elastic to reduce the loading on both vehicles.
It is advisable to use a tow-rope made of synthetic fibre or similarly elastic
material.
Attach the tow-rope or the tow-bar only to the towing eyes provided or a
towing bracket.
Driving style
Towing requires some experience, especially when using a tow-rope. Both
drivers should be familiar with the technique required for towing. Inexperi-
enced drivers should not attempt to tow.
IbizaST_EN.book Seite 234 Dienstag, 14. September 2010 1:31 13

If and when235
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Do not pull too hard with the towing vehicle and take care to avoid jerking the
tow-rope. When towing on an unpaved road, there is always a risk of over-
loading and damaging the anchorage points.
The ignition of the vehicle being towed must be switched on to prevent the
steering wheel from locking and also to allow the use of the turn signals,
horn, windscreen wipers and washers.
As the brake servo does not work if the engine is not running, you must apply
considerably more pressure to the brake pedal than you normally would.
As the power assisted steering does not work if the engine is not running, you
will need more strength to steer than you normally would.
Towing vehicles with an automatic gearbox
•Put the selector lever into position “N”.•Do not drive faster than 50 km/h.•Do not tow further than 50 km.•If a breakdown vehicle is used, the vehicle must be towed with the front
wheels raised.Note
•Observe legal requirements when towing or tow-starting.•Switch on the hazard warning lights of both vehicles. However, observe
any regulations to the contrary.•For technical reasons, vehicles with an automatic gearbox must not be
tow-started.•If damage to your vehicle means that there is no lubricant in the gearbox,
you must raise the drive wheels while the vehicle is being towed.•If the vehicle has to be towed more than 50 km, the front wheels should
be raised during towing, and towing should be carried out by a qualified
person.
•The steering wheel is locked when the vehicle has no electrical power. The
vehicle must then be towed with the front wheels raised. Towing should be
carried out by a qualified person.•The towing eye should always be kept in the vehicle.To w i n g e y e sFitting the towing eye
– Take the towing ring from the on-board tool set.
– Remove the front cover by pressing down on its left-hand side. For FR finishes, press down and pull outwards.
– Bolt the eye to its limit to the left, in the direction of the arrow
⇒ fig. 165 .
Fig. 165 Fitting the
towing eye to front rear of
the vehicle
IbizaST_EN.book Seite 235 Dienstag, 14. September 2010 1:31 13

If and when

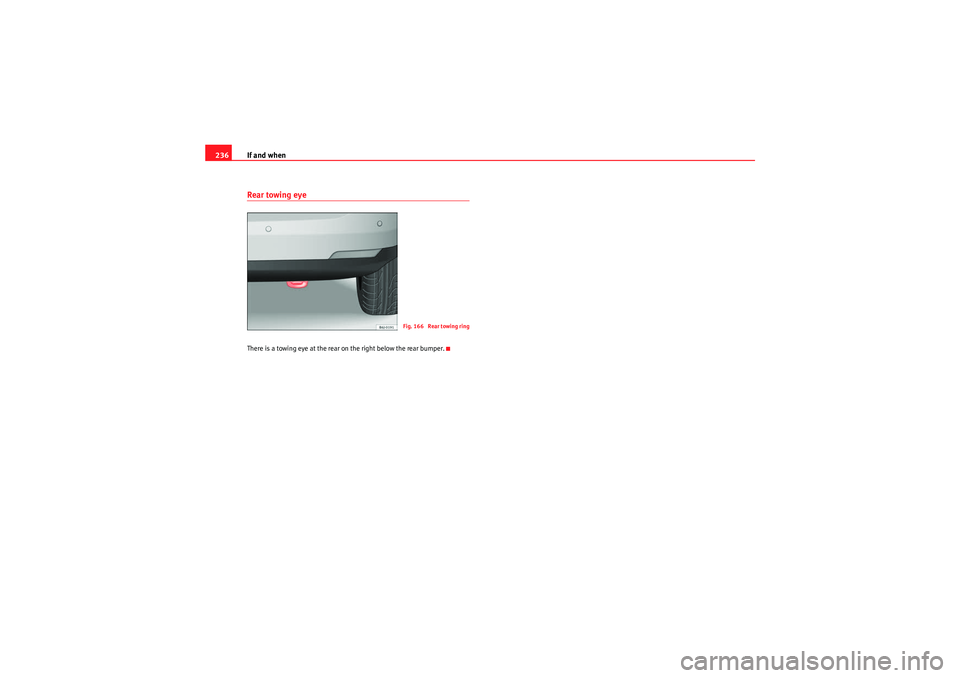

236Rear towing eyeThere is a towing eye at the rear on the right below the rear bumper.
Fig. 166 Rear towing ring
IbizaST_EN.book Seite 236 Dienstag, 14. September 2010 1:31 13

Description of specifications239
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Information on fuel consumptionFuel consumption
The consumption and emission details shown on the vehicle
data sticker differ from one vehicle to another.The fuel consumption and CO
2 emissions of the vehicle can be found on the
vehicle data sticker.
The fuel consumption and emissions figures given are based on the vehicle
weight category, which is determined according to the engine/gearbox
combination and the equipment fitted.
The consumption and emission figures are calculated in accordance with the
tests indicated in regulations 715/2007/EC and 692/2008/EC.
Note
•Actual consumption may vary from quoted test values, depending on
personal driving style, road and traffic conditions, the weather and the
vehicle condition.WeightsKerb weight refers to the basic model with a fuel tank filled to 90% capacity
and without optional extras. The figure quoted includes 75 kg to allow for the
weight of the driver.
For special versions and optional equipment fittings or for the addition of
accessories, the weight of the vehicle will increase ⇒.
WARNING
•Please note that the centre of gravity may shift when transporting
heavy objects; this may affect the vehicle’s handling and lead to an acci-
dent. Always adjust your speed and driving style to suit road conditions
and requirements.•Never exceed the gross axle weight rating or the gross vehicle weight
rating. If the allowed axle load or the allowed total weight is exceeded, the
driving characteristics of the vehicle may change, leading to accidents,
injuries and damage to the vehicle.
To w i n g a t r a i l e rTrailer weightsTrailer weight
The trailer weights and drawbar loads approved are selected in intensive
trials according to precisely defined criteria. The approved trailer weights are
valid for vehicles in the EU for maximum speeds of 80 km/h (in certain
circumstances up to 100 km/h). The figures may be different in other coun-
tries. All data in the official vehicle documents take precedence over these
data ⇒ .
Drawbar load
The maximum permitted drawbar load on the ball joint of the towing bracket
must not exceed 75 kg.
In the interest of road safety, we recommend that you always tow
approaching the maximum drawbar load. The response of the trailer on the
road will be poor if the drawbar load is too small.
IbizaST_EN.book Seite 239 Dienstag, 14. September 2010 1:31 13

Index
256Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Fog lights with cornering function . . . . . . . . . . . 94
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Description . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Front drink holder . . . . . . . . . . . . . . . . . . . . . . . 115
Front interior light . . . . . . . . . . . . . . . . . . . . . . . . 98
Front passenger airbag deactivation . . . . . . . . . 37
Front reading light . . . . . . . . . . . . . . . . . . . . . . . . 99
Front seat adjustment Lumbar support . . . . . . . . . . . . . . . . . . . . . . 109
Fuel Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Fuel level Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Fuel reserve Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 66
Fuel Tank Opening the fuel tank flap . . . . . . . . . . . . . 185
Fuel tank See Fuel reserve . . . . . . . . . . . . . . . . . . . . . . 66
Fuel: save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218GG 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Gear shift pattern . . . . . . . . . . . . . . . . . . . . . . . 142 General overview of the engine compartment 241
Glove compartment . . . . . . . . . . . . . . . . . . . . . . 112
Glow plug system . . . . . . . . . . . . . . . . . . . . . . . 139
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 62
GRA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
HHandbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150 Warning lamp . . . . . . . . . . . . . . . . . . . . 65, 151
Hazard warning lights . . . . . . . . . . . . . . . . . . . . . 96
HBA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Head restraints Adjusting . . . . . . . . . . . . . . . . . . . . . . . 107, 108
Adjustment of the head restraint angle . . . 108
Removing . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Headlight flashers . . . . . . . . . . . . . . . . . . . . . . . . 97
Headlight range control . . . . . . . . . . . . . . . . . . . 93
Headlights Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 169
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Headlight washer . . . . . . . . . . . . . . . . . . . . 103
Heated exterior mirrors* . . . . . . . . . . . . . . . . . . 104
Heated front seats . . . . . . . . . . . . . . . . . . . . . . . 110
Heated rear window Heating element wires . . . . . . . . . . . . . . . . 176
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Heating system . . . . . . . . . . . . . . . . . . . . . . . . . 126
High pressure cleaners . . . . . . . . . . . . . . . . . . . 174
Hill-start assist . . . . . . . . . . . . . . . . . . . . . . . . . 152
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 How to jump start description . . . . . . . . . . . . . 232
Hydraulic Brake Assist
Automatic hazard warning lights activation . . .159
IIdentification number . . . . . . . . . . . . . . . . . . . . 238
Identification plate . . . . . . . . . . . . . . . . . . . . . . 238
Ignition key . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Information in the multifunction display
Memory displays . . . . . . . . . . . . . . . . . . . . . . 54
Instrument and switch lighting . . . . . . . . . . . . . 93
Instrument lighting . . . . . . . . . . . . . . . . . . . . . . . 49
Instrument panel Service interval display . . . . . . . . . . . . . . . . 56
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Interior monitoring and anti-towing alarm* Activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . 44JJump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . 231KKeys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
IbizaST_EN.book Seite 256 Dienstag, 14. September 2010 1:31 13

Index259
Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Speed selector lever lock
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 66
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Starting Petrol engines . . . . . . . . . . . . . . . . . . . 138
Starting petrol engines . . . . . . . . . . . . . . . . . . . 138
Starting the engine . . . . . . . . . . . . . . . . . . . . . . 138 After the fuel tank has been run dry . . . . . . 139
Start-Stop Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Switching on and off . . . . . . . . . . . . . . . . . . 141
Steam jets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135 Steering lock . . . . . . . . . . . . . . . . . . . . . . . . 136
Steering column controls Audio Control . . . . . . . . . . . . . . . . . . . . . . . . . 70
Steering wheel height adjustment . . . . . . . . . . 135
Storage compartment . . . . . . . . . . . . . . . . . . . . 123 Front passenger side . . . . . . . . . . . . . . . . . . 112
front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Sun visor Sliding/tilting sunroof . . . . . . . . . . . . . . . . . . 89
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Switch Hazard warning lights . . . . . . . . . . . . . . . . . . 96
Heated rear window . . . . . . . . . . . . . . . . . . . . 95
Light switch . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Switches Electric windows . . . . . . . . . . . . . . . . . . . . . . 86
Sliding/tilting sunroof . . . . . . . . . . . . . . . . . . 89
Switching off the engine . . . . . . . . . . . . . . . . . . 139
TTailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84 Emergency opening . . . . . . . . . . . . . . . . . . . . 85
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 67
Tank Fuel level . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Reserve indicator . . . . . . . . . . . . . . . . . . . . . . 52
Tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . 52
TCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
TCS (Traction control system) Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 64
Technical modifications . . . . . . . . . . . . . . . . . . 181
The danger of not using the seat belt . . . . . . . . 20
Tightening torque of wheel bolts . . . . . . . . . . . 240
Tilting sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Top Tether system . . . . . . . . . . . . . . . . . . . . . . . . 45
Tow starting Comments . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Towing a trailer . . . . . . . . . . . . . . . . . . . . 169, 239
Towing bracket . . . . . . . . . . . . . . . . . . . . . . . . . 170
Towing bracket, fitting . . . . . . . . . . . . . . . . . . . 183
Towing eye . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Towing eyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Tow-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Traction control system Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 64 Trailer turn signals
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 97
Trailer weights . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Turn signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97 Indicator lamp . . . . . . . . . . . . . . . . . . . . . . . . 68
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 97
Two-way radio . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Tyre Mobility-System (Tyre repair kit) . . . . . . . . 211
Tyre pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 204 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 65
Tyre pressures . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Tyre repair kit . . . . . . . . . . . . . . . . . . . . . . 211, 216
Tyre-Mobility-System (Tyre repair kit) . . . . . . . . 216
Tyres and wheels Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 206
Tyres service life . . . . . . . . . . . . . . . . . . . . . . . . 205
Tyres tread depth . . . . . . . . . . . . . . . . . . . . . . . . 205
Tyres with directional tread pattern . . . . . . . . . 204
UUnderbody protection . . . . . . . . . . . . . . . . . . . . 178VVehicle battery . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Vehicle data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Vehicle identification data . . . . . . . . . . . . . . . . 238
Vehicle identification number . . . . . . . . . . . . . 238
Vehicle interior heating or cooling system . . . 129
Vehicle modifications . . . . . . . . . . . . . . . . . . . . 181
IbizaST_EN.book Seite 259 Dienstag, 14. September 2010 1:31 13
