2010 Seat Ibiza ST engine

Cockpit69
Safety First
Operating Instructions
Practical Tips
Technical Specifications
The instrument panel displays the following message
6):
SAFE . The vehicle
cannot be started in this case
The engine can, however, be started if the appropriate coded SEAT genuine
key is used.
Note
A perfect operation of the vehicle can only be ensured if genuine SEAT keys
are used.6)Depending on the model version.
IbizaST_EN.book Seite 69 Dienstag, 14. September 2010 1:31 13

Unlocking and locking79
Safety First
Operating Instructions
Practical Tips
Technical Specifications
KeysSet of keys
The set of keys includes a remote control, a key without a
remote control and a plastic key tab*The set of keys may consists of the following, depending on the version of
your vehicle:•a remote control key ⇒fig. 43 •a key without remote control ,•a plastic key tab* .
or•two keys without remote control •a plastic key tab* . Duplicate keys
If you need a replacement key, go to an Authorised Service Centre with your
vehicle identification number.
WARNING
•An incorrect use of the keys can cause serious injuries.•Never leave children or disabled persons in the vehicle. In case of emer-
gency, they may not be able to leave the vehicle and not manage on their
own.•An uncontrolled use of the key could start the engine or activate any
electric equipment (e.g. electric windows), causing risk of accident. The
doors can be locked using the remote control key. This could make the aid
difficult in an emergency situation.•Never forget the keys inside the vehicle. An unauthorised use of your
vehicle could result in injury, damage or theft. Always take the key with you
when you leave the vehicle.•Never remove the key from the ignition if the vehicle is in motion.
Otherwise, the steering could suddenly block and it would be impossible
to turn the steering wheel.Caution
There are electronic components in the remote control key. Avoid wetting and
hitting the keys
Fig. 43 Set of keys
AAAB
AC
AB
AC
IbizaST_EN.book Seite 79 Dienstag, 14. September 2010 1:31 13

Unlocking and locking81
Safety First
Operating Instructions
Practical Tips
Technical Specifications
•Never leave children or disabled persons in the vehicle. In case of emer-
gency, they may not be able to leave the vehicle and not manage on their
own.•Never forget the keys inside the vehicle. Otherwise, this could result in
serious injuries, accidents or even the theft of your vehicle. Always take the
key with you when you leave the vehicle.•An uncontrolled use of the key could start the engine or activate any
electric equipment (e.g. electric windows), causing risk of accident. The
vehicle can be locked when using the remote control key. This could
complicate the aid in case of emergency.Note
•The remote control key functions only when you are within range
⇒ page 80, fig. 45.•If the vehicle cannot be unlocked or locked by using the radio-frequency
remote control, the remote control key will have to be re-synchronised. For
this, go to your Technical Service.Changing the batteryIf the battery indicator does not flash when the buttons are pushed, the
battery must be replaced.
Caution
The use of inappropriate batteries may damage the radio frequency remote
control. For this reason, always replace the dead battery with another of the
same size and power.
For the sake of the environment
Used batteries must be disposed of at an appropriate waste facility or
through an authorised service, given that their components can affect the
environment.Synchronising the remote control key
If it is not possible to unlock or lock the door with the remote
control, it should be re-synchronised.While the vehicle is open:
– Press the button ⇒page 80, fig. 44 on the remote control.
– Then close the vehicle using the key bit within one minute.
While the vehicle is closed:
– Press the button ⇒page 80, fig. 44 on the remote control.
– Then close the vehicle using the key bit within one minute.It is possible that the vehicle could no longer be opened and closed with the
remote control if the button is repeatedly pressed outside of the effective
range of the radio frequency remote control. The remote control key will have
to be resynchronised.
Spare remote control keys are available in your Authorised Service Centres,
where they must be matched to the locking system.
Up to five remote control keys can be used.
WARNING (continued)

A2

A1
IbizaST_EN.book Seite 81 Dienstag, 14. September 2010 1:31 13

Unlocking and locking
86Windows Opening or closing the windows electrically*
The front and rear electric windows can be operated by using
the controls on the driver door. The other doors each have a
switch for their own window.Opening and closing the windows
– Press the button to open the window.
– Pull button to close the window ⇒.Always close the windows fully if you park the vehicle or leave it unattended
⇒.
You can use the electric windows for approx. 10 minutes after switching off
the ignition if neither the driver door nor the front passenger door has been
opened and the key has not been removed from the ignition. Buttons on the driver door
Button for window in front left door
Button for window in front right door
Safety switch for deactivating the electric window buttons in the rear
doors
Button for window in rear left door
Button for window in rear right door
Safety switch
*
Safety switch on the driver door can be used to disable the electric
window buttons in the rear doors.
Safety switch not pressed: buttons on rear doors are activated.
Safety switch pressed: buttons on rear doors are deactivated.
WARNING
•Incorrect use of the electric windows can result in injury.•Never close the tailgate without observing and ensuring it is clear, to do
otherwise could cause serious injury to you and third parties. Make sure
that no one is in the path of a window.•Always take the vehicle key with you when you leave the vehicle.•Never leave children or disabled persons in the vehicle, particularly if
they have access to the keys. The misuse of the keys, for example, by chil-
dren, may result in serious injury and accident.•The engine may accidentally be started and be out of control.•If the ignition is switched on, the electric equipment could be activated
with risk of injury, for example, in the electric windows.•The doors can be locked using the remote control key. This could make
the aid difficult in an emergency situation.•Always take the key with you when you leave the vehicle.
Fig. 49 Detail of the
driver door: controls for
the front and rear
windows
p
p
A1A2A3A4A5
A3
IbizaST_EN.book Seite 86 Dienstag, 14. September 2010 1:31 13

Unlocking and locking
90•Never leave children or disabled persons in the vehicle, particularly if
they have access to the keys. Unsupervised use of a key could mean that
the engine is started or that electrical equipment is used (e.g. electric
tilting sunroof) with a risk of accident. The doors can be locked using the
remote control key. This could make the aid difficult in an emergency situ-
ation.•The tilting sunroof continues to function until one of the front doors is
opened and the key removed from the ignition.•Ensure that no object and/or end is between the glass and the sunroof
when the one-touch opening/closing function is reset.
Convenience closing* Using the door lock
– Hold the key in the door lock of the driver door in the locking position until the tilting sunroof is closed.
– Release the key to interrupt this function.
Using the remote control
– Push the lock button on the remote control for about 3 seconds. The tilting sunroof closes.
– Press the unlock button to interrupt the function.
Roll-back function of the panorama/ tilting sunroof*The panorama/ tilting sunroof has a roll-back function which prevents larger
objects getting trapped when the roof is closed. The roll-back function does
not prevent fingers getting pinched against the roof opening. The tilting
sunroof stops and opens again immediately if it is obstructed when closing.Operation in case of breakdown
In case of a breakdown, the sunroof may be closed manually.– Remove the plastic cover by inserting a screwdriver into the rear section.
– Insert an Allen key (4 mm) into the opening as far as possible and close the sunroof.
WARNING (continued)
Fig. 51 Emergency opera-
tion of the panorama/
tilting sunroof
IbizaST_EN.book Seite 90 Dienstag, 14. September 2010 1:31 13

Lights and visibility95
Safety First
Operating Instructions
Practical Tips
Technical Specifications
– Close the doors.
– Push the headlight lever to the main beam position
.
– Open the driver door.
In vehicles with start-stop and/or automatic headlight system
As soon as the driver door is opened, the system will switch on the dipped
lights for 30 seconds. If the door is closed during this 30-second period, the
dipped lights will stay on (from this moment) for 15 seconds.
For all other vehicles
You have 2 minutes from the moment the key is taken out of the ignition
switch to when the lights flash; after this, the Coming home function will not
activate. To activate it again, repeat the operation.
When the system is activated, dipped beam headlights remain on for 30
seconds after closing the door. If the door is open for more than 3 minutes,
the system will not remain active after the 3 mins., which means that the
dipped lights will not light up.
Note
•If the vehicle is often used during the night for short trips and the Coming
home function is used, the battery will considerably discharge. To avoid this,
make longer journeys whenever possible.•Observe all relevant legal requirements when using the signalling and
lighting systems described here.
Heated rear window
=
The heated rear window only works when the engine is running. When it is
switched on, a lamp lights up on the switch.
After approx. 8 minutes, the heating device of the rear window switches off
automatically.
For the sake of the environment
The heated rear window should be disconnected as soon as the glass is
demisted. By saving electrical power you can also save fuel.
Note
To avoid possible damage to the battery, an automatic temporary disconnec-
tion of this function is possible, coming back on when normal operating
conditions are re-established.
Fig. 56 Centre console:
heated rear window
switch
IbizaST_EN.book Seite 95 Dienstag, 14. September 2010 1:31 13

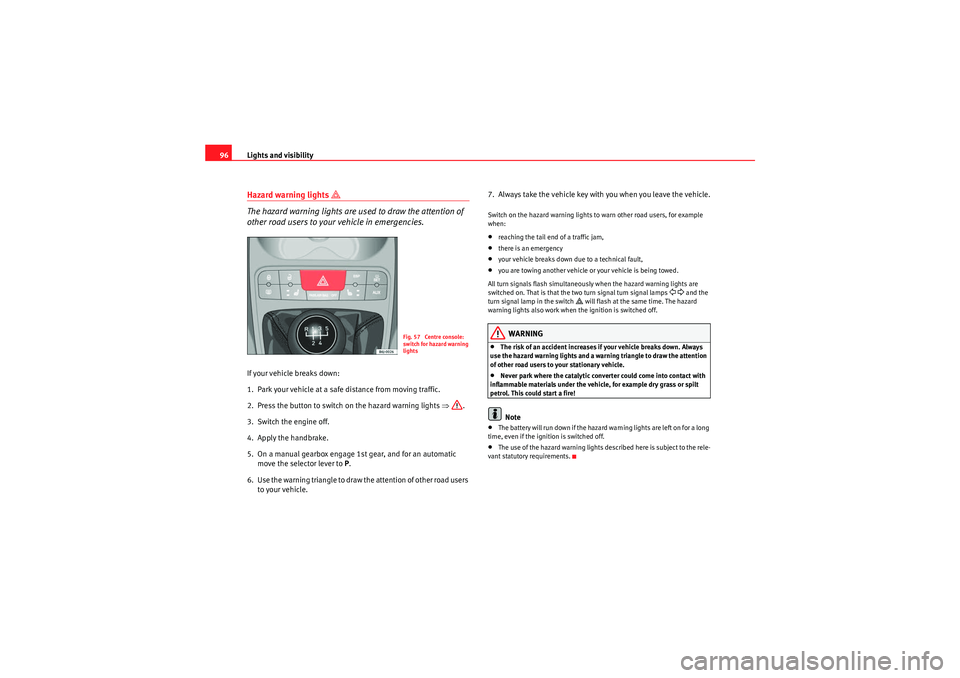

Lights and visibility
96Hazard warning lights

The hazard warning lights are used to draw the attention of
other road users to your vehicle in emergencies.
If your vehicle breaks down:
1. Park your vehicle at a safe distance from moving traffic.
2. Press the button to switch on the hazard warning lights ⇒.
3. Switch the engine off.
4. Apply the handbrake.
5. On a manual gearbox engage 1st gear, and for an automatic move the selector lever to P.
6. Use the warning triangle to draw the attention of other road users to your vehicle. 7. Always take the vehicle key with you when you leave the vehicle.
Switch on the hazard warning lights to warn other road users, for example
when:•reaching the tail end of a traffic jam,•there is an emergency•your vehicle breaks down due to a technical fault,•you are towing another vehicle or your vehicle is being towed.
All turn signals flash simultaneously when the hazard warning lights are
switched on. That is that the two turn signal turn signal lamps

and the
turn signal lamp in the switch
 will flash at the same time. The hazard
warning lights also work when the ignition is switched off.
WARNING
•The risk of an accident increases if your vehicle breaks down. Always
use the hazard warning lights and a warning triangle to draw the attention
of other road users to your stationary vehicle.•Never park where the catalytic converter could come into contact with
inflammable materials under the vehicle, for example dry grass or spilt
petrol. This could start a fire!Note
•The batter y will run down if the hazard warn ing lights are left on for a long
time, even if the ignition is switched off.•The use of the hazard warning lights described here is subject to the rele-
vant statutory requirements.
Fig. 57 Centre console:
switch for hazard warning
lights
IbizaST_EN.book Seite 96 Dienstag, 14. September 2010 1:31 13

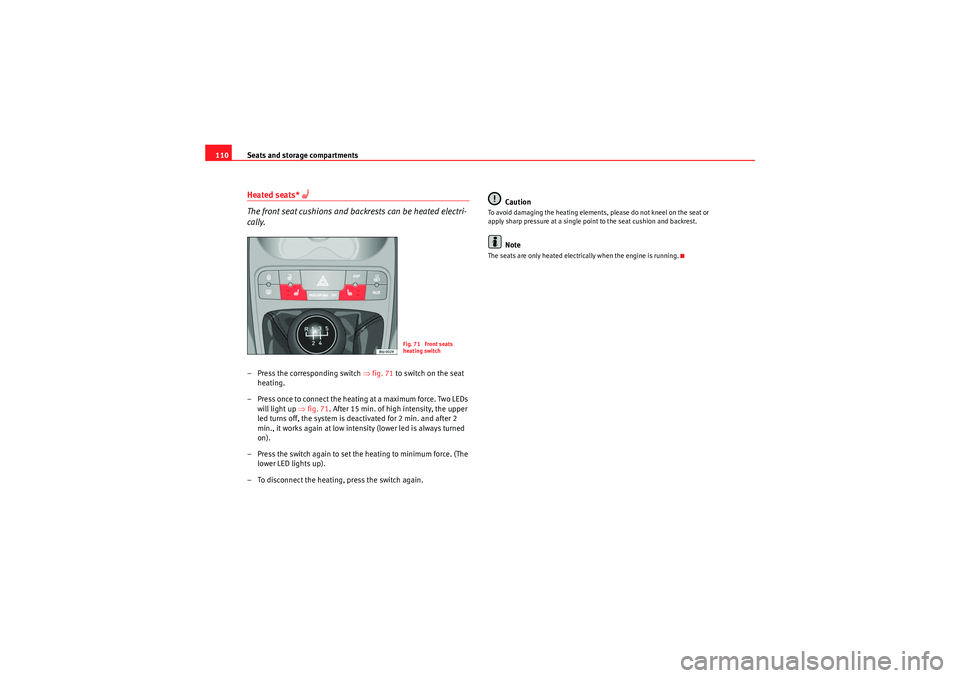

Seats and storage compartments
110Heated seats*
A
The front seat cushions and backrests can be heated electri-
cally.
– Press the corresponding switch ⇒fig. 71 to switch on the seat
heating.
– Press once to connect the heating at a maximum force. Two LEDs will light up ⇒fig. 71 . After 15 min. of high intensity, the upper
led turns off, the system is deactivated for 2 min. and after 2
min., it works again at low intensity (lower led is always turned
on).
– Press the switch again to set the heating to minimum force. (The lower LED lights up).
– To disconnect the heating, press the switch again. Caution
To avoid damaging the heating elements, please do not kneel on the seat or
apply sharp pressure at a single point to the seat cushion and backrest.
Note
The seats are only heated electrically when the engine is running.
Fig. 71 Front seats
heating switch
IbizaST_EN.book Seite 110 Dienstag, 14. September 2010 1:31 13
